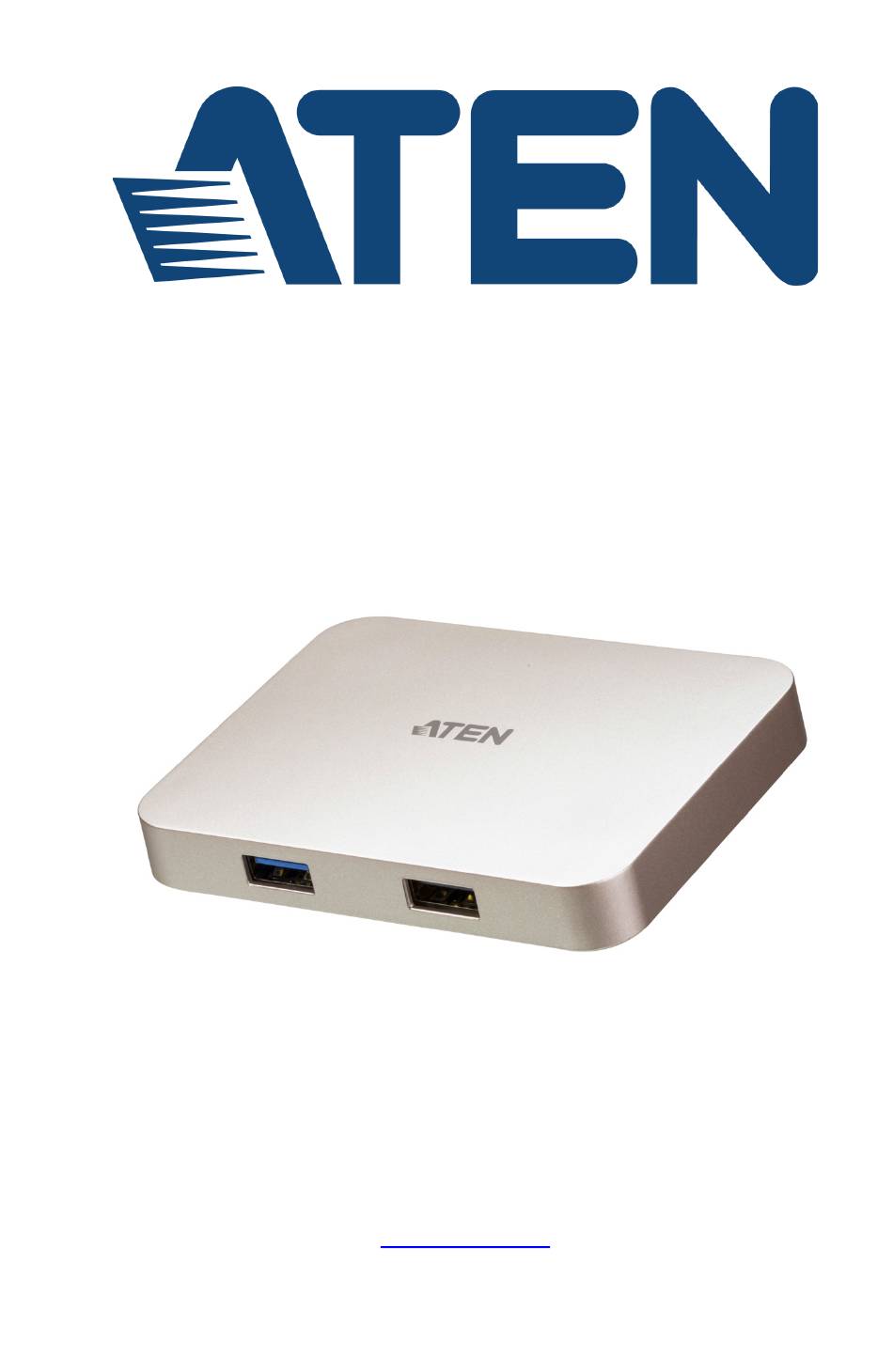

- Page 1 UH3235 USB-C 4K Ultra Mini Dock with Power Pass-Through User Manual www.aten.com...
-
Page 2: Emc Information
UH3235 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 3: User Information
UH3235 User Manual User Information Online Registration Be sure to register your product at our online support center: International http://eservice.aten.com Telephone Support For telephone support, call this number: International 886-2-8692-6959 China 86-400-810-0-810 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988... -
Page 4: Package Contents
UH3235 User Manual Package Contents 1 USB-C 4K Ultra Mini Dock with Power Pass-Through 1 USB-C Cable 1 User Instructions Note: Make sure that all of the components are present and in good order. If anything is missing or was damaged in shipping, contact... -
Page 5: Table Of Contents
UH3235 User Manual Table of Contents EMC Information ..........ii RoHS. -
Page 6: About This Manual
UH3235 User Manual About this Manual This user manual is provided to help you get the most from the UH3235 unit. It covers all aspects of installation, configuration, and operation. An overview of the information found in the manual is provided below. -
Page 7: Conventions
Indicates critical information. Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 8 UH3235 User Manual This Page Intentionally Left Blank viii...
-
Page 9: Introduction

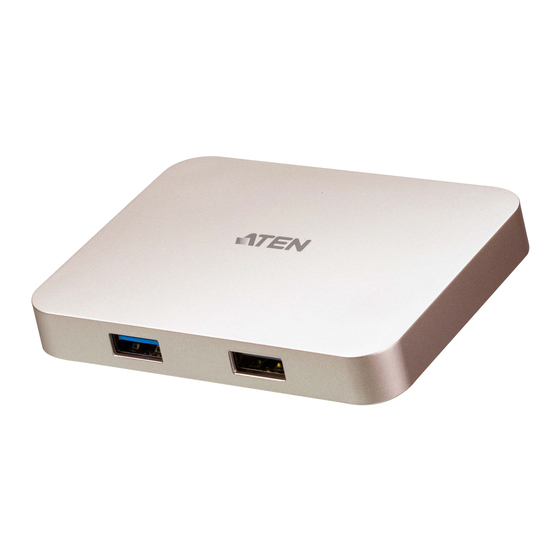

Introduction Overview The UH3235 is a 4-in-1 multifunctional USB-C mini dock that features a USB 2.0 Type-A, USB 3.2 Gen 1 Type-A, HDMI and a USB-C DC-in port. With its wide range of compatibility, the UH3235 can support different operation systems such as PC, Mac, iPad Pro, Android Smartphone, and USB-C game console. -
Page 10: Features
UH3235 User Manual Features A multifunctional USB-C mini dock for laptop, smartphone and USB-C Game Console Supports USB Power Delivery 2.0 for charging up to 60W (additional USB-C PD power adapter is needed) Supports 4K resolutions – up to 3840 x 2160 @ 30Hz Note: USB-C Game Console only supports 1920 x 1080 @ 60Hz. -
Page 11: Declaration
- For video output to work through a USB-C port, it must support DP Alt Mode. Declaration Samsung Dex is a registered application of Samsung Electronics. UH3235 is not manufactured, sponsored, licensed or distributed by Samsung Electronics. Huawei Desktop mode is a registered application of Huawei Technologies. -
Page 12: Components
UH3235 User Manual Components Component Description HDMI Output Connects an HDMI monitor for video display. Port USB-C Host Connects to the host’s USB-C port. Port USB-C DC-in Connects the power adapter of the host to power the unit. Port* USB 3.2 Gen 1 Connect a USB peripheral device. -
Page 13: Hardware Setup
Please review the safety information regarding the placement of this device in Safety Instructions, page 7. Connecting the Unit Follow the steps below to connect the UH3235 unit. UH3235 (Front) UH3235 (Rear) 1. Plug an HDMI monitor to the HDMI Output Port of the unit. - Page 14 UH3235 User Manual 3. Connect USB peripheral devices to the USB 3.2 Gen 1 and USB 2.0 ports of the unit. Note: USB-C Game Console only supports video output. 4. (Optional) Connect a USB-C power adapter to the USB-C DC-in Port.
-
Page 15: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 16 UH3235 User Manual extension cord ampere rating. Make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or uninterruptible power supply (UPS).
-
Page 17: Technical Support
Troubleshooting http://www.aten-usa.com/support Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 1-949-428-1111 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 18: Specifications
UH3235 User Manual Specifications Function UH3235 Computer Connections Cable Length 50 cm Connectors Computer 1 x USB-C Female (Black) Device 1 x USB 2.0 Type A Female (Black) 1 x USB 3.2 Gen1 Type A Female (Blue) Note: 1. Supports max. 5V, 0.3A output. - Page 19 Appendix Function UH3235 System Requirements 1. Windows 10 and above, USB-C enabled computer with DP Alt Mode Note: For more information about CPU generation, please go to https://www.intel.com/content/www/us/en/ processors/processor-numbers.html. 2. Mac OS X 10.12 and above, USB-C enabled computer 3. Android 8.0 and later, USB-C enabled Smartphone /...
-
Page 20: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
