VSR-4 Connectors and Indicators
This section deals with the various physical features, connectors, and indicators of the VSR-4.
Front Panel Controls and Features

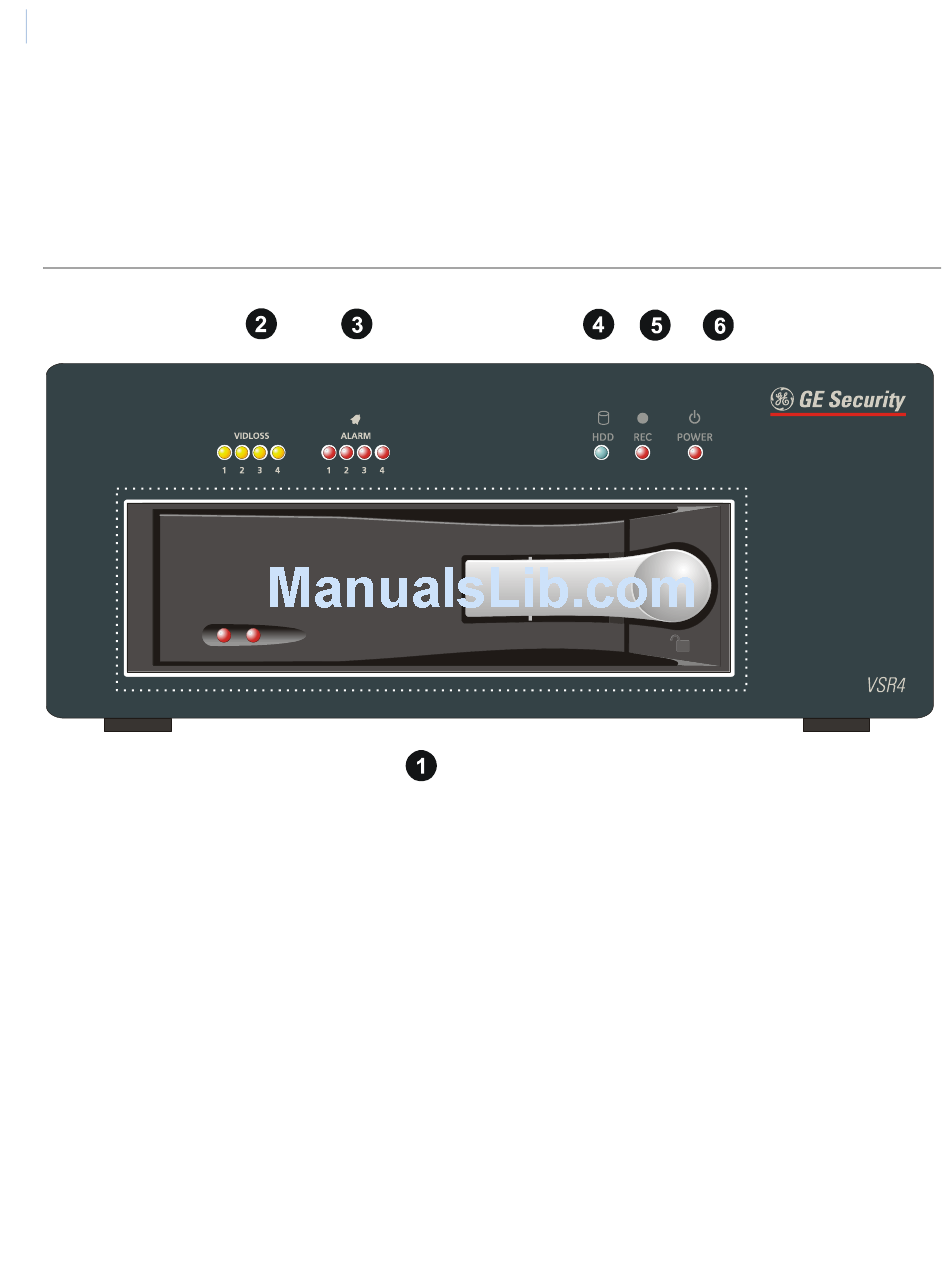

Figure 2. Front Panel: VSR-4-300 shown
1. Removable Hard Drive (certain models only): Pull the latch, unlock with key and slide the hard
drive out.
2. Video Loss LEDs: Indicates video loss on analog video channels.
3. Alarm LEDs: Indicates an alarm condition on analog video channels.
4. Hard Drive activity LED: Indicates hard drive activity.
5. Record LED: Indicates when the unit is recording.
6. Power LED: Indicates ON/OFF power condition.
