VSR Connectors and Indicators

This section deals with the various physical features, connectors, and indicators of the VSR.

Front Panel Controls and Features

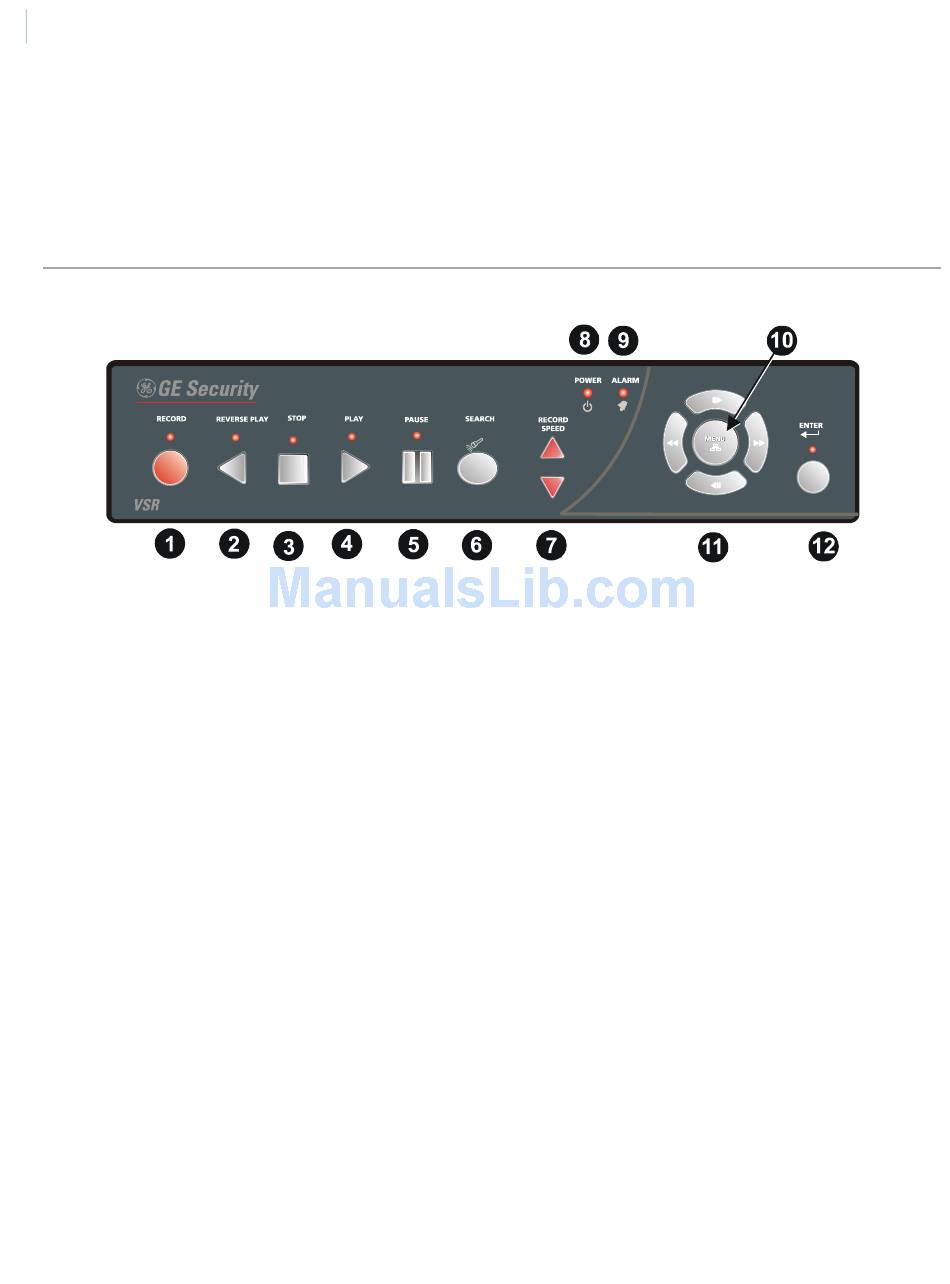

Figure 2. Front Panel: VSR-300
1. Record button: Press this button to begin recording.
2. Reverse play button: Press this button to playback video in reverse at the normal record speed.
3. Stop button: Press this button to stop Recording or Playback.
4. Play Forward button: Press this button to playback video at the normal record speed.
5. Pause button: Press this button to pause playback.
6. Search button: Press this button to enter the Search Filters menu.
7. Increase and Decrease Record Speed buttons: Press these buttons to increase or decrease the Record
Speed.
8. Power On Indicator: Indicates power is on when LED is lit.
9. Alarm Indicator: Indicates an alarm condition when the LED is lit.
10. Menu Button: Provides access to on-screen menus.
11. Arrow Buttons: Controls Playback speed and menu selections.
12. Enter Button: Confirms selection in menus.
