66
VSR-4
User Manual
messages. For more information on video streaming, see the
from the following menu options:
•
Streaming Enable: Select from Disable, Receiver, or Sender.
•
Streaming Protocol: Select from UDP or TCP.
•
Streaming IP Address: Select the IP Address of the unit that you want to connect with. If you set up
your unit as a receiver, then the IP address you enter should be the IP address of the sender.
•
Streaming Port: Select the port for the stream. 8090 is the default. Contact your company's IS
professional for available ports.
•
IP Map for Network Camera 5: Select the IP address of the IP camera if connected.

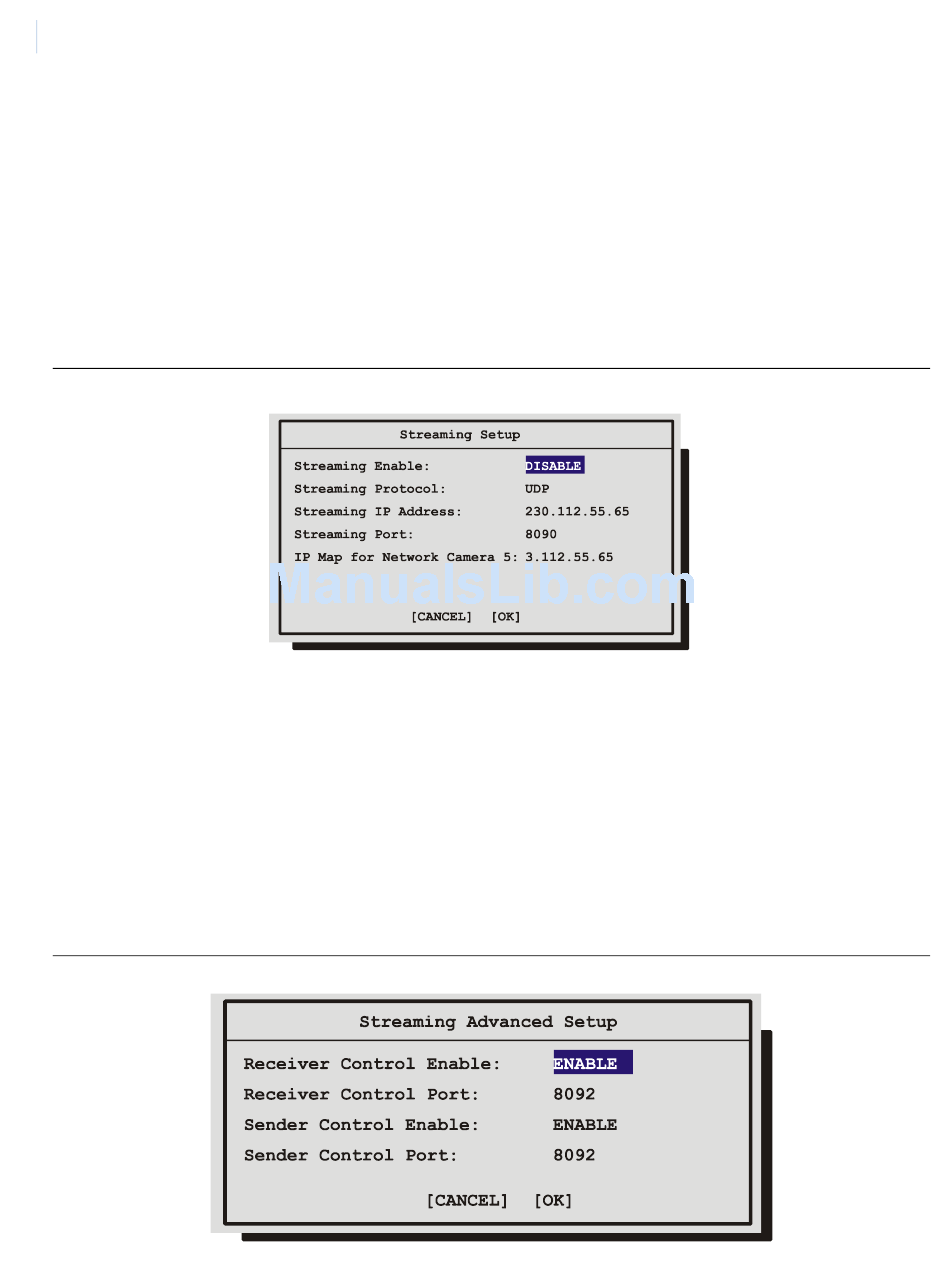

Figure 74. Streaming settings menu
Advanced Menu / Communications / Streaming Advanced
Use this menu to configure the receiver and sender control settings. Both the receiver and senders settings must
match exactly. Select from the following menu options:
•
Receiver Control Enable: Select from Enable or Disable.
•
Receiver Control Port: Select the receiver control port. 8092 is the default. Contact your company's
IS professional for available ports.
•
Sender Control Enable: Select from Enable or Disable.
•
Sender Control Port: Select the port for the stream. 8092 is the default. Contact your company's IS
professional for available ports.
Figure 75. The streaming advanced setup menu
Streaming Video Overview
on page 22. Select
