16 VSR-4
User Manual
17. Connection Type Menu: Use this menu to select between RS232 or Ethernet connection.
18. Address Menu: Select from a list of found VSR addresses or COM ports if RS232 is selected as the
connection type.
19. Ethernet Serial Number: Enter the unit's Ethernet serial number. The default is 1111.
20. Connect/Disconnect Button: Click this button to connect the VSR address selected.

The VSR Keyboard Menu Bar

The following menus are available on the menu bar.
The File Menu
The file menu contains the exit command. Click on this command to exit the VSR Keyboard. You can also exit
by holding down the Ctrl key and pressing x (Ctrl-X).
The Tools Menu
The tools menu contains the options window. This tabbed window has commands for automatically
discovering units on you network and adding them to the drop-down address list.

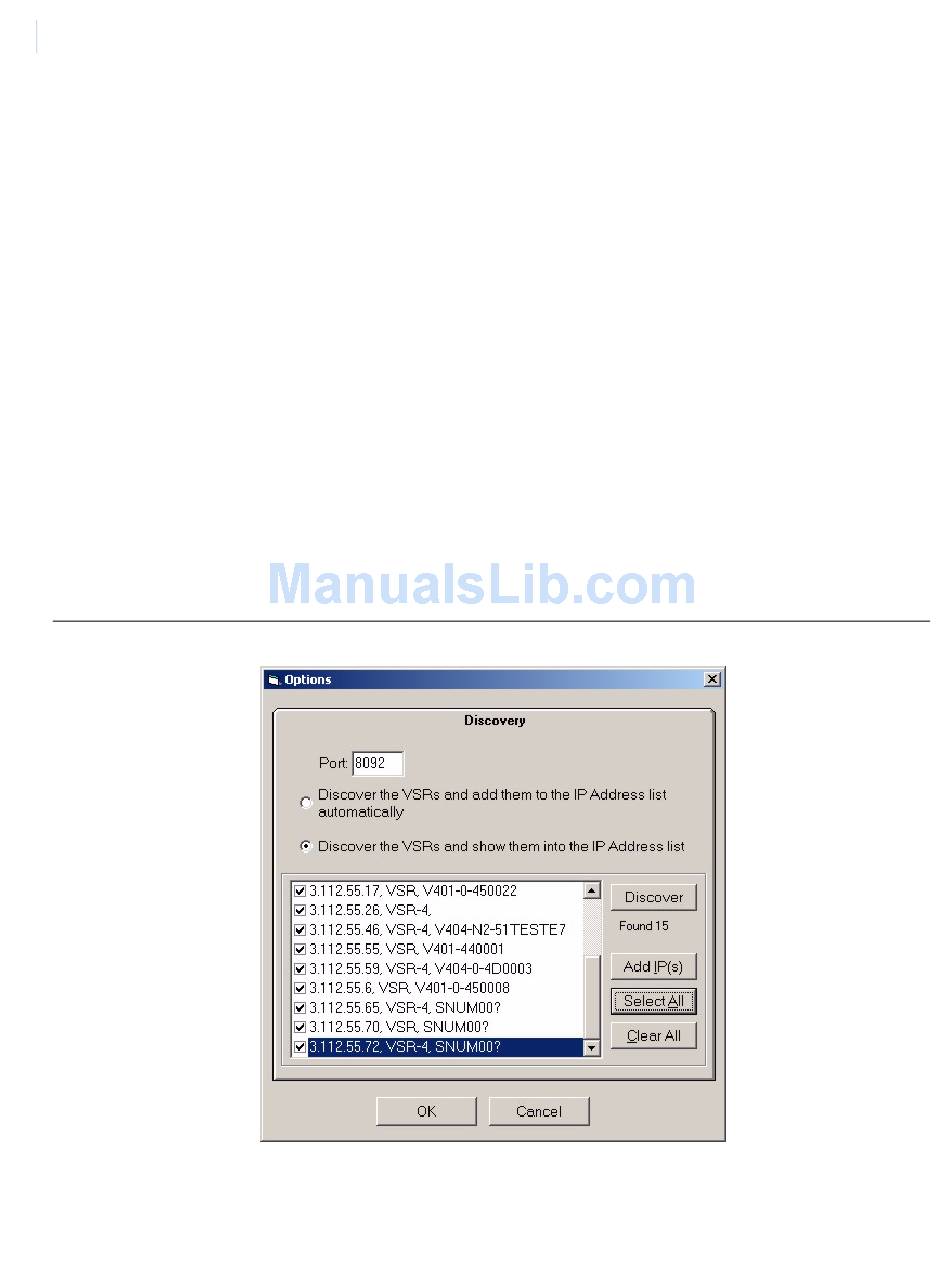

Figure 7. The discovery tab in the options window
The Ethernet Settings tab contains commands for obtaining and storing a VSR's ethernet information. You can
also ping the unit, reboot the unit, and launch the web page. When this window first appears only the Read and
Reboot buttons are enabled.
