Page 1 Signamax™ Connectivity Systems Model 065-7841 24-Port 10/100/100BaseT/TX Layer 2 Plus Managed Switch With 4 SFP Dual Media Ports User’s Manual...
Page 3: Signamax Connectivity Systems
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Signamax Connectivity Systems 065-7841 24-Port 10/100/1000BaseT/TX L2 Plus Managed Switch with 4 SFP Dual Media Ports User's Manual Release 1.0 Publication date: March 2010 Revision 1.0...
Page 4 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch © 2010, Signamax, Inc.. All rights reserved. All brand and product names are trademarks or registered trademarks of their respective companies Publication date: March 2010 Revision 1.0...
Page 5 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch The information in this document is subject to change without notice. Unless the explicit written permission of Signamax, Inc., this document in whole or in part shall not be replicated or modified or amended or transmitted, in any from, or by any means manual, electric, electronic, electromagnetic, mechanical, optical or otherwise for any purpose.
Page 6 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch DISCLAIMER. EXCEPT AS PROVIDED ABOVE, THE SOFTWARE IS PROVIDED “AS IS ” AND MANUFACTURE AND ITS LICENSORS MAKE NO WARRANTIES, EXPRESS OR IMPLIED, WITH REPSECT TO THE SOFTWARE AND DOCUMENTAITON. MANUFACTURE AND ITS LICENSORS DISCLAIM ALL OTHER WARRANTIES, INCLUSIVE OF WITHOUT LIMITATION, IMPLIED WARRANTIES OR MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT.
Page 7: Table Of Contents
........22 2-1-3-3. Switch Cascading in Topology ..............23 2-1-4. Configuring the Management Agent of 065-7841 ...........26 2-1-4-1. Configuring the Management Agent of 065-7841 through the Serial RS- 232 Port .........................26 2-1-4-2. Configuring the Management Agent of 065-7841 through the Ethernet Port ............................28...
Page 8 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3-6. Management VLAN ..................76 3-4. MAC ........................77 3-4-1. Mac Address Table ..................77 3-4-2. Static Filter....................79 3-4-3. Static Forward ....................80 3-4-4. MAC Alias ....................80 3-4-5. MAC Table....................82 3-5. GVRP........................83 3-5-1. Config......................83 3-5-2.
Page 9 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-16-2 Email ......................194 3-17. DHCP S ....................195 NOOPING 3-17-1. DHCP Snooping State ................195 3-17-2. DHCP Snooping Entry ................196 3-17-3. DHCP Snooping Client ................197 3-18. LLDP........................199 3-18-1 . LLDP State....................199 3-18-2 . LLDP Entry....................201 3-18-3 .
Page 10: Revision History
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Revision History Release Date Revision 01/20/2010 Publication date: March 2010 viii Revision 1.0...
Page 11: Caution
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge.
Page 12: Warning
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Warning: Self-demolition of this Product is strictly prohibited. Damage caused by self- • demolition will be charged for repair at then-prevailing fees. Do not place product outdoors or where sandstorms occur.
Page 13 In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the 065-7841 through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step. Many explanation in detail of hardware and software functions are shown as well as the examples of the operation for web-based interface and command-line interface (CLI).
Page 14: Introduction
1. Introduction 1-1. Overview of the Signamax 065-7841 Signamax Connectivity Systems’ 065-7841, a 24-port Layer 2 Gigabit Managed Switch, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switch includes 20-Port 10/100/1000 Mbps TP and 4- Port Gigabit TP/SFP Fiber management Ethernet switch.
Page 15 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch • • • • Key Features in the Device QoS: Supports Quality of Service by the IEEE 802.1p standard. There are four priority queues and two packet transmission schedules available per port.
Page 16 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch messages. However, when acting as the proxy, the system performs the host portion of the IGMP task on the upstream interface as follows: When queried, sends group membership reports to the •...
Page 17: Checklist
Please notify your sales representative immediately if any of the aforementioned items is missing or damaged. 1-3. Features The 065-7841, a standalone off-the-shelf switch, provides the comprehensive features listed below for users to perform system network administration and efficiently and securely serve your network.
Page 18 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch • Maximal packet length can be up to 9600 bytes for jumbo frame application • Supports DHCP Broadcasting Suppression to avoid network suspension or crashes • Supports sending of a trap event while monitored events are happening •...

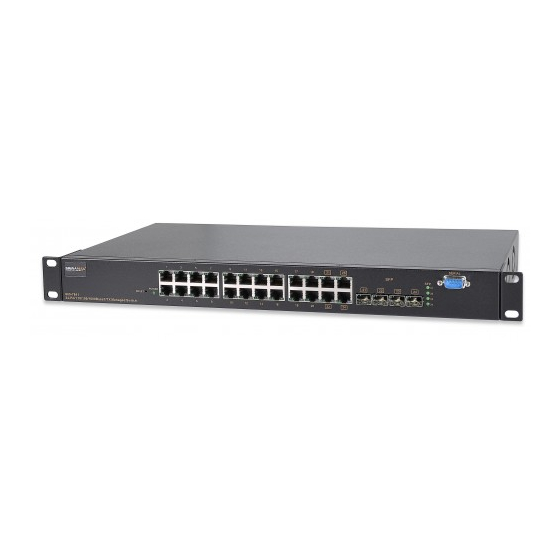

Page 19: Full View Of 065-7841
065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 1-4. Full View of 065-7841 Fig. 1-1 Full View of the 065-7841 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 24 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional removable modules on the front panel of the switch.
Page 20: Ac Power Input On The Rear Panel
Off when module connection is not good Table1-1 1-4-2. AC Power Input on the Rear Panel One socket on the rear panel is for AC power input. AC Line 100-240V 50/60 Hz Fig. 1-3 Rear View of the 065-7841 Publication date: March 2010 Revision 1.0...
Page 21: View Of The Optional Modules
110 km *** 79EZXMG 1550 nm * WDM Bi-Di SFP modules are also available. Please call Signamax for information. ** Maximum distances attainable on multimode Gigabit Ethernet fiber circuits are primarily dependent upon multimode distortion, also known as modal dispersion. Larger aperture fiber optic cable allows more modes to be generated at the launch point;...
Page 22: Installation
⇒ Be sure that the power switch is OFF before you insert the power cord to the power source • • • • Install Optional SFP Fiber Transceivers in the 065-7841 Note: If you have no modules, please skip this section.
Page 23 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch • TP Port and Cable Installation ⇒ In the switch, the TP ports support MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP;...
Page 24: Installing Chassis To A 19-Inch Wiring Closet Rail
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail Fig. 2-2 Caution: Allow a proper spacing and proper air ventilation for the cooling fan at both sides of the chassis.
Page 25: Switch Cascading In Topology
 Gigabit Fiber with BiDi LC 1550 nm SFP module  The following table lists the types of fiber that Signamax currently supports; please inquire for thoseconfigurations not listed here. They are available upon request as a Special Order. Multimode Fiber Cable and Modal Bandwidth Multimode 62.5/125µm...
Page 26 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Sum up all elements’ bit-time delay and the overall bit-time delay of wires/devices must be within Round Trip Delay (bit times) in a half-duplex network segment (collision domain). For full-duplex operation, this will not be applied. You may use the TP-Fiber module to extend the TP node distance over fiber optic and provide the long haul connection.
Page 27 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3. The switch manager has to assign different names for each VLAN groups at one switch. Case 2b: Port-based VLAN (See Fig.2-5). Fig. 2-5 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members.
Page 28: Configuring The Management Agent Of 065-7841
RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch. You can reach them through the following procedures: Section 2-1-4-1: Configuring the Management Agent of 065-7841 through the Serial RS-232 Port...
Page 29 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Note: The switch’s serial port default settings are listed as follows: Baud rate 115200 Stop bits Data bits Parity Flow control none When you complete the connection, then press <Enter> key. The login prompt will be shown on the screen.
Page 30: Configuring The Management Agent Of 065-7841 Through The Ethernet Port
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-4-2. Configuring the Management Agent of the 065-7841 through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here.
Page 31: Ip Address Assignment
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
Page 32 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Bit # 01 2 15 16 Network address Host address Class C: IP address range between 192.0.0.0 and 223.255.255.255. Each class C network has a 24-bit network prefix followed 8-bit host address. There are 2,097,152 (2^21)/24 networks able to be defined with a maximum of 254 (2^8 –2)
Page 33 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Not all IP address is available in the sub-netted network. Two special addresses are reserved. They are the addresses with all zero’s and all one’s host number. For example, an IP address 128.1.2.128, what IP address reserved will be looked like? All 0s mean the network itself, and all 1s mean IP broadcast.
Page 34 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch According to the scheme above, a subnet mask 255.255.255.0 will partition a network with the class C. It means there will have a maximum of 254 effective nodes existed in this sub-netted network and is considered a physical network in an autonomous network.
Page 35: Typical Applications
065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 2-2. Typical Applications The 065-7841 implements 24 Gigabit Ethernet TP ports with auto MDIX and four slots for the removable module supporting comprehensive fiber types of connection, including LC and BiDi-LC SFP modules. For more details on the specification of the switch, please refer to Appendix A.
Page 36 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 2-13 is a system wide basic reference connection diagram. This diagram demonstrates how the switch connects with other network devices and hosts. Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection Publication date: March 2010 Revision 1.0...
Page 37: Operation Of Web-Based Management
065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3. Operation of Web-based Management This chapter instructs you how to configure and manage the 065-7841 through the web user interface it supports, to access and manage the 22-Port 10/100/1000 Mbps TP and 2-Port Gigabit TP/SFP Fiber management Ethernet switch.
Page 38 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch To optimize the display effect, we recommend you use Microsoft IE 6.0 above, Netscape V7.1 above or FireFox V1.00 above and have the resolution 1024x768. The switch supported neutral web browser interface.
Page 39: Web Management Home Overview
Mac Address”, “Device Port”, “RAM Size” , “Flash Size” and “CPU Load”. With this information, you will know the software version used, MAC address, serial number, how many ports good and so on. This is helpful while malfunctioning. 065-7841 065-7841 Fig. 3-2 Publication date:Jan., 2010...
Page 40 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch • • • • The Information on the Page Layout On the top side, it shows the front panel of the switch. In the front panel, the  linked ports will display green; as to the ports, which are link off, they will be dark.
Page 41 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Root System Port VLAN GVRP SNMP IP MAC Binding 802.1X Trunk MSTP Mirroring Multicast Alam DHCP Snooping LLDP Save/Restore Export/ Import Diagnostics Maintenance Logout Publication date: March 2010 Revision 1.0...
Page 42: System Information
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-1. System Information Function name: System Information Function description: Show the basic system information. 065-7841 065-7841 Fig. 3-4 Parameter description: Model name: The model name of this device. System description: As it is, this tells what this device is.
Page 43 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch The time accumulated since this switch is powered up. Its format is day, hour, minute, second. Current time: Show the system time of the switch. Its format: day of week, month, day, hours : minutes : seconds, year.
Page 44: Account Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-2. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity.
Page 45: Time Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second” within the valid value range indicated in each item. If you...
Page 46 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Hour = 0, Minute = 0, Second = 0 NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a...
Page 47 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23. Default: 0 Publication date: March 2010 Revision 1.0...
Page 48: Ip Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-4. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device.
Page 49 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
Page 50 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet.
Page 51: Loop Detection
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-5. Loop Detection The loop detection is used to detect the presence of traffic. When switch receives packet’s(looping detection frame) MAC address the same as oneself from port, show Loop detection happens. The port will be locked when it received the looping detection frames.
Page 52: Management Policy
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-6. Management Policy Through the management security configuration, the manager can do a strict setup to control the switch and limit the user’s access to this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
Page 53 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Function name: Management Security Configuration Function description: The switch offers Management Security Configuration function. With this function, the manager can easily control the mode that the user connects to the switch. According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those who are unable to connect to the switch (Deny).
Page 54 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch A name is composed of any letter (A-Z, a-z) and digit (0-9) with maximal 8 characters. VID: The switch supports two kinds of options for managed valid VLAN VID, including “Any” and “Custom”. Default is “Any”. When you choose “Custom”, you can fill in VID number.
Page 55: System Log
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-7. System Log The System Log provides information about system logs, including information when the device was booted, how the ports are operating, when users logged in, when sessions timed out, as well as other system information.
Page 56: Virtual Stack
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-1-8. Virtual Stack Function name: Virtual Stack Function description: Virtual Stack Management(VSM) is the group management function. Through the proper configuration of this function, switches in the same LAN will be grouped automatically.
Page 57 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: State: It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option.
Page 58: Port Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
Page 59 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: Speed: Set the speed and duplex of the port. In speed, if the media is 1Gbps fiber, it is always 1000 Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000 Mbps, and duplex mode, full duplex and half duplex.
Page 60: 3-2-2.Port Status
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-2.Port Status The function Port Status gathers the information of all ports’ current status and reports it by the order of port number, media, link status, port state, Auto- Negotiation status, speed/duplex, Rx Pause and Tx Pause. An extra media type information for the module ports 21 and 24 is also offered (See Fig.
Page 61 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Display the speed and duplex of all port. There are three speeds 10 Mbps, 100 Mbps and 1000 Mbps supported for TP media, and the duplex supported is half duplex and full duplex. If the media is 1Gbps fiber, it is 1000 Mbps supported only.
Page 62 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description of Port 21 ~ Port 24: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so Fiber Type: Display the fiber mode, for instance, Multimode, Single-Mode.
Page 63: Simple Counter
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-15, the window can show all ports’ counter information at the same time.
Page 64 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Transmit:: Number of bad packets transmitted. Receive: Number of bad packets received. Drops Transmit:: Number of packets transmitted drop. Receive: Number of packets received drop. Auto-refresh: The simple counts will be refreshed automatically on the UI screen.
Page 65: Detail Counter
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-16, the window can show only one port counter information at the same time.
Page 66 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Show the counting number of the received broadcast packet. Rx Multicast: Show the counting number of the received multicast packet. Tx Packets: The counting number of the packet transmitted. TX Octets: Total transmitted bytes.
Page 67 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Tx 1024-Bytes: Number of 1024-max_length-byte frames in good and bad packets transmitted. Rx CRC/Alignment: Number of Alignment errors and CRC error packets received. Rx Undersize: Number of short frames (<64 Bytes) with valid CRC.
Page 68: Power Saving
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-2-5. Power Saving The function of Power Saving and provides the Power saving for reducing the power consumption with the two "ActiPHY Power Management" and "PerfectReach Power Management" techniques. It allows efficient use of the switch’s power and reduces the overall power consumption.
Page 69: Vlan
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3. VLAN The switch supports Tag-based VLAN (802.1Q) and Port-based VLAN Support 4094 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
Page 70: Tag-Based Group
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups, You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit>...
Page 71 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Please click on <Add new VLAN> to create a new Tag-based VLAN. Input the VLAN name as well as VID, configure the SYM-VLAN function and choose the member by ticking the check box beside the port No., then, press the <Apply>...
Page 72 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-20-1 c. You need to assign these ports for member of port isolation. Fig. 3-20-2 d. Press the “Save” to complete the PVLAN configuration process. Publication date: March 2010...
Page 73: Port-Based Group
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3-3. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit>...
Page 74 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Delete Group: Just press the <Delete> button to remove the selected group entry from the Port-based group table. Fig. 3-23 Publication date: March 2010 Revision 1.0...
Page 75: Ports
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3-4. Ports Function name: VLAN Port Configuration Function description: In VLAN Tag Rule Setting, user can input a VID number to each port. The range of VID numbers is from 1 to 4094. User also can choose ingress filtering rules to each port.
Page 76 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch receives an untagged packet, the switch will apply the PVID (assume as VID y) of port x to tag this packet, the packet then will be forwarded as the tagged packet with VID y.
Page 77: Port Isolation
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3-5. Port Isolation Function name: Port Isolation Function description: Port Isolation provides for an apparatus and method to isolate ports on layer 2 switches on the same VLAN to restrict traffic flow. The apparatus comprises a switch having said plurality of ports, each port configured as a protected port or a non-protected port.
Page 78: Management Vlan
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-3-6. Management VLAN Function name: Management VLAN Function description: To assign a specific VLAN for management purpose. Fig. 3-25 Parameter description: VID: Specific Management VLAN ID. Publication date: March 2010...
Page 79: Mac
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-4. MAC MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static Forward, Static Filter and MAC Alias, which cannot be categorized to some function type. They are described below.
Page 80 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Enable this port MAC address dynamic learning mechanism. Disable: Disable this port MAC address dynamic learning mechanism, only support static MAC address setting. Secure: Disable this port MAC address dynamic learning mechanism and copy...
Page 81: Static Filter
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-4-2. Static Filter Function name: Static Filter Function Description: Static Filter is a function that denies the packet forwarding if the packet’s MAC Address is listed in the filtering Static Filter table. User can very easily maintain the table by filling in MAC Address, VID (VLAN ID) and Alias fields individually.
Page 82: Static Forward
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-4-3. Static Forward Function Name: Static Forward Function Description: Static Forward is a function that allows the user in the static forward table to access a specified port of the switch. Static Forward table associated with a specified port of a switch is set up by manually inputting MAC address and its alias name.
Page 83 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report.
Page 84: Mac Table
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-4-5. MAC Table Function name: MAC Table Function Description: Display the static or dynamic learning MAC entry and the state for the selected port. Fig. 3-30 Parameter description: Alias: MAC alias name you assign.
Page 85: Gvrp
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-5. GVRP GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application.
Page 86 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 20 –100 centisecond, Default: 20 centisecond. Leave Time: Used to declare the Leave Time in unit of centisecond. Valid time range: 60 –300 centisecond, Default: 60 centisecond. Leave All Time: A time period for announcement that all registered device is going to be de-registered.
Page 87 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Disabled: In this mode, the switch dynamic VLAN will be created when this port received GVRP PDU. The default setting is Normal. Enabled: In this mode, the switch does not create a dynamic VLAN when this port received a GVRP PDU.
Page 88: Counter
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-5-2. Counter Function name: GVRP Counter Function description: All GVRP counters are divided into two categories, Received and Transmitted, to let you monitor the GVRP actions. Actually, they are GARP packets.
Page 89 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application. Transmitted: Total GVRP Packets: Total GARP BPDU is transmitted by the GVRP application. Invalid GVRP Packets: Number of invalid GARP BPDU is transmitted by the GVRP application.
Page 90: Group
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-5-3. Group Function name: GVRP Group VLAN Information Function description: To show the dynamic group member and their information. Fig. 3-33 Parameter description: VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID.
Page 91: Qos(Quality Of Service) Configuration
065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-6. QoS(Quality of Service) Configuration The 065-7841 supports four QoS queues per port with strict or weighted fair queuing scheduling. There are 24 QoS Control Lists (QCL) for advance programmable QoS classification, based on IEEE 802.1p, Ethertype, VID, IPv4/IPv6 DSCP and UDP/TCP ports and ranges.
Page 92 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: Number of Classes: 1 / 2 / 4 Port: User can choose the port (1~24) respectively with Priority Class on Per Port Priority function. Default Class: User can set up High Priority or Low Priority for each port respectively.
Page 93: Qos Control List
QoS Control List Configuration Function description: The 065-7841 supports four QoS queues per port with strict or weighted fair queuing scheduling. There are 24 QoS Control Lists (QCL) for advance programmable QoS classification, based on IEEE 802.1p, Ether Type, VID, IPv4/IPv6 DSCP and UDP/TCP ports and ranges.
Page 94 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-36 Fig. 3-37 Fig. 3-38 Fig. 3-39 Publication date: March 2010 Revision 1.0...
Page 95 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-40 Fig. 3-41 Fig. 3-42 Publication date: March 2010 Revision 1.0...
Page 96 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Parameter description: QCL#: QCL number : 1~24 QCE Type: Ethernet Type / VLAN ID / UDP/TCP Port / DSCP / ToS / Tag Priority Ethernet Type Value: The configurable range is 0x600~0xFFFF. Well known protocols already assigned EtherType values.
Page 97 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch (unicast). MPLS, Multi-Protocol Label Switching 0x8848 (multicast). PPPoE, PPP Over Ethernet (Discovery 0x8863 Stage). PPPoE, PPP Over Ethernet (PPP Session 0x8864 Stage). 0x88BB LWAPP, Light Weight Access Point Protocol. 0x88CC LLDP, Link Layer Discovery Protocol.
Page 98: 3-6-3.Rate Limiters
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-6-3.Rate Limiters Function name: Rate Limit Configuration Function description: Each port includes an ingress policer, and an egress shaper, which can limit the bandwidth of received and transmitted frames. Ingress policer or egress shaper operation is controlled per port in the Rate Limit Configuration.
Page 99: 3-6-4.Storm Control
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-6-4.Storm Control Function name: Storm Control Configuration Function description: The switch support storm ingress policer control function to limit the Flooded, Multicast and Broadcast to prevent storm event happen. Fig. 3-44...
Page 100: 3-6-5.Wizard
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-6-5.Wizard Function name: Wizard Function description: The QCL configuration Wizard is targeted on user can easy to configure the QCL rules for QoS configuration. The wizard provide the typical network application rules, user can apply these application easily.
Page 101 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-46 Set up Port Policies Parameter description: QCL ID: QoS Control List (QCL): 1~24 Port Member: Port Member: 1~24 Fig. 3-47 Set up Port Policies Parameter description: Wizard Again: Click on the <Wizard Again>...
Page 102 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-48 Set up Port Policies Finish Fig. 3-49 Set up Typical Network Application Rules Fig. 3-50 Set up Typical Network Application Rules Publication date: March 2010 Revision 1.0...
Page 103 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-51 Set up Typical Network Application Rules Parameter description: Audio and Video: QuickTime 4 Server / MSN Messenger Phone / Yahoo Messenger Phone / Napster / Real Audio Games:...
Page 104 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-52 Set up Typical Network Application Rules Parameter description: QCL ID: QCL ID Range: 1~24 Traffic Class: There are four classes: Low / Normal / Medium / High Fig. 3-53 Set up Typical Network Application Rules Publication date: March 2010 Revision 1.0...
Page 105 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-54 Set up Typical Network Application Rules Finish Fig. 3-55 Set up Typical Network Application Rules Finish Fig. 3-56 Set up Typical Network Application Rules Finish Parameter description: Publication date: March 2010...
Page 106 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch QCL #: QoS Control List (QCL): 1~24 Fig. 3-57 Set up TOS Precedence Mapping Parameter description: QCL ID: QoS Control List (QCL): 1~24 TOS Precedence 0~7 Class: Low / Normal / Medium / High Fig.
Page 107 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-59 Set up TOS Precedence Mapping Finish Fig. 3-60 Set up VLAN Tag Priority Mapping Parameter description: QCL ID: QoS Control List (QCL): 1~24 Tag Priority 0~7 Class: Low / Normal / Medium / High Fig.
Page 108 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-62 Set up VLAN Tag Priority Mapping Finish Publication date: March 2010 Revision 1.0...
Page 109: Snmp Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-7. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices.
Page 110 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Get/Set/Trap Community: Community name is used as password for authenticating if the requesting network management unit belongs to the same community group. If they both don’t have the same community name, they don’t belong to the same group.
Page 111: Snmp Configuration 3-8. Acl
065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-8. ACL The 065-7841 switch access control list (ACL) is probably the most commonly used object in the IOS. It is used for packet filtering but also for selecting types of traffic to be analyzed, forwarded, or influenced in some way.
Page 112 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Policy ID: Policy ID range:1~8 Action: Permit or Deny forwarding the met ACL packets Rate Limiter ID: Disabled: Disable Rate Limitation Rate Limiter ID Range: 1~16. To select one of rate limiter ID for this port, it will limit met ACL packets by rate limiter ID configuration.
Page 113: 3-8-2.Rate Limiters
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-8-2.Rate Limiters Function name: ACL Rate Limiter Configuration Function description: There are 16 rate limiter ID. You can assign one of the limiter ID for each port. The rate limit configuration unit is Packet Per Second (pps).
Page 114: 3-8-3.Access Control List
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-8-3.Access Control List Function name: ACL Rate Limiter Configuration Function description: The switch ACL function support up to 128 Access Control Entries (ACEs), using the shared 128 ACEs for ingress classification. You can create an ACE and assign this ACE for each port with <Any>...
Page 115 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Ingress Port Fig. 3-67 Fig. 3-68 Parameter description: Frame Type: Range: Any / Ethernet Type / ARP / IPv4 Any: It is including all frame types Ethernet Type: It is including all Ethernet frame types...
Page 116 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-69 Frame Type Fig. 3-70 Publication date: March 2010 Revision 1.0...
Page 117 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-71 Fig. 3-72 Fig. 3-73 ARP Publication date: March 2010 Revision 1.0...
Page 118 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-74 ARP Fig. 3-75 ARP Fig. 3-76 ARP Fig. 3-77 ARP Publication date: March 2010 Revision 1.0...
Page 119 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-79 ARP Fig. 3-80 ARP Fig. 3-81 ARP Fig. 3-82 ARP Publication date: March 2010 Revision 1.0...
Page 120 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-83 ARP Fig. 3-84 ARP Fig. 3-85 ARP Fig. 3-86 ARP Fig. 3-87 ARP Publication date: March 2010 Revision 1.0...
Page 121 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-88 IPv4 Fig. 3-89 IPv4 Fig. 3-90 IPv4 Publication date: March 2010 Revision 1.0...
Page 122 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-91 IPv4 Fig. 3-92 IPv4 Fig. 3-93 IPv4 Fig. 3-94 IPv4 Fig. 3-95 IPv4 Publication date: March 2010 Revision 1.0...
Page 123 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-96 IPv4 Fig. 3-97 IPv4 Fig. 3-98 IPv4 Fig. 3-99 IPv4 Fig. 3-100 IPv4 Publication date: March 2010 Revision 1.0...
Page 124 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-101 IPv4 Fig. 3-102 IPv4 Fig. 3-103 IPv4 Fig. 3-104 IPv4 Publication date: March 2010 Revision 1.0...
Page 125 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-105 IPv4 Fig. 3-106 IPv4 Fig. 3-107 IPv4 Publication date: March 2010 Revision 1.0...
Page 126 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-108 IPv4 Fig. 3-109 IPv4 Fig. 3-110 IPv4 Fig. 3-111 IPv4 Publication date: March 2010 Revision 1.0...
Page 127 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-112 IPv4 Fig. 3-113 IPv4 Fig. 3-114 IPv4 Publication date: March 2010 Revision 1.0...
Page 128 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-115 IPv4 Fig. 3-116 IPv4 Fig. 3-117 IPv4 Publication date: March 2010 Revision 1.0...
Page 129 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-118 Action Fig. 3-119 Rate Limiter Publication date: March 2010 Revision 1.0...
Page 130 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-120 Port Copy Fig. 3-121 DMAC Filter Publication date: March 2010 Revision 1.0...
Page 131 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-122 VLAN ID Filter Fig. 3-123 VLAN ID Filter Fig. 3-124 Tag Priority Publication date: March 2010 Revision 1.0...
Page 132 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Function name: ACE Configuration Function description: The switch ACL function support up to 128 Access Control Entries (ACEs), using the shared 128 ACEs for ingress classification. You can create an ACE and assign this ACE for each port with <Any>...
Page 133 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch SMAC Filter: Range: Any / Specific Any: It is including all source MAC address Specific: It is according to SMAC Value specific the source MAC address DMAC Filter: Range: Any / MC / BC / UC...
Page 134 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Host: Only one specific sender host IP address Network: A specific IP subnet segment under the sender IP mask Sender IP Address: Default: 192.168.1.1 Sender IP Mask: Default: 255.255.255.0 Target IP Filter:...
Page 135 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch The ingress ARP/PARP frames where the Hardware size is equal "0x6" and the Protocol size is "0x4" Range: Any / 0 / 1 Any: Both 0 and 1 The ingress ARP/PARP frames where Protocol type is not equal "0x800"...
Page 136 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Range: Any / Yes / No Any: Including all IP option case Yes: The ingress frame is specified IP options No: The ingress frame is not specified IP options SIP Filter: (SIP Source IP Address)
Page 137 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Range: Any / Specific / Range Any: Including all UDP source ports Specific: According to following Source Port No. setting for ingress classification Range: According to following Source Port Range setting for ingress classification Source Port No.:...
Page 138 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Range: According to following Dest. Port Range setting for ingress classification Dest. Port No.: Range: 0-65535 Dest. Port Range.: Range: 0-65535 TCP FIN: TCP Control Bit FIN: Means No more data from sender...
Page 139 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch TCP Control Bit URG: Means Urgent Pointer field significant Range: Any / 0 / 1 Any: Including all TCP URG case 0: The TCP control bit URG is 0 1: The TCP control bit URG is 1...
Page 140 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Range: Any / Yes / No Any: Including all IP option case Yes: The ingress frame is specified IP options No: The ingress frame is not specified IP options SIP Filter: (SIP Source IP Address)
Page 141 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch forwarding to other ports on the switch Deny: Discard the met ACL ingress classification rule packets Rate Limiter: Range: Disabled / 1-16 Disable: Disable Rate Limiter function 1-16: Apply the Rate Limiter Number setting for met ACL ingress...
Page 142: 3-8-4.Wizard
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-8-4.Wizard Function name: Wizard Function description: The wizard function is provide 4 type of typical application for user easy to configure their application with ACL function. Fig. 3-125 Wizard Parameter description:...
Page 143 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-126 Set up Policy Rules Fig. 3-127 Set up Policy Rules Fig. 3-128 Set up Policy Rules Publication date: March 2010 Revision 1.0...
Page 144 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-129 Set up Policy Rules Finish Fig. 3-130 Set up Port Policies Fig. 3-131 Set up Port Policies Publication date: March 2010 Revision 1.0...
Page 145 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-132 Set up Port Policies Fig. 3-133 Set up Port Policies Finish Fig. 3-134 Set up Typical Network Application Rules Publication date: March 2010 Revision 1.0...
Page 146 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-135 Set up Typical Network Application Rules Fig. 3-136 Set up Typical Network Application Rules Fig. 3-137 Set up Typical Network Application Rules Publication date: March 2010 Revision 1.0...
Page 147 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-138 Set up Typical Network Application Rules Finish Parameter description: Common Server: DHCP / DNS / FTP / HTTP / IMAP / NFS / POP3 / SAMBA / SMTP /...
Page 148: Ip Mac Binding
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-9. IP MAC Binding The IP network layer uses a four-byte address. The Ethernet link layer uses a six-byte MAC address. Binding these two address types together allows the transmission of data between the layers. The primary purpose of IP-MAC binding is to restrict the access to a switch to a number of authorized users.
Page 149 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch maximum number of IP-MAC Binding server table is 64 entries. MAC: Six-byte MAC Address: xx-xx-xx-xx-xx-xx For example: 00-40-c7-00-00-01 Four-byte IP Address: xxx.xxx.xxx.xxx For example: 192.168.1.100 Port No: Port no.: 1-24...
Page 150: Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-10. 802.1X Configuration 802.1X port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1X- enabled port without authentication.
Page 151 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch The overview of operation flow for the Fig. 3-53 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify. Finally, RADIUS server replies if the request is granted or denied.
Page 152 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Authentication server Fig. 3-54 Authenticator Supplicant A The Fig. 3-55 shows the procedure of 802.1X authentication. There are steps for the login based on 802.1X port access control management. The protocol used in the right side is EAPOL and the left side is EAP.
Page 153 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant.
Page 154: 3-10-1.Server
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Disable Don’t Care Don’t Care Port Uncontrolled Multihost Auto Successful Port Authorized Multihost Auto Failure Port Unauthorized Multihost ForceUnauthorized Don’t Care Port Unauthorized Multihost ForceAuthorized Don’t Care Port Authorized Table 3-3 3-10-1.Server...
Page 155 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Secret Key: The secret key between authentication server and authenticator. It is a string with the length 1 – 31 characters. The character string may contain upper case, lower case and 0-9. It is character sense. It is not allowed for putting a blank between any two characters.
Page 156: 3-10-2.Port Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-10-2.Port Configuration Function name: 802.1X Port Configuration Function description: This function is used to configure the parameters for each port in 802.1X port security application. Refer to the following parameters description for details.
Page 157 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Each clients under this port have to do 802.1X authentication by himself. Clientless: The clients don’t need to install 802.1X client function, that means the client PC (for example WINDOW XP) does not need to enable 802.1X client function also can do 802.1X authentication.
Page 158 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch session. The valid range: 1 – 10. Default: 2 times suppTimeout(1-65535 s): A timeout condition in the exchange between the authenticator and the supplicant. The valid range: 1 –65535. Default: 30 seconds.
Page 159: 3-10-3.Status
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-10-3.Status Function name: 802.1X Status Function description: Show the each port IEEE 802.1X authentication current operating mode and status. Fig. 3-146 Parameter description: Port: Port number: 1-24 Mode: Show this port IEEE 802.1X operating mode: There are four modes...
Page 160: Statistics
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-10-4. Statistics Function name: 802.1X Port Statistics Port1 Function description: Show the IEEE 802.1X authentication related counters for manager monitoring authenticator status. Fig. 3-147 Parameter description: Port: Port Number: 1-24...
Page 161: Trunking Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-11. Trunking Configuration The Port Trunking Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
Page 162: 3-11-1.Port
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Per Trunking Group supports a maximum of 12 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Some configuration examples are listed below:...
Page 163 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Method: This determines the method a port uses to aggregate with other ports. None: A port does not want to aggregate with any other port should choose this default setting.
Page 164: Aggregator View
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-11-2 Aggregator View Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Fig.3-149 Parameter description: Aggregator: It shows the aggregator ID (from 1 to 24) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
Page 165: Aggregation Hash Mode
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-11-3 Aggregation Hash Mode Function name: Aggregation Hash Mode Configuration Function description: To configure the current port aggregate mode with 4 types. Fig.3-149-1 Parameter description: Source MAC Address: To evoke to enable source MAC address for Aggregate Mode .
Page 166: Lacp System Priority
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-11-4 LACP System Priority Function name: LACP System Priority Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system.
Page 167: Stp Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-12 STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time. User can enable Spanning Tree Protocol on switch’s web management and then set up other...
Page 168 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Root Port: Show port number connected to root bridge with the lowest path cost. Root Path Cost: Show the path cost between the root port and the designated port of the root bridge.
Page 169: Configuration
If you want to have the 065-7841 as root bridge, you can set this value lower than that of bridge in the LAN. The valid value is 0 ~ 61440. The default is 32768.
Page 170 ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch When the 065-7841 is the root bridge, the whole LAN will apply this figure set by this switch as their maximum age time. When a bridge received a BPDU originated from the root bridge and if the message age conveyed in the BPDU exceeds the Max.
Page 171: Stp Port Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-12-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item.
Page 172 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch the STP will get the recommended value resulted from auto-negotiation of the link accordingly and display this value in the field of Path Cost Status. Otherwise, it may show the value that the administrator set up in Configured Path Cost and Path Cost Status.
Page 173 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch operation is to make the port quickly get back to act as an RSTP port. Click <M Check> button to send a RSTP BPDU from the port you specified. Publication date: March 2010...
Page 174: Mstp
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-13 MSTP The implementation of MSTP is according to IEEE 802.1Q 2005 Clause 13 – Multiple Spanning Tree Protocol. MSTP allows frames assigned to different VLANs to follow separate paths, each based on an independent Multiple Spanning Tree Instance (MSTI), within Multiple Spanning Tree (MST) Regions composed of LANs and or MST Bridges.
Page 175: Region Config
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-13-2 Region Config Function name: MSTP Region Config Function description: To configure the basic identification of a MSTP bridge. Bridges participating in a common MST region must have the same Region Name and Revision Level.
Page 176: Instance View
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-13-3 Instance View Function name: MSTP Instance Config Function description: Provides an MST instance table which includes information (VLAN membership of a MSTI ) of all spanning instances provisioned in the particular MST region which the bridge belongs to.
Page 177 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Deleting all provisioned MSTIs at a time. Fig. 3-158 Instance Configuration: To provision spanning tree performance parameters per instance. Fig. 3-159 Port Config: To provision spanning tree performance parameters per instance per port.
Page 178 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Spanning Tree) connection. 0 / 4096 / 8192 / 12288 / 16384 / 20480 / 24576 / 28672 / 32768 / 36864 / 40960 / 45056 / 49152 / 53248 / 57344 / 61440 MAX.
Page 179 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch MSTI. Hello Time: 1 / 2 In contrast with RSTP, Hello Time in MSTP is a per port setting for the CIST. Admin Edge: Yes / No The same definition as in the RSTP specification for the CIST ports.
Page 180 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-160 Instance Status Parameter description: MSTP State: MSTP protocol is Enable or Disable. Force Version: It shows the current spanning tree protocol version configured. Bridge Max Age: It shows the Max Age setting of the bridge itself.
Page 181 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch CIST ROOT MAC: Mac Address of the CIST root bridge CIST EXTERNAL ROOT PATH COST: Root path cost value from the point of view of the bridge’s MST region. CIST ROOT PORT ID: The port ID of the bridge’s root port.
Page 182 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-161 Port Status Parameter description: Port No: 1-24 Status: The forwarding status.Same definition as of the RSTP specification Possible values are “FORWARDING” , “LEARNING” , “DISCARDING” Status: The role that a port plays in the spanning tree topology. Possible values are “dsbl”(disable port) , ”alt”(alternate port) , “bkup”(backup port) ,...
Page 183: Mirror
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-14. Mirror Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
Page 184: Multicast
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Multicast 3-15. The function, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network. This is because a switch that does not support IGMP or IGMP Snooping can not tell the multicast packet from the broadcast packet, so it can only treat them all as the broadcast packet.
Page 185: Igmp Proxy
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-2 IGMP Proxy Function name: IGMP Proxy Configuration Function description: IGMP proxy enables the switch to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The switch acts as a proxy for its hosts.
Page 186 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch General Query Max Response Time : To set the max response code value of the general query packet . (Available : 1~25 secs) Last Member Query Count : To set the frequency. When Switch received IGMP leave then switch send specific query frequency.
Page 187: Igmp Snooping
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-3 IGMP Snooping Function name: IGMP Snooping Configuration Function description: IGMP Snooping enables the switch to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces. The switch acts with Snooping mode for its hosts.
Page 188: Igmp Group Allow
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-4 IGMP Group Allow Function name: IGMP Group Allow Function description: The Group Allow function allows the Multicast VLAN Registration to set up the IP multicast group filtering conditions. IGMP join behavior that meet the items you set up will be joined or form the multicast group.
Page 189: Igmp Group Membership
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-5 IGMP Group Membership Function name: IGMP Group Membership Function description: To show the IGMP group members information; then you can edit the parameters for IGMP groups and members in the web user interface.
Page 190: Mvr
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-6 MVR Function name: MVR configuration (Multicast VLAN Registration) Function description: Multicast VLAN Registration (MVR) routes packets received in a multicast source VLAN to one or more receive VLANs. Clients are in the receive VLANs and the multicast server is in the source VLAN.
Page 191: Mvid
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-7 MVID Function name: MVID configuration (Multicast VLAN Registration ID assign entry) Function description: To set the MVR Group member ID (MVID) entry with the Member port and Router Port.
Page 192: Mvr Group Allow
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-8 MVR Group Allow Function name: MVR Group Allow Function description: The Group Allow function allows the Multicast VLAN Registration to set up the IP multicast group filtering conditions. IGMP join behavior that meet the items you set up will be joined or form the multicast group.
Page 193: Mvr Group Membership
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-15-9 MVR Group Membership Function name: MVR Group Membership Function description: To display the MVR Group Membership information. Fig. 3-164-4 MVID Group Membership Parameter description: Refresh: Refresh function can help you to see the current MVR group membership status.
Page 194: Alarm Configuration
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-16. Alarm Configuration Alarm Configuration Events Configuration Email Configuration Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 24 different trap events to users for switch management.
Page 195: Events
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-16-1 Events Function name: Email Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via email. An email address has to be set in the web page of alarm configuration (See Fig.
Page 196: Email
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-16-2 Email Parameter description: Email: Mail Server: the IP address of the server transferring your email. Username: your username on the mail server. Password: your password on the mail server.
Page 197: Dhcp Snooping
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-17. DHCP Snooping DHCP Snooping DHCP Snooping State DHCP Snooping Entry DHCP Snooping Client Fig.3-62 3-17-1. DHCP Snooping State Function name: DHCP Snooping State Function description: The addresses assigned to DHCP clients on unsecure ports can be carefully controlled using the dynamic bindings registered with DHCP Snooping.
Page 198: Dhcp Snooping Entry
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-17-2. DHCP Snooping Entry Function name: DHCP Snooping Entry Function description: DHCP snooping Entry allows a switch to add the trust DHCP server and 2 trust ports to build the DHCP snooping available entry. This information can be useful in tracking an IP address back to a physical port and enable or disable the DHCP Option 82.
Page 199: Dhcp Snooping Client
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch If DHCP snooping is enabled and also enabled on the VLAN where the DHCP packet is received, but the port is not trusted, it is processed as follows: * If the DHCP packet is a reply packet from a DHCP server, the packet is dropped.
Page 200 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Publication date: March 2010 Revision 1.0...
Page 201: Lldp
065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-18. LLDP The 065-7841 switch supports the LLDP. For the 065-7841 model, The Link Layer Discovery Protocol (LLDP) provides a standards-based method for enabling switches to advertise themselves to adjacent devices and to learn about adjacent LLDP devices.
Page 202 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Notification Interval : A network management application can periodically check the switch MIB to detect any missed change notification traps. Refer to IEEE 802.1AB-2005 or later for more information. (Default: 5 secs) Mode : To enable or disable the LLDP mode per port.
Page 203: Lldp Entry
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-18-2 . LLDP Entry Function name: LLDP Entry Function description: The LLDP Entry function allows a switch to display per port which build the LLDP available entry. This information can be useful in tracking LLDP packets back to a physical port and enable or disable the LLDP.
Page 204 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Management Address: To display include a specific IP address in the outbound LLDP advertisements for specific ports. Auto - refresh: Refresh the authenticator counters in the web UI automatically. Refresh: Click on the <Refresh>...
Page 205: Lldp Statistics
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-18-3 . LLDP Statistics Function name: LLDP Statistics Function description: Display the detailed counting number of each port’s LLDP traffic Fig. 3-18-3 LLDP statistics Parameter description: Neighbor entries were last changed at : The time period which neighbor entries were be changed .
Page 206 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Rx Frames: The counting number of the frames transmitted. Frames Discarded: Show the number of frame discarded. TLVs Discarded: Show the number of TLVs discarded. TLVs Unrecognized: Show the number of TLVs unrecognized.
Page 207: Save/Restore
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-19. Save/Restore The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively.
Page 208: Factory Defaults
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-19-1. Factory Defaults Function name: Restore Default Configuration (includes default IP address) Function description: Restore Default Configuration function can retrieve ex-factory setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1.
Page 209: Restore User
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Fig. 3-169 3-19-4 . Restore User Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration.
Page 210: Export/ Import
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-20. Export/ Import Function name: Export / Import Function description: With this function, user can back up or reload the configuration files of Save As Start or Save As User via TFTP.
Page 211: Diagnostics
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-21. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections.
Page 212: Ping
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-21-2 .Ping Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides a Ping Test function to let you know that if the target device is available or not.
Page 213: Maintenance
Software Upload Function description: Click on <Browse> to select a specific 065-7841 firmware file from the Web management PC, then click on <Upload> to confirm the upgrade firmware action. The new firmware will be uploaded into the switch and write into flash memory.
Page 214: Logout
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3-23 Logout You can manually logout by performing the Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout...
Page 215: Operation Of Cli Management
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 4. Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
Page 216 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Managed Switch Managed Switch - - - - 065 Managed Switch Managed Switch 065- - - - 7841 7841 7841 7841 Login: admin Login: admin Login: admin Login: admin Password: *****...
Page 217: Commands Of Cli
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands.
Page 218: Global Commands Of Cli
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 4-2-1. Global Commands of CLI Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode.
Page 219 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
Page 220 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before.
Page 221: Restore Default
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch logout Syntax: logout Description: When you enter this command via Telnet connection, you would logout the system and disconnect. If you connect the system through direct serial port with RS-232 cable, you would logout the system and be back to the initial login prompt when you run this command.
Page 222: Restore User
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately;...
Page 223: Save User
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration.
Page 224: Local Commands Of Cli
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 4-2-2. Local Commands of CLI 802.1X set maxReq Syntax: set maxReq <port-range> <vlaue> Description: The maximum number of times that the state machine will retransmit an EAP Request packet to the Supplicant before it times out the authentication session.
Page 225 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set port-control Syntax: set port-control <port-range> <unauthorized| authorized| auto> Description: To set up 802.1X status of each port. Argument: <port range> : syntax 1,5-7, available from 1 to 24 <authorized> : Set up the status of each port...
Page 226 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set reAuthMax Syntax: set reAuthMax <port-range> <value> Description: The number of reauthentication attempts that are permitted before the port becomes Unauthorized. Argument: <port range> : syntax 1,5-7, available from 1 to 24 <value>...
Page 227 <secret-key> : set up the value of secret-key, and the length of secret-key is from 1 to 31 Possible value: <udp-port > : 1~65535, default is 1812 Example: 065-7841(802.1X)# set auth-server 192.168.1.115 1812 WinRadius set suppTimeout Syntax: set suppTimeout <port-range> <value> Description:...
Page 228 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show status Syntax: show status Description: To display the mode of each port. Argument: None Possible value: None Example: 065-7841(802.1X)# show status Port Mode ====== ============ Disable Multi-host Disable Disable...
Page 229 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch suppTimeout : 30 serverTimeout : 30 show statistics Syntax: show statistics <#> Description: To display the of each port. statistics Argument: <#> syntax 1,5-7, available from 1 to 24 Possible value: <#>...
Page 230 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch A string must be at least 5 character. Example: 065-7841(account)# add aaaaa Password: Confirm Password: 065-7841(account)# Syntax: del <name> Description: To delete an existing account. Argument: <name> : existing user account Possible value: None.
Page 231 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Example: 065-7841(account)# show Account Name Identity ----------------- --------------- admin Administrator guest guest Syntax: ace <index> Description: To display the ace configuration. Argument: <index> : the access control rule index value Possible value: None.
Page 232 <port copy> : 0-24 (0:disable) Possible value: <port> : 1-24 <permit/deny>: 0-1 <rate_limiter>: 0-16 <port copy> : 0-24 Example: 065-7841(acl)# action 5 0 2 2 065-7841(acl)# show port policy id action rate limiter port copy counter a class map ……. ….
Page 233 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch move Syntax: move <index1> <index2> Description: To move the ACE ( Access Control Entry) configuration between index1 and index2.. Argument: None. Possible value: None. Example: 065-7841(account)# move 1 2 policy Syntax: policy <policy>...
Page 234 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Syntax: set [<index>] [<next index>] [switch | (port <port>) | (policy <policy>)] [<vid>] [<tag_prio>] [<dmac_type>] [(any) | (etype [<etype>] [<smac>]) | (arp [<arp type>] [<opcode>] (any | [<source ip>] [<source ip mask>]) (any | [<destination ip>] [<destination ip mask>])
Page 235 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To show all access control entry setting on switch Argument: none Possible value: none Example: 065-7841(acl)# show port policy id action rate limiter port copy counter a class map …….
Page 236: Set User
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch del server-user Syntax: del server-user Description: To remove the configuration of server, user account and password. Argument: None. Possible value: None. Example: 065-7841(alarm-email)# del server-user set mail-address Syntax: set mail-address <#> <mail address>...
Page 237 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display the configuration of e-mail. Argument: None. Possible value: None. Example: 065-7841(alarm-email)# show Mail Server : 192.168.1.6 Username : admin Password : **************** Email Address 1: abc@mail.abc.com...
Page 238: Set Trap
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch del trap Syntax: del trap <range> Description: To disable the trap of the events. Argument: <range>:del the range of trap, syntax 1,5-7 Possible value: <range>: 1~24 Example: 065-7841(alarm-events)# del trap 1-3...
Page 239 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display the configuration of alarm event. Argument: None. Possible value: None. Example: 065-7841(alarm-events)# show Events Email Trap ----------------------------------------- 1 Cold Start 2 Warm Start 3 Link Down...
Page 240 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show (alarm) Syntax: show Description: The Show for alarm here is used to display the configuration of Events, or E-mail. Argument: None. Possible value: None. Example: 065-7841(alarm)# show events 065-7841(alarm)# show email...
Page 241 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch import Syntax: import <current | user> < ip address> Description: To run the import start function. Argument: None Possible value: None Example: 065-7841(config-file)# import current 192.168.1.63 Import successful. firmware Upgrade Syntax: upgrade <ip_address>...
Page 242 <port>: 1 to 24 < 0 | 1> : Possible value: <vid>: 1~4094 <port>: 1 to 24 Example: 065-7841(gvrp)# group applicant 2 5 0 GVRP group information Current Dynamic Group Number: 1 VID Member Port ---- -------------------------------------------------- Publication date: March 2010...
Page 243 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set applicant Syntax: set applicant <port> < 0 | 1 > Description: To set default applicant mode for each port. Argument: <port>: port range, syntax 1,5-7, available from 1 to 24 <0>: set applicant as normal mode...
Page 244 Leave Time must equal double Join Time at least. Possible value: <port> : 1 to 24 <JoinTime>: 20 to 100 <LeaveTime>: 60 to 300 <LeaveAllTime>: 1000 to 5000 Example: 065-7841(gvrp)# set timer 2-8 25 80 2000 show Syntax: show Description: To display the gvrp configuration. Argument:...
Page 245 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 2000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal Normal Disable 2000 Normal Normal Disable 1000 Normal...
Page 246 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch group grpinfo Syntax: group grpinfo <vid> Description: To show the gvrp group. Argument: <vid>: To set the vlan id from 1 to 4094 Possible value: <vid>: 1 to 4094 Example:...
Page 247 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set erp Syntax: set erp <port> Description: Set router ports to enable Argument: <port>: syntax 1,5-7, available from 1 to 24 Possible value: <port>: 1 to 24 Example: 065-7841(igmp)# set erp 1...
Page 248: Enable Dhcp
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch disable dhcp Syntax: disable dhcp Description: To disable the DHCP function of the system. Argument: None Possible value: None Example: 065-7841(ip)# disable dhcp enable dhcp Syntax: enable dhcp <manual|auto> Description: To enable the system DHCP function and set DNS server via manual or auto mode.
Page 249 Possible value: <ip> : 192.168.1.2 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: 065-7841(ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 show Syntax: show Description: To display the system’s DHCP function state, IP address, subnet mask, default gateway, DNS mode, DNS server IP address and current IP address.
Page 250 < ip > : ip address < port > : 1 to 24 < vid > : 1 to 4094 Example: 065-7841(ip_mac_binding)# set entry 1 00-11-2f-de-7b-a9 192.168.2.2 1 1 delete ip Syntax: delete ip < 0 | 1> <ip> Description: Delete ip mac binding entry by ip.
Page 251 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch loop-detection disable Syntax: disable <#> Description: To disable switch ports the loop detection function. Argument: <#> : set up the range of the ports to search for, syntax 1,5-7, available form 1 to 24 Possible value: <#>...
Page 252 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Resume Syntax: resume <#> Description: To resume locked ports on switch. Argument: <#> : set up the range of the ports to search for, syntax 1,5-7, available form 1 to 24 Possible value: <#>...
Page 253 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display loop detection configure. Argument: None Possible value: None Example: 065-7841 (loop-detection)# show Detection Port Locked Port Port Status Port Status --------------------------------- 1 Enable 1 Normal...
Page 254: Set Mode
Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch LLDP <<set clear>> Syntax: set clear Description: To set clear LLDP entry. Argument: None Possible value: <clear> : set clear LLDP <clear counter> : set clear LLDP counter Example: 065-7841(lldp)# set clear...
Page 255 : 1,5-7, available from 1 to 24 Possible value: <Port Range> : syntax : 1,5-7, available from 1 to 24 Example: 065-7841(lldp)# set tlv test 065-7841 swtich 5 122 5 065-7841(lldp)# set txDelay Syntax: set txDelay <time>...
Page 256 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set txHold Syntax: set txHold <time> Description: To set lldp txHold Argument: <time>: from 2 to 10 second(s) Possible value: <time>: from 2 to 10 second(s) Example: 065-7841(lldp)# set txHold 5...
Page 257 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch ---- ----------- ------------------- Disable False Disable False Disable False Disable False Disable True Disable False Disable False Disable False Disable False Disable False Disable False Disable False Disable False Disable...
Page 258 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show local-device Syntax: show local-device Description: To display LLDP local device Argument: None Possible value: None Example: 065-7841(lldp)# show local-device LLDP Local Devices Information Chassis Type : MAC-address Chassis Id : 00-A0-57-15-2A-F7...
Page 259 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch local Port #22 local Port #23 local Port #24 065-7841(lldp)# show Neighbor Syntax: show neighbor <port> Description: To display LLDPneighbor Argument: <port>: 1,5-9, available from 1 to 24. Possible value: <port>: 1,5-9, available from 1 to 24.
Page 260 Signamax ™ ™ ™ ™ 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show stats Syntax: show stats Description: To display LLDP stats Argument: None Possible value: None Example: 065-7841(lldp)# show stats LLDP Device Statistics Neighbor Entries List Last Updated : 5850 sec. ago...
Page 261 <mac> Description: To del mac alias entry. Argument: <mac> : set up the MAC format: xx-xx-xx-xx-xx-xx Possible value: <mac> : set up the MAC format: xx-xx-xx-xx-xx-xx Example: 065-7841(mac-alias)# set 23-56-r5-55-3f-03 test3 065-7841(mac-alias)# show MAC Alias Alias =========================================== 23-56-00-55-3F-03 test3 23-56-00-55-EF-03...
Page 262 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display mac alias entry. Argument: None Possible value: none Example: 065-7841(mac-alias)# show MAC Alias Alias =========================================== 23-56-00-55-3F-03 test3 23-56-00-55-EF-03 test13 23-56-00-55-EF-33 test1 <<mac-table>> flush Syntax:...
Page 263 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To show all mac table informaion. Argument: none Possible value: none Example: 065-7841(mac-mac-table)# show Type VLAN Port Members -------------------------------------------------------------------------- ----- 1 Static 1 FF-FF-FF-FF-FF-FF 1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,1 8,19,20,21,22,23,24, <<maintenance>>...
Page 264 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set learning Syntax: set learning <range> <auto|disable|secure> Description: To set mac table learning. Argument: <range syntax> : 1,5-7, available from 1 to 24 <auto >: auto learning <disable >: disable learning <secure >: learn frames are discarded...
Page 265 [alias] : mac alias name, max. 15 characters Possible value: <mac> : mac address <port> : 0-24 <vid> : 0, 1-4094 [alias] : mac alias name Example: 065-7841(mac-static-mac)# add 00-02-03-04-05-06 3 0 aaa 065-7841(mac-static-mac)# Syntax: del <mac> <vid> Description: To del the static mac entry. Argument: <mac>...
Page 266: Show Filter
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Possible value: <mac> : mac address <vid> : 0, 1-4094 Example: 065-7841(mac-static-mac)# del 00-02-03-04-05-06 0 065-7841(mac-static-mac)# show filter Syntax: show filter Description: To display the static filtering mac entry. Argument:...
Page 267 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch mirror set mirror Syntax: set mirror < #> Description: To set mirror port and enable/disable mirror function Argument: <#>: port, available from 1 to 24 and 0. 1 to 24: available port number...
Page 268 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set monitor-source Syntax: set monitor-source <range> Description: To set up the monitoring port of the mirror function. User can observe the packets that the monitored port received via this port.
Page 269 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To display the setting status of mirror configuration. Argument: None Possible value: None Example: 065-7841(mirror)# show Port to mirror to: 1 Port Source Enable Destination Enable...
Page 270: Set Config
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch mstp disable Syntax: disable Description: To disable mstp function. Argument: None Possible value: None Example: 065-7841 (mstp)# disable enable Syntax: enable Description: To enable mstp function. Argument: None Possible value:...
Page 271 <Max Age> : available from 6 to 40. Recommended value is 20 <Forward Delay(sec)> : available from 4 to 30. Recommended value is 15 <Max Hops> : available from 6 to 40. Recommended value is 20 Example: 065-7841(mstp)# set config 20 15 20 065-7841(mstp)# set msti-vlan Syntax: set msti-vlan <instance-id><vid-string>...
Page 272 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch <admin edge> : 0->non-edge port,1->edge ports Example: 065-7841(mstp)# set p-edge 10-12 0 065-7841(mstp)# set p-hello Syntax: set p-hello <port range> <hello time> Description: To set per port hello time Argument: <port range>...
Page 273 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 065-7841(mstp)# show instance 0 mstp status : enabled force version : 3 instance id: 0 bridge max age : 20 bridge forward delay : 15 bridge max hops : 20...
Page 274 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch DISCARDING dsbl 2000000 128 DISCARDING dsbl 2000000 128 DISCARDING dsbl 2000000 128 DISCARDING dsbl 2000000 128 DISCARDING dsbl 2000000 128 DISCARDING dsbl 2000000 128 DISCARDING dsbl 2000000 128 DISCARDING dsbl...
Page 275 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch true auto true true true auto true false true auto true false true auto true false true auto true false 065-7841(mstp)# set region-name Syntax: set region-name <string> Description: To set mstp region name(0~32 bytes) Argument: <string>...
Page 276 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Argument: <revision-level> :0~65535 Possible value: <revision-level> :0~65535 Example: GS-2924(mstp)# set version mstp show instance Syntax: show instance <instance-id> Description: To show instance status Argument: <instance-id> :0->CIST;1-4095->MSTI Possible value: <instance-id> :0->CIST;1-4095->MSTI...
Page 277: Show Ports
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch true auto false false true auto false true true auto false true true auto false false true auto false false true auto false false true auto true false true auto...
Page 278 Synopsis: add name George ip 192.168.1.1-192.168.1.90 port 2-5,8 type h,s action a Synopsis: add name Mary ip 192.168.2.1-192.168.2.90 action deny Possible value: None Example: 065-7841(policy)# add name Mary ip 192.168.3.1-192.168.3.4 action deny 065-7841(policy)# show 1) Name : george IP Range : 192.168.1.1-192.168.1.90...
Page 279 <index> : a specific or range management policy entry(s) e.g. delete 2,3,8-12 Possible value: <index> : a specific or range management policy entry(s) Example: 065-7841(policy)# add name rule2 ip 192.168.4.23-192.168.4.33 port 6-8 type s,t action d 065-7841(policy)# show 1) Name...
Page 280: Clear Counter
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch port clear counter Syntax: clear counter Description: To clear all ports’ counter (include simple and detail port counter) information. Argument: None Possible value: None Example: 065-7841 (port)# clear counter set description Syntax: set description <port-range>...
Page 281 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Argument: <port range> syntax : 1,5-7, available from 1 to 24 Possible value: <port range> : 1 to 24 Example: 065-7841(port)# set excessive-collision 6-10 restart 065-7841(port)# show config Speed/ Flow...
Page 282 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Syntax: set max-frame <port-range> <value> Description: To set per-port maximum frame size Argument: <port range> syntax : 1,5-7, available from 1 to 24 <value> : Allowed value are 1518-9600 bytes.
Page 283: Show Config
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 3 Up 100M/Full Disabled Disabled 4 Down Down Disabled Disabled 5 Down Down Disabled Disabled 6 Down Down Disabled Disabled 7 Up 1G/Full Disabled Disabled 8 Down Down Disabled Disabled...
Page 284 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show detail-counter Syntax: show detail-counter <port> Description: To display the display detail port counter. Argument: <port>: port, available from 1 to 24 Possible value: <port>:1 ~ 24 Example: 065-7841 (port)# show detail-counter 3...
Page 285 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Connector Type : SFP - Unknown or unspecified Fiber Type : Reserved Tx Central Wavelength : 0 Baud Rate : 1G Vendor OUI : 00:00:00 Vendor Name : FIBERXON INC.
Page 286 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 065-7841(port)# show status Syntax: show status Description: To display the port’s current status. Argument: None. Possible value: None. Example: 065-7841(port)# show status Speed/1G/Full Disable Port Link Duplex Rx Pause Tx Pause...
Page 287: Show Powersaving
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 23 Down Down Disabled Disabled 24 Down Down Disabled Disabled 065-7841(port)# show powersaving Syntax: show powersaving Description: To display powersaving port information. Argument: None Possible value: None Example: 065-7841(port)# show powersaving...
Page 288: Set Port
<medium queue weighted> : 1 / 2 / 4 / 8 <high queue weighted>: 1 / 2 / 4 / 8 Example: 065-7841(qos-ports)# set port 2 medium 1 3 weithted 2 2 2 2 065-7841(qos-ports)# show 2 Medium Weighted Fair...
Page 289 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Strict Priority 4 / 8 5 Low Strict Priority 4 / 8 6 Low Strict Priority 4 / 8 7 Low Strict Priority 4 / 8 8 Low Strict Priority...
Page 290 < tagpriority> : tag priority, available from 1 to 8 <qce type> : ethernet <value> : 0xfff0 <class> : high Example: 065-7841(qos-qcl)# set 2 0 3 ethernet 0xfff0 high 065-7841(qos-qcl)# show 2 1 QCE Type: Ethernet Type Ethernet Type Value:0xfff0...
Page 291 'k' means kbps and 'm' means mbps shaper enabled: 1 means enable and 0 means disable rate: allowed values are 500kbps-1Gkps unit: 'k' means kbps and 'm' means mbps Example: 065-7841(qos-rate)# set 2 1 1000 m 1 1000 m 065-7841(qos-rate)# show 1000 Mbps 1000...
Page 292 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch << storm >> set broadcast Syntax: set broadcast <status> <rate> Description: To set broadcast storm control configuration Argument: <status> : 1 means enable and 0 means disable <rate> : 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1k, 2k, 4k, 8k, 16k, 32k, 64k, 128k...
Page 293 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set unicast Syntax: set unicast <status> <rate> Description: To set flooded unicast storm control configuration Argument: <status> : 1 means enable and 0 means disable <rate> : 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1k, 2k, 4k, 8k, 16k, 32k, 64k, 128k...
Page 294 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch reboot reboot Syntax: reboot Description: To reboot the system. Argument: None. Possible value: None. Example: 065-7841# reboot snmp <<disable>> Syntax: disable set-ability disable snmp Description: The Disable here is used for the de-activation of snmp or set-community.
Page 295 <community>:trap community name Possible value: <#>: 1 to 6 <port>:1~65535 Example: 065-7841(snmp)# set get-community public 065-7841(snmp)# set set-community private 065-7841(snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP. Argument: None.
Page 296 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch MCheck Syntax: MCheck <range> Description: To force the port to transmit RST BPDUs. Argument: <range>: syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24 Example: 065-7841(stp)# Mcheck 1-8...
Page 297 <path cost>: 0, 1-200000000 <priority>: 0 to 240 <edge_port>: yes / no <admin p2p>: auto / true / false Example: 065-7841(stp)# set port 1-16 0 128 yes auto set version Syntax: set version <stp|rstp> Description: To set up the version of STP.
Page 298: Show Port
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show config Syntax: show config Description: To display the configuration of STP. Argument: None. Possible value: None. Example: 065-7841(stp)# show config STP State Configuration Spanning Tree Protocol : Enabled Bridge Priority (0-61440) : 61440 Hello Time (1-10 sec) Max.
Page 299: Set Contact
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show status Syntax: show status Description: To display the status of STP. Argument: None. Possible value: None. Example: 065-7841(stp)# show status STP Status : STP State : Enabled Bridge ID...
Page 300: Set Location
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch set location Syntax: set location <location string> Description: To set the location description of the switch. Argument: <location>: string length up to 40 characters. Possible value: <location>: A, b, c, d, ... ,z and 1, 2, 3, …. etc.
Page 301 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch traplog clear Syntax: clear Description: To clear trap log. Argument: none Possible value: none Example: 065-7841(traplog)# clear 065-7841(traplog)# show time desc ---- --------------------------- ------------------------------------ show Syntax: show Description: To display the trap log.
Page 302: Set Ntp
: -5 to +5 : (01-12) : (01-31) : (00-23) : (01-12) : (01-31) : (00-23) Example: 065-7841(time)# set daylightsaving 3 10/12/01 11/12/01 Save Successfully set manual Syntax: set manual <YYYY/MM/DD> <hh:mm:ss> Description: To set up the current time manually. Argument:...
Page 303 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show Syntax: show Description: To show the time configuration, including “Current Time”, “NTP Server”,” Timezone”, ” Daylight Saving”,” Daylight Saving Start” and “Daylight Saving End” Argument: None. Possible value: None.
Page 304: Set Trunk
: set the LACP to passive mode Possible value: <port-range> : 1 to 24 <method>: static / lacp <group>: 1-8. <active LACP>: active / passive Example: 065-7841(trunk)# set trunk 1-4 lacp 1 active show aggtr-view Syntax: show aggtr-view Description: To display the aggregator list. Argument: None.
Page 305 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show lacp-detail Syntax: show lacp-detail <aggtr> Description: To display the detailed information of the LACP trunk group. Argument: <aggtr>: aggregator, available from 1 to 24 Possible value: <aggtr>: 1 to 24...
Page 306 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Example: 065-7841(trunk)# show status Trunk Port Setting Trunk Port Status ------------------------------------- ---------------------- port Method Group Active LACP Aggtregator Status ====== ======== ======= ============= ============= ======== None Active Ready LACP Active...
Page 307 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch disable sym-vlan Syntax: disable sym-vlan <range> Description: To drop frames from the non-member port. Argument: <range>: which port(s) you want to set, syntax 1,5-7, available from 1 to 24 Possible value: <range>: 1 to 24...
Page 308 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Example: 065-7841(vlan)# set mode Usage: set mode <port|tag> tag: set tag-based vlan port: set port-based vlan 065-7841(vlan)# set double-tag Syntax: set double-tag <range> <0|1|2> Description: To set double-tag per port and enable Q-in-Q VLAN function on switch.
Page 309: Set Pvid
<range>: vlan group members, syntax 1,5-7, available from 1 to 24 <#>: sym/asym vlan setting. 1: symmetric vlan, 0: asymmetric vlan Possible value: <vid>: 1 to 4094 <range>: 1 to 24 <#>: 0 or 1 Example: 065-7841(vlan)# set tag-group 2 VLAN-2 2-5,6,15-13 0 Publication date: March 2010 Revision 1.0...
Page 310: Show Group
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch show group Syntax: show group Description: To display the vlan mode and vlan group. Argument: None. Possible value: None. Example: 065-7841(vlan)# show group Vlan mode is double-tag. 1) Vlan Name : default...
Page 311: Maintenance
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty...
Page 312: Appendix A Technical Specifications
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Appendix A Technical Specifications Features 4 fiber (SFP) switching ports are compliant with SX/LX..etc-LC. • 4 Gigabit TP/SFP fiber are dual media ports with auto detected function. • Non-blocking store-and-forward shared-memory Web-Smart switched.
Page 313 ™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Hardware Specifications Standard Compliance: IEEE 802.3/802.3ab / 802.3z / 802.3u / 802.3x Network Interface: Configuration Mode Connector Port 10/100/1000 Mbps Gigabit TP NWay TP (RJ-45) 1 - 8 1000BaseSX Gigabit Fiber...
Page 314: Management Software Specifications
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Power Requirement : AC Line Voltage 100∼240 V Frequency 50∼60 Hz Consumption Ambient Temperature : 32°F to 104°F (0° to 40°C) Humidity : 5% to 90% Dimensions : 1.73(H) × 17.4(W) × 8.23(D) in. [44(H) × 442(W) × 209(D) mm Complies with FCC Part 15 Class A &...
Page 315: Appendix B Null Modem Cable Specifications
™ ™ ™ ™ Signamax 065-7841 24-Port 10/100/1000BaseT/TX Managed Switch Appendix B Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable.
