Summary of Contents for SignaMax 065-7309POEP

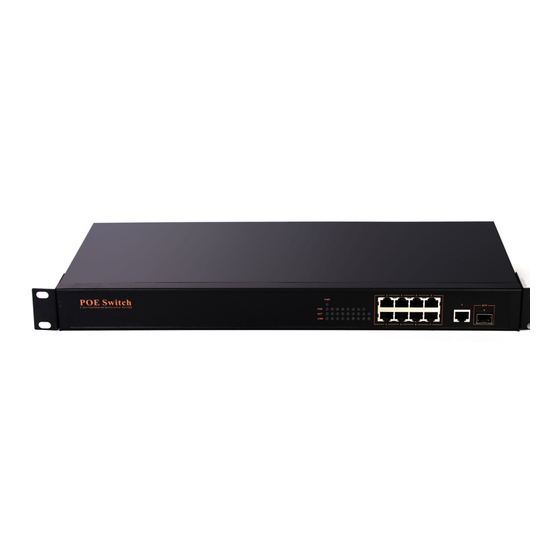

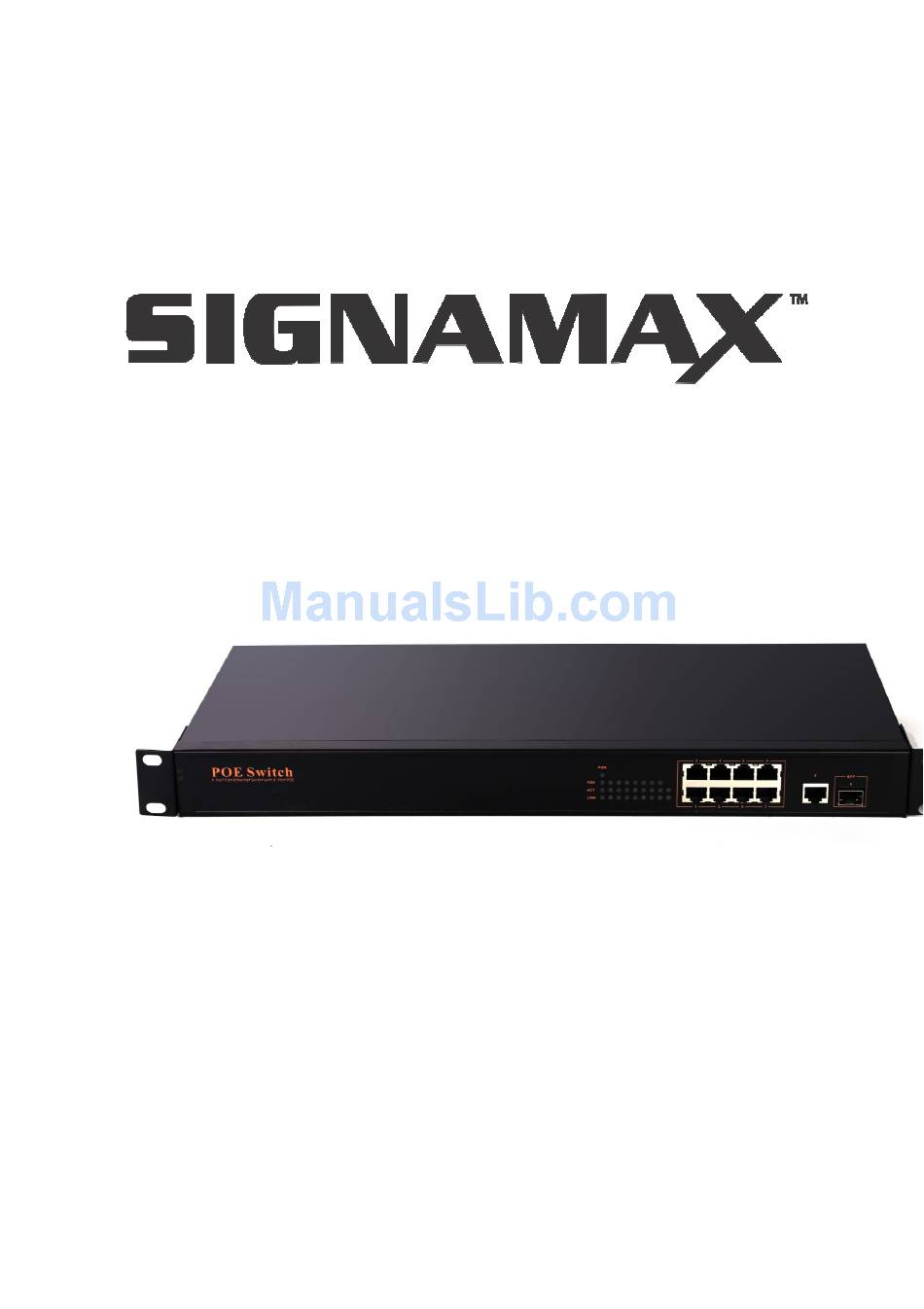

- Page 1 065-7309POEP 8-port 10/100BaseT/TX PoE/PoE+ plus 1 Dual Media 10/100/1000BaseT/TX port Switch User’s Manual...
- Page 2 The Signamax 065-7309POEP is the ideal choice for those who desire to economically deploy wireless access points, IP cameras, access control devices,...
-
Page 3: Key Features
Key features: • IEEE 802.3af/at Power over Ethernet PoE/PoE+ compliant. • Supports eight (8) 10/100Mbps Fast Ethernet 10/100BaseT/TX PoE/PoE+ ports with 1 Gigabit Dual Media uplink port (9 ports total). • Provides up to 30 watts for each PoE port. (150 watts total power supply). -
Page 4: User Guide
User Guide: 1. Check the PoE switch: 1. Please check the enclosure, the RJ-45 ports, and the LED indicators, making sure they are ok. 2. Connect the PoE switch to AC power, making sure the initialization of the PoE switch occurs as below: POE indicator is off when power is connected. -
Page 5: Technical Specifications
Technical Specifications: IEEE 802.3i 10BaseT IEEE 802.3u 100BaseTX Applicable IEEE 802.3ab 1000BaseT Standards IEEE 802.3z 1000Base–X (via SFP module) IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Network 10/100 Mbps PoE/PoE+ port (ports 1-8) ports 10/100/1000 Mbps Uplink (port 9) 10/100M/1000Mbps SFP (shared with port 9) -
Page 6: Contact Information
Contact Information: SIGNAMAX, INC™ ™ ™ ™ an AESP Company 999 N.W. 159th Drive Miami, Florida 33169, U.S.A. Phone: 305-944-7710 Fax: 305-949-4483 Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201 Http://www.signamax.com E-mail: info@signamax.com...
