Page 1: User Manual

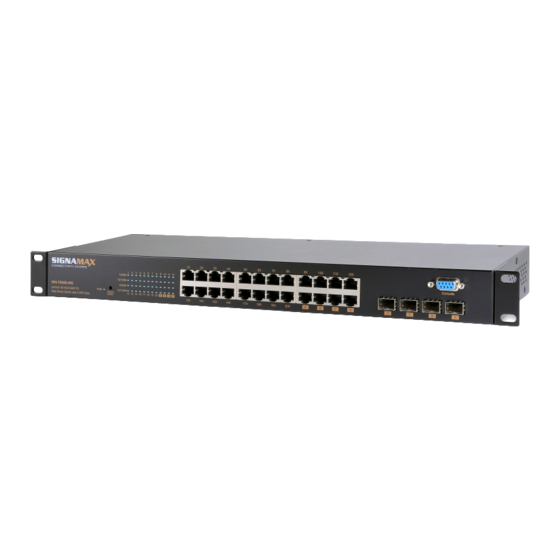

24-Port Gigabit Web Smart Switch with 4 SFP (Mini-GBIC) slots User Manual V1.4 (April 2008) - Page 2 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports COPYRIGHT All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photo copying, recording or otherwise, without the prior written permission of the publisher.
-
Page 3: Table Of Contents
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Table of Contents UNPACKING INFORMATION........5 INTRODUCTION............5 ................5 ENERAL ESCRIPTION ..................6 EATURES .................6 RONT ANEL ...................7 ANEL INSTALLATION ............8 ................8 ESKTOP NSTALLATION ................8 NSTALLATION ..............8 NSTALLING ETWORK ABLES DESCRIPTION OF SWITCH FUNCTIONS ....10 .................. - Page 4 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports ..........17 GGREGATION RUNK ONFIGURATION ................18 UALITY OF ERVICE ....................22 IRROR ..................23 IMIT SNMP ....................24 ..................25 ISCOVERY ................. 26 TATISTICS VERVIEW ................26 ETAILED TATISTICS ..................... 27 ESTART ................
-
Page 5: Unpacking Information
Smart Switch with 4 SFP module Combo slots. Before you start, please verify that your package contains the following items: 1. One Signamax 065-7940B-WS 24-port Gigabit Web Smart Switch with 4 SFP slots 2. One power cord 3. Rack-mounting brackets and screws (optional) 4. -
Page 6: Key Features
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Key Features 24 (twenty-four) 10/100/1000Mbps Gigabit Ethernet ports. 4 (four) SFP slots for optional fiber connection. Supports auto-detection for SFP module insertion Auto-discovery function for easy Network management. 8K MAC address entries and 24 groups VLAN table Supports Port Mirroring. -
Page 7: The Rear Panel
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Attention： ： ： ： The SFP module (SFP) slots share their LED indicators with their interchangeable Gigabit RJ-45 (copper) ‘combo’ ports (the last 4 copper ports). Use of a SFP module slot automatically disables its corresponding copper port. -
Page 8: Installation
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Installation This Signamax 065-7940B-WS Switch can be placed on your desktop or mounted in a rack. Installation is very easy. Users can use all the features of the Switch by simply attaching the cables and turning the power on. - Page 9 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Media Speed Wiring 10/100/1000 Mbps 10 Mbps Category 3,4,5 UTP/STP copper 100 Mbps Category 5 UTP/STP 1000 Mbps Category 5,5e UTP/STP 1000 Mbps Fiber 1000 Mbps The cable type differs according to the SFP (SFP module module you choose.
-
Page 10: Description Of Switch Functions
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Description of Switch Functions Jumbo Frame The Signamax 065-7940B-WS Switch supports Jumbo Frames, which means that it can transmit the same data in fewer frames. This helps to ensure fewer overheads, shorter processing time, and fewer interruptions. -
Page 11: Management Guide
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Management guide Access the Switch This section shows you how to access and use the Signamax 065-7940B-WS Switch’s advanced management capability, which can be accessed via console port or Internet Browser over the network (in-band). -
Page 12: Homepage
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Homepage After successful log-in, the “SYSTEM Configuration” page appears (this is also the Homepage). You can click on the hyperlinks on the left side of each page to get access to each management function. -
Page 13: System
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports System The System window provides the Switch’s system information and allows users to configure most of these properties (see table under screenshot for details). Items Functions MAC Address The MAC address of this device.. -
Page 14: Port
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Port This Port Configuration page shows the link status of each port and allows users to configure speed, flow control and maximum frame size for each port. Items Functions Link Shows the link status of each port. The column lights green and shows the link speed if there is valid connection on the port. -
Page 15: Vlan
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports VLAN VLAN divides the network members into groups to reduce packet collisions and improve the network efficiency. The switch supports 802.1q tag-based VLAN. Please follow the instructions to configure. To add new VLAN groups, 1. -
Page 16: Pvid
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports PVID When the VLAN-enabled Switch receives a tagged packet, the packet will be sent to the port’s default VLAN according to the PVID (port VLAN ID) of the receiving port. Items... -
Page 17: Aggregation/ Trunk Configuration
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Aggregation/ Trunk Configuration To set up the port trunk groups, put the selected ports’ numbers into the same Aggregation group. You can choose up to eight groups. Don’t forget to click “Apply” to save the settings. -
Page 18: Quality Of Service
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Quality of Service QoS enhances communication quality by giving precedence to certain classes of packets. This switch provides port-based, tag-based and DSCP QoS modes:... - Page 19 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Port-based mode QoS: Port-based QoS allows users to configure each port as having a high or low priority. To assign a priority level to each port: Select “Port” in the “Mode” column for those ports that are going to function as part of port-based QoS.
- Page 20 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Tag-based QoS: Tag-based QoS assigns packet priority according to the tags on the packets. To configure Tag-based QoS: Select “Tagged” in the “Mode” column for those ports that are going to perform tag-based QoS.
- Page 21 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports DSCP-mode QoS: DSCP-mode QoS assigns packet priority according to the types of the incoming packets. It distinguishes packets according to the “Delay”, “Throughput” and “Reliability” information attached to the packet. The types are listed as the following:...
-
Page 22: Mirror
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Mirror The Mirror function copies all the packets that are transmitted by the source port to the destination port. It allows administrators to analyze and monitor the traffic of the monitored ports. -
Page 23: Rate Limit
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Rate Limit The “Rate Limit” page allows users to limit the bandwidth for each port and configure the rules for Storm Control, which limits the flow of broadcast and multicast To perform storm control: Click on each drop list to specify a speed for each frame type. -
Page 24: Snmp
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports SNMP This device supports SNMP-management, which allows network administrators to monitor and configure this device with SNMP software. To allow this device to be managed via SNMP: Select “enable” in the drop menu. -
Page 25: Discovery
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Discovery After installing a series of our switches, the discovery management tool helps users to search and get access to those switches within the LAN. Note: The discovery tool lists a maximum of 16 devices respectively for auto and manual modes. -
Page 26: Statistics Overview
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Statistics Overview The Statistics Overview is provided for users to see the general transmitting and receiving status of each port. You may click the “Clear” button to clean all statistics or click the “Refresh”... -
Page 27: Restart
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Restart Restart: To restart the system, click the “Yes” button. The system restarts and shows the authentication window. Please fill in the username and password to continue. Factory Default Restore Factory Default: To restore the factory default settings, click the Yes button. -
Page 28: Software Upload
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Software Upload This “Software Upload” page allows users to upgrade firmware for this Switch. To perform firmware upgrade: Click the “Browse” button Locate the firmware file Click the “Upload” button to execute. -
Page 29: Product Specifications
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Product Specifications Standards IEEE802.3 10BaseT IEEE802.3u 100BaseTX IEEE802.3x full-duplex operation and flow control IEEE802.3ab/z 1000BaseT IEEE802.1Q VLAN interoperability IEEE802.1p Priority Operation Interface 24 * 10/100/1000Mbps auto MDI/MDI-X RJ-45 switching ports 4 * SFP( mini-GBIC) ports... -
Page 30: Appendix- Command Line Interface
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Appendix- Command Line Interface Start-up and Terminal configuration To start the Command Line Interface, please connect a PC COM port to the RS-232 connector and activate terminal emulation software (e.g. Windows’... -
Page 31: Command Hierarchy
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Command Hierarchy After logging in, press ? + <enter> to show the 9 command groups. System - System commands Console - Console commands Port - Port commands VLAN - VLAN commands... -
Page 32: Command Description
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Command Description These are the group commands of the command line interface: Command groups: System - System commands Console - Console commands Port - Port commands VLAN - VLAN commands Aggr... -
Page 33: Console Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Description: Set or show the console password. The empty string ("") disables the password check. [<password>]: Password string of up to 16 characters. System Systemname [<name>] Description: Set or show the system name. -
Page 34: Port Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Port Commands Commands at Port level: Port Configuration [<portlist>] Port Mode [<portlist>] [<mode>] Port Flow Control [<portlist>] [enable|disable] Port Admin [<portlist>] [enable|disable] Port MaxFrame [<portlist>] [<framesize>|reset] Port Statistics [<portlist>] [clear] ------... - Page 35 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Port Admin [<portlist>] [enable|disable] Description: Set or show the admin state for the port. [<portlist>] : Port list (default: All ports). [enable|disable]: Enable or disable admin state (default: Show admin state).
-
Page 36: Vlan Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports VLAN Commands Commands at VLAN level: VLAN Configuration [<portlist>] VLAN Add <vidlist> [<portlist>] VLAN Delete <vidlist> VLAN Lookup <vidlist> VLAN Egress [<portlist>] [untagged|tagged] VLAN PVID [<portlist>] [<vid>|none] VLAN OnlyTag [<portlist>] [enable|disable] VLAN Configuration [<portlist>]... - Page 37 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports VLAN Egress [<portlist>] [untagged|tagged] Description: Set or show the VLAN egress mode setting for the port. Egress untagged ports will strip the VLAN tag from received frames. Egress tagged ports will not strip the tag from received frames [<portlist>]: Port list (default: All ports).
-
Page 38: Aggregation Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Aggregation Commands Commands at Aggr level: Aggr Configuration Aggr Add <portlist> Aggr Delete <portlist> Aggr Lookup <portlist> Aggr Mode [smac|dmac|xor] Aggr Configuration Description: Shows the aggregation groups and the aggregation mode. -
Page 39: Qos Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports QoS Commands Commands at QoS level: QoS Configuration [<portlist>] QoS Mode [<portlist>] [tag|port|diffserv] QoS Port [<portlist>] [<class>] QoS Tagprio [<portlist>] [<tagpriolist>] [<class>] QoS DiffServ [<dscpno>] [<class>] <class> range: low|normal|medium|high QoS Configuration [<portlist>] Description: Show the configured QoS mode and the priority setting of all ports. -
Page 40: Mirror Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports QoS DiffServ [<dscpno>] [<class>] Description: Set or show the IP Differentiated Services mapping. [<dscpno>]: IP DSCP number, 0-7. [<class>] : range: low|normal|medium|high Mirror Commands Commands at Mirror level: Mirror Configuration Mirror Port [<port>] Mirror Source [<portlist>] [enable|disable]... -
Page 41: Ip Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports IP Commands Commands at IP level: IP Configuration IP Setup [<ipaddress> [<ipmask> [<ipgateway>]]] [<vid>] IP Web management [enable|disable] IP Configuration Description: Show IP configured IP address, mask, gateway, VLAN ID and mode. -
Page 42: Ratelimit Commands
065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Activate or deactivate the SNMP. [enable|disable]: Enable/disable SNMP (default: Show SNMP mode). SNMP Trap [<IP Address>] Description: Set or show SNMP traps destination. <IP Address>: IP address to send traps to. (default: Show trap configuration) - Page 43 065-7940B-WS 24-Port 10/100/1000 WebSmart Switch with 4 SFP Ports Ratelimit Egress [<portlist>] [enable|disable] [<rate>] Description: Set or show the egress configuration. [<portlist>] : Port list (default: All ports). [enable|disable] : Enable or disable egress. [<rate>] : Disable or set leaky bucket rate in Kbit/s [128/256/512/1024/2048/3072k] (default: Show egress rate).
