- Page 1 ™ 065-1200 12-P IGNAMAX SERIES EDIA ONVERTER Signamax™ Connectivity Systems 065-7310F series 8-Port 100BaseFX Fiber Switch User’s Guide ’ ANUAL...
- Page 2 Signamax™ ™ ™ ™ Connectivity Systems 065-7310F series 8-Port 100BaseFX Fiber Switch User’s Guide...
-
Page 3: Preface
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Preface This manual describes how to install and use the Signamax™ 065-7310F series 8-Port 100BaseFX Fiber Switch. Both 100BaseFX multimode and singlemode versions are available for this product series. To get the most out of this manual, you should have an understanding of networking concepts such as bridging, IEEE 802.3 Ethernet and 100BaseFX Fast Ethernet, and local area... -
Page 4: Table Of Contents
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Table of Contents ....................1 REFACE ................2 ABLE OF ONTENTS ................3 HAPTER VERVIEW ....................3 NTRODUCTION ....................3 NSTALLATION ....................3 PECIFICATIONS ..................4 NTRODUCTION ...............4 IGHT ORTS THERNET WITCH ..................5 RODUCT EATURES ....................5 ACKING ....................6... -
Page 5: Chapter Overview
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Chapter Overview Introduction A general overview of switching benefits and the features of the Switch this manual accompanies. Installation Everything you need to know to install and configure the Switch with your network. -
Page 6: Introduction

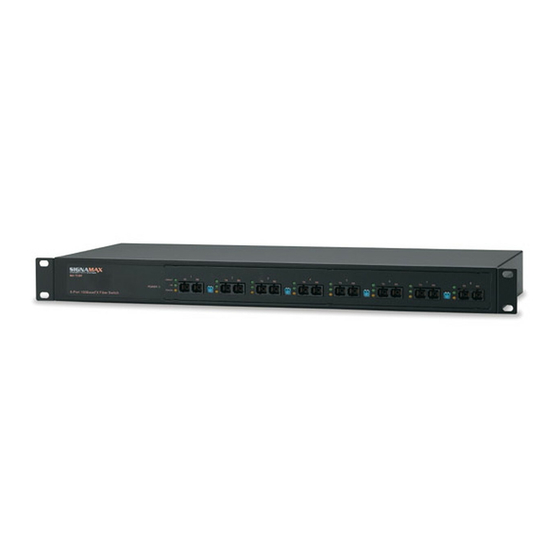

™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Introduction 8-Port Ethernet Fiber Switch The Signamax™ 8-port 100BaseFX fiber switch adds 100 Mbps switching performance in a cost-effective rack mount package. This eight-port switch provides multimode (models 065-7310FSC and 065-7310FST) or singlemode (model 065-7310FSM) fiber ports. -
Page 7: Product Features
When you unpack the switch, you should find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. The 8-port 065-7310F series switch ♦ User’s Manual ♦ AC power cord ♦... -
Page 8: Front Panel
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Front Panel The front panel of the switch has eight ports and an array of LED indicators to provide you with instant feedback on the status of the switch. Figure 1: Front Panel... - Page 9 Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Model Number Connector Port Speed Cable Half/Full Duplex 065-7310FSC 100/200 Mbps 62.5/125 micron fiber optic cable 065-7310FST 100/200 Mbps 62.5/125 micron fiber optic cable 065-7310FSM 100/200 Mbps 10/125 micron fiber optic cable...
-
Page 10: Leds
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches The array of LED indicators on the front panel conveys status and configuration information to help you monitor and troubleshoot the switch. Figure 2: LED & Button Indicators Port Status Each port has an array of three LEDs to show status information. - Page 11 Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Power This LED comes on when the switch is connected to a power supply and turned on. Activity Status TX: Transmit Data RX: Receive Data Dip Switch Full-Duplex: Toggle up to enable Full-Duplex mode for 100BaseFX ports (Default setting).
-
Page 12: Installation
065-7310F 8-Port 100BaseFX Fiber Switches Installation This chapter presents step-by-step installation instructions for The Signamax™ 8-port 100BaseFX fiber switch. Selecting a Site for the Switch ♦ As with any electronic device, you should place the Switch where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 13: Connecting To Power
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Connecting to Power Connect the supplied AC power cord to the receptacle on the back of the switch, and then plug the cord into a standard AC outlet with a voltage range from 100 to 240 VAC. -
Page 14: Specifications
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Specifications Applicable Standards 100BaseFX, IEEE 802.3u Ports 100BaseFX Speed 100BaseFX: 200Mbps full duplex 100Mbps half duplex Performance 148,800 pps forwarding rate per port. LED Indicators POWER, LNK/ACT, 100, FDX/COL Dimensions 17.3 X 8.1 X 1.75 inches , W X D X H... -
Page 15: Contact Information
Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches Contact Information SIGNAMAX™ ™ ™ ™ CONNECTIVITY SYSTEMS An AESP Company 1810 N.E. 144th Street. North Miami, Florida 33181, U.S.A. Phone: 305-944-7710 Fax: 305-652-8489 Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201 http://www.signamax.com/... - Page 16 Signamax ™ ™ ™ ™ 065-7310F 8-Port 100BaseFX Fiber Switches JOTEC AESP INTELEK spol.s.r.o (NORWAY) (CZECH REPUBLIC) Telefon 23 14 17 00 Ordrefax Vlarska 22, Brno, CZ 62700 23 14 17 10 Karihaugveien 102 CZE Czech Republic Postboks Ellingsrudasen Phone: +420-5-481-27248...
