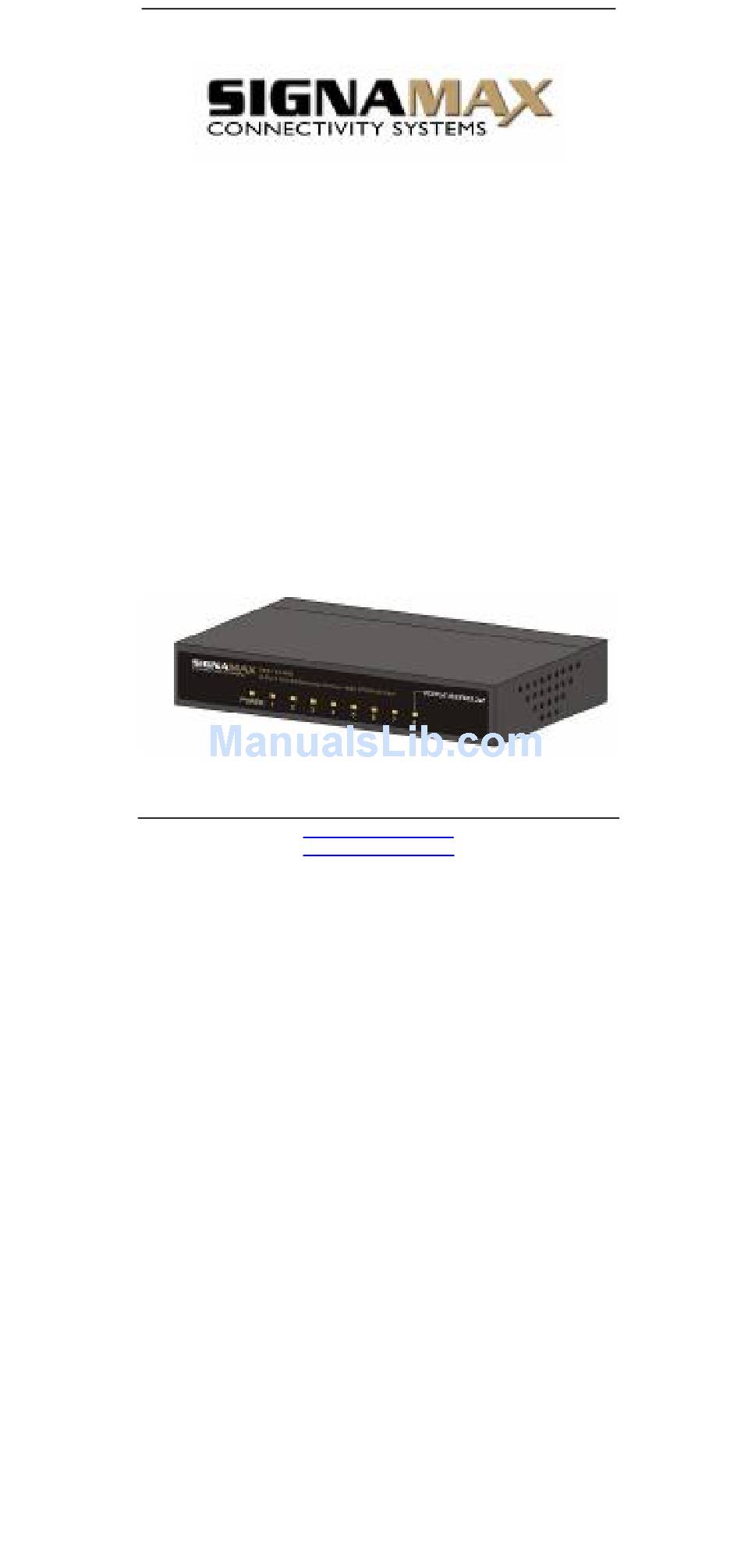

- Page 1 Signamax Connectivity System 065-7013PD Signamax™ Connectivity Systems 8 Ports Nway Fast Ethernet Switch with IEEE-802.3af PD/PoE Port Model:065-7013PD User’s Manual www.signamax-us.com www.signamax-eu.com...
- Page 2 Signamax Connectivity System 065-7013PD FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 065-7013PD 8 Ports Nway Fast Ethernet Switch Introduction 065-7013PD Switch provides 8 10/100Mbps ports. 065-7013PD Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of user increase continuously. 065-7013PD Switch build Power Device (PD)
- Page 4 Signamax Connectivity System 065-7013PD Key Features 8 Port 10/100Base T/TX Nway (Auto-negotiation) Switch with RJ-45 connectors. Port8 build in IEEE-802.3af Power Device (PD) feature, can get power source from other PSE port Palm size with transparent enclosure design Auto learning of networking configurations...
- Page 5 Signamax Connectivity System 065-7013PD Package Contents Before you start to install 065-7013PD Switch, please verify your package that contains the following items: One 065-7013PD Fast Ethernet Switch One Power Adapter One CD with User’s Manual Note: If any of these items is found missing or damaged, please contact your local supplier for replacement.
- Page 6 Signamax Connectivity System 065-7013PD Front Panel Layout . 8 RJ-45 10/100Mbps Switch Ports There are 1~8 RJ-45 connectors on the front panel for connecting to servers, workstation or other devices. 065-7013PD Switch provides 8 10/100Mbps switching ports that could sense the 10/100M speed and...
- Page 7 Signamax Connectivity System 065-7013PD . PD/PoE Port The Port8 Build in PD function, using this port to connect to the PSE port of PoE switch, Besides data uplink also can get the power source from PSE port over the Cat5 cable.
- Page 8 Signamax Connectivity System 065-7013PD Installation . To connect the Switch to PCs, servers, and other network devices. Use twisted pair cable (Cat. 5) to connect the Switch to PCs, servers and other network devices. All the port of this switch has Auto-MDI/MDIX feature;...
- Page 9 Signamax Connectivity System 065-7013PD port of the switch. Since all the port of this switch has Auto-MDI/MDIX feature, so can use either straight through or cross Cat5 cable. Technical Specifications 1. Standards Compliance - IEEE 802.3 10BASE-T - IEEE 802.3u 100BASE-TX - IEEE 802.3af...
- Page 10 Signamax Connectivity System 065-7013PD - 10Base–T Cat. 3, 4, 5 UTP/STP - 100Base–TX Cat. 5 UTP/STP 5. Network Status Monitoring LEDs - Per port: LINK/ACT - System: POWER 6. Buffer Memory: 768Kbits 7. Filter/Forward Rate - Packet Filtering/ Forwarding Rates - 100Mbps port - 148,800pps - 10Mbps port –...
