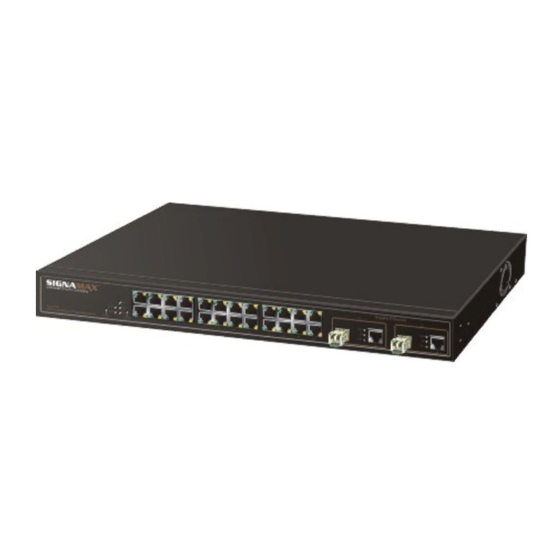

SignaMax 065-7727S User Manual

24-port 10/100baset/tx managed switch
Hide thumbs
Table of Contents

Advertisement

Quick Links

Signamax™ Connectivity Systems
Model 065-7727S
24-Port 10/100BaseT/TX
Managed Switch
U s e r ' s G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 065-7727S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SignaMax 065-7727S

Summary of Contents for SignaMax 065-7727S

  • Page 1 Signamax™ Connectivity Systems Model 065-7727S 24-Port 10/100BaseT/TX Managed Switch U s e r ’ s G u i d e...
  • Page 3 Signamax™ Connectivity Systems Model 065-7727S 24-Port 10/100BaseT/TX Managed Switch U s e r ’ s G u i d e...

  • Page 4: Table Of Contents

    065-7727S U ......................10 TARTING 2-1-1. Hardware and Cable Installation ..................10 2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail............12 2-1-3. Cabling Requirements......................12 2-1-4. Configuring the Management Agent of 065-7727S............17 2-1-5. IP Address Assignment.......................21 2-2. T ......................26 YPICAL PPLICATIONS 3. Operation of Web-based Management ..................28 3-1.
  • Page 5 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-8-4. Port-based Group ......................79 3-8-5. Management VLAN......................81 3-9. MAC T ..........................82 ABLE 3-10. GVRP C ......................88 ONFIGURATION 3-11. STP C ........................94 ONFIGURATION 3-11-1. STP Status ........................94 3-11-2. STP Configuration ......................96 3-11-3. STP Port Configuration ....................98 3-12.

  • Page 6: Revision History

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Revision History Release Date Revision 04/08/2008 Publication date: March,2008 Revision A1...

  • Page 7: Caution

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: •...
  • Page 9 About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the 065-7727S through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step. Many...

  • Page 10: Introduction

    1. Introduction 1-1. Overview of 065-7727S 065-7727S, 24 Fast Ethernet + 2 Gigabit L2 Managed Switch, implemented 24 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP(or GBIC), is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications.
  • Page 11 DHCP Option 82: This feature enables the Dynamic Host Configuration Protocol (DHCP) relay agent information (option 82) (065-7727S switch) to include information about itself and the attached client when forwarding DHCP requests from a DHCP client to a DHCP server via Trust Port. The DHCP server can use this information to assign IP addresses、gateway、subnet...

  • Page 12: Checklist

    Hardware • Supports 24-port 10/100M TP ports with Nway and auto MDIX function • In 065-7727S, it supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for removable SFP module supporting 1000M SFP fiber module • In 065-7727S, it supports 2 Gigabit dual media ports(TP/GBIC) and 2 slots for removable GBIC module supporting 1000M GBIC fiber module •...
  • Page 13 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch • Supports 802.1Q VLAN with 256 entries. • Supports user management and limits three users to login • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed • Supports to send the trap event while monitored events happened •...

  • Page 14: View Of 065-7727S

    065-7727S 24-Port 10/100BaseT/TX Managed Switch 1-4. View of 065-7727S Fig. 1-1 Full View of 065-7727S with SFP Module 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 24 TP Fast Ethernet ports and 2 slots for optional removable modules on the front panel of the switch.
  • Page 15 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch • LED Indicators Color Function System LED CPURUN Green Lit when CPU is on and good POWER Green Lit when AC power is on and good Green Lit when LEDSET set on active mode...

  • Page 16: User Interfaces On The Rear Panel

    AC Line 100-240V 50/60 Hz RS-232 DB-9 Connector Fig. 1-3 Rear View of 065-7727S 1-5. View of the Optional Modules In the switch, Port 25, 26 includes two types of media --- TP and SFP Fiber (LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function.
  • Page 17 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 1-4 Front View of 1000Base-SX/LX LC, SFP Fiber Transceiver Fig. 1-5 Front View of 1000Base-LX BiDi LC, SFP Fiber Transceiver Publication date: March, 2008 Revision A1...

  • Page 18: Installation

    At the beginning, please do first: ⇒ Wear a grounding device to avoid the damage from electrostatic discharge • Installing Optional SFP Fiber Transceivers to the 065-7727S L2 Managed Switch Note: If you have no modules, please skip this section.
  • Page 19 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch • TP Port and Cable Installation ⇒ In the switch, TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100M TP;...

  • Page 20: Installing Chassis To A 19-Inch Wiring Closet Rail

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 2-1-2. Installing Chassis to a 19-Inch Wiring Closet Rail Fig. 2-2 Caution: Allow a proper spacing and proper air ventilation for the cooling fan at both sides of the chassis. ⇒ Wear a grounding device for electrostatic discharge.
  • Page 21 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch ⎯ Gigabit Fiber with multi-mode LC SFP module ⎯ Gigabit Fiber with single-mode LC SFP module ⎯ Gigabit Fiber with BiDi LC 1310nm SFP module ⎯ Gigabit Fiber with BiDi LC 1550nm SFP module The following table lists the types of fiber that we support and those else not listed here are available upon request.
  • Page 22 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch The fiber, TP cables and devices’ bit-time delay (round trip) are as follows: 1000Base-X TP, Fiber 100Base-TX TP 100Base-FX Fiber Round trip Delay: 4096 Round trip Delay: 512 Cat. 5 TP Wire: 11.12/m Cat.
  • Page 23 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch • Typical Network Topology in Deployment A hierarchical network with minimum levels of switch may reduce the timing delay between server and client station. Basically, with this approach, it will minimize the number of switches in any one path; will lower the possibility of network loop and will improve network efficiency.
  • Page 24 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 1. The same VLAN members could not be in different switches. 2. Every VLAN members could not access VLAN members each other. 3. The switch manager has to assign different names for each VLAN groups at one switch.

  • Page 25: Configuring The Management Agent Of 065-7727S

    RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch. You can touch them through the following procedures. Section 2-1-4-1: Configuring the Management Agent of 065-7727S through the Serial RS-232 Port...
  • Page 26 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Attaches the other end of the serial RS-232 DB-9 cable to PC’s serial port, running a terminal emulator supporting VT100/ANSI terminal with The switch’s serial port default settings. For example, Windows98/2000/XP HyperTerminal utility.
  • Page 27 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 2-8 the Login Screen for CLI Publication date: March, 2008 Revision A1...
  • Page 28 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 2-1-4-2. Configuring the Management Agent of 065-7727S through the Ethernet Port There are three ways to configure and monitor the switch through the switch’s Ethernet port. They are CLI, Web browser and SNMP manager. The user interface for the last one is NMS dependent and does not cover here.

  • Page 29: Ip Address Assignment

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 2-10 the Login Screen for Web 2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS.
  • Page 30 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
  • Page 31 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
  • Page 32 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask.
  • Page 33 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as default router.

  • Page 34: Typical Applications

    065-7727S 24-Port 10/100BaseT/TX Managed Switch 2-2. Typical Applications The 065-7727S implements 24 Fast Ethernet TP ports with auto MDIX and 2 Gigabit dual media ports with SFP for removable module supported comprehensive fiber types of connection, including LC, BiDi LC for SFP. For more details on the specification of the switch, please refer to Appendix A.
  • Page 35 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection Publication date: March, 2008 Revision A1...

  • Page 36: Operation Of Web-Based Management

    3. Operation of Web-based Management This chapter instructs you how to configure and manage the 065-7727S through the web user interface it supports, to access and manage the 24 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP(or GBIC)Fiber management Ethernet switch.
  • Page 37 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch In the switch, it supports a simple user management function allowing only one administrator to configure the system at the same time. If there are two or more users using administrator’s identity, the switch will allow the only one who logins first to configure the system.

  • Page 38: Web Management Home Overview

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-1. Web Management Home Overview After you login, the switch shows you the system information as Fig. 3-2. This page is default and tells you the basic information of the system, including “Model Name”, “System Description”, “Location”, “Contact”, “Device Name”, “System Up...
  • Page 39 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-3 port detail information In Fig. 3-3, it shows the basic information of the clicked port. With this, you’ll see the information about the port status, traffic status and bandwidth rating for egress and ingress respectively.
  • Page 40 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Root System IP-MAC Binding Port Loop Detection SNMP DHCP Boot Multicast VLAN MAC Table GVRP Trunk 802.1X Alarm Configuration Security Bandwidth Diagnostics TFTP Server TFTP Server Firmware Upgrade Reboot Logout Publication date: March,2008...

  • Page 41: System Information

    You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is 065-7727S. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
  • Page 42 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch.

  • Page 43: Ip Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-1-2. IP Configuration IP configuration is one of the most important configurations in the switch. Without the proper setting, network manager will not be able to manage or view the device. The switch supports both manual IP address setting and automatic IP address setting via DHCP server.
  • Page 44 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
  • Page 45 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch DNS: It is Domain Name Server used to serve the translation between IP address and name address. The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet.

  • Page 46: Time Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-1-3. Time Configuration The switch provides manual and automatic ways to set the system time via NTP. Manual setting is simple and you just input “Year”, “Month”, “Day”, “Hour”, “Minute” and “Second” within the valid value range indicated in each item. If you...
  • Page 47 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch NTP: NTP is Network Time Protocol and is used to sync the network time based Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply>...
  • Page 48 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Range is 1 ~ 12. Default: 1 Day: Range is 1 ~ 31. Default: 1 Hour: Range is 0 ~ 23.

  • Page 49: Account Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity.

  • Page 50: Management Security

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-1-5. Management Security Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
  • Page 51 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Management Security Configuration Function description: The switch offers Management Security Configuration function. With this function, the manager can easily control the mode that the user connects to the switch. According to the mode, users can be classified into two types: Those who are able to connect to the switch (Accept) and those who are unable to connect to the switch (Deny).
  • Page 52 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch IP Range: The switch supports two kinds of options for managed valid IP Range, including “Any” and “Custom”. Default is “Any”. In case that” Custom” had been chosen, you can assigned effective IP range. The valid range is 0.0.0.0~255.255.255.255.

  • Page 53: Virtual Stack

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-1-6. Virtual Stack Function name: Virtual Stack Function description: Virtual Stack Management(VSM) is the group management function. Through the proper configuration of this function, switches in the same LAN will be grouped automatically. And among these switch, one switch will be a master machine, and the others in this group will become the slave devices.
  • Page 54 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-8 Parameter description: State: It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option.

  • Page 55: Dhcp Option 82

    Function description: This feature enables the Dynamic Host Configuration Protocol (DHCP) relay agent information (option 82) (065-7727S switch) to include information about itself and the attached client when forwarding DHCP requests from a DHCP client to a DHCP server via Trust Port. The DHCP server can use this information to assign IP addresses、gateway、subnet mask、DNS for each...
  • Page 56 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-10 Parameter description: State: It is used for the activation or de-activation of DHCP Option 82. Default is disable. Action: The Action that the switch would like to play in DHCP Option 82. tree types of action, including Replace , Keep and Drop are offered for option.

  • Page 57: Ip-Mac Binding

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-2. IP-MAC Binding The IP network layer uses a four-byte address. The Ethernet link layer uses a six-byte MAC address. Binding these two address types together allows the transmission of data between the layers. The primary purpose of IP-MAC binding is to restrict the access to a switch to a number of authorized users.
  • Page 58 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Binding List: The maximum number of IP-MAC binding client table is 512 entries. The maximum number of IP-MAC Binding server table is 64 entries. Name: A name is composed of any letter (A-Z, a-z) and digit (0-9) with maximal 8 characters.

  • Page 59: Port Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-3. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
  • Page 60 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds.
  • Page 61 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Speed / Duplex : Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex. If the media is 1Gbps fiber, it is 1000Mbps supported only.
  • Page 62 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Parameter description of Port 25 and Port 26: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so Fiber Type: Display the fiber mode, for instance, Multi-Mode, Single-Mode. Tx Central Wavelength: Display the fiber optical transmitting central wavelength, for instance, 850nm, 1310nm, 1550nm and so on.

  • Page 63: Port Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-3-2. Port Configuration Port Configuration is applied to change the setting of each port. In this configuration function, you can set/reset the following functions. All of them are described in detail below. Fig. 3-15...
  • Page 64 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch available for Fast Ethernet, Gigabit module in port 25, 26. If the media is 1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.

  • Page 65: Simple Counter

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-13, the window can show all ports’ counter information at the same time.
  • Page 66 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Rx Packet: The counting number of the packet received. Tx Collision: Number of collisions transmitting frames experienced. Rx Error Packet: Number of bad packets received. Publication date: March,2008 Revision A1...

  • Page 67: Detail Counter

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-3-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-14, the window can show only one port counter information at the same time.
  • Page 68 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Rx Unicast Packets: Show the counting number of the received unicast packet. Rx Broadcast Packets: Show the counting number of the received broadcast packet. Rx Multicast Packets: Show the counting number of the received multicast packet.
  • Page 69 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Number of 1024-1522-byte frames in good and bad packets received. Tx Packets: The counting number of the packet transmitted. TX Octets: Total transmitted bytes. Tx Unicast Packets: Show the counting number of the transmitted unicast packet.

  • Page 70: Loop Detection

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-4. Loop Detection The loop detection is used to detect the presence of traffic. When switch receives packet’s(looping detection frame) MAC address the same as oneself from port, show Loop detection happens. The port will be locked when it received the looping detection frames.
  • Page 71 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig.3-18 Publication date: March, 2008 Revision A1...

  • Page 72: Snmp Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-5. SNMP Configuration Any Network Management System (NMS) running the Simple Network Management Protocol (SNMP) can manage the Managed devices equipped with SNMP agent, provided that the Management Information Base (MIB) is installed correctly on the managed devices.
  • Page 73 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Default SNMP function : Enable Default community name for GET: public Default community name for SET: private Default community name for Trap: public Default Set function : Enable Default trap host IP address: 0.0.0.0...

  • Page 74: Dhcp Boot

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-6. DHCP Boot The DHCP Boot function is used to spread the request broadcast packet into a bigger time frame to prevent the traffic congestion due to broadcast packets from many network devices which may seek its NMS, boot server, DHCP server and many connections predefined when the whole building or block lose the power and then reboot and recover.

  • Page 75: Multicast

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-7. Multicast The function, is used to establish the multicast groups to forward the multicast packet to the member ports, and, in nature, avoids wasting the bandwidth while IP multicast packets are running over the network. This is because a switch that does not support IGMP or IGMP Snooping can not tell the multicast packet from the broadcast packet, so it can only treat them all as the broadcast packet.

  • Page 76: Igmp Setting

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-7-1. IGMP Setting Function name: IGMP Setting Function description: IGMP is used to snoop the status of IP multicast groups and display its associated information in both tagged VLAN and non-tagged VLAN networks.

  • Page 77: Igmp Vlan

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Specific Query Max Response Time : To set the specific Query Response Time field is used in specific or group-specific query messages. The Specific Maximum Response Time is configured as the value. Available value: 1-10 sec Specific Query Timeout : The Specific Query Timeout field is the amount of time in seconds.

  • Page 78: Mvr Setting

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-7-3. MVR Setting Function name: MVR Setting Function description: Multicast VLAN Registration (MVR) routes packets received in a multicast source VLAN to one or more receive VLANs. Clients are in the receive VLANs and the multicast server is in the source VLAN.

  • Page 79: Group Filtering

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-7-4. Group Filtering Function name: Group Filtering Function description: The Group Filtering function allows the Multicast VLAN Registration to set up the IP multicast group filtering conditions. IGMP join behavior that meet the items you set up will be joined or formed the multicast group.
  • Page 80 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Add: A new entry of configuration can be created after the allowed group parameters as mentioned above had been setup and then press <Add> button. Edit: The existed entry also can be modified after pressing <Edit> button.

  • Page 81: Vlan

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-8. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
  • Page 82 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Symmetric Vlan: This is a Ingress Rule (Rule 1, The Ingress Filtering Rule 1 is “forward only packets with VID matching this port’s configured VID”.). For example, if port 1 receives a tagged packet with VID=100 (VLAN name=VLAN100), and if Symmetric-Vlan function is enabled, the switch will check if port 1 is a member of VLAN100.

  • Page 83: Tag-Based Group

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-25 3-8-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups. You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit>...
  • Page 84 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-26 Add Group: Input the VLAN name, VID and then choose the member by ticking the check box beside the port No. to create a new Tag-based VLAN. As to the parameter of Untag, it stands for an egress rule of the port. If you tick the check box beside the port No., packets with this VID outgoing from...
  • Page 85 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Delete Group: Just press the <Delete> button to remove the selected group entry from the Tag-based group table. Fig. 3-28 Edit a group: Just select a group entry and press the <Edit> button, then you can modify a group’s description, member and untag settings.

  • Page 86: Pvid

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-8-3. PVID Function name: PVID Function description: In PVID Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rule (Rule 2) to each port.

  • Page 87: Publication Date: March

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Drop Untag: Drop untagged frame. You can configure a given port to accept all frames (Tagged and Untagged) or just receive tagged frame. If the former is the case, then the packets with tagged or untagged will be processed. If the later is the case, only the packets carrying VLAN tag will be processed, the rest packets will be discarded.
  • Page 88 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.

  • Page 89: Management Vlan

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Edit a group: Just select a group entry and press the <Edit> button, then you can modify a group‘s description and member set. 3-8-5. Management VLAN Function name: Management VLAN Function Description: Fig. 3-33...

  • Page 90: Mac Table

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-9. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static and MAC Alias, which cannot be categorized to some function type. They are described below. Function name:...
  • Page 91 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC” or “Static MAC”.
  • Page 92 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Delete a MAC address idling for a period of time from the MAC Table, which will not affect static MAC address. Range of MAC Address Aging Time is 10-1000000 seconds. The default Aging Time is 300 seconds.
  • Page 93 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-36 Parameter description: MAC: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 40 - C7 - D6 – 00 - 01 VID: VLAN identifier.
  • Page 94 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report.
  • Page 95 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 40 - C7 - D6 – 00 - 02 Alias: MAC alias name you assign.

  • Page 96: Gvrp Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-10. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application.
  • Page 97 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch can pull down the list and click the <Downward> arrow key to choose “Enable” or “Disable”. Then, click the <Apply> button, the system will take effect immediately. Join Time: Used to declare the Join Time in unit of centisecond. Valid time range: 20 –100 centisecond, Default: 20 centisecond.
  • Page 98 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch received GVRP PDU. There are two modes, disable and enable, provided for the user’s choice. Disabled: In this mode, the switch dynamic VLAN will be created when this port received GVRP PDU. The default setting is Normal.
  • Page 99 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Fig. 3-39 Parameter description:...
  • Page 100 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application.
  • Page 101 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: Current Dynamic Group Number: The number of GVRP group that are created currently. VID: VLAN identifier. When GVRP group creates, each dynamic VLAN group owns its VID.

  • Page 102: Stp Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-11. STP Configuration The Spanning Tree Protocol (STP) is a standardized method (IEEE 802.1D) for avoiding loops in switched networks. When STP is enabled, ensure that only one path is active between any two nodes on the network at a time. User can enable Spanning Tree Protocol on switch’s web management and then set up other...
  • Page 103 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch All bridges in the LAN will re-learn and determine which the root bridge is. Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time.

  • Page 104: Stp Configuration

    If you want to have the 065-7727S as root bridge, you can set this value lower than that of bridge in the LAN. The valid value is 0 ~ 61440. The default is 32768.
  • Page 105 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.

  • Page 106: Stp Port Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-11-3. STP Port Configuration Function name: STP Port Setting Function description: In the STP Port Setting, one item selection and five parameters settings are offered for user’s setup. User can disable and enable each port by selecting each Port Status item.
  • Page 107 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps : 20,000 Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID.
  • Page 108 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port.

  • Page 109: Trunking Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-12. Trunking Configuration The Port Trunking Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.
  • Page 110 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Per Trunking Group supports a maximum of 4 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Trunk Setting Rules are listed below:...
  • Page 111 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports.
  • Page 112 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group. Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port.
  • Page 113 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 26) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
  • Page 114 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view.
  • Page 115 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: LACP System Configuration Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system.

  • Page 116: Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-13. 802.1x Configuration 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication.
  • Page 117 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch The overview of operation flow for the Fig. 3-41 is quite simple. When Supplicant PAE issues a request to Authenticator PAE, Authenticator and Supplicant exchanges authentication message. Then, Authenticator passes the request to RADIUS server to verify. Finally, RADIUS server replies if the request is granted or denied.
  • Page 118 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Authentication server Fig. 3-49 Authenticator Supplicant A The Fig. 3-49 shows the procedure of 802.1x authentication. There are steps for the login based on 802.1x port access control management. The protocol used in the right side is EAPOL and the left side is EAP.
  • Page 119 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant.
  • Page 120 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
  • Page 121 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: 802.1x State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1x port security application. Parameter description: Radius Server: RADIUS server IP address for authentication.
  • Page 122 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: 802.1x Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1x operation mode.
  • Page 123 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X authenticator on it.
  • Page 124 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1x port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1x...
  • Page 125 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.

  • Page 126: Alarm Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-14. Alarm Configuration Alarm Configuration Events Configuration Email/SMS Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 21 different trap events to users for switch management.
  • Page 127 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Email/SMS Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email or SMS, or both. It depends on your settings. An email address or a mobile phone number has to be set in the web page of alarm configuration (See Fig.

  • Page 128: Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-15. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively. Default Configuration: This is Rubytech’s setting and cannot be altered.

  • Page 129: Save/Restore

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-15-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Fig. 3-58 Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory.
  • Page 130 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Restore Default Configuration (includes default IP address) Function description: Restore Default Configuration function can retrieve Rubytech’s setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1.
  • Page 131 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration. When completing to restore the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system.

  • Page 132: Config File

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-15-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP. Parameter description:...

  • Page 133: Security

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-16. Security Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
  • Page 134 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Isolated Group Function description: Isolated Group function can let the port be independent of other ports in the Isolated group, and the communication is also forbidden between these ports. But, the ports of the Isolated group are still able to communicate with the ports of the non-Isolated group.

  • Page 135: Bandwidth Management

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-17. Bandwidth Management Function name: Ingress Bandwidth Setting Function description: Ingress Bandwidth Setting function is used to set up the limit of Ingress bandwidth for each port. Fig. 3-66 Parameter description: Port No.: Choose the port that you would like this function to work on it.
  • Page 136 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Egress Bandwidth Setting Function description: Egress Bandwidth Setting function is used to set up the limit of Egress bandwidth for each port. Fig. 3-67 Parameter description: Port No.: Choose the port that you would like this function to work on it. Valid range of the port is 1~26.
  • Page 137 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Storm Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Fig. 3-68 Parameter description: Storm Type: Disable: Disable the function of the bandwidth storm control.
  • Page 138 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch multicast Storm packets in transmission. UC, MC (Unknown Unicast, Multicast Storm Control): Enable the function of bandwidth storm control for Unknown Unicast and multicast Storm packets in transmission. BC, UC, MC (Broadcast, Unknown Unicast, Multicast Storm Control): Enable the function of bandwidth storm control for all packets in transmission.

  • Page 139: Qos(Quality Of Service) Configuration

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-18. QoS(Quality of Service) Configuration The switch supports 5 kinds of QoS, are as follows, MAC Priority, 802.1p Priority, IP TOS Priority, and DiffServ DSCP Priority. Port Based Priority has a special name called VIP Port in the switch. Any packets enter VIP Port will have highest transmitting priority.
  • Page 140 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch The QoS functions as we mentioned above are able to enabled at the same time. But, the following precedence will decide whether these functions work or not. 1. Enable both VIP and TOS. Choose priorities of VIP and TOS.
  • Page 141 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-69 Publication date: March, 2008 Revision A1...
  • Page 142 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: 802.1p Setting Function description: This function will affect the priority of VLAN tag. Based on priority of VLAN tag, it can arrange 0~8 priorities, priorities can map to 4 queues of the switch (queue 0~3) and possess different bandwidth distribution according to your weight setting.
  • Page 143 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: DSCP Setting Function description: In the late 1990s, the IETF redefined the meaning of the 8-bit SERVICE TYPE field to accommodate a set of differentiated services (DS). Under the differentiated services interpretation, the first six bits comprise a codepoint, which is sometimes abbreviated DSCP, and the last two bits are left unused.

  • Page 144: Acl

    065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-19. ACL The 065-7727S switch access control list (ACL) is probably the most commonly used object in the IOS. It is used for packet filtering but also for selecting types of traffic to be analyzed, forwarded, or influenced in some way.
  • Page 145 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Parameter description: To add new access control rule on switch. You must configure the parameters what described later when you add the new access control rule. Edit/ Show: To modify or monitor the access control configuration rule on switch.
  • Page 146 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-74 VLAN Tag: To input VLAN Type with 2 type include “any” and “ Tag-based Vlan” If you choice Tag-based Vlan type then you must input Tag VID in field and droll the Tag Priority bar to choice the tag priority from 0 to 7.
  • Page 147 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch To droll “Ethernet Type” bar and option “any”, “ IPv4”, “ ARP” and “ Specific” for ACL requirement. Any: It is including all frame type IPv4: It is including all IPv4 protocol frame type...
  • Page 148 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch IPv4 TOS : To droll the bar and you can elect “ Any”, and “ Specific”. If you click “ Specific” then you need to set the TOS Value to filter. Fig. 3-79 Fig.
  • Page 149 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch IPv4 DA/ SA : To droll the bar and you can elect “ Any”, “HOST” and “Network”. Fig. 3-82 L4 Destination port : To droll the bar and you can elect “ Any” and “Specific”.
  • Page 150 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch L4 Source port : To droll the bar and you can elect “ Any” and “Specific”. If you click “specific” then you need to set source port value. Fig. 3-85 Fig. 3-86 Action: To set network packet filter includes “In-band”...
  • Page 151 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-87 Fig. 3-88 Fig. 3-89 Publication date: March, 2008 Revision A1...
  • Page 152 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 3-90 Fig. 3-91 Modify Packet for In/ Out-Band : Modify Packet -802.1P: To droll down the bar to elect “Any” and “Specific”. If you click the “ Specific” then you need to set 802.1p value in the field. default is 0 Fig.
  • Page 153 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Rate Meter: To set rate meter function with the bandwidth parameter. The range is 64 to 1024000kbps. Fig. 3-94 Publication date: March, 2008 Revision A1...

  • Page 154: Diagnostics

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3- 20. Diagnostics Five functions, including Diagnostics, Loopback Test, Ping Test, Auto Ping and Cable are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections.
  • Page 155 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Loopback Test Function description: In the Loopback Test function, there are two different loopback tests. One is Internal Loopback Test and the other is External Loopback Test. The former test function will not send the test signal outside the switch box. The test signal only wraps around in the switch box.
  • Page 156 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Ping Test Function description: Ping Test function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides Ping Test function to let you know that if the target device is available or not.
  • Page 157 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Auto Ping Function description: Auto Ping function is a tool for detecting if the target device is alive or not through ICMP protocol which abounds with report messages. The switch provides auto Ping Test function to let you know that if the target device is available or not.
  • Page 158 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Function name: Cable Function description: Cable function is a tool for detecting if the cable per port status is OK or not. report messages. The switch provides cable Test function to let you know that if the cable connect to a port is OK or not.

  • Page 159: Tftp Server

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3- 21. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply>...

  • Page 160: Log

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-22. Log This function shows the log data. The switch provides system log data for users. There are 16 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
  • Page 161 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Upload Log: Upload log data through tftp. Clear Log: Clear log data. Publication date: March, 2008 Revision A1...

  • Page 162: Firmware Upgrade

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-23. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet.

  • Page 163: Reboot

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-24. Reboot We offer you many ways to reboot the switch, including power up, hardware reset and software reset. You can press the RESET button in the front panel to reset the switch. After upgrading software, changing IP configuration or changing VLAN mode configuration, then you must reboot to have the new configuration taken effect.

  • Page 164: Logout

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 3-25. Logout You can manually logout by performing Logout function. In the switch, it provides another way to logout. You can configure it to logout automatically. Function name: Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission.

  • Page 165: Operation Of Cli Management

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 4. Operation of CLI Management 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
  • Page 166 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Fig. 4-1 Fig. 4-2 Publication date: March,2008 Revision A1...

  • Page 167: Commands Of Cli

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands.

  • Page 168: Global Commands Of Cli

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 4-2-1. Global Commands of CLI Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode.
  • Page 169 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
  • Page 170 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before. The CLI supports up to 256 records. If no argument is typed, the CLI would list total records up to 256.

  • Page 171: Restore Default

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch logout Syntax: logout Description: When you enter this command via Telnet connection, you would logout the system and disconnect. If you connect the system through direct serial port with RS-232 cable, you would logout the system and be back to the initial login prompt when you run this command.

  • Page 172: Restore User

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately;...

  • Page 173: Save User

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration.

  • Page 174: Local Commands Of Cli

    <sec> : timer, range 0-65535 Possible value: <port range> : 1 to 26 <sec> : 0-65535, default is 60 Example: 065-7727S (802.1x)# set quiet-period 2 30 set reAuthEnabled Syntax: set reAuthEnabled <port-range> <ebl> Description: A constant that define whether regular reauthentication will take place on this port.
  • Page 175 Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch <port range> : 1 to 26 <max> : 1-10, default is 2 Example: 065-7727S (802.1x)# set reAuthMax 2 2 set reAuthPeriod Syntax: set reAuthPeriod <port-range> <sec> Description: A constant that defines a nonzero number of seconds between periodic reauthentication of the supplicant.
  • Page 176 <port-number> : 1~65535, default 1812 <Accounting Service> : 0 for disable, 1 for enable <Accounting Server> : xxx.xxx.xxx.xxx <Accounting Port> :1~65535 Example: 065-7727S(802.1X)# set state 192.168.2.252 1812 winradius 1 192.168.2.252 065-7727S(802.1X)# show state Radius Server : 192.168.2.252 Port Number : 1812...
  • Page 177 <port range> : syntax 1,5-7, available from 1 to 26 <sec> : timer, range 1-65535 Possible value: <port range> : 1 to 26 <sec> : 1-65535, default is 30 Example: 065-7727S (802.1x)# set txPeriod 2 30 show mode Syntax: show mode Description: To display the mode of each port.
  • Page 178 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Argument: None. Possible value: None. Example: 065-7727S(802.1x)# show parameter port 1) port control : Auto reAuthMax txPeriod : 30 Quiet Period : 60 reAuthEnabled : ON reAuthPeriod : 3600 max. Request : 2...
  • Page 179 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show state Syntax: show state Description: To display the Radius server configuration. Argument: None. Possible value: None. Example: 065-7727S (802.1x)# show state Radius Server: 192.168.1.115 Port Number : 1812 Secret Key : WinRadius...
  • Page 180 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch account Syntax: add <name> Description: To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: <name>...
  • Page 181 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch modify Syntax: modify <name> Description: To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: 065-7727S(account)# modify aaaaa username/password: the length is from 5 to 15.
  • Page 182 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch alarm <<email>> del mail-address Syntax: del mail-address <#> Description: To remove the e-mail address. Argument: <#>: email address number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: 065-7727S(alarm-email)# del mail-address 2...
  • Page 183 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set server Syntax: set server <ip> Description: To set up the IP address of the email server. Argument: <ip>:email server ip address or domain name Possible value: None. Example: 065-7727S(alarm-email)# set server 192.168.1.6...
  • Page 184 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch <<events>> del all Syntax: del all <range> Description: To disable email, sms and trap of events. Argument: <range>:del the range of email, sms and trap of events, syntax 1,5-7, available from 1 to 25 Possible value: <range>: 1~25...
  • Page 185 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch del trap Syntax: del trap <range> Description: To disable the trap of the events. Argument: <range>:del the range of trap, syntax 1,5-7, available from 1 to 25 Possible value: <range>: 1~25 Example: 065-7727S(alarm-events)# del trap 1-3...
  • Page 186 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set sms Syntax: set sms <range> Description: To enable the sms of the events. Argument: <range>:set the range of sms, syntax 1,5-7, available from 1 to 25 Possible value: <range>: 1~25 Example: 065-7727S(alarm-events)# set sms 1-3...
  • Page 187 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 8 STP Topology Changed 9 STP Disabled 10 STP Enabled 11 LACP Disabled 12 LACP Enabled 13 LACP Member Added 14 LACP Port Failure 15 GVRP Disabled 16 GVRP Enabled 17 Port-based Vlan Enabled...
  • Page 188 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 7 User Logout 8 STP Topology Changed 9 STP Disabled 10 STP Enabled 11 LACP Disabled 12 LACP Enabled 13 LACP Member Added 14 LACP Port Failure 15 GVRP Disabled 16 GVRP Enabled...
  • Page 189 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch <<sms>> del phone-number Syntax: del phone-number <#> Description: To delete sms phone number. Argument: <#>: mobile phone number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: 065-7727S(alarm-sms)# del phone-number 3...

  • Page 190: Set User

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Mobile Phone 3: Mobile Phone 4: Mobile Phone 5: Mobile Phone 6: set server Syntax: set server <ip> Description: To set up the IP address of sms server. Argument: <ip>: SMS server ip address or domain name Possible value: None.
  • Page 191 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Mobile Phone 1: 0910380190 Mobile Phone 2: Mobile Phone 3: Mobile Phone 4: Mobile Phone 5: Mobile Phone 6: show Syntax: show Description: To display the configuration of SMS trap event. Argument: None.

  • Page 192: Set Egress

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch autologout autologout Syntax: autologout <time> Description: To set up the timer of autologout. Argument: <time>: range 1 to 3600 seconds, 0 for autologout off, current setting is 180 seconds. Possible value: < time >: 0,1-3600...
  • Page 193 <rate>: 64-1024000(Kb). port 1-24: 64-102400(Kb); port 25-26: 64-1024000(Kb) Possible value: <range>: 1 to 26 <rate>: 64-102400(Kb) for port 1-24; 64-1024000(Kb) for port 25-26 Example: 065-7727S (bandwidth)# set ingress 1-16 100 065-7727S(bandwidth)# show Port Ingress Rate(Kb) Egress Rate(Kb) Storm Type Storm Rate(Kb)
  • Page 194 FE port: 64 - 102400 (Kbps) GE port: 64 - 1024000 (Kbps). Possible value: <range>: 1 to 26 <type> : 0 to 7 <rate>: 64- 1024000 (Kbps) Example: 065-7727S(bandwidth)# set storm 20 3 5000 065-7727S(bandwidth)# show Port Ingress Rate(Kb) Egress Rate(Kb) Storm Type Storm Rate(Kb)
  • Page 195 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch ====== ================== ================= ============ ================ …. 102400 102400 DISABLE 102400 102400 102400 DISABLE 102400 102400 102400 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE...
  • Page 196 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 102400 102400 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE 102400 102400 3776 DISABLE 102400 102400 102400 DISABLE 102400 102400 102400 DISABLE 102400 19520...
  • Page 197 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch config-file export start Syntax: export start Description: To run the export start function. Argument: None. Possible value: None. Example: 065-7727S (config-file)# export start Export successful. export user-conf Syntax: export user-conf Description: To run the export user-conf function.
  • Page 198 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch import user-conf Syntax: import user-conf Description: To run the import user-conf function. Argument: None. Possible value: None. Example: 065-7727S (config-file)# import user-conf Import successful. set export-path Syntax: set export-path <filepath> Description: To set up the file path and filename that user would like to export.
  • Page 199 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show Syntax: show Description: To display the information of the config file. Argument: None. Possible value: None. Example: 065-7727S(config-file)# show TFTP Server IP Address: 192.168.3.111 Export Path and Filename: log/21511.txt Import Path and Filename: log/21511.txt...
  • Page 200 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch diag <<autoping>> disable Syntax: disable Description: Disable auto ping function on switch Argument: None. Possible value: None. Example: 065-7727S (diag-autoping)# disable enable Syntax: enable Description: Enable auto ping function on switch Argument: None.
  • Page 201 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 065-7727S(diag-autoping)# show Auto Ping state :Enabled IP address :192.168.2.22 Interval(sec) :100 Times 065-7727S(diag-autoping)# show Syntax: show Description: To show auto ping function on switch Argument: none Possible value: none Example: 065-7727S(diag-autoping)# show Auto Ping state :Enabled IP address :192.168.2.22...
  • Page 202 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch diag Syntax: diag Description: Diag is used to test whether EEPROM, UART, DRAM and Flash is normal or not. Argument: None. Possible value: None. Example: 065-7727S (diag)# diag EEPROM Test : OK UART Test...
  • Page 203 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 192.168.2.22 is alive. 065-7727S(diag)# firmware set upgrade-path Syntax: set upgrade-path <filepath> Description: To set upgrade file path and name on switch. Argument: <filepath>: upgrade file path and name Possible value: <filepath>: upgrade file path and name Example: 065-7727S (firmware)# set upgrade-path ruby_es2226_v0.99.img...
  • Page 204 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch gvrp disable Syntax: disable Description: To disable the gvrp function Argument: None. Possible value: None. Example: 065-7727S (gvrp)# disable enable Syntax: enable Description: To enable the gvrp function. Argument: None. Possible value: None.
  • Page 205 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 065-7727S (gvrp)# group 2 065-7727S (gvrp-group-2)# set applicant 1-6 non-participant 065-7727S (gvrp-group-2)# show GVRP group VID: 2 Port Applicant Registrar ---- --------------- --------- Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal...
  • Page 206 <non-participant>: set applicant as non-participant mode Possible value: <range>: 1 to 26 <normal|non-participant>: normal or non-participant Example: 065-7727S (gvrp)# set applicant 1-10 non-participant set registrar Syntax: set registrar <range> <normal | fixed | forbidden> Description: To set default registrar mode for each port.
  • Page 207 Leave Time must equal double Join Time at least. Possible value: <range> : 1 to 26 <join>: 20 to 100 <leave>: 60 to 300 <leaveall>: 1000 to 5000 Example: 065-7727S (gvrp)# set timer 2-8 25 80 2000 Publication date: March, 2008 Revision A1...

  • Page 208: Show Config

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show config Syntax: show config Description: To display the gvrp configuration. Argument: None. Possible value: None. Example: 065-7727S(gvrp)# show config GVRP state: Disable Port Join Time Leave Time LeaveAll Time Applicant Registrar Restricted...

  • Page 209: Show Group

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show group Syntax: show group Description: To show the gvrp group. Argument: None. Possible value: None. Example: 065-7727S(gvrp)# show group GVRP group information Current Dynamic Group Number: 0 VID Member Port ---- --------------------------------------------------...
  • Page 210 <vid>: from 1 to 4094 value. <start>: ip address format. <end>: ip address format. <port> syntax: 1,5-7, from 1 to 26 value. Example: 065-7727S(multicast)# add group-filter 2 224.1.1.1 230.255.255.255 10-15 065-7727S(multicast)# show group-filtering 2 Index Start Address : 224.1.1.1 End Address : 230.255.255.255...
  • Page 211 <index>: from 1 to 16 value. <start>: ip address format. <end>: ip address format. <port> syntax: 1,5-7, from 1 to 26 value.. Example: 065-7727S(multicast)# add group-filter 3 224.1.1.1 225.255.255.255 10-15 065-7727S(multicast)# show group-filtering 3 Index Publication date: March, 2008 Revision A1...
  • Page 212 065-7727S 24-Port 10/100BaseT/TX Managed Switch Start Address : 224.1.1.1 End Address : 225.255.255.255 Port Member : 10,11,12,13,14,15 065-7727S(multicast)# edit group-filter 3 1 224.1.1.1 226.255.255.255 10- 065-7727S(multicast)# show group-filtering 3 Index Start Address : 224.1.1.1 End Address : 226.255.255.255 Port Member...
  • Page 213 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch ...(q to quit) set gnlqry-interval Syntax: set gnlqry-interval <sec> Description: To set general query interval function on switch. Argument: <sec>: from 1 to 2000 value. Possible value: <sec>: 1 to 2000 . Example:...
  • Page 214 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set group-limit Syntax: set group-limit <port> <limit> Description: To set multicast group limit Argument: <port> syntax: 1,5-7, from 1 to 26 value. <limit>: from 0 to 256 value Possible value: <port>: 1 to 26.
  • Page 215 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Possible value: <state>: 0(disable), 1(enable). Example: 065-7727S(multicast)# set igmpsnp-enable 0 065-7727S(multicast)# show igmp-setting IGMP Snooping : Disable Unregister Multicast Flooding : Enable General Query Interval : 20 General Query Max Response Time : 5...
  • Page 216 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch General Query Max Response Time : 5 General Query Timeout : 15 Specific Query Count Specific Query Max Response Time : 1 Specific Query Timeout Port Multicast Group Limit IGMP Router ---- --------------------- ----------- ...(q to quit)
  • Page 217 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch <port> : 1 to 26. <state>: 0(untag-out), 1(tag-out) Example: 065-7727S(multicast)# set mvr-tagging 8-10 1 065-7727S(multicast)# show mvr-setting Multicast VLAN Registration : Enable MMulticast VLAN ID Port Service Type Tagging ---- ------------ ------- None...
  • Page 218 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set mvrserv-type Syntax: set mvrserv-type <port> <type> Description: To set mvr service type Argument: <port> syntax: 1,5-7, from 1 to 26 value. <type>: 0(None), 1(Client), 2(Router). Possible value: <port> : 1 to 26.
  • Page 219 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set specqry-count Syntax: set specqry-count <cnt> Description: To set specific query count function on switch Argument: <cnt>: from 1 to 10 value. Possible value: <cnt>: from 1 to 10 value. Example: 065-7727S(multicast)# set specqry-count 5...
  • Page 220 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Port Multicast Group Limit IGMP Router ---- --------------------- ----------- ...(q to quit) show group-filtering Syntax: show group-filtering <vid> Description: To show group filtering on switch. Argument: <vid>: from 1 to 4094 value. Possible value: <vid>: 1 to 4094.
  • Page 221 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch IGMP Snooping : Enable Unregister Multicast Flooding : Enable General Query Interval : 20 General Query Max Response Time : 5 General Query Timeout : 15 Specific Query Count Specific Query Max Response Time : 1...
  • Page 222 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show multicast-status Syntax: show multicast-status Description: To show multicast-status on switch. Argument: none Possible value: none Example: 065-7727S(multicast)# show multicast-status ? None entry exist. 065-7727S(multicast)# show mvr-setting Syntax: show mvr-setting Description: To show mvr-setting on switch.

  • Page 223: Enable Dhcp

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch None None None None ...(q to quit) disable dhcp Syntax: disable dhcp Description: To disable the DHCP function of the system. Argument: None. Possible value: None. Example: 065-7727S(ip)# disable dhcp DHCP is already stopped.
  • Page 224 <gateway> : default gateway Possible value: <ip> : 192.168.1.1 or others <mask> : 255.255.255.0 or others <gateway> : 192.168.1.253 or others Example: 065-7727S (ip)# set ip 192.168.1.2 255.255.255.0 192.168.1.253 065-7727S(ip)# show DHCP : Disable IP Address : 192.168.1.2 Subnet mask : 255.255.255.0...
  • Page 225 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch clear Syntax: clear Description: To clear the log data. Argument: None. Possible value: None. Example: 065-7727S (log)# clear disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: None. Possible value: None.
  • Page 226 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show Syntax: show Description: To show a list of trap log events. When any of log events happens, it will be recorded and using show command in log function to query. Up to 120 log records are supported.
  • Page 227 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch mac-table <<alias>> Syntax: del <mac> Description: To delete the mac alias entry. Argument: <mac> : mac address, format: xx-xx-xx-xx-xx-xx Possible value: <mac> : mac address Example: 065-7727S(mac-table-alias)# del 00-e5-55-c9-93-c9 Syntax: set <mac> <alias>...
  • Page 228 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch <<information>> search Syntax: search <port> <mac> <vid> Description: To look for the relative mac information in mac table. Argument: <port> : set up the range of the ports to search for, syntax 1,5-7, available form 1 to 26 <mac>...
  • Page 229 <num> : MAC address numbers which can be dynamically learned num range: between 0 to 8191; 0 for learning disabled Possible value: <port> : 1 to 26 <num>: 0 to 8191 Example: 065-7727S (mac-table-maintain)# set learning 5 100 Publication date: March, 2008 Revision A1...
  • Page 230 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show Syntax: show Description: To display the settings of MAC table ageout time and the learning limit of each port. Argument: None. Possible value: None. Example: 065-7727S(mac-table-maintain)# show Mac table ageout time: 300 seconds...
  • Page 231 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch enable Syntax: enable Description: To enable port security. Argument: none Possible value: none Example: 065-7727S(mac-table-port-security)# enable <<port>> Syntax: port <range> Description: To enter into per port static mac mode. Argument: <range> : syntax: 1,5-7, available from 1 to 26 Possible value: <range>...
  • Page 232 <port> : forwarded destination port, form 1 to 26 Possible value: <vid>: 1 to 4094 <rule>: 0 to 2 <port>: 1 to 26 Example: 065-7727S(mac-table-static-mac)# add 00-d0-59-c5-92-c8 1 1 8 065-7727S(mac-table-static-mac)# show Forwarding Rule Port ------ ----------------- ------ ----------------------------- ------- 1) 00-D0-59-C5-92-C8...
  • Page 233 Argument: <name> : management security entry name Possible value: <name> : management security entry name Example: 065-7727S(management-add)# set name Mary vid 20 ip 192.168.1.1- 192.168.1.90 port 2-5,8 type h,s action a set access Syntax: set access <name> <range> Description:...
  • Page 234 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 0 - Any Possible value: <name> : management security entry name <range> syntax: 1,1-3, available from 0 to 3 1 - Http 2 - Telnet 3 - Snmp 0 - Any Example: 065-7727S(management)# set access acc2 1-3...
  • Page 235 <ip2> : end ip address Possible value: <name> : management security entry name <ip1> : start ip address, 0 for any <ip2> : end ip address Example: 065-7727S(management)# set ip remote1 192.168.2.33 192.168.2.34 065-7727S(management)# show Name : remote1 : Any IP Range: 192.168.2.33-192.168.2.34...

  • Page 236: Set Port

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set port Syntax: set port <name> <range> Description: setup port field of a management security entry Argument: <name> : management security entry name <range syntax> : 1,5-7, available from 0 to 26, 0 for any Possible value: <name>...
  • Page 237 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Access : Any Action : Deny 065-7727S(management)# show Syntax: show Description: To show management security entry. Argument: None Possible value: None. Example: 065-7727S(management)# show Name : remote1 : 300 IP Range: 192.168.2.33-192.168.2.34 Port...

  • Page 238: Clear Counter

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch port clear counter Syntax: clear counter Description: To clear all ports’ counter (include simple and detail port counter) information. Argument: None. Possible value: None. Example: 065-7727S (port)# clear counter disable state Syntax: disable state <range>...

  • Page 239: Set Description

    <range>:port range, syntax 1,5-7, available from 1 to 26 <symmetric>: set its flow control as symmetric <asymmetric>: set its flow control as asymmetric Possible value: <range>: 1 to 26 <symmetric | asymmetric>:symmetric or asymmetric Example: 065-7727S (port)# set flow-control 3-6 asymmetric Publication date: March, 2008 Revision A1...
  • Page 240 : set to half duplex full : set to full duplex Possible value: <range>: 1 to 26 <port-speed> : auto, 10, 100, 1000 <port-duplex> : full, half Example: 065-7727S(port)# set speed-duplex 10-15 10 full 065-7727S(port)# show status asymmetric: set Enable Enable 100M/Full Down Enable...

  • Page 241: Show Conf

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show conf Syntax: show conf Description: To display the each port’s configuration about state, speed-duplex and flow control. Argument: None. Possible value: None. Example: 065-7727S (port)# show conf ……. ……. Enable Auto Mode...

  • Page 242: Show Media

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Example: 065-7727S (port)# show detail-counter 6 065-7727S(port)# show detail-counter 1 Receive Total: ------------------------------------------------------- Rx Packets 61731 Rx Octets 54949069 Rx Errors Rx Unicast Packets 42150 Rx Broadcast Packets 12752 Rx Multicast Packets 6829...
  • Page 243 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Vendor PN : FTM-C012R-LC Vendor Rev : 10 Vendor SN : PP220052901281 Date Code : 051012 Temperature : none : none Mon1 (Bias) mA : none Mon2 (TX PWR) : none Mon3 (RX PWR)
  • Page 244 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show status Syntax: show status Description: To display the port’s current status. Argument: None. Possible value: None. Example: 065-7727S(port)# show status Port Media Link State Auto Nego. Speed/Duplex Rx Pause Tx Pause ---- ----- ---- ------- ---------- ------------ -------- --------...
  • Page 245 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch disable 1p Syntax: disable 1p Description: To disable 802.1p qos. Argument: None. Possible value: None. Example: 065-7727S (qos)# disable 1p disable dscp Syntax: disable dscp Description: To disable IP DSCP qos. Argument: None.
  • Page 246 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch enable 1p Syntax: enable 1p Description: To enable 802.1p qos. Argument: None. Possible value: None. Example: 065-7727S (qos)# enable 1p enable dscp Syntax: enable dscp Description: To enable IP DSCP qos. Argument: None.

  • Page 247: Set Dscp

    You don't need to use all of queues, but must assign queues in order syntax: 1,2 or 2,5-7, available from 0 to 63. Possible value: <priority>: 0 to 63 Example: 065-7727S (qos)# set dscp q0 2 q1 2 q2 2 q3 3 set pri-tag Syntax: set pri-tag [<q0><priority>] [<q1><priority>] [<q2><priority>] [<q3><priority>] Description: To set 802.1p qos weighting for 4 queues.
  • Page 248 3: weighted for every queue. weighted range : 1-55. Possible value: <method>: 0-3 <wrr_0 to 3>: 1-55. Example: 065-7727S(qos)# set sche 0 2 8 11 11 065-7727S(qos)# show pr 802.1p priority ==================== Global QoS mode: Enable QoS Enable 802.1p Priority...

  • Page 249: Show Dscp

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch ---- ---- ---- ---- ---- ---- ---- ---- Queue 0 065-7727S(qos)# Possible value: show dscp Syntax: show dscp Description: To show IP DSCP Qos configuration. Argument: None. Possible value: None. Example: 065-7727S (qos)# show dscp...
  • Page 250 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show priority-tag Syntax: show priority-tag Description: To show 802.1p Qos configuration. Argument: None. Possible value: None. Example: 065-7727S (qos)# show priority-tag 802.1p priority ==================== Global QoS mode: Enable QoS Enable 802.1p Priority Enable ip diffserv classification Scheduling: 4 WRR method.
  • Page 251 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch reboot reboot Syntax: reboot Description: To reboot the system. Argument: None. Possible value: None. Example: 065-7727S # reboot security <<isolated-group>> Syntax: set <port> Description: To set up the function of the isolated group.
  • Page 252 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Example: 065-7727S(security-isolated-group)# set 9,10-14 065-7727S(security-isolated-group)# show Isolated group: 9 10 11 12 13 14 065-7727S(security-isolated-group)# <<mirror>> disable Syntax: disable Description: To disable the function of mirror. Argument: None. Possible value: None. Example: 065-7727S (security-mirror)# disable...
  • Page 253 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set ingress/egress to 0 as ingress/egress disabled Possible value: <ingress>: 0 to 26 <egress>: 0 to 26 Example: 065-7727S(security-mirror)# set 9 1-10 1-10 065-7727S(security-mirror)# show Mirror: Monitoring Port :9 Monitored Ingress : Monitored Egress :...
  • Page 254 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch snmp disable Syntax: disable set-community disable snmp Description: The Disable here is used for the de-activation of snmp or set-community. Argument: None. Possible value: None. Example: 065-7727S(snmp)# disable set-community 065-7727S(snmp)# disable snmp enable...
  • Page 255 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Example: 065-7727S (snmp)# set get-community public 065-7727S (snmp)# set set-community private 065-7727S (snmp)# set trap 1 192.168.1.1 162 public show Syntax: show Description: The Show here is to display the configuration of SNMP.
  • Page 256 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch MCheck Syntax: MCheck <range> Description: To force the port to transmit RST BPDUs. Argument: <range>: syntax 1,5-7, available from 1 to 26 Possible value: <range>: 1 to 26 Example: 065-7727S (stp)# Mcheck 1-8...

  • Page 257: Set Config

    <path cost>: 0, 1-200000000. <priority> : 0 to 240 <edge_port> : yes / no <admin p2p>: auto / true / false Example: 065-7727S (stp)# set port 1-16 0 128 yes auto set version Syntax: set version <stp|rstp> Description: To set up the version of STP.

  • Page 258: Show Port

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Possible value: <stp|rstp>:stp / rstp Example: 065-7727S (stp)# set version rstp show config Syntax: show config Description: To display the STP configuration data. Argument: None. Possible value: None. Example: 065-7727S (stp)# show config...
  • Page 259 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 24 DISCARDING 200000 Auto 25 DISCARDING 20000 Auto 26 DISCARDING 20000 Auto show status Syntax: show status Description: To display of the status of STP. Argument: None. Possible value: None. Example: 065-7727S (stp)# show status...

  • Page 260: Set Contact

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch system set contact Syntax: set contact <contact> Description: To set the contact description of the switch. Argument: <contact>:string length up to 40 characters. Possible value: <contact>: A, b, c, d, ... ,z and 1, 2, 3, …. etc.
  • Page 261 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show Syntax: show Description: To display the basic information of the switch. Argument: None. Possible value: None. Example: 065-7727S(system)# show Model Name : 065-7727S System Description : 24 Fast Ethernet + 2 Gigabit L2 Managed...
  • Page 262 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch tftp set server Syntax: set server <ip> Description: To set up the IP address of tftp server. Argument: <ip>: the IP address of tftp server Possible value: <ip>: tftp server IP Example: 065-7727S (tftp)# set server 192.168.3.111...
  • Page 263 <HH> : (00-23) <mm> : (01-12) <dd> : (01-31) <hh> : (00-23) Example: 065-7727S(time)# set daylightsaving -5 10/31/00 12/31/00 065-7727S(time)# show Current Time : Tue Apr 08 10:28:54 2008 NTP Server : 209.81.9.7 Timezone Day light Saving : -5 Hours...

  • Page 264: Set Ntp

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch <YYYY> : (2000-2036) <MM> : (01-12) <DD> : (01-31) <hh> : (00-23) <mm> : (00-59) <ss> : (00-59) Example: 065-7727S(time)# set manual 2008/04/08 11:24:00 065-7727S(time)# show Current Time : Tue Apr 08 11:24:02 2008 NTP Server : 209.81.9.7...
  • Page 265 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Timezone Day light Saving : 4 Hours Day light Saving Start: Mth: 2 Day: 20 Hour: 10 Day light Saving End : Mth: 3 Day: 20 Hour: 10 065-7727S (time)# Publication date: March, 2008...
  • Page 266 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch trunk del trunk Syntax: del trunk <port-range> Description: To remove the trunk port. Argument: <port-range> : syntax 1,5-7, available from 1 to 26 Possible value: <port-range> : 1 to 26 Example: 065-7727S (trunk)# del trunk 1...
  • Page 267 : set the LACP to passive mode Possible value: <port-range> : 1 to 26 <method>: static or lacp <group>: 1-3. <active LACP>: active or passive Example: 065-7727S (trunk)# set trunk 2-5 lacp 1 active show aggtr-view Syntax: show aggtr-view Description: To display the aggregator list. Argument: None.
  • Page 268 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show lacp-config Syntax: show lacp-config Description: To display the value of LACP Priority. Argument: None. Possible value: None. Example: 065-7727S (trunk)# show lacp-config LACP System Priority : 33333 Hash Method : DA show lacp-detail Syntax: show lacp-detail <aggtr>...
  • Page 269 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch show status Syntax: show status Description: To display the aggregator status and the settings of each port. Argument: None. Possible value: None. Example: 065-7727S (trunk)# show status Trunk Port Setting Trunk Port Status...
  • Page 270 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch vlan del port-group Syntax: del port-group <name> Description: To delete the port-based vlan group. Argument: <name>: port-vlan name Possible value: <name>: port-vlan name Example: 065-7727S (vlan)# del port-group vlan-2 del tag-group Syntax: del tag-group <vid>...
  • Page 271 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch disable drop-untag Syntax: disable drop-untag <port_range> Description: To disable drop-untag. Argument: <port_range>: which port(s) you want not to drop untagged frames. Syntax: 1,5-7, available from 1 to 26 Possible value: <port_range>: 1 to 26...
  • Page 272 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch enable double-tag Syntax: enable double-tag Description: To enable double-tag. Argument: None. Possible value: None. Example: 065-7727S (vlan)# enable double-tag enable drop-untag Syntax: enable drop-untag <port_range> Description: To enable drop-untag. Argument: <port_range>: which port(s) you want to drop untagged frames. Syntax: 1,5-7,...

  • Page 273: Set Mode

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch enable symmetric Syntax: enable symmetric Description: To drop frames from the non-member port. Argument: None. Possible value: None. Example: 065-7727S (vlan)# enable symmetric set mgt-vlan Syntax: set mgt-vlan <state> [vid] Description: To set management vlan function on switch..

  • Page 274: Set Pvid

    <pvid>: which PVID you want to set, available from 1 to 4094 <default_priority>: which priority you want to set, available from 0 to 7 Possible value: <port_range>: 1 to 26 <pvid>: 1 to 4094 <default_priority>: 0 to 7 Example: 065-7727S (vlan)# set pvid 3,5,6-8 5 6 Publication date: March,2008 Revision A1...
  • Page 275 Possible value: <vid>: 1 to 4094 <member_range>: 1 to 26 <untag_range>: 0 to 26 Example: 065-7727S (vlan)# set tag-group 2 vlan-2 2-5,6,15-13 0 show config Syntax: show config Description: To display the current vlan mode, Symmetric vlan, SVL and Double tag states.
  • Page 276 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Example: 065-7727S (vlan)# show group Vlan mode is tag-based. 1) Name :default Member:1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24...
  • Page 277 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Disable Disable Disable Disable Disable Disable Disable Publication date: March, 2008 Revision A1...
  • Page 278 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch disable Syntax: disable Description: To disable the virtual stack. Argument: None. Possible value: None. Example: 065-7727S(vs)# disable enable Syntax: enable Description: To enable the virtual stack. Argument: None. Possible value: None. Example: 065-7727S (vs)# enable...
  • Page 279 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch set role Syntax: set role <master|slave> Description: To set role. Argument: <master|slave>: master: act as master, slave : act as slave Possible value: <master|slave>: master or slave Example: 065-7727S (vs)# set role master...

  • Page 280: Maintenance

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty...

  • Page 281: Appendix A Technical Specifications

    TP/SFP or TP/GBIC. • Supports 24-port 10/100M TP ports with Nway and auto MDIX function. • 065-7727S supports 2 Gigabit dual media ports(TP/SFP) and 2 slots for removable SFP module supporting 1000M SFP fiber module. • Supports on-line plug/unplug SFP transceiver modules.
  • Page 282 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Hardware Specifications Standard Compliance: IEEE802.3ab / 802.3z / 802.3u / 802.3x 802.3z and 802.3ab compliant Gigabit Ethernet ports Network Interface of Option transceiver Configuration Mode Connector Port SFP.0LC.202 2(Option) 1000FDX *LC M-M SFP.0LC.212.XX...
  • Page 283 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Diagnostic LED: System LED : Power CPURUN ACT (LEDSET) FDX (LEDSET) SPD (LEDSET) Per Port LED: 10/100M TP Port 1 to 24 : LINK/ACT, FDX, SPD 1000M Fiber/TP Port 25,26 : LINK/ACT, FDX, SPD...
  • Page 284 ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Management Software Specifications Auto-negotiation support on 10/100Base-TX ports, Web browser or console interface can set transmission speed (10/100Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection.

  • Page 285: Appendix B Null Modem Cable Specifications

    ™ Signamax 065-7727S 24-Port 10/100BaseT/TX Managed Switch Appendix B Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable.
