Signamax™ Connectivity Systems
Model 065-7710

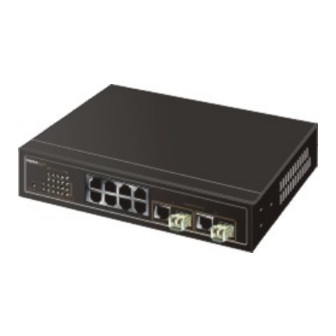

8-Port 10/100BaseT/TX +2SFP
Managed Switch
U s e r ' s G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 065-7710 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SignaMax 065-7710

Summary of Contents for SignaMax 065-7710

  • Page 1 Signamax™ Connectivity Systems Model 065-7710 8-Port 10/100BaseT/TX +2SFP Managed Switch U s e r ’ s G u i d e...
  • Page 3 Signamax™ Connectivity Systems Model 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch U s e r ’ s G u i d e Release 2.02 Release Date: Aug, 2006...

  • Page 4: Table Of Contents

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch -------------------------------------------------------------------------------------- AUTION LECTRONIC MISSION CHAPTER 1. INTRODUCTION--------------------------------------------------------- 2 1-1. O VERVIEW OF 1-2. C ----------------------------------------------------------------------------- 4 HECKLIST 1-3. F ------------------------------------------------------------------------------ 4 EATURES 1-4. V IEW OF 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) ----- 6 1-4-2.
  • Page 5 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-3. SNMP C ONFIGURATION 3-4. DHCP B --------------------------------------------------------------------------61 3-5. IGMP S NOOPING 3-6. VLAN ----------------------------------------------------------------------------------66 3-6-1. VLAN Mode --------------------------------------------------------------------66 3-6-2. Tag-based Group -------------------------------------------------------------68 3-6-3. PVID -----------------------------------------------------------------------------70 3-6-4. Port-based Group ------------------------------------------------------------72 3-7. MAC T...

  • Page 6: Revision History

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Release 2.02 2.02 Revision History Date 12/28/2005 01/11/2006 Revision...
  • Page 7 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch...

  • Page 8: Caution

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge.
  • Page 9 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the 8 Fast Ethernet + 2 Gigabit L2 Managed Switch through the built-in CLI and web by RS-232 serial interface and Ethernet ports step-by-step.

  • Page 10: Chapter 1. Introduction

    1-1. Overview of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch 8 Fast Ethernet + 2 Gigabit L2 Managed Switch, implemented 8 10/100Mbps TP + 2 Gigabit dual media ports with TP/SFP, is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications. The switch can be managed through RS-232 serial port via directly connection, or through Ethernet port using Telnet or Web-based management unit, associated with SNMP agent.
  • Page 11 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch • Key Features in the Device QoS: Support Quality of Service by the IEEE 802.1P standard. There are two priority queue and packet transmission schedule using Weighted Round Robin (WRR). User-defined weight classification of packet priority can be based on either VLAN tag on packets or user-defined port priority.

  • Page 12: Checklist

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 1-2. Checklist Before you start installing the switch, verify that the package contains the following: ⎯ 8 Fast Ethernet + 2 Gigabit L2 Managed Switch ⎯ Modules (optional) ⎯ This User's Manual in CD-ROM ⎯...
  • Page 13 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch • Supports 802.1Q VLAN with 256 entries. • Supports user management and limits three users to login • Supports DHCP Broadcasting Suppression to avoid network suspended or crashed • Supports to send the trap event while monitored events happened •...

  • Page 14: View Of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch

    1-4. View of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch Fig. 1-1 Full View of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch with SFP Module 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 8 TP Fast Ethernet ports and 2 slots for optional removable modules on the front panel of the switch.
  • Page 15 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch • LED Indicators Color System LED CPURUN Green POWER Green 10/100Mbps Ethernet TP Port 1 to 8 LED Green/ LNK/ACT/SPD Amber Amber FDX/COL (TP Port 1 to 8 LED) 10/100/1000Mbps Gigabit TP/Fiber Port 9, 10 LED...

  • Page 16: User Interfaces On The Rear Panel

    1-4-2. User Interfaces on the Rear Panel One RS-232 DB-9 interface is offered for configuration or management. And there is one AC power input socket for having the switch powered on or off. AC Line 100-240V 50/60 Hz RS-232 DB-9 Connector Fig.

  • Page 17: View Of The Optional Modules

    065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 1-5. View of the Optional Modules In the switch, Port 9, 10 includes two types of media --- TP and SFP Fiber (LC, BiDi LC…); this port supports 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function.

  • Page 18: Chapter 2. Installation

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 2. Installation 2-1. Starting 8 Fast Ethernet + 2 Gigabit L2 Managed Switch Up This section will give users a quick start for: Hardware and Cable Installation - Management Station Installation - Software booting and configuration 2-1-1.
  • Page 19 It means you do not have to tell from them, just plug it. ⇒ Use Cat. 5 grade RJ-45 TP cable to connect to a TP port of the switch and the other end is connected to a network-aware device such as a workstation or a server.

  • Page 20: Installing Chassis To A 19-Inch Wiring Closet Rail

    ⇒ Wear a grounding device for electrostatic discharge. ⇒ Screw the mounting accessory to the front side of the switch (See Fig. 2-2). ⇒ Place the Chassis into the 19-inch wiring closet rail and locate it at the proper position. Then, fix the Chassis by screwing it.

  • Page 21: Cabling Requirements For Tp Ports

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 2-1-3-1. Cabling Requirements for TP Ports ⇒ For Fast Ethernet TP network connection ⎯ The grade of the cable must be Cat. 5 or Cat. 5e with a maximum length of 100 meters.

  • Page 22: Switch Cascading In Topology

    If more than two switches are connected in the same network, select one switch as Level 1 switch and connect all other switches to it at Level 2. Server/Host is recommended to connect to the Level 1 switch.
  • Page 23 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-3). Fig. 2-3 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate each other directly is bounded in the same VLAN area.
  • Page 24 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Case 2b: Port-based VLAN (See Fig.2-5). 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.

  • Page 25: Gigabit L2 Managed Switch

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 2-1-4. Configuring the Management Agent of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch We offer you three ways to startup the switch management function. They are RS-232 console, CLI, and Web. Users can use any one of them to monitor and configure the switch.

  • Page 26: Configuring The Management Agent Of 8 Fast Ethernet + 2 Gigabit L2 Managed Switch Through The Serial Rs-232 Port

    RS-232 cable with DB-9 connector. Next, run a terminal emulator with the default setting of the switch’s serial port. With this, you can communicate with the switch. In the switch, RS-232 interface only supports baud rate 57.6k bps with 8 data bits, 1 stop bit, no parity check and no flow control.
  • Page 27 Please refer to Fig. 2-7 CLI Management for details about the ex-factory setting. They are default setting of IP address. You can first either configure your PC IP address or change IP address of the switch, next to change the IP address of default gateway and subnet mask.

  • Page 28: Gigabit L2 Managed Switch Through The Ethernet Port

    IP address or to know the IP address of the switch. Then, follow the procedures listed below. 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5 cable with RJ-45 connector.

  • Page 29: Ip Address Assignment

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 2-1-5. IP Address Assignment For IP address configuration, there are three parameters needed to be filled in. They are IP address, Subnet Mask, Default Gateway and DNS. IP address: The address of the network device in the network is used for internetworking communication.
  • Page 30 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch With the classful addressing, it divides IP address into three classes, class A, class B and class C. The rest of IP addresses are for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
  • Page 31 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Class D and E: Class D is a class with first 4 MSB (Most significance bit) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
  • Page 32 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch In this diagram, you can see the subnet mask with 25-bit long, 255.255.255.128, contains 126 members in the sub-netted network. Another is that the length of network prefix equals the number of the bit with 1s in that subnet mask.
  • Page 33 Basically, it is a routing policy. The gateway setting is used for Trap Events Host only in the switch. For assigning an IP address to the switch, you just have to check what the IP address of the network will be connected with the switch. Use the same network address and append your host address to it.

  • Page 34: Typical Applications

    Ethernet TP ports with auto MDIX and 2 Gigabit dual media ports with SFP for removable module supported comprehensive fiber types of connection, including LC, BiDi LC for SFP. For more details on the specification of the switch, please refer to Appendix A.
  • Page 35 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Fig. 2-14 Peer-to-peer Network Connection Fig. 2-15 Office Network Connection Publication date: January, 2006 Revision A1...

  • Page 36: Chapter 3. Operation Of Web-Based Management

    Gigabit dual media ports with TP/SFP Fiber management Ethernet switch. With this facility, you can easily access and monitor through any one port of the switch all the status of the switch, including MIBs status, each port activity, Spanning tree status, port aggregation status, multicast traffic, VLAN and priority status, even illegal access record and so on.
  • Page 37 If there are two or more users using administrator’s identity, the switch will allow the only one who logins first to configure the system. The rest of users, even with administrator’s identity, can only monitor the system.

  • Page 38: Web Management Home Overview

    The Information of Page Layout ⎯ On the top side, it shows the front panel of the switch. In the front panel, the linked ports will display green; as to the ports, which are link off, they will be dark. For the optional modules, the slot will show only a cover plate if no module exists and will show a module if a module is present.
  • Page 39 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch In Fig. 3-3, it shows the basic information of the clicked port. With this, you’ll see the information about the port status, traffic status and bandwidth rating for egress and ingress respectively.
  • Page 40 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Root System SNMP IGMP Snooping MAC Table 802.1x Configuration Bandwidth Diagnostics Reboot Publication date: January, 2006 Revision A1 Port DHCP Boot VLAN GVRP Trunk Alarm Security TFTP Server Firmware Upgrade Logout...

  • Page 41: System Information

    You can configure this parameter through the device’s user interface or SNMP. Device name: The name of the switch. User-defined. Default is 065-7710. System up time: The time accumulated since this switch is powered up. Its format is day, hour, minute, second.
  • Page 42 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Host IP address: The IP address of the switch. Host MAC address: It is the Ethernet MAC address of the management agent in this switch. Device Port: Show all types and numbers of the port in the switch.

  • Page 43: Ip Configuration

    The switch supports both manual IP address setting and automatic IP address setting via DHCP server. When IP address is changed, you must reboot the switch to have the setting taken effect and use the new IP to browse for web management and CLI management.
  • Page 44 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch IP address: Users can configure the IP settings and fill in new values if users set the DHCP function “Disable”. Then, click <Apply> button to update. When DHCP is disabled, Default: 192.168.1.1 If DHCP is enabled, this field is filled by DHCP server and will not allow user manually set it any more.
  • Page 45 The switch supports DNS client function to re-route the mnemonic name address to DNS server to get its associated IP address for accessing Internet. User can specify a DNS IP address for the switch. With this, the switch can translate a mnemonic name address into an IP address.

  • Page 46: Time Configuration

    “Minute” and “Second” within the valid value range indicated in each item. If you input an invalid value, for example, 61 in minute, the switch will clamp the figure to NTP is a well-known protocol used to synchronize the clock of the switch system time over a network.
  • Page 47 Greenwich Mean Time (GMT). If use the NTP mode and select a built-in NTP time server or manually specify an user-defined NTP server as well as Time Zone, the switch will sync the time in a short after pressing <Apply> button. Though it synchronizes the time automatically, NTP does not update the time periodically without user’s processing.
  • Page 48 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Day Light Saving End : This is used to set when to stop performing the daylight saving time. Mth: Day: Hour: Publication date: January, 2006 Revision A1 Range is 1 ~ 12.

  • Page 49: Account Configuration

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-1-4. Account Configuration In this function, only administrator can create, modify or delete the username and password. Administrator can modify other guest identities’ password without confirming the password but it is necessary to modify the administrator-equivalent identity.

  • Page 50: Management Security

    3-1-5. Management Security Through the management security configuration, the manager can do the strict setup to control the switch and limit the user to access this switch. The following rules are offered for the manager to manage the switch: Rule 1) : When no lists exists, then it will accept all connections.
  • Page 51 VLAN VID is able to be accepted or denied by the switch, the IP range of the user could be accepted or denied by the switch, the port that the user is allowed or not allowed to connect with the switch, or the way of controlling and connecting to the switch via Http, Telnet or SNMP.
  • Page 52 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch IP Range: The switch supports two kinds of options for managed valid IP Range, including “Any” and “Custom”. Default is “Any”. In case that” Custom” had been chosen, you can assigned effective IP range. The valid range is 0.0.0.0~255.255.255.255.

  • Page 53: Virtual Stack

    Master machine. Instead of SNMP or Telnet UI, VSM is only available in Web UI. While one switch become the Master, two rows of buttons for group device will appear on the top of its Web UI.
  • Page 54 It is used for the activation or de-activation of VSM. Default is Enable. Role: The role that the switch would like to play in virtual stack. Two types of roles, including master and slave are offered for option. Default is Master.

  • Page 55: Port Configuration

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-2. Port Configuration Four functions, including Port Status, Port Configuration, Simple Counter and Detail Counter are contained in this function folder for port monitor and management. Each of them will be described in detail orderly in the following sections.
  • Page 56 Port Status Function Description: Report the latest updated status of all ports in this switch. When any one of the ports in the switch changes its parameter displayed in the page, it will be automatically refreshed the port current status about every 5 seconds.
  • Page 57 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Speed / Duplex : Display the speed and duplex of all port. There are three speeds 10Mbps, 100Mbps and 1000Mbps supported for TP media, and the duplex supported is half duplex and full duplex. If the media is 1Gbps fiber, it is 1000Mbps supported only.
  • Page 58 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Parameter description of Port 9 and Port 10: Connector Type: Display the connector type, for instance, UTP, SC, ST, LC and so Fiber Type: Display the fiber mode, for instance, Multi-Mode, Single-Mode.
  • Page 59 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Vendor SN (Serial Number): Show the serial number assigned by the manufacturer. Date Code: Show the date this module was made. Temperature: Show the current temperature of module. Vcc: Show the working DC voltage of module.

  • Page 60: Port Configuration

    Function name: Port Configuration Function description: It is used to set each port’s operation mode. The switch supports 3 parameters for each port. They are State, Speed/Duplex and Flow Control. Parameter description: State: Set the communication capability of the port is Enabled or Disabled.
  • Page 61 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Speed/Duplex: Set the speed and duplex of the port. In speed, 10/100Mbps baud rate is available for Fast Ethernet, Gigabit module in port 9, 10. If the media is 1Gbps fiber, it is always 1000Mbps and the duplex is full only. If the media is TP, the Speed/Duplex is comprised of the combination of speed mode, 10/100/1000Mbps, and duplex mode, full duplex and half duplex.

  • Page 62: Simple Counter

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-2-3. Simple Counter The function of Simple Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-13, the window can show all ports’ counter information at the same time.
  • Page 63 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Rx Packet: The counting number of the packet received. Tx Collision: Number of collisions transmitting frames experienced. Rx Error Packet: Number of bad packets received. Publication date: January, 2006 Revision A1...

  • Page 64: Detail Counter

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-2-4. Detail Counter The function of Detail Counter collects any information and provides the counting about the traffic of the port, no matter the packet is good or bad. In the Fig. 3-14, the window can show only one port counter information at the same time.
  • Page 65 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Rx Unicast Packets: Show the counting number of the received unicast packet. Rx Broadcast Packets: Show the counting number of the received broadcast packet. Rx Multicast Packets: Show the counting number of the received multicast packet.
  • Page 66 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Packets 512-1023 Octets: Number of 512 ~ 1023-byte frames in good and bad packets received. Packets 1024-1522 Octets: Number of 1024-1522-byte frames in good and bad packets received. Tx Packets: The counting number of the packet transmitted.

  • Page 67: Snmp Configuration

    Basically, it is passive except issuing the trap information. The switch supports a switch to turn on or off the SNMP agent. If you set the field SNMP “Enable”, SNMP agent will be started up. All supported MIB OIDs, including RMON MIB, can be accessed via SNMP manager.
  • Page 68 Default port number :162 Trap: In the switch, there are 6 trap hosts supported. Each of them has its own community name and IP address; is user-definable. To set up a trap host means to create a trap manager by assigning an IP address to host the trap message.

  • Page 69: Dhcp Boot

    At this moment, a bunch of switch or other network device on the LAN will try its best to find the server to get the services or try to set up the predefined links, they will issue many broadcast packets in the network.

  • Page 70: Igmp Snooping

    IP multicast packets are running over the network. This is because a switch that does not support IGMP or IGMP Snooping can not tell the multicast packet from the broadcast packet, so it can only treat them all as the broadcast packet.
  • Page 71 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Parameter description: IGMP snooping mode selection: The switch supports three kinds of IGMP Snooping status, including “Passive”, “Active” and “Disable”. Disable: Set “Disable” mode to disable IGMP Snooping function. Default: Disable...
  • Page 72 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Allowed Group Function description: The Allowed Group function allows the IGMP Snooping to set up the IP multicast table based on user’s specific conditions. IGMP report packets that meet the items you set up will be joined or formed the multicast group.
  • Page 73 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Add: A new entry of parameters as mentioned above had been setup and then press <Add> button. Edit: The existed entry also can be modified after pressing <Edit> button. Delete: Remove the existed entry of allowed group configuration from the allowed group.

  • Page 74: Vlan

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-6. VLAN The switch supports Tag-based VLAN (802.1q) and Port-based VLAN Support 256 active VLANs and VLAN ID 1~4094. VLAN configuration is used to partition your LAN into small ones as your demand. Properly configuring it, you can gain not only improving security and increasing performance but greatly reducing VLAN management.
  • Page 75 Note: If Symmetric is enabled and port 1, for example, receives an untagged packet, the switch will apply the PVID of port 1 to tag this packet, the packet then will be forwarded. But if the PVID of port 1 is not 100, the packet will be dropped.

  • Page 76: Tag-Based Group

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-6-2. Tag-based Group Function name: Tag-based Group Configuration Function description: It shows the information of existed Tag-based VLAN Groups. You can also easily create, edit and delete a Tag-based VLAN group by pressing <Add>, <Edit>...
  • Page 77 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Add Group: Input the VLAN name, VID and then choose the member by ticking the check box beside the port No. to create a new Tag-based VLAN. As to the parameter of Untag, it stands for an egress rule of the port. If you tick the check box beside the port No., packets with this VID outgoing from...

  • Page 78: Pvid

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-6-3. PVID Function name: PVID Function description: In PVID Setting, user can input VID number to each port. The range of VID number is from 1 to 4094. User also can choose ingress filtering rule (Rule 2) to each port.
  • Page 79 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Drop Untag: Drop untagged frame. You can configure a given port to accept all frames (Tagged and Untagged) or just receive tagged frame. If the former is the case, then the packets with tagged or untagged will be processed. If the later is the case, only the packets carrying VLAN tag will be processed, the rest packets will be discarded.

  • Page 80: Port-Based Group

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-6-4. Port-based Group Function name: Port-based Group Configuration Function description: It shows the information of the existed Port-based VLAN Groups. You can easily create, edit and delete a Port-based VLAN group by pressing <Add>, <Edit>...
  • Page 81 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Add Group: Create a new Port-based VLAN. Input the VLAN name and choose the member by ticking the check box beside the port No., then, press the <Apply> button to have the setting taken effect.

  • Page 82: Mac Table

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-7. MAC Table MAC Table Configuration gathers many functions, including MAC Table Information, MAC Table Maintenance, Static and MAC Alias, which cannot be categorized to some function type. They are described below.
  • Page 83 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Port: The port that exists in the searched MAC Entry. VID: VLAN Group that MAC Entry exists. State: Display the method that this MAC Entry is built. It may show “Dynamic MAC”...
  • Page 84 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function Name: MAC Table Maintenance Function Description: This function can allow the user to set up the processing mechanism of MAC Table. An idle MAC address exceeding MAC Address Age-out Time will be removed from the MAC Table.
  • Page 85 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function Name: Static Setting Function Description: The function of Static is used to configure MAC’s real manners inside of the switch. Three kinds of manners including static, static with destination drop and static with source drop are contained in this function .
  • Page 86 While the SA of the incoming packets meets the value you set up, these packets will be dropped. Port : Select the port No. you would like to do setup in the switch. It is 1 ~10. Publication date: January, 2006 Revision A1...
  • Page 87 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: MAC Alias Function description: MAC Alias function is used to let you assign MAC address a plain English name. This will help you tell which MAC address belongs to which user in the illegal access report.
  • Page 88 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Parameter description: MAC Address: It is a six-byte long Ethernet hardware address and usually expressed by hex and separated by hyphens. For example, 00 – 40 - C7 - D6 – 00 - 02 Alias: MAC alias name you assign.

  • Page 89: Gvrp Configuration

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-8. GVRP Configuration GVRP is an application based on Generic Attribute Registration Protocol (GARP), mainly used to automatically and dynamically maintain the group membership information of the VLANs. The GVRP offers the function providing the VLAN registration service through a GARP application.
  • Page 90 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: GVRP Config Function description: In the function of GVRP Config, it is used to configure each port’s GVRP operation mode, in which there are seven parameters needed to be configured described below.
  • Page 91 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Normal: It is Normal Registration. The Registrar responds normally to incoming GARP messages. The default setting is Normal. Fixed: It is Registration Fixed. The Registrar ignores all GARP messages, and all members remain in the registered (IN) state.
  • Page 92 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: GVRP Counter Function description: All GVRP counters are mainly divided into Received and Transmitted two categories to let you monitor the GVRP actions. Actually, they are GARP packets. Parameter description:...
  • Page 93 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch LeaveEmpty Message Packets: Number of GARP BPDU with Leave Empty message is received by the GARP application. Empty Message Packets: Number of GARP BPDU with Empty message is received by the GARP application.
  • Page 94 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: GVRP Group Information Function description: To show the dynamic group member and their information. Parameter description: Current Dynamic Group Number: The number of GVRP group that are created currently.

  • Page 95: Stp Configuration

    Bridge Priority: Show this switch’s current bridge priority setting. Default is 32768. Designated Root: Show root bridge ID of this network segment. If this switch is a root bridge, the “Designated Root” will show this switch’s bridge ID. Designated Priority: Show the current root bridge priority.
  • Page 96 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch All bridges in the LAN will re-learn and determine which the root bridge is. Maximum Age time is assigned by root bridge in unit of seconds. Default is 20 seconds. Current Forward Delay: Show the current root bridge forward delay time.

  • Page 97: Stp Configuration

    If you want to have the 065-7710 as root bridge, you can set this value lower than that of bridge in the LAN. The valid value is 0 ~ 61440. The default is 32768.
  • Page 98 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Forward Delay: You can set the root bridge forward delay time. This figure is set by root bridge only. The forward delay time is defined as the time spent from Listening state moved to Learning state and also from Learning state moved to Forwarding state of a port in bridge.

  • Page 99: Stp Port Configuration

    Root Port more possibly. Configured Path Cost: The range is 0 – 200,000,000. In the switch, if path cost is set to be zero, the STP will get the recommended value resulted from auto-negotiation of the link accordingly and display this value in the field of Path Cost Status.
  • Page 100 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 802.1w RSTP recommended value: (Valid range: 1 – 200,000,000) 10 Mbps : 2,000,000 100 Mbps : 200,000 1 Gbps Default: 0 Priority: Priority here means Port Priority. Port Priority and Port Number are mixed to form the Port ID.
  • Page 101 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch M Check: Migration Check. It forces the port sending out an RSTP BPDU instead of a legacy STP BPDU at the next transmission. The only benefit of this operation is to make the port quickly get back to act as an RSTP port.

  • Page 102: Trunking Configuration

    As to system restrictions about the port aggregation function on the switch, In the management point of view, the switch supports maximum 3 trunk groups for LACP and additional 3 trunk groups for Static Trunk. But in the system capability view, only 3 “real trunked”...
  • Page 103 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Per Trunking Group supports a maximum of 4 ready member-ports. Please note that some decisions will automatically be made by the system while you are configuring your trunking ports. Trunk Setting Rules are listed below:...
  • Page 104 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Port Setting/Status Function description: Port setting/status is used to configure the trunk property of each and every port in the switch system. Parameter description: Method: This determines the method a port uses to aggregate with other ports.
  • Page 105 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Aggtr: Aggtr is an abbreviation of “aggregator”. Every port is also an aggregator, and its own aggregator ID is the same as its own Port No. We can regard an aggregator as a representative of a trunking group. Ports with same Group ID and using same trunking method will have the opportunity to aggregate to a particular aggregator port.
  • Page 106 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Aggregator View Function description: To display the current port trunking information from the aggregator point of view. Parameter description: Aggregator: It shows the aggregator ID (from 1 to 10) of every port. In fact, every port is also an aggregator, and its own aggregator ID is the same as its own Port No..
  • Page 107 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: LACP Detail (LACP Aggregator Detailed Information) Function description: Show the detailed information of the LACP trunking group. Parameter description: Actor: The switch you are watching on. Partner: The peer system from this aggregator’s view.
  • Page 108 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: LACP System Configuration Function description: It is used to set the priority part of the LACP system ID. LACP will only aggregate together the ports whose peer link partners are all on a single system.

  • Page 109: Configuration

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-11. 802.1x Configuration 802.1x port-based network access control provides a method to restrict users to access network resources via authenticating user’s information. This restricts users from gaining access to the network resources through a 802.1x-enabled port without authentication.
  • Page 110 PC A, then, is allowed to access B and C via the switch. If there are two switches directly connected together instead of single one, for the link connecting two switches, it may have to act two port roles at the end of the link: authenticator and supplicant, because the traffic is bi-directional.
  • Page 111 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Fig. 3-42 The Fig. 3-43 shows the procedure of 802.1x authentication. There are steps for the login based on 802.1x port access control management. The protocol used in the right side is EAPOL and the left side is EAP.
  • Page 112 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch If user ID and password is correct, the authentication server will send a Radius-Access-Accept to the authenticator. If not correct, the authentication server will send a Radius-Access-Reject. When the authenticator PAE receives a Radius-Access-Accept, it will send an EAP-Success to the supplicant.
  • Page 113 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Only MultiHost 802.1X is the type of authentication supported in the switch. In this mode, for the devices connected to this port, once a supplicant is authorized, the devices connected to this port can access the network resource through this port.
  • Page 114 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: 802.1x State Setting Function description: This function is used to configure the global parameters for RADIUS authentication in 802.1x port security application. Parameter description: Radius Server: RADIUS server IP address for authentication.
  • Page 115 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: 802.1x Mode Setting Function description: Set the operation mode of 802.1X for each port. In this device, it supports only Multi-host operation mode. Parameter description: Port Number: Indicate which port is selected to configure the 802.1x operation mode.
  • Page 116 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Port Security Management Function description: Shows each port status. In Multihost mode, it shows the port number and its status, authorized or unauthorized. Parameter description: Disable Mode: When selecting Disable mode for a port in the function 802.1X Port Mode Configuration, the port is in the uncontrolled port state and does not apply 802.1X authenticator on it.
  • Page 117 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Param. Setting Function description: This function is used to configure the parameters for each port in 802.1x port security application. Refer to the following parameters description for details. Parameter description: Port: It is the port number to be selected for configuring its associated 802.1x...
  • Page 118 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch reAuthEnabled: Choose whether regular authentication will take place in this port. Default: ON reAuthPeriod(1-65535 s): A non-zero number seconds between the periodic re-authentication of the supplicant. Default: 3600 max. Request(1-10): The maximum of number times that the authenticator will retransmit an EAP Request to the supplicant before it times out the authentication session.

  • Page 119: Alarm Configuration

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-12. Alarm Configuration Alarm Configuration Function name: Events Configuration Function description: The Trap Events Configuration function is used to enable the switch to send out the trap information while pre-defined trap events occurred. The switch offers 21 different trap events to users for switch management.
  • Page 120 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Email/SMS Configuration Function description: Alarm configuration is used to configure the persons who should receive the alarm message via either email or SMS, or both. It depends on your settings.
  • Page 121 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Parameter description: Email: Mail Server: the IP address of the server transferring your email. Username: your username on the mail server. Password: your password on the mail server. Email Address 1 – 6: email address that would like to receive the SMS: SMS Server: the IP address of the server transferring your SMS.

  • Page 122: Configuration

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-13. Configuration The switch supports three copies of configuration, including the default configuration, working configuration and user configuration for your configuration management. All of them are listed and described below respectively.

  • Page 123: Save/Restore

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-13-1. Save/Restore Function name: Save As Start Configuration Function description: Save the current configuration as a start configuration file in flash memory. Function name: Save As User Configuration Function description: Save the current configuration as a user configuration file in flash memory.
  • Page 124 Restore Default Configuration (includes default IP address) Function description: Restore Default Configuration function can retrieve the ex-factory setting to replace the start configuration. And the IP address of the switch will also be restored to 192.168.1.1. Function name: Restore Default Configuration (excludes current IP address)
  • Page 125 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Restore User Configuration Function description: Restore User Configuration function can retrieve the previous confirmed working configuration stored in the flash memory to update start configuration. When completing to restore the configuration, the system’s start configuration is updated and will be changed its system settings after rebooting the system.

  • Page 126: Config File

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-13-2. Config File Function name: Config File Function description: With this function, user can back up or reload the config files of Save As Start or Save As User via TFTP.

  • Page 127: Security

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-14. Security Function name: Mirror Configuration Function description: Mirror Configuration is to monitor the traffic of the network. For example, we assume that Port A and Port B are Monitoring Port and Monitored Port respectively, thus, the traffic received by Port B will be copied to Port A for monitoring.
  • Page 128 Port 1~10. In this group, all of these member ports cannot forward packets with each other. Thus, the switch will not be capable of forwarding any packets in case its all ports become the members of the Isolated group.
  • Page 129 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Restricted Group Function description: The function of the Restricted Group can decide the direction of transmitting packets for the specific port. The packets received by the port with the “Ingress”...

  • Page 130: Bandwidth Management

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-15. Bandwidth Management Function name: Ingress Bandwidth Setting Function description: Ingress Bandwidth Setting function is used to set up the limit of Ingress bandwidth for each port. Parameter description: Port No.: Choose the port that you would like this function to work on it.
  • Page 131 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Egress Bandwidth Setting Function description: Egress Bandwidth Setting function is used to set up the limit of Egress bandwidth for each port. Parameter description: Port No.: Choose the port that you would like this function to work on it. Valid range of the port is 1~10.
  • Page 132 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: Storm Setting Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Parameter description: Storm Type: Disable: Disable the function of the bandwidth storm control.
  • Page 133 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Storm Rate : Set up the limit of bandwidth for storm type you choose. Valid value of the storm rate ranges from 1-100 with the minimum unit of 1. And only integer is acceptable.

  • Page 134: Qos(Quality Of Service) Configuration

    Priority, IP TOS Priority, and DiffServ DSCP Priority. Port Based Priority has a special name called VIP Port in the switch. Any packets enter VIP Port will have highest transmitting priority. MAC Priority act on the destination address of MAC in packets.
  • Page 135 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch The QoS functions as we mentioned above are able to enabled at the same time. But, the following precedence will decide whether these functions work or not. 1. enable both VIP and TOS 2.
  • Page 136 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: QoS Global Setting Function description: When you want to use QoS function, please enable QoS Mode in advance. Then you can use MAC Priority, 802.1p Priority, IP TOS Priority, DiffServ DSCP Priority, or VIP Port functions and take effect.
  • Page 137 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: VIP Port Setting Function description: When the port is set as VIP Port, the packets enter this port and will have highest transmitting priority. For example, as you choose port 2 is VIP Port, simultaneously transmit packets from port 2 and port 3 to port 1 at speed of 100MB and let congestion happen.
  • Page 138 Function description: This function will affect the priority of VLAN tag. Based on priority of VLAN tag, it can arrange 0~8 priorities, priorities can map to 4 queues of the switch (queue 0~3) and possess different bandwidth distribution according to your weight setting.
  • Page 139 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: D-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The...
  • Page 140 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: T-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The...
  • Page 141 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: R-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The...
  • Page 142 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Function name: M-Type TOS Function description: IP TOS Priority affect TOS fields of IP header, you can find it has 8-bit SERVICE TYPE field that specifies how the datagram should be handled. The...
  • Page 143 DSCP can form total 64 (0~63) kinds of Traffic Class based on the arrangement of 6-bit field in DSCP of the IP packet. In the switch, user is allowed to set up these 64 kinds of Class that belong to any of queue 0~3.

  • Page 144: Diagnostics

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-17. Diagnostics Three functions, including Diagnostics, Loopback Test and Ping Test are contained in this function folder for device self-diagnostics. Each of them will be described in detail orderly in the following sections.
  • Page 145 The test signal only wraps around in the switch box. As to the latter test function, it will send the test signal to its link partner. If you do not have them connected to active network devices, i.e.
  • Page 146 Ping Test function to let you know that if the target device is available or not. You can simply fill in a known IP address and then click <Ping> button. After a few seconds later, the switch will report you the pinged device is alive or dead in the field of Ping Result.

  • Page 147: Tftp Server

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-18. TFTP Server Function name: TFTP Server Function description: Set up IP address of TFTP server. Parameter description: Specify the IP address where the TFTP server locates. Fill in the IP address of your TFTP server, then press <Apply>...

  • Page 148: Log

    This function shows the log data. The switch provides system log data for users. There are 16 private trap logs, 5 public trap logs. The switch supports total 120 log entries. For more details on log items, please refer to the section of Trap/Alarm Configuration and SNMP Configuration.
  • Page 149 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Upload Log: Upload log data through tftp. Clear Log: Clear log data. Publication date: January, 2006 Revision A1...

  • Page 150: Firmware Upgrade

    065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 3-20. Firmware Upgrade Software upgrade tool is used to help upgrade the software function in order to fix or improve the function. The switch provides a TFTP client for software upgrade. This can be done through Ethernet. Function name:...

  • Page 151: Reboot

    Function name: Reboot Function description: Reboot the switch. Reboot takes the same effect as the RESET button on the front panel of the switch. It will take around thirty (30) seconds to complete the system boot. Parameter description: Save and Reboot: Save the current settings as start configuration before rebooting the switch.

  • Page 152: Logout

    Logout Function description: The switch allows you to logout the system to prevent other users from the system without the permission. If you do not logout and exit the browser, the switch will automatically have you logout. Besides this manually logout and implicit logout, you can pull down the <Auto Logout>...

  • Page 153: Chapter 4. Operation Of Cli Management

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 4. Operation of CLI 4-1. CLI Management Refer to Chapter 2 for basic installation. The following description is the brief of the network connection. -- Locate the correct DB-9 null modem cable with female DB-9 connector. Null modem cable comes with the management switch.
  • Page 154 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 065-7710 065-7710 065-7710 065-7710 Publication date: January, 2006 Revision A1 Fig. 4-1 Fig. 4-2...

  • Page 155: Commands Of Cli

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 4-2. Commands of CLI To see the commands of the mode, please input “?” after the prompt, then all commands will be listed in the screen. All commands can be divided into two categories, including global commands and local commands.

  • Page 156: Global Commands Of Cli

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 4-2-1. Global Commands of CLI Syntax: Description: Back to the top mode. When you enter this command, your current position would move to the top mode. If you use this command in the top mode, you are still in the position of the top mode.
  • Page 157 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch help Syntax: help Description: To show available commands. Some commands are the combination of more than two words. When you enter this command, the CLI would show the complete commands. Besides, the command would help you classify the commands between the local commands and the global ones.
  • Page 158 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch history Syntax: history [#] Description: To show a list of previous commands that you had ever run. When you enter this command, the CLI would show a list of commands which you had typed before.
  • Page 159 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch logout Syntax: logout Description: When you enter this command via Telnet connection, you would logout the system and disconnect. If you connect the system through direct serial port with RS-232 cable, you would logout the system and be back to the initial login prompt when you run this command.
  • Page 160 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch restore user Syntax: restore user Description: To restore the startup configuration as user defined configuration. If restoring default successfully, the CLI would prompt if reboot immediately or not. If you press Y or y, the system would reboot immediately;...
  • Page 161 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch save user Syntax: save user Description: To save the current configuration as the user-defined configuration. When you enter this command, the CLI would save your current configuration into the non-volatile FLASH as user-defined configuration.

  • Page 162: Local Commands Of Cli

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 4-2-2. Local Commands of CLI 802.1x set max-request Syntax: set max-request <port-range> <times> Description: The maximum number of times that the state machine will retransmit an EAP Request packet to the Supplicant before it times out the authentication session.
  • Page 163 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set port-control Syntax: set port-control <port-range> <authorized> Description: To set up 802.1X status of each port. Argument: <port range> : syntax 1,5-7, available from 1 to 10 <authorized> : set up the status of each port...
  • Page 164 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set reAuthMax Syntax: set reAuthMax <port-range> <max> Description: The number of reauthentication attempts that are permitted before the port becomes Unauthorized. Argument: <port range> : syntax 1,5-7, available from 1 to 10 <max>...
  • Page 165 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set state Syntax: set state <ip> <port-number> <secret-key> Description: To configure the settings related with 802.1X Radius Server. Argument: <ip> : the IP address of Radius Server, and the IP format is xxx.xxx.xxx.xxx <port-number>...
  • Page 166 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show mode Syntax: show mode Description: To display the mode of each port. Argument: None. Possible value: None. Example: 065-7710(802.1x)# show mode Port Mode ====== ============ Disable Multi-host Disable Disable Disable...
  • Page 167 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show security Syntax: show security Description: To display the authentication Argument: None. Possible value: None. Example: 065-7710(802.1x)# show security Port Mode Status ====== ============ ============== Disable Multi-host Unauthorized Disable Disable Disable...
  • Page 168 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch account Syntax: add <name> Description: To create a new guest user. When you create a new guest user, you must type in password and confirm password. Argument: <name> : new account name Possible value: <name>...
  • Page 169 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch modify Syntax: modify <name> Description: To change the username and password of an existing account. Argument: <name> : existing user account Possible value: None. Example: 065-7710(account)# modify aaaaa username/password: the length is from 5 to 15.
  • Page 170 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch alarm <<email>> del mail-address Syntax: del mail-address <#> Description: To remove the e-mail address. Argument: <#>: email address number, range: 1 to 6 Possible value: <#>: 1 to 6 Example: 065-7710(alarm-email)# del mail-address 2...
  • Page 171 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set server Syntax: set server <ip> Description: To set up the IP address of the email server. Argument: <ip>:email server ip address or domain name Possible value: None. Example: 065-7710(alarm-email)# set server 192.168.1.6...
  • Page 172 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch <<events>> del all Syntax: del all <range> Description: To disable email, sms and trap of events. Argument: <range>:del the range of email, sms and trap of events, syntax 1,5-7 Possible value: <range>: 1~21...
  • Page 173 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch del trap Syntax: del trap <range> Description: To disable the trap of the events. Argument: <range>:del the range of trap, syntax 1,5-7 Possible value: <range>: 1~21 Example: 065-7710(alarm-events)# del trap 1-3...
  • Page 174 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set sms Syntax: set sms <range> Description: To enable the sms of the events. Argument: <range>:set the range of sms, syntax 1,5-7 Possible value: <range>: 1~21 Example: 065-7710(alarm-events)# set sms 1-3...
  • Page 175 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show Syntax: show Description: The Show here is used to display the configuration of alarm event. Argument: None. Possible value: None. Example: 065-7710(alarm-events)# show Events ----------------------------------------- 1 Cold Start 2 Warm Start...
  • Page 176 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show (alarm) Syntax: show Description: The Show for alarm here is used to display the configuration of Trap, SMS or E-mail. Argument: None. Possible value: None. Example: 065-7710(alarm)# show email 065-7710(alarm)# show events 065-7710(alarm)# show sms <<sms>>...
  • Page 177 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set phone-number Syntax: set phone-number <#> <phone-number> Description: To add sms phone number. Argument: <#>: mobile phone number, range: 1 to 6 <phone-number>: phone number Possible value: <#>: 1 to 6...
  • Page 178 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show Syntax: show Description: To display the configuration of SMS trap event. Argument: None. Possible value: None. Example: 065-7710(alarm-sms)# show SMS Server : 192.168.1.7 Username : ABC Password : **************** Mobile Phone 1: 0968777777...
  • Page 179 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch autologout autologout Syntax: autologout <time> Description: To set up the timer of autologout. Argument: <time>: range 1 to 3600 seconds, 0 for autologout off, current setting is 180 seconds. Possible value: <...
  • Page 180 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set storm-rate Syntax: set storm-rate <range> <data_rate> Description: To set up the storm-rate of the ports. Argument: <range>:syntax: 1,3-5, available from 1 to 5 1: Disable 2: Broadcast Storm Control 3: Multicast Storm Control...
  • Page 181 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch config-file export start Syntax: export start Description: To run the export start function. Argument: None. Possible value: None. Example: 065-7710(config-file)# export start Export successful. export user-conf Syntax: export user-conf Description: To run the export user-conf function.
  • Page 182 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch import user-conf Syntax: import user-conf Description: To run the import user-conf function. Argument: None. Possible value: None. Example: 065-7710(config-file)# import user-conf Import successful. set export-path Syntax: set export-path <filepath> Description: To set up the file path and filename that user would like to export.
  • Page 183 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show Syntax: show Description: To display the information of the config file. Argument: None. Possible value: None. Example: 065-7710(config-file)# show TFTP Server IP Address: 192.168.3.111 Export Path and Filename: log/21511.txt Import Path and Filename: log/21511.txt...
  • Page 184 External Loopback Test : Port 1 2 3 4 5 6 7 8 9 10 Fail ping Syntax: ping <ip> Description: To confirm that whether the remote end-station or switch itself is alive or not. Argument: <ip> : IP address or domain name Possible value: IP address, e.g. 192.168.2.65 or domain name, e.g. tw.yahoo.com Example: 065-7710(diag)# ping 192.168.1.115...
  • Page 185 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch firmware set upgrade-path Syntax: set upgrade-path <filepath> Description: To set up the image file that will be upgraded. Argument: <filepath>: upgrade file path and name Possible value: <filepath>: upgrade file path and name Example: 065-7710(firmware)# set upgrade-path ES2310_v2.05.img...
  • Page 186 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch gvrp disable Syntax: disable Description: To disable the gvrp function Argument: None. Possible value: None. Example: 065-7710(gvrp)# disable enable Syntax: enable Description: To enable the gvrp function. Argument: None. Possible value: None.
  • Page 187 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 065-7710(gvrp)# group 2 065-7710(gvrp-group-2)# set applicant 1-6 non-participant 065-7710(gvrp-group-2)# show GVRP group VID: 2 Port Applicant Registrar ---- --------------- --------- Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal Non-Participant Normal...
  • Page 188 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set applicant Syntax: set applicant <range> <normal|non-participant> Description: To set default applicant mode for each port. Argument: <range>: port range, syntax 1,5-7, available from 1 to 10 <normal>: set applicant as normal mode <non-participant>: set applicant as non-participant mode...
  • Page 189 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Example: 065-7710(gvrp)# set restricted 1-10 enable 065-7710(gvrp)# show config GVRP state: Enable Port Join Time Leave Time LeaveAll Time Applicant ---- --------- ---------- ------------- --------------- --------- ---------- Registrar Restricted 1000 Normal...
  • Page 190 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set timer Syntax: set timer <range> <join> <leave> <leaveall> Description: To set gvrp join time, leave time, and leaveall time for each port. Argument: <range> : port range, syntax 1,5-7, available from 1 to 10 <join>: join timer, available from 20 to 100...
  • Page 191 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show counter Syntax: show counter <port> Description: To show counter of the port. Argument: <port>: port number, available from 1 to 10 Possible value: <port>: 1 to 10 Example: 065-7710(gvrp)# show counter 2...
  • Page 192 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch hostname hostname Syntax: hostname <name> Description: To set up the hostname of the switch. Argument: <name>: hostname, max. 40 characters. Possible value: <name>: hostname, max. 40 characters. Example: 065-7710# hostname Company...
  • Page 193 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set mode Syntax: set mode <status> Description: To set up the mode of IGMP Snooping. Argument: <status>: 0:disable, 1:active, 2:passive Possible value: <status>: 0,1or 2 Example: 065-7710(igmp-snooping)# set mode 2 show igmp-snooping...
  • Page 194 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch disable dhcp Syntax: disable dhcp Description: To disable the DHCP function of the system. Argument: None. Possible value: None. Example: 065-7710(ip)# disable dhcp DHCP is already stopped. enable dhcp Syntax: enable dhcp <manual|auto>...
  • Page 195 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set ip Syntax: set ip <ip> <mask> <gateway> Description: To set the system IP address, subnet mask and gateway. Argument: <ip> : ip address <mask> : subnet mask <gateway> : default gateway Possible value: <ip>...
  • Page 196 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch clear Syntax: clear Description: To clear the log data. Argument: None. Possible value: None. Example: 065-7710(log)# clear disable auto-upload Syntax: disable auto-upload Description: To disable the auto-upload function. Argument: None. Possible value: None.
  • Page 197 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show Syntax: show Description: To show a list of trap log events. When any of log events happens, it will be recorded and using show command in log function to query. Up to 120 log records are supported.
  • Page 198 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch mac-table <<alias>> Syntax: del <mac> Description: To delete the mac alias entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 Possible value: <mac> : mac address Example: 065-7710(mac-table-alias)# del 00-44-33-44-55-44 Syntax: set <mac> <alias>...
  • Page 199 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch <<information>> search Syntax: search <port> <mac> <vid> Description: To look for the relative mac information in mac table. Argument: <port> : set up the range of the ports to search for, syntax 1,5-7, available form 1 to 10 <mac>...
  • Page 200 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch <<maintain>> set aging Syntax: set aging <time> Description: To set up the age out time of dynamic learning mac. Argument: <time> : Mac table ageout time between 10 and 1000000 seconds. The value “0”...
  • Page 201 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Example: 065-7710(mac-table-maintain)# show Mac table ageout time: 300 seconds Port Dynamically learn limit ------ ------------------------- 8191 8191 8191 8191 8191 8191 8191 8191 8192 8192 <<static-mac>> Syntax: add <mac> <vid> <queue> <rule> <port>...
  • Page 202 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Syntax: del <mac> Description: To remove the static mac entry. Argument: <mac> : mac address, format: 00-02-03-04-05-06 Possible value: <mac> : mac address Example: 065-7710(mac-table-static-mac)# del 00-02-03-04-05-06 show Syntax: show Description: To display static mac entry.
  • Page 203 [<type> <value>] For example, h(ttp),s(nmp),t(elnet) or any. <action> <value> No default and it must be set. Example: 065-7710(management-add)# set name Mary vid 20 ip 192.168.1.1-192.168.1.90 port 2-5,8 type h,s action a 065-7710(management-add)# show #: 1 Name : Mary Type : Http,SNMP VlanID : 20 IP : 192.168.1.1-192.168.1.90...
  • Page 204 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch delete Syntax: delete # Description: To delete a specific record or range. Argument: [#]: a specific or range management security entry(s) Possible value: None. Example: 065-7710(management)# show #: 1 Name : Tom...
  • Page 205 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Example: 065-7710(management)# edit 1 065-7710(management-edit-1)# set name Tom vid 2 ip 192.168.1.30- 065-7710(management-edit-1)# show #: 1 Name : Tom Type : SNMP show Syntax: show Description: To show the specific management policy record.
  • Page 206 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch port clear counter Syntax: clear counter Description: To clear all ports’ counter (include simple and detail port counter) information. Argument: None. Possible value: None. Example: 065-7710(port)# clear counter disable state Syntax: disable state <range>...
  • Page 207 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set flow-control Syntax: set flow-control <range> <symmetric|asymmetric> Description: To set up the flow control function of all ports. Argument: <range>:port range, syntax 1,5-7, available from 1 to 10 <symmetric>: set its flow control as symmetric <asymmetric>: set its flow control as asymmetric...
  • Page 208 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show conf Syntax: show conf Description: To display the each port’s configuration about state, speed-duplex and flow control. Argument: None. Possible value: None. Example: 065-7710(port)# show conf show detail-counter Syntax: show detail-counter <#>...
  • Page 209 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Port 9 Fiber Media Information --------------------------------------------------------------------- Connector Type : SFP - LC Fiber Type : Multi-mode (MM) Tx Central Wavelength : 850 Baud Rate : 1G Vendor OUI : 00:40:c7 Vendor Name...
  • Page 210 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show status Syntax: show status Description: To display the port’s current status. Argument: None. Possible value: None. Example: 065-7710(port)# show status Port Media Link State Auto Nego. Speed/Duplex Rx Pause Tx Pause...
  • Page 211 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch disable 1p Syntax: disable 1p Description: To disable 802.1p qos. Argument: None. Possible value: None. Example: 065-7710(qos)# disable 1p disable dscp Syntax: disable dscp Description: To disable IP DSCP qos. Argument: None.
  • Page 212 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch disable tos Syntax: disable tos Description: To disable IP TOS qos. Argument: None. Possible value: None. Example: 065-7710(qos)# disable tos enable 1p Syntax: enable 1p Description: To enable 802.1p qos. Argument: None.
  • Page 213 You don't need to use all of queue, but must assign queue in order. Syntax: 1,2 or 2,5-7, available from 0 to 63. Possible value: <priority>: 0 to 63 Example: 065-7710(qos)# set dscp q0 2 q1 2 q2 2 q3 3 Publication date: January, 2006 Revision A1...
  • Page 214 You don't need to use all of queues, but must assign queues in order. Syntax: 1,2 or 2,5-7, available from 0 to 7. Possible value: <priority>: 0 to 7 Example: 065-7710(qos)# set pri-tag q0 0 q1 2 q3 4 set sche Syntax: set sche <wrr|strict> <wrr_0> <wrr_1> <wrr_2> <wrr_3> Description: To set qos schedule and weight for 4 queues.
  • Page 215 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Possible value: <type_value>: 0~3 <priority>: 0 to 7 Example: 065-7710(qos)# set tos 0 q0 1 q1 2 q2 4 q3 6 set vip Syntax: set vip <port_range> <mode> Description: To set vip port for strict priority.
  • Page 216 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch DiffServ Queue DiffServ ---------- ------- ---------- ------- ---------- ------- ---------- ------ show port Syntax: show port Description: To show VIP port configuration. Argument: None. Possible value: None. Example: 065-7710(qos)# show port...
  • Page 217 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show priority-tag Syntax: show priority-tag Description: To show 802.1p Qos configuration. Argument: None. Possible value: None. Example: 065-7710(qos)# show priority-tag 802.1p priority ==================== Global QoS mode: Enable QoS Enable 802.1p Priority...
  • Page 218 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show tos Syntax: show tos Description: To show IP tos Qos configuration. Argument: none Possible value: none Example: 065-7710(qos)# show tos ip tos classification ==================== Global QoS mode: Enable QoS Disable 802.1p Priority...
  • Page 219 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch reboot reboot Syntax: reboot Description: To reboot the system. Argument: None. Possible value: None. Example: 065-7710# reboot security <<isolated-group>> Syntax: set <port> Description: To set up the function of the isolated group.
  • Page 220 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch <<mirror>> disable Syntax: disable Description: To disable the function of mirror. Argument: None. Possible value: None. Example: 065-7710(security-mirror)# disable enable Syntax: enable Description: To enable the function of mirror. Argument: None.
  • Page 221 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show Syntax: show Description: To display the current setting status of mirror. Argument: None. Possible value: None. Example: 065-7710(security-mirror)# show Mirror: Monitoring Port :1 Monitored Ingress :4 Monitored Egress :2 3 <<restricted-group>>...
  • Page 222 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch snmp disable Syntax: disable set-community disable snmp Description: The Disable here is used for the de-activation of snmp or set-community. Argument: None. Possible value: None. Example: 065-7710(snmp)# disable set-community 065-7710(snmp)# disable snmp...
  • Page 223 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Syntax: set get-community <community> set set-community <community> set trap <#> <ip> [port] [community] Description: The Set here is used for the setup of get-community, set-community, trap host ip, host port and trap- community.
  • Page 224 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch MCheck Syntax: MCheck <range> Description: To force the port to transmit RST BPDUs. Argument: <range>: syntax 1,5-7, available from 1 to 10 Possible value: <range>: 1 to 10 Example: 065-7710(stp)# Mcheck 1-8...
  • Page 225 <path cost>: 0, 1-200000000. <priority> : 0 to 240 <edge_port> : yes / no <admin p2p>: auto / true / false Example: 065-7710(stp)# set port 1-6 0 128 yes auto set version Syntax: set version <stp|rstp> Description: To set up the version of STP.
  • Page 226 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show config Syntax: show config Description: To display the STP configuration data. Argument: None. Possible value: None. Example: 065-7710(stp)# show config STP State Configuration : Spanning Tree Protocol Bridge Priority (0-61440) : 61440 Hello Time (1-10 sec) Max.
  • Page 227 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show status Syntax: show status Description: To display of the status of STP. Argument: None. Possible value: None. Example: 065-7710(stp)# show status STP Status : STP State Bridge ID Bridge Priority...
  • Page 228 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch system set contact Syntax: set contact <contact> Description: To set the contact description of the switch. Argument: <contact>:string length up to 40 characters. Possible value: <contact>: A, b, c, d, ... ,z and 1, 2, 3, …. etc.
  • Page 229 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show Syntax: show Description: To display the basic information of the switch. Argument: None. Possible value: None. Example: 065-7710(system)# show Model Name System Description Location Contact Device Name System Up Time...
  • Page 230 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch tftp set server Syntax: set server <ip> Description: To set up the IP address of tftp server. Argument: <ip>: the IP address of tftp server Possible value: <ip>: tftp server IP Example: 065-7710(tftp)# set server 192.168.3.111...
  • Page 231 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch time set daylightsaving Syntax: set daylightsaving <hr> <MM/DD/HH> <mm/dd/hh> Description: To set up the daylight saving. Argument: <hr> : daylight saving hour, range: -5 to +5 <MM> : daylight saving start Month (01-12) <DD>...
  • Page 232 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set ntp Syntax: set ntp <ip> <timezone> Description: To set up the current time via NTP server. Argument: <ip>: ntp server ip address or domain name <timezone>: time zone (GMT), range: -12 to +13 Possible value: <timezone>: -12,-11…,0,1…,13...
  • Page 233 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch trunk del trunk Syntax: del trunk <port-range> Description: To remove the trunk port. Argument: <port-range> : syntax 1,5-7, available from 1 to 10 Possible value: <port-range> : 1 to 10 Example:...
  • Page 234 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set trunk Syntax: set trunk <port-range> <method> <group> <active LACP> Description: To set up the status of trunk, including the group number and mode of the trunk as well as LACP mode.
  • Page 235 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show lacp-config Syntax: show lacp-config Description: To display the value of LACP Priority. Argument: None. Possible value: None. Example: 065-7710(trunk)# show lacp-config LACP System Priority : 33333 Hash Method : DA...
  • Page 236 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show status Syntax: show status Description: To display the aggregator status and the settings of each port. Argument: None. Possible value: None. Example: 065-7710(trunk)# show status Trunk Port Setting ------------------------------------- ----------------------...
  • Page 237 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch vlan del port-group Syntax: del port-group <name> Description: To delete the port-based vlan group. Argument: <name>: port-vlan name Possible value: <name>: port-vlan name Example: 065-7710(vlan)# del port-group vlan-2 del tag-group Syntax: del tag-group <vid>...
  • Page 238 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch disable drop-untag Syntax: disable drop-untag <port_range> Description: To disable drop-untag. Argument: <port_range>: which port(s) you want not to drop untagged frames. Syntax: 1,5-7, available from 1 to 10 Possible value: <port_range>: 1 to 10...
  • Page 239 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch enable double-tag Syntax: enable double-tag Description: To enable double-tag. Argument: None. Possible value: None. Example: 065-7710(vlan)# enable double-tag enable drop-untag Syntax: enable drop-untag <port_range> Description: To enable drop-untag. Argument: <port_range>: which port(s) you want to drop untagged frames. Syntax: 1,5-7,...
  • Page 240 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch enable symmetric Syntax: enable symmetric Description: To drop frames from the non-member port. Argument: None. Possible value: None. Example: 065-7710(vlan)# enable symmetric set mode Syntax: set mode <port|tag> Description: To switch vlan mode between port-based and tag-based modes.
  • Page 241 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set pvid Syntax: set pvid <port_range> <pvid> <default_priority> Description: To set vlan PVID and port pripority. Argument: <port_range>: which port(s) you want to set PVID(s). Syntax 1,5-7, available from 1 to 10 <pvid>: which PVID you want to set, available from 1 to 4094...
  • Page 242 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show config Syntax: show config Description: To display the current vlan mode, Symmetric vlan, SVL and Double tag states. Argument: None. Possible value: None. Example: 065-7710(vlan)# show config Current vlan mode:Tag-based vlan...
  • Page 243 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch show pvid Syntax: show pvid Description: To display pvid, priority and drop untag result. Argument: None. Possible value: None. Example: 065-7710(vlan)# show pvid Port PVID Priority ------ ------ ---------- ------------ Drop Untag...
  • Page 244 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch disable Syntax: disable Description: To disable the virtual stack. Argument: None. Possible value: None. Example: 065-7710(vs)# disable enable Syntax: enable Description: To enable the virtual stack. Argument: None. Possible value: None.
  • Page 245 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch set role Syntax: set role <master|slave> Description: To set role. Argument: <master|slave>: master: act as master, slave : act as slave Possible value: <master|slave>: master or slave Example: 065-7710(vs)# set role master...

  • Page 246: Chapter 5. Maintenance

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch 5. Maintenance 5-1. Resolving No Link Condition The possible causes for a no link LED status are as follows: The attached device is not powered on The cable may not be the correct type or is faulty...

  • Page 247: Appendix A Technical Specifications

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Appendix A Technical Specifications Features • The switch included 8-Port 10/100Mbps TP and 2-Port Gigabit Dual Media TP/SFP. • Supports 8-port 10/100M TP ports with Nway and auto MDIX function. •...
  • Page 248 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Hardware Specifications Standard Compliance: IEEE802.3ab / 802.3z / 802.3u / 802.3x 802.3z and 802.3ab compliant Gigabit Ethernet ports Network Interface of Option transceiver Configuration SFP.0LC.202 SFP.0LC.212.XX SFP.0BL.621.20X * : Default module...
  • Page 249 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Diagnostic LED: System LED : Per Port LED: 10/100M TP Port 1 to 8 1000M Fiber/TP Port 9,10 Power Requirement Voltage Frequency Consumption Ambient Temperature Humidity Dimensions Comply with FCC Part 15 Class A & CE Mark Approval...
  • Page 250 ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Management Software Specifications System Configuration Management Agent Spanning Tree Algorithm VLAN Function Trunk Function IGMP Bandwidth Control Quality of Service (QoS) Port Security Internetworking Protocol Network Management Note: Any specification is subject to change without notice.

  • Page 251: Appendix B Null Modem Cable Specifications

    ™ Signamax 065-7710 8-Port 10/100BaseT/TX + 2SFP Managed Switch Null Modem Cable Specifications The DB-9 cable is used for connecting a terminal or terminal emulator to the Managed Switch’s RS-232 port to access the command-line interface. The table below shows the pin assignments for the DB-9 cable.

Table of Contents
