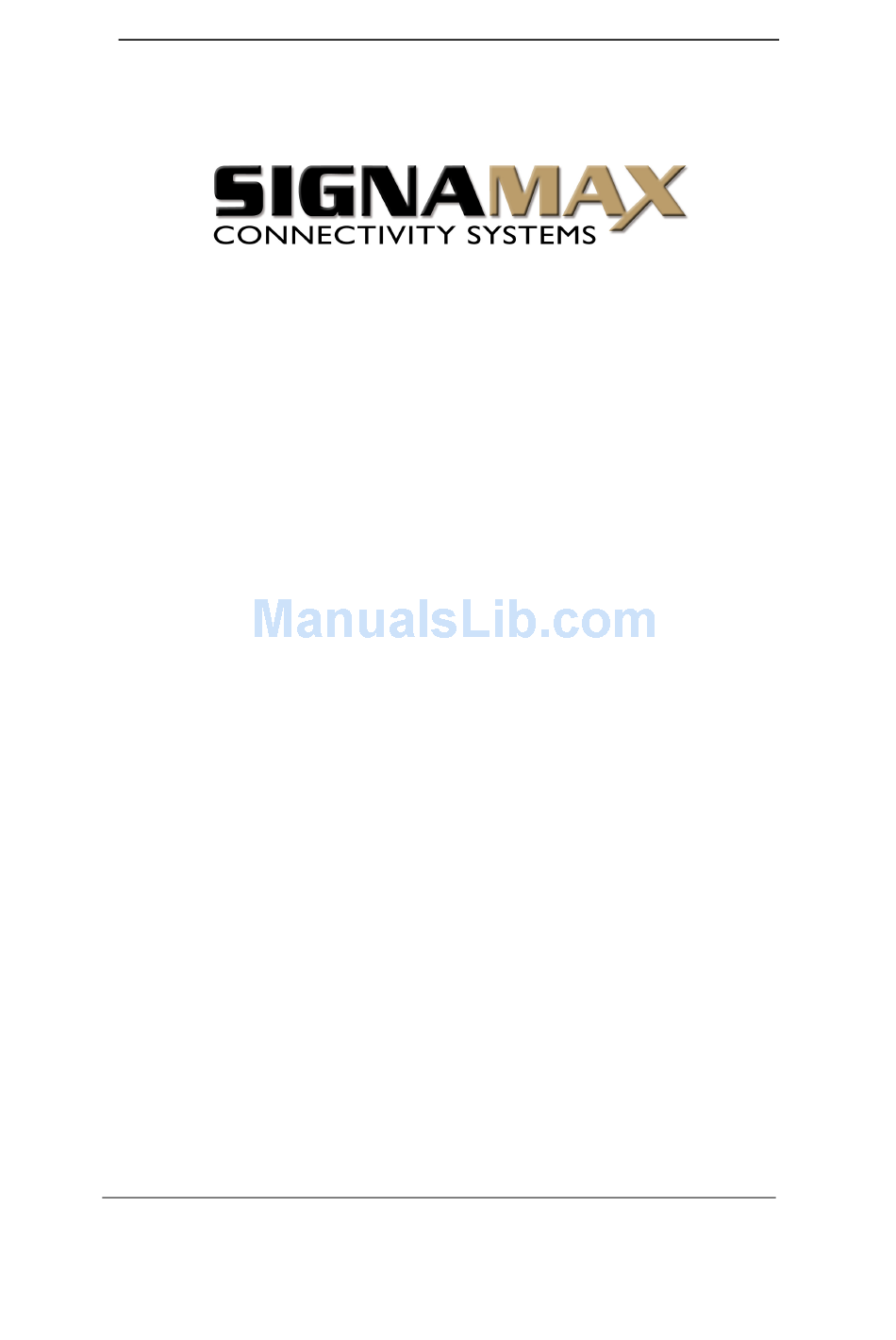

Page 1: User Manual
Signamax Connectivity Systems __________________________________________ 065-7942 Signamax™ Connectivity Systems 24-Port Gigabit Web Smart Switch With 4 Combo Slots Model: 065-7942 User Manual... -
Page 2: Signamax Connectivity Systems
Signamax Connectivity Systems __________________________________________ 065-7942 COPYRIGHT All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photo copying, recording or otherwise, without the prior written permission of the publisher. -
Page 3: Table Of Contents
Signamax Connectivity Systems __________________________________________ 065-7942 Table of Contents UNPACKING INFORMATION ........4 INTRODUCTION ............5 ................5 ENERAL ESCRIPTION ..................6 EATURES ..................6 RONT ANEL ..................7 ANEL INSTALLATION............8 ................8 ESKTOP NSTALLATION ................8 NSTALLATION ..............8 NSTALLING ETWORK ABLES DESCRIPTION OF SWITCH FUNCTIONS ....10... -
Page 4: Unpacking Information
Signamax Connectivity Systems __________________________________________ 065-7942 ..................... 25 ISCOVERY ................26 TATISTICS VERVIEW ................26 ETAILED TATISTICS ....................27 ESTART ................. 27 ACTORY EFAULT ..................27 MART ................28 OFTWARE PLOAD PRODUCT SPECIFICATIONS ........29 APPENDIX- COMMAND LINE INTERFACE ....30 ..........30... -
Page 5: Introduction
Signamax Connectivity Systems __________________________________________ 065-7942 Introduction General Description This Switch will instantly boost your networking throughput because it provides you with 24 Gigabit ports that enable true Gigabit connectivity. Users are now able to transfer large and bandwidth-hungry files faster and hence get a real efficiency improvement. -
Page 6: Key Features
Signamax Connectivity Systems __________________________________________ 065-7942 Key Features 24 (twenty-four) 10/100/1000Mbps Gigabit Ethernet ports. 4 (four) SFP slots for optional fiber connection. Supports auto-detection for mini-GBIC module insertion Auto-discovery function for easy Network management. 8K MAC address entries and 24 groups VLAN table Supports Port Mirroring. -
Page 7: The Rear Panel
Signamax Connectivity Systems __________________________________________ 065-7942 The auto-negotiation feature allows ports to run at one of the following operation modes: Media Speed Duplex Mode 10/100/1000Mbps(copper) 10Mbps Full Duplex Half Duplex 100Mbps Full Duplex Half Duplex 1000Mbps Full Duplex 1000Mbps(Fiber) 1000Mbps Full Duplex... -
Page 8: Installation
Signamax Connectivity Systems __________________________________________ 065-7942 Installation This Switch can be placed on your desktop or mounted in a rack. Installation is very easy. Users can use all the features of the Switch by simply attaching the cables and turning the power on. - Page 9 Signamax Connectivity Systems __________________________________________ 065-7942 Media Speed Wiring 10/100/1000Mbps 10Mbps Category 3,4,5 Utp/STP copper 100Mbps Category 5 UTP/STP 1000Mbps Category 5,5e UTP/STP 1000Mbps The cable type differs according to the 1000Mbps Fiber (Mini-GBIC mini-GBIC you choose. Please refer to the...
-
Page 10: Description Of Switch Functions
Signamax Connectivity Systems __________________________________________ 065-7942 Description of Switch Functions Jumbo Frame The Switch supports Jumbo Frames, which means that it can transmit the same data in fewer frames. This helps to ensure fewer overheads, shorter processing time, and fewer interruptions. -
Page 11: Management Guide
Signamax Connectivity Systems __________________________________________ 065-7942 Management guide Access the Switch This section shows you how to access and use the Switch’s advanced management capability, which can be accessed via console port or Internet Browser over the network (in-band). Manage via Command Line Interface To start the Command Line Interface, please connect a PC COM port to the RS-232 connector and activate a terminal emulation software (e.g. -
Page 12: Homepage
Signamax Connectivity Systems __________________________________________ 065-7942 Homepage After successful log-in, the “SYSTEM Configuration” page appears (this is also the Homepage). You can click on the hyperlinks on the left side of each page to get access to each management function. -
Page 13: System
Signamax Connectivity Systems __________________________________________ 065-7942 System The System window provides the Switch’s system information and allows users to configure most of these properties (see table under screenshot for details). Items Functions MAC Address The MAC address of this device.. S/W Version The software version of this device. - Page 14 Signamax Connectivity Systems __________________________________________ 065-7942 Items Functions Link Shows the link status of each port. The column lights green and shows the link speed if there is valid connection on the port. Select a speed for this port. “Auto Speed” enables Mode auto-negotiation.
-
Page 15: Vlan
Signamax Connectivity Systems __________________________________________ 065-7942 VLAN VLAN divides the network members into groups to reduce packet collisions and improve the network efficiency. The switch supports 802.1q tag-based VLAN. Please follow the instructions to configure. To add new VLAN groups, 1. Fill in a VLAN ID, from 2 to 4094, in the “VLAN\Port” column. -
Page 16: Pvid
Signamax Connectivity Systems __________________________________________ 065-7942 PVID When the VLAN-enabled Switch receives a tagged packet, the packet will be sent to the port’s default VLAN according to the PVID (port VLAN ID) of the receiving port. Items Functions Port Port Number 1~24 Egress Select “tagged”... - Page 17 Signamax Connectivity Systems __________________________________________ 065-7942 SMAC modes to decide the path of the packets. Note: Settings in VLAN, Port Aggregation, and Mirror are co-dependent. Please make sure that the settings won’t influence one another.
-
Page 18: Quality Of Service
Signamax Connectivity Systems __________________________________________ 065-7942 Quality of Service QoS enhances communication quality by giving precedence to certain classes of packets. This switch provides port-based, tag-based and DSCP QoS modes:... - Page 19 Signamax Connectivity Systems __________________________________________ 065-7942 Port-based mode QoS: Port-based QoS allows users to configure each port as having a high or low priority. To assign a priority level to each port: Select “Port” in the “Mode” column for those ports that are going to function as part of port-based QoS.
- Page 20 Signamax Connectivity Systems __________________________________________ 065-7942 Tag-based QoS: Tag-based QoS assigns packet priority according to the tags on the packets. To configure Tag-based QoS: Select “Tagged” in the “Mode” column for those ports that are going to perform tag-based QoS. Click the “Apply” button.
- Page 21 Signamax Connectivity Systems __________________________________________ 065-7942 DSCP-mode QoS: DSCP-mode QoS assigns packet priority according to the types of the incoming packets. It distinguishes packets according to the “Delay”, “Throughput” and “Reliability” information attached to the packet. The types are listed as the following:...
-
Page 22: Mirror
Signamax Connectivity Systems __________________________________________ 065-7942 Mirror The Mirror function copies all the packets that are transmitted by the source port to the destination port. It allows administrators to analyze and monitor the traffic of the monitored ports. Mirror Configuration: Select those ports that are going to be monitored by marking the checkboxes in the “Monitor Port”... -
Page 23: Rate Limit
Signamax Connectivity Systems __________________________________________ 065-7942 Rate Limit The “Rate Limit” page allows users to limit the bandwidth for each port and configure the rules for Storm Control, which limits the flow of broadcast and multicast To perform storm control: Click on each drop list to specify a speed for each frame type. -
Page 24: Snmp
Signamax Connectivity Systems __________________________________________ 065-7942 SNMP This device supports SNMP-management, which allows network administrators to monitor and configure this device with SNMP software. To allow this device to be managed via SNMP: Select “enable” in the drop menu. Specify a trap IP. A trap IP is the destination port for sending trap information, which is usually the IP address of network administrators. -
Page 25: Discovery
Signamax Connectivity Systems __________________________________________ 065-7942 Discovery After installing a series of our switches, the discovery management tool helps users to search and get access to those switches within the LAN. Note: The discovery tool lists a maximum of 16 devices respectively for auto and manual modes. -
Page 26: Statistics Overview
Signamax Connectivity Systems __________________________________________ 065-7942 Statistics Overview The Statistics Overview is provided for users to see the general transmitting and receiving status of each port. You may click the “Clear” button to clean all statistics or click the “Refresh” button to renew the statistics. -
Page 27: Restart
Signamax Connectivity Systems __________________________________________ 065-7942 Restart Restart: To restart the system, click the “Yes” button. The system restarts and shows the authentication window. Please fill in the username and password to continue. Factory Default Restore Factory Default: To restore the factory default settings, click the Yes button. -
Page 28: Software Upload
Signamax Connectivity Systems __________________________________________ 065-7942 Software Upload This “Software Upload” page allows users to upgrade firmware for this Switch. To perform firmware upgrade: Click the “Browse” button Locate the firmware file Click the “Upload” button to execute. Note: This new firmware is going to be applied on the remaining flash that you have NOT selected in “Smart Boot”, that is, the new firmware is going to be applied on the... -
Page 29: Product Specifications
Signamax Connectivity Systems __________________________________________ 065-7942 Product Specifications Standards IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX IEEE802.3x full-duplex operation and flow control IEEE802.3ab/z 1000BASE-T IEEE802.1Q VLAN interoperability IEEE802.1p Priority Operation Interface 24 * 10/100/1000Mbps auto MDI/MDI-X RJ-45 switching ports 4 * SFP( mini-GBIC) ports... -
Page 30: Appendix- Command Line Interface
Signamax Connectivity Systems __________________________________________ 065-7942 Appendix- Command Line Interface Start-up and Terminal configuration To start the Command Line Interface, please connect a PC COM port to the RS-232 connector and activate a terminal emulation software (e.g. Windows’ HyperTerminal) The terminal emulation software should be started in the following configuration:... -
Page 31: Command Hierarchy
Signamax Connectivity Systems __________________________________________ 065-7942 Command Hierarchy After logging in, press ? + <enter> to show the 9 command groups. System - System commands Console - Console commands Port - Port commands VLAN - VLAN commands Aggr - Aggregation commands... -
Page 32: Command Description
Signamax Connectivity Systems __________________________________________ 065-7942 Command Description These are the group commands of the command line interface: Command groups: System - System commands Console - Console commands Port - Port commands VLAN - VLAN commands Aggr - Aggregation commands - QoS commands... -
Page 33: Console Commands
Signamax Connectivity Systems __________________________________________ 065-7942 Set or show the system name. [<name>]: String of up to 16 characters (default: Show system name). System Reboot Description: Reboot the switch. Console Commands Commands at Console level: Console Configuration Console Timeout [<timeout>] Console Prompt [<prompt string>]... -
Page 34: Port Commands
Signamax Connectivity Systems __________________________________________ 065-7942 Port Commands Commands at Port level: Port Configuration [<portlist>] Port Mode [<portlist>] [<mode>] Port Flow Control [<portlist>] [enable|disable] Port Admin [<portlist>] [enable|disable] Port MaxFrame [<portlist>] [<framesize>|reset] Port Statistics [<portlist>] [clear] ------ #Note: If you want to make maxframe bigger than 1518, the [Flow Control] should be enabled! Port Configuration [<portlist>]... - Page 35 Signamax Connectivity Systems __________________________________________ 065-7942 Port Admin [<portlist>] [enable|disable] Description: Set or show the admin state for the port. [<portlist>] : Port list (default: All ports). [enable|disable]: Enable or disable admin state (default: Show admin state). Port MaxFrame [<portlist>] [<framesize>|reset]...
-
Page 36: Vlan Commands
Signamax Connectivity Systems __________________________________________ 065-7942 VLAN Commands Commands at VLAN level: VLAN Configuration [<portlist>] VLAN Add <vidlist> [<portlist>] VLAN Delete <vidlist> VLAN Lookup <vidlist> VLAN Egress [<portlist>] [untagged|tagged] VLAN PVID [<portlist>] [<vid>|none] VLAN OnlyTag [<portlist>] [enable|disable] VLAN Configuration [<portlist>] Description: Show the VLAN egress mode, port VLAN ID and accepted frame type for the port and the permanently stored VLAN table. - Page 37 Signamax Connectivity Systems __________________________________________ 065-7942 VLAN Egress [<portlist>] [untagged|tagged] Description: Set or show the VLAN egress mode setting for the port. Egress untagged ports will strip the VLAN tag from received frames. Egress tagged ports will not strip the tag from received frames [<portlist>]: Port list (default: All ports).
-
Page 38: Aggregation Commands
Signamax Connectivity Systems __________________________________________ 065-7942 Aggregation Commands Commands at Aggr level: Aggr Configuration Aggr Add <portlist> Aggr Delete <portlist> Aggr Lookup <portlist> Aggr Mode [smac|dmac|xor] Aggr Configuration Description: Shows the aggregation groups and the aggregation mode. Aggr Delete <portlist> Description: Delete link aggregation group. -
Page 39: Qos Commands
Signamax Connectivity Systems __________________________________________ 065-7942 QoS Commands Commands at QoS level: QoS Configuration [<portlist>] QoS Mode [<portlist>] [tag|port|diffserv] QoS Port [<portlist>] [<class>] QoS Tagprio [<portlist>] [<tagpriolist>] [<class>] QoS DiffServ [<dscpno>] [<class>] <class> range: low|normal|medium|high QoS Configuration [<portlist>] Description: Show the configured QoS mode and the priority setting of all ports. -
Page 40: Mirror Commands
Signamax Connectivity Systems __________________________________________ 065-7942 QoS DiffServ [<dscpno>] [<class>] Description: Set or show the IP Differentiated Services mapping. [<dscpno>]: IP DSCP number, 0-7. [<class>] : range: low|normal|medium|high Mirror Commands Commands at Mirror level: Mirror Configuration Mirror Port [<port>] Mirror Source [<portlist>] [enable|disable]... -
Page 41: Ip Commands
Signamax Connectivity Systems __________________________________________ 065-7942 IP Commands Commands at IP level: IP Configuration IP Setup [<ipaddress> [<ipmask> [<ipgateway>]]] [<vid>] IP Web management [enable|disable] IP Configuration Description: Show IP configured IP address, mask, gateway, VLAN ID and mode. IP Setup` Description: Setup or show IP configuration. -
Page 42: Ratelimit Commands
Signamax Connectivity Systems __________________________________________ 065-7942 Ratelimit Commands Commands at Ratelimit level: Ratelimit Configuration Ratelimit Setup <traffic type > <option> Ratelimit Egress [<portlist>] [enable|disable] [<rate>] Ratelimit Ingress[<portlist>] [enable|disable] [<rate>] [<portlist>] :Port list (default: All ports). [enable|disable] :Enable or disable. [<rate>] :Set leaky bucket rate in Kbit/s[128/256/512/1024/2048/3072K] (default: Show rate). - Page 43 Signamax Connectivity Systems __________________________________________ 065-7942 Ratelimit Egress [<portlist>] [enable|disable] [<rate>] Description: Set or show the egress configuration. [<portlist>] : Port list (default: All ports). [enable|disable] : Enable or disable egress. [<rate>] : Disable or set leaky bucket rate in Kbit/s [128/256/512/1024/2048/3072k] (default: Show egress rate).
