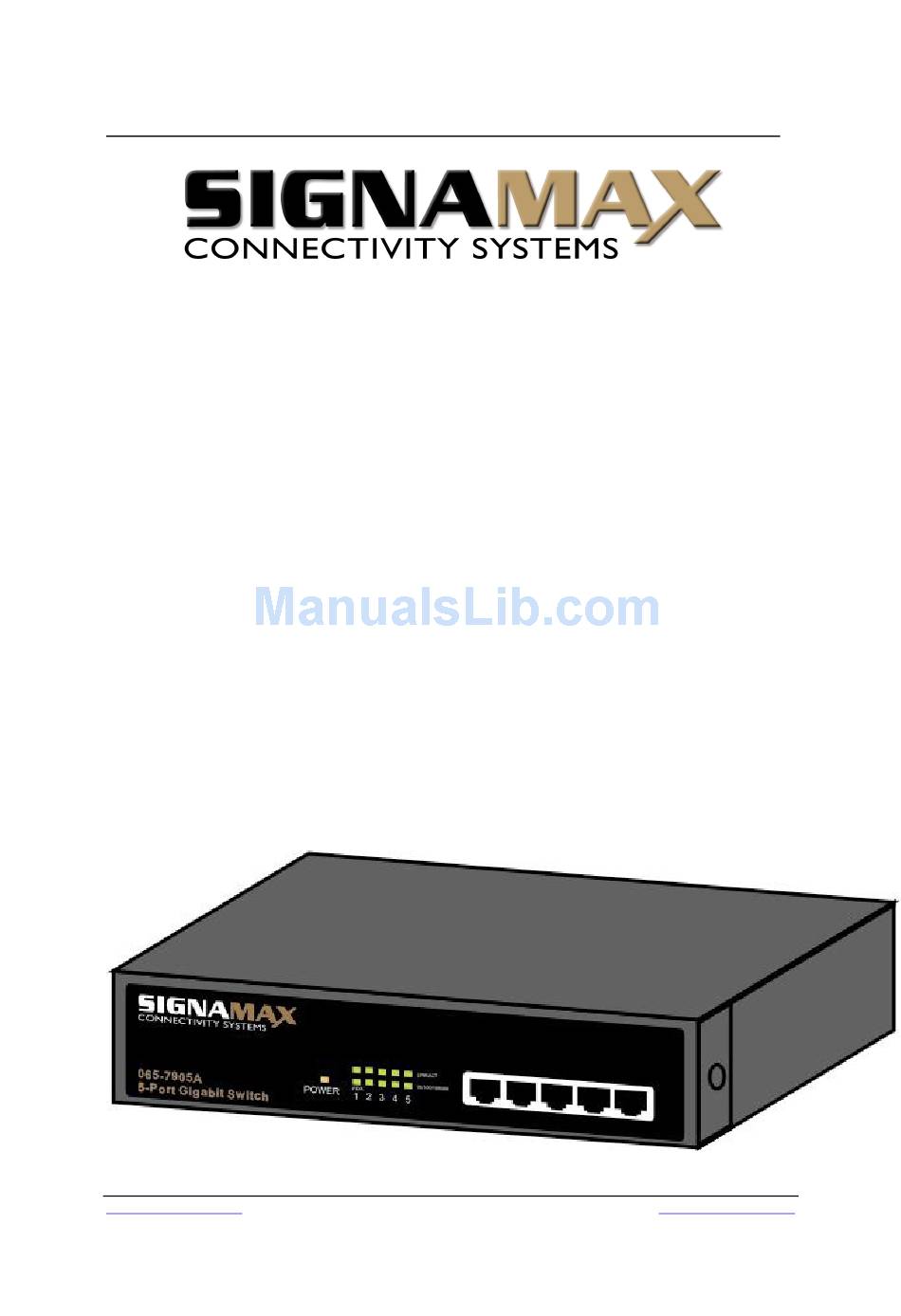

- Page 1 Signamax Connectivity System ______________________ 065-7905A Signamax™ Connectivity Systems 5 Ports Gigabit Nway Ethernet Switch Model:065-7905A User’s Manual www.signamax-us.com www.signamax-eu.com...
- Page 2 Signamax Connectivity System ______________________ 065-7905A FCC Warning This device has been tested and found to comply with limits for a Class B digital device, pursuant to Part 2 and 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Signamax Connectivity System ______________________ 065-7905A Table Of Contents Chapter 1 ..............1 Introduction ..............1 Key Features..............2 Chapter 2 ..............3 Package Contents ............3 Chapter 3 ..............4 Front Panel Layout ............4 Ⅰ. 5 RJ-45 Gigabit Switch Ports ......4 Ⅱ. -
Page 4: Chapter 1
With newest Gigabit chip set, 065-7905A 9” Gigabit Ethernet switch can fully support highest speed without hanging on problem even when Full-dueplex full loaded. -
Page 5: Key Features
Signamax Connectivity System ______________________ 065-7905A Key Features Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet and IEEE 802.3ab Gigabit Ethernet Standards Provides five 10/100/1000Mbps Gigabit switching ports Performs full wire-speed switching with Head of Line (HOL) blocking prevention. Non-blocking & Non-head-of-line blocking full wire speed forwarding. -
Page 6: Chapter 2
Signamax Connectivity System ______________________ 065-7905A Chapter 2 Package Contents Before you start to install 065-7905A Switch, please verify your package contain the following items: One 065-7905A 9” Gigabit Ethernet Switch One Power Adapter One User’s Manual Note: If any of these items is found missing or damaged, please contact your local supplier for replacement. -
Page 7: Chapter 3
10/100/1000M speed and negotiate Full/Half duplex mode automatically. These switching ports allow users to connect the Switch to 10Base-T, 100Base-TX and 1000Base-T devices. Ⅱ Ⅱ Ⅱ Ⅱ . LED Indicators of 065-7905A 5 Port Gigabit Switch Color Status Description No. Of LED... -
Page 8: Ⅲ. Led Definitions
Signamax Connectivity System ______________________ 065-7905A Ⅲ Ⅲ Ⅲ Ⅲ . LED Definitions Power LED ：The unit is powered on and ready for use. ：The unit is powered off. 1000M LED ：The port is operating at 1000Mbps speed. ：The port is operating at 10Mbps Half/ Full... -
Page 9: Chapter 4
Signamax Connectivity System ______________________ 065-7905A Chapter 4 Ⅰ Ⅰ Ⅰ Ⅰ . To connect 065-7905A Switch to PCs, servers, and other network devices Use straight-through twisted-pair cable (Cat. 5) to connect 065-7905A Switch to PCs, servers and other network devices. Networks can be built as figure shown. -
Page 10: Chapter 5
Signamax Connectivity System ______________________ 065-7905A Chapter 5 Ⅰ Ⅰ Ⅰ Ⅰ .Technical Specification 1. Standards Compliance - IEEE 802.3 10BaseT; IEEE 802.3u 100BaseTX and IEEE 802.3ab 1000BaseT copper over Ethernet 2. Number Of Ports - 5 integrated ports (10/100/1000Mbps N-Way port) 3. -
Page 11: Ⅱ. Diagram Of Extend Application By Up-Link
Signamax Connectivity System ______________________ 065-7905A -Up to 4K MAC address entry per device 9. JUMBO packet: - Supports 9728Byte 10. Power -DC input12V UL Safety 11. Power Consumption - 20 Watts (Max) 12. Operating Temperature -0℃~ 60℃ 12. Store Temperature - -20℃~ 90℃... - Page 12 Signamax Connectivity System ______________________ 065-7905A www.signamax-us.com www.signamax-eu.com - 9 -...
