SignaMax 065-7931 User Manual

16-port 10/100/100baset/tx websmart switch
Hide thumbs Also See for 065-7931:
Table of Contents

Advertisement

Quick Links

Download this manual

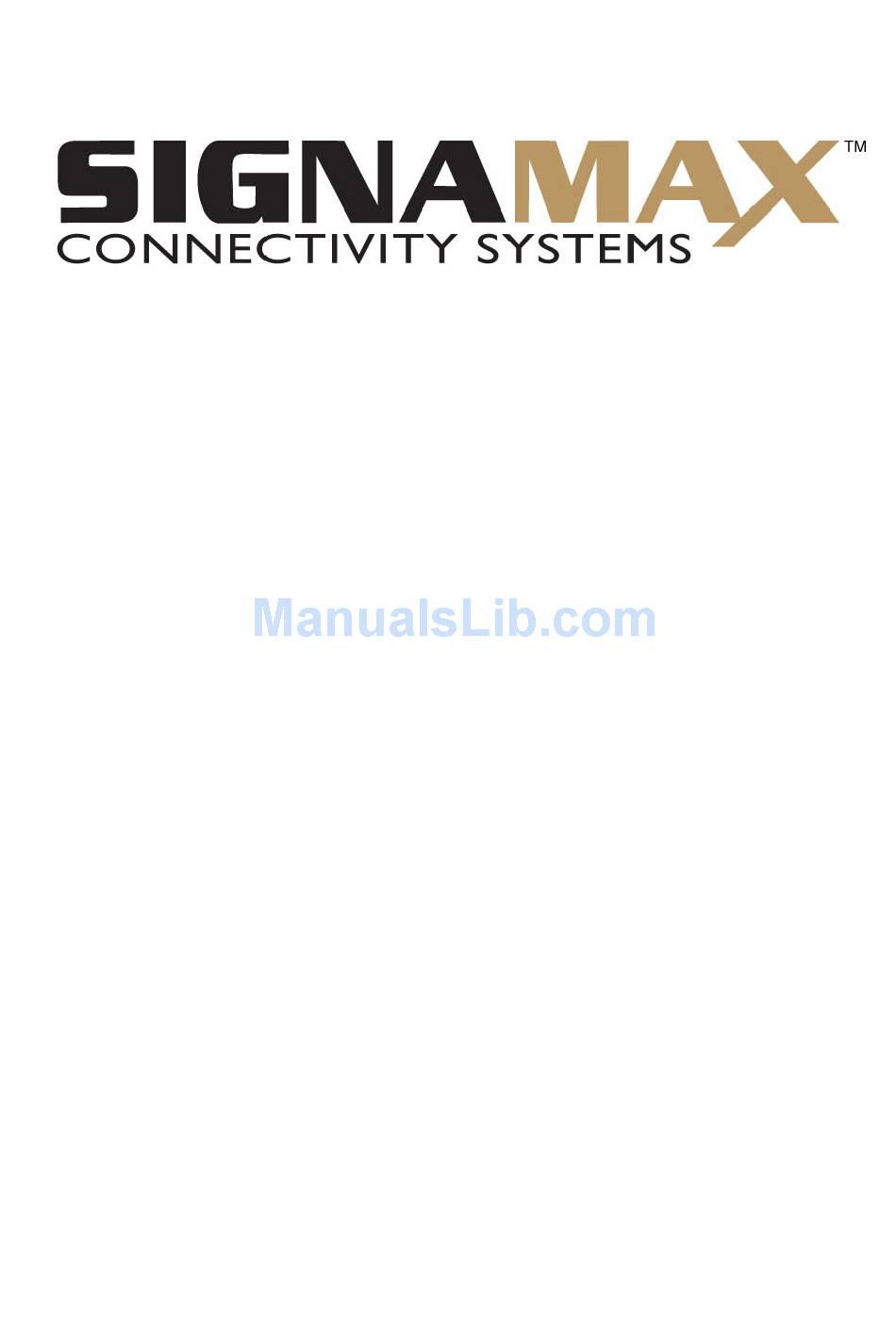

Signamax Connectivity Systems
Model 065-7931
16-Port 10/100/100BaseT/TX
WebSmart Switch
U s e r's G u i d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 065-7931 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SignaMax 065-7931

Summary of Contents for SignaMax 065-7931

  • Page 1 Signamax Connectivity Systems Model 065-7931 16-Port 10/100/100BaseT/TX WebSmart Switch U s e r’s G u i d e...

  • Page 3: Signamax Connectivity Systems

    Signamax Connectivity Systems Model 065-7931 16-Port 10/100/100BaseT/TX WebSmart Switch U s e r ’ s G u i d e Release 1.0 Release Date: July, 2005 Signamax Connectivity Systems 1810 N.E 144 Street N. Miami, FL 33181 800-446-3277 www.Signamax.com...

  • Page 4: Table Of Contents

    2-1-2-1. Cabling Requirements for TP Ports --------------------------------10 2-1-2-2. Cabling Requirements for 1000SX/LX SFP Module------------10 2-1-2-3. Switch Cascading in Network Topology --------------------------- 11 2-1-3. Configuring the Management Agent of the 065-7931 WebSmart switch-------------------------------------------------------------------------------------14 2-1-3-1. Configuring the Management Agent of the 065-7931 WebSmart switch through the Ethernet Port--------------------------------15 2-1-4.
  • Page 5 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-4. VLAN Group Configuration-------------------------------------------------59 4-2-5. PVID Configuration-----------------------------------------------------------62 4-2-6. Aggregation Configuration--------------------------------------------------64 4-2-7. Mirror Configuration ----------------------------------------------------------65 4-2-8. Quality of Service Configuration ------------------------------------------66 4-2-9. Bandwidth Management ----------------------------------------------------75 4-2-10. Trap Event Configuration--------------------------------------------------77 4-2-11. Max. Packet Length --------------------------------------------------------78 4-3. M...

  • Page 6: Revision History

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Revision History Release Date Revision 8/17/2005...
  • Page 7 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch...

  • Page 8: Caution

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Caution Circuit devices are sensitive to static electricity, which can damage their delicate electronics. Dry weather conditions or walking across a carpeted floor may cause you to acquire a static electrical charge. To protect your device, always: •...
  • Page 9 About this user’s manual In this user’s manual, it will not only tell you how to install and connect your network system but configure and monitor the 065-7931 Switch through the built-in Ethernet ports step-by-step. Many explanations in detail of hardware and software functions are shown, as well as examples of the operation of the web-based user interface (UI).

  • Page 10: Chapter 1. Introduction

    1. Introduction 1-1. Overview of the 065-7931 16-Port Gigabit WebSmart Switch The 065-7931 16-port Gigabit WebSmart Switch is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet, and Standard Ethernet specifications. The switch includes 14 10/100/1000 Mbps Twisted Pair (TP) ports and 2 Gigabit dual media TP/SFP (Small Form-factor Pluggable) fiber ports.

  • Page 11: Checklist

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 1-2. Checklist Before you start installing the switch, verify that the package contains the following: The 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch ⎯ Mounting Accessory (for 19” Rack Shelf) ⎯ This User's Manual in CD-ROM format ⎯...
  • Page 12 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch • Supports 802.1Q VLAN • Supports user management and limits login to one user • Maximum packet length can be up to 9216 bytes for jumbo frame applications • Supports Broadcasting Suppression to avoid network suspension or crash •...

  • Page 13: View Of The 065-7931 Web Smart Switch

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 1-4. View of the 065-7931 16-Port Gigabit WebSmart Switch Fig. 1-1 Full View of 16 Gigabit Web Smart Switch 1-4-1. User Interfaces on the Front Panel (Button, LEDs and Plugs) There are 16 TP Gigabit Ethernet ports and 2 SFP fiber ports for optional removable modules on the front panel of the switch.

  • Page 14: User Interfaces On The Rear Panel

    Lit when connection with the remote device is good SFP (LINK/ACT) Green Blinks when any traffic is present Off when module connection is not good Table1-1 1-4-2. User Interfaces on the Rear Panel AC Line 100-240V 50/60 Hz Fig. 1-3 Rear View of the 065-7931 Gigabit WebSmart Switch...

  • Page 15: View Of The Optional Modules

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 1-5. View of the Optional Modules In this switch, both Ports 15 & 16 include two types of media --- TP and SFP Fiber (LC, BiDi LC).This port supports either 10/100/1000 Mbps TP or 1000 Mbps SFP Fiber with an auto-detection function.

  • Page 16: Chapter 2. Installation

    ⇒ Be sure that the power switch is OFF before you insert the power cord to the power source • Installing Optional SFP Fiber Transceivers into the 065-7931 Gigabit WebSmart Switch Note: If you have no modules, please skip this section.

  • Page 17: Cabling Requirements

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch • TP Port and Cable Installation ⇒ In this switch, each TP port supports MDI/MDI-X auto-crossover, so both types of cable, straight-through (Cable pin-outs for RJ-45 jack 1, 2, 3, 6 to 1, 2, 3, 6 in 10/100 M TP;...

  • Page 18: Cabling Requirements For Tp Ports

    Gigabit Fiber with BiDi LC 1310 nm SFP module ⎯ Gigabit Fiber with BiDi LC 1550 nm SFP module ⎯ The following table lists the types of fiber that Signamax supports; those not listed here are available upon request. Multimode Fiber Cable and Modal Bandwidth Multimode 62.5/125 µm Multimode 50/125 µm...

  • Page 19: Switch Cascading In Network Topology

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 2-1-2-3. Switch Cascading in Network Topology • Takes the Delay Time into Account Theoretically, the switch partitions the collision domain for each port in switch cascading that you may uplink the switches unlimitedly. In practice, the network extension (cascading levels &...
  • Page 20 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Case1: All switch ports are in the same local area network. Every port can access each other (See Fig. 2-2). Fig. 2-2 No VLAN Configuration Diagram If VLAN is enabled and configured, each node in the network that can communicate with each other directly is bounded in the same VLAN area.
  • Page 21 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Case 2b: Port-based VLAN (See Fig.2-4). Fig. 2-4 Port-based VLAN Diagram 1. VLAN1 members could not access VLAN2, VLAN3 and VLAN4 members. 2. VLAN2 members could not access VLAN1 and VLAN3 members, but they could access VLAN4 members.
  • Page 22 The user can use any one of the ports to monitor and configure the switch. The user can manage and administer the switch through the following procedures. Section 2-1-3-1: Configuring the Management Agent of the 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch through an Ethernet Port...

  • Page 23: Switch

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 2-1-3-1. Configuring Management Agent of the 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch through an Ethernet Port There are two ways to configure and monitor the switch through the switch’s Ethernet port: by using a Web browser and by using an SNMP manager. The user interface for the SNMP manager is NMS dependent and is not covered here;...

  • Page 24: Ip Address Assignment

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 2-7 the Login Screen for Web UI 2-1-4. IP Address Assignment For IP address configuration, there are three parameters that need to be filled in. They are the IP address, Subnet Mask, and the Default Gateway.
  • Page 25 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Classful addressing divides IP addresses into three classes: class A, class B and class C. The remaining valid IP addresses are used for multicast and broadcast. The bit length of the network prefix is the same as that of the subnet mask and is denoted as IP address/X, for example, 192.168.1.0/24.
  • Page 26 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Class D and E: Class D is a class with the first 4 MSB (Most Significant Bits) set to 1-1-1-0 and is used for IP Multicast. See also RFC 1112. Class E is a class with the first 4 MSB set to 1-1-1-1 and is used for IP broadcast.
  • Page 27 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch In this diagram, you can see the subnet mask that is 25 bits long, 255.255.255.128, contains 126 members in the sub-netted network. Another concept to be remembered is that the length of the network prefix equals the number of the bits with 1s in that subnet mask.
  • Page 28 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch For different network applications, the subnet mask may look like 255.255.255.240. This means it is a small network accommodating a maximum of 15 nodes in the network. Default gateway: For the routed packet, if the destination is not in the routing table, all the traffic is put into the device with the designated IP address, known as the default router.

  • Page 29: Typical Applications

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 2-2. Typical Applications The 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch implements 16 Gigabit Ethernet TP ports with auto MDIX and two slots for the removable modules supporting comprehensive types of fiber optic connection, including LC and BiDi-LC SFP modules.
  • Page 30 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 2-11 Peer-to-peer Network Connection...

  • Page 31: Chapter 3. Basic Concept And Management

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 3. Basic Concept and Management This chapter will tell you the basic concept of features to manage this switch and how they work. 3-1. What’s Ethernet? Ethernet originated and was implemented at Xerox in Palo Alto, CA in 1973 and was successfully commercialized by Digital Equipment Corporation (DEC), Intel and Xerox (DIX) in 1980.
  • Page 32 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch IEEE 802.2 LLC Data Link Layer IEEE 802.3 CSMA/CD MAC IEEE 802.3 PLS Physical Layer ANSI X3T9.5 PMD IEEE 802.3 Fiber Coaxial/STP/UTP The diagram above shows the Ethernet architecture, LLC sub-layer, and MAC sub-layer, which are responded to the Data Link layer, and transceivers, which are correspond to the Physical layer in the OSI model.
  • Page 33 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Table 3-1 LLC Format Table 3-1 is the format of the LLC PDU. It is comprised of four fields: DSAP, SSAP, Control and Information. The DSAP address field identifies one or more service access points, in which the I/G bit indicates if it is an individual or group address.

  • Page 34: Media Access Control (Mac)

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 3-2 SAP Format 3-2. Media Access Control (MAC) MAC Addressing Because a LAN is composed of many nodes, for the data exchanged among these nodes, each node must have its own unique address to identify who should send the data or should receive the data.
  • Page 35 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Bit 47 bit 0 1st byte 2nd byte 3rd byte 4th byte 5th byte 6th byte OUI code Serial number Table 3-3 Ethernet MAC address The first bit of the first byte in the Destination address (DA) determines the address to be a Unicast (0) or Multicast frame (1), known as an I/G bit indicating individual (0) or group (1).
  • Page 36 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Destination address (DA) — The DA field is used to identify which network device(s) should receive the packet. It is a unique address. Please see the section concerning MAC addressing. Source addresses (SA) — The SA field indicates the source node.
  • Page 37 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch How does a MAC work? The MAC sub-layer has two primary jobs to do: 1. Receiving and transmitting data. When receiving data, it parses frames to detect errors; when transmitting data, it performs frame assembly.
  • Page 38 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch An Ethernet MAC transmits frames in half-duplex and full-duplex modes. In the half-duplex operation mode, the MAC can either transmit or receive a frame at a given moment, but cannot do both jobs at the same time.
  • Page 39 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Parameter 10Base 100Base 1000Base value/LAN Max. collision 100 meters for UTP 100 meters for UTP 100 meters domain DTE to 412 meters for fiber 316 meters for fiber Max. collision 2500 meters 205 meters...

  • Page 40: Flow Control

    MAC control frames. Normally, in 10 Mbps and 100 Mbps Ethernet, only symmetric flow control is supported. However, some switches (e.g., the 065-7931 Gigabit WebSmart Switch) support not only symmetric but asymmetric flow controls for special applications. In Gigabit Ethernet, both symmetric flow control and asymmetric flow control are supported.
  • Page 41 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Frame Reception In essence, the frame reception is the same in both half duplex and full duplex operations, except that full-duplex operation uses two buffers to transmit and receive the frames independently. The receiving node always “listens” if there is traffic running over the medium when it is not receiving a frame.
  • Page 42 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch What if a VLAN tagging is applied? VLAN tagging is a 4-byte long data string immediately following the MAC source address. When tagged VLAN is applied, the Ethernet frame structure will have a little change, shown as follows.

  • Page 43: How Does A Switch Work

    (slotTime) as a late collision. 3-4. How does a switch work? The 065-7931 Gigabit WebSmart switch is a layer 2 Ethernet Switch equipped with 16 10/100/1000 Mbps Twisted Pair (TP) ports and 2 Gigabit dual media TP/SFP (Small Form-factor Pluggable) fiber ports . Each port on it is an...
  • Page 44 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig.3-5 Collision Domain Extended Distance Limitations: The diameter of a half-duplex LAN segment is determined by its maximum propagation delay time. For example, in 10 M LAN, the maximum distance of a LAN segment using yellow “Thicknet” cable is 2500 meters and 185 meters when using coaxial “Thinnet”...
  • Page 45 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 3-6 How does a switch operate? A Layer 2 switch uses some features of the Data Link layer in the OSI model to forward the packet to the destination port(s). Here we introduce some important features of a switch and how they work.
  • Page 46 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch MAC address aging There is a field in the MAC address table used to establish the entry’s Age time, which determines how long a MAC entry can reside in a switch. The age time is refreshed when a packet with that SA is received.

  • Page 47: Virtual Lan

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 3-5. Virtual LAN What is a VLAN? It is a subset of a LAN. Before we discuss VLAN, we must understand what a LAN (Local Area Network) is. In general, a LAN is composed of different physical network segments bridged by switches or bridges which attach to end stations in the same broadcast domain.
  • Page 48 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 3-8 In this diagram, VLAN technology is applied to configure the system as shown as the figure above. We can partition the users into the different logical networks which have their own broadcast domain. The traffic in one VLAN will not disturb others of these logical networks.
  • Page 49 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch There are many types of VLAN that can be applied to a LAN. The most popular types are port-based VLAN, tag-based VLAN and protocol-based VLAN. Port-based VLAN Some physical ports are configured as members of a VLAN. All stations attached on these ports can communicate with each other.
  • Page 50 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch VLAN-tagged frame: An Ethernet frame, carrying a VLAN tag field, containing VLAN identification without the values of 0 and 4095, and priority information. Priority-tagged frame: An Ethernet frame, carrying a VLAN tag field, containing VLAN identification with the value of 0, and priority information.
  • Page 51 VLAN to learn or look up the membership information of the VLAN. In the 065-7931 switch, you can choose a VID for sharing the filtering database in the Shared VID field if you wish to use the existing filtering database.
  • Page 52 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch How does a Tagged VLAN work? If ingress filtering is enabled and when a packet is received, the VLAN bridge will first check if the VID of the packet is presented. 1). If the packet has a non-zero VID, the VLAN bridge will apply this VID as the VLAN ID of the packet in the network.

  • Page 53: Link Aggregation

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 3-6. Link Aggregation The basic function of Link Aggregation is to aggregate the bandwidth of more than one port to an assigned logical link. This highly increases the total available bandwidth to the targeted device. There is more than one Link Aggregation technology in many vendors’...
  • Page 54 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Terminology Link Aggregation: Link Aggregation is a method to have multiple physical links with the same media and speed bundled to be a logical link forming a Link Aggregation Group with a group ID. From the viewpoint of the MAC client, each Link Aggregation Group is an independent link.

  • Page 55: Chapter 4. Operation Of Web-Based Management

    4. Operation of Web-based Management This chapter instructs you how to configure and manage the 065-7931 16- Port 10/100/1000BaseT/TX WebSmart Switch through the web user interface it supports, in order to access and manage the 14 10/100/1000 Mbps TP ports and the 2 Gigabit TP/SFP dual media ports supporting either fiber or TP media in the switch.

  • Page 56: Web Management Home Overview

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 4-1 4-1. Web Management Home Overview After the user logs in, the switch displays the system status information as shown in Fig. 4-2. This page is the default page, providing the user with basic system information, including “System Status”, “TP Port Status”, “Fiber Port Status”,...
  • Page 57 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch • Page Layout Information On the top side, it shows the front panel of the switch. In the front panel, the ⎯ linked ports will display green; the ports which are not linked will be dark. For the optional modules, the slot will show only a cover plate if no module exists and will show a module if a module is present.

  • Page 58: Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2. Configuration Eleven functions, including System Configuration, Ports Configuration, VLAN Mode Configuration, VLAN Group Configuration, PVID Configuration, Aggregation Configuration, Mirror Configuration, QoS Configuration, Bandwidth Management, Trap Event Configuration, and Max. Packet Length are contained in this function folder for system and network management.

  • Page 59: System Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-1. System Configuration System configuration is one of the most important configurations in the switch. Without the proper setting, the network administrator, referred to here as the user, will not be able to manage or view the device. The switch supports manual IP address setting.
  • Page 60 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch IP Address: The user can configure the IP settings and fill in new values. When completed, click the <Apply> button to update. Default: 192.168.1.1 Subnet Mask: Subnet mask is made for the purpose of getting more network addresses, because any IP device in a network must own its IP address, composed of a Network address and a Host address, otherwise it can’t...
  • Page 61 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch System Name: Sets a special user-defined name for this switch. Up to 16 characters are allowed in this parameter. Any alphanumeric character and null are acceptable. Default: Giga Switch Password: Sets a password for this switch. Up to 16 characters are allowed in this parameter.

  • Page 62: Ports Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-2. Ports Configuration Function name: Ports Configuration Function description: Port Configuration is applied to change the setting of each port. By using this configuration capability, you can set/reset the Mode and Flow Control parameters.
  • Page 63 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 4-4...

  • Page 64: Vlan Mode Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-3. VLAN Mode Configuration The switch supports Port-based VLAN and Tag-based VLAN (802.1q) . It upports 16 active VLANs and VLAN IDs 1~4094. VLAN configuration is used to partition your LAN into small ones as your requirements demand. By properly configuring it, you can gain not only improved security and increased performance but you can also greatly reduce VLAN management time.
  • Page 65 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Metro Mode: The Metro Mode is a quick configuration VLAN environment method of Port-based VLAN. It will create 14 or 15 Port-based VLAN groups. Fig. 4-5 Uplink Port: This function is enabled only when metro mode is chosen as the VLAN mode.
  • Page 66 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 4-6 Management Interface: State: Operates when the tag-based mode is chosen. When this function is enabled, only the tagged packets with this VID can manage the switch. VID: Valid range 1~4094.

  • Page 67: Vlan Group Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-4. VLAN Group Configuration Function name: VLAN Group Configuration Function description: This function shows the existing information of the VLAN Groups List and maintains them, i.e. modify and delete one of them. The user also can add a new VLAN group by inputting a new VLAN name and VLAN ID.
  • Page 68 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 4-7 Add Group: Creates a new port-based VLAN or tag-based VLAN, depending on the VLAN mode the user selected in the VLAN mode function. Fig. 4-8...
  • Page 69 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Delete Group: Just tick the check box ( beside the ID, then press the <Delete Group> button to delete the group. Fig. 4-9...

  • Page 70: Pvid Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-5. PVID Configuration Function name: PVID Configuration Function description: In VLAN Port VID Setting, the user can input the VID number to each port. The range of valid VID numbers is from 1 to 4094. The user also can choose ingress filtering rules for each port.
  • Page 71 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Untag State: If the user has checked this function for a Tag out port, the packets from this port may be tag out. But the packet would be untag out if the VID of its tag is the same as the value of ”Untag VID”...

  • Page 72: Aggregation Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-6. Aggregation Configuration The Aggregation (Port Trunking) Configuration is used to configure the settings of Link Aggregation. You can bundle more than one port with the same speed, full duplex and the same MAC to be a single logical port, thus the logical port aggregates the bandwidth of these ports.

  • Page 73: Mirror Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-7. Mirror Configuration Function name: Mirror Configuration Function description: Mirror Configuration is used to monitor the traffic of the network. For example, we assume that Port A and Port B are the Sniffer (Monitoring) Port and Source (Monitored) Port respectively;...

  • Page 74: Quality Of Service Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-8. Quality of Service Configuration offers powerful QoS functionality. This function supports VLAN- switch tagged priority that can assign precedence of up to 8 priorities; IP TOS Classification; IP TCP/UDP Port Classification; and IP DiffServ Classification.
  • Page 75 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch In L4 QoS Configuration, you can enter a special network transmission event to prioritize it appropriately; for example we use ”Down prioritize web browsing, e-mail, FTP and news“ in the L4 QoS Configuration and click apply, and then click Custom L4.
  • Page 76 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Bit 0, Bit 1, Bit 2: According to the arrangement of VLAN-tagged priority, it can form 8 kinds of traffic classes, including 0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 and 1 1 1.
  • Page 77 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Function name: IP TOS Classification Function description: Another QoS function is the application of Layer 3 on the network framework. This focuses on the TOS field of the IP header. There are three bits in the TOS field.
  • Page 78 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Bit 0, Bit 1, Bit 2: According to the arrangement of Bit 5 ~ Bit 7 in TOS Field of IP Header, it can form 8 kinds of traffic classes, including 0 0 0, 0 0 1, 0 1 0, 0 1 0, 1 0 0, 1 0 1, 1 1 0 and 1 1 1.
  • Page 79 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Function name: IP TCP/UDP Port Classification Function description: In L4 QoS Configuration, you can enter a special network transmission event to prioritize it appropriately; for example we use ”Down prioritize web browsing, e-mail, FTP and news“ in the L4 QoS Configuration and click apply, and then click Custom L4.
  • Page 80 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Prioritize Databases (Oracle, IBM DB2, SQL, Microsoft): Belongs to the QoS in L4. Just tick the option button and press <Apply> button to have this function take effect. Then, enter Custom L4 to set up a Special TCP/UDP port for QoS.
  • Page 81 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Advanced Mode Fig. 4-16 Simple Mode Fig. 4-17 Simple Mode: Press <Simple> button is to return to the screen that all L4 port number will disappear (See Fig 4-17).
  • Page 82 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Function name: IP DiffServ Classification Function description: Using the IP DiffServ Classification function, the switch can form a total of 64 (0~63) kinds of Traffic Class based on the arrangement of the 6-bit field in DSCP of the IP packet.

  • Page 83: Bandwidth Management

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-9. Bandwidth Management Function name: Bandwidth Management Function description: Bandwidth Management function is used to set up the limit of Ingress and Egress bandwidth for each port. Note: Each port of the switch is assigned a 16 KB packet buffer. The packet buffer size will be reduced when the bandwidth rate limitation is enabled.
  • Page 84 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Broadcast & Multicast for Ingress Rate Limiting: Establishes the limit of Ingress bandwidth for the port selected. Incoming traffic will be discarded if the rate exceeds the value established in the Data Rate field. The format of the packet limits this capability only to broadcast and multicast packets.

  • Page 85: Trap Event Configuration

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-10. Trap Event Configuration Function name: Trap Event Configuration Function description: The Trap Events Configuration function is used to enable the Advanced Smart Ethernet Switch to send out the trap information while pre-defined trap events occurred.

  • Page 86: Max. Packet Length

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-2-11. Max. Packet Length Function name: Max. Packet Length Function description: The switch is capable of dealing with 9k Jumbo Frames, which suits the transmission for a large amount of data in the network environment.

  • Page 87: Monitoring

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-3. Monitoring There are two functions contained in the monitoring section. Monitoring Statistics Overview Detailed Statistics 4-3-1. Statistics Overview The function of Statistics Overview collects any information and provides the counting summary about the traffic of the port, no matter the packet is good or bad.

  • Page 88: Detailed Statistics

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 4-22 4-3-2. Detailed Statistics Function name: Detailed Statistics Function description: Displays the detailed count number of each port’s traffic. As shown in Fig. 4-23, the window can show all counter information of each port at one time.
  • Page 89 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Tx Octets: Total transmitted bytes. Tx High Priority Packets: Number of Tx packets classified as high priority. Tx Low Priority Packets: Number of Tx packets classified as low priority. Tx Broadcast: The counted number of broadcast packets transmitted.
  • Page 90 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Rx CRC/Alignment: Number of Alignment errors and CRC error packets received. Rx Undersize: Number of short frames (<64 Bytes) with valid CRC. Rx Oversize: Number of long frames (according to max_length register) with valid CRC.

  • Page 91: Maintenance

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4. Maintenance There are four functions contained in the maintenance section. 4-4-1. Status Eight functions, including System Status, TP Port Status, Fiber Port Status, Aggregation, VLAN, Mirror, Trap Event and Maximum Packet Length are contained in this function folder for port monitoring and management.

  • Page 92: 4-4-1-1.System Status

    Displays the firmware version of this switch. Hardware Version: Displays the hardware version of this switch. Serial Number: Displays the serial number as assigned by Signamax. IP Address: Displays the IP address of this switch. Subnet Mask: Displays the subnet mask of this switch.
  • Page 93 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch MAC Address: Displays the Ethernet MAC address of this switch. System Name: Displays the name of the switch. User-defined. Auto Logout Timer: Displays the setting of auto-logout timer in the web UI.

  • Page 94: Tp / Fiber Ports Status

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-1-2. TP / Fiber Ports Status Function name: TP/Fiber Ports Status Function description: Reports the latest updated status of all ports in this switch. Using this function, the user can view the following settings: link status, speed, and flow control.
  • Page 95 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Flow Control: Shows each port’s flow control status. There are two types of flow control in Ethernet: Backpressure for half- duplex operation, and Pause flow control (IEEE 802.3x) for full-duplex operation. The switch supports both of these types of flow control.

  • Page 96: Aggregation

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-1-3. Aggregation Function name: Aggregation Status Function description: Displays the current setup of Aggregation Trunking. Parameter description: Normal: Displays the ports that are not a member of any aggregation trunking group. Group 1~8: Displays the members of the Group.

  • Page 97: Vlan

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-1-4. VLAN Function name: VLAN Status Function description: Display the status of the VLAN mode and VLAN group settings. Parameter description: VLAN Mode: Displays Port-based, Tag-based and metro mode, depending on the setting established in the VLAN mode configuration function.
  • Page 98 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Fig. 4-29 Metro mode VLAN...

  • Page 99: Mirror

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-1-5. Mirror Function name: Mirror Status Function description: Mirror Status is used to display the results of the mirror configuration setting. Parameter description: Sniffer Mode: Displays the activation or de-activation status of the Port Mirror function.

  • Page 100: Trap Event

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-1-6. Trap Event Function name: Trap Event Status Function description: The Trap Events status function is used to display the switch’s trap information sent out when pre-defined trap events occur. Parameter description: The names of the trap functions are self-descriptive. The traps that the switch supports are listed below.

  • Page 101: Maximum Packet Length

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-1-7. Maximum Packet Length Function name: Max. Packet Length Status Function description: Displays the maximum packet length settings that each port can accept in this switch. Parameter description: Max. Frame Size for Jumbo Frame (bytes): Displays the settings that determine the maximum length of the packet that each port of the switch can accept.

  • Page 102: Warm Restart

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-2. Warm Restart The user has many ways to reboot the switch, including power up, hardware reset and software reset. Pressing the RESET button in the front panel resets the switch. After upgrading software, the switch must be rebooted to have the new configuration take effect.

  • Page 103: Factory Default

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-3. Factory Default Function name: Factory Default Function description: The Factory Default Configuration function can retrieve the switch’s default setting to replace the working configuration. Except for the IP address setting, all configurations will be restored to the factory default value when the user runs the “Factory Default”...

  • Page 104: Logout

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch 4-4-4. Logout The user can manually logout of the switch management software by performing the Logout function. The switch also provides an automatic logout capability, which is user-configured. Function name: Logout Function description: The switch allows the user to log out of the system to prevent other users from using the system without permission.

  • Page 105: Chapter 5. Maintenance

    3. The console interface cannot appear on the console port connection. The 065-7931 WebSmart Switch has no console port, so you cannot use a local console interface to connect with this Switch. 4. How is the 065-7931 Gigabit WebSmart Switch configured?

  • Page 106: Appendix A Technical Specifications

    Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Appendix A Technical Specifications Features • 14 (10/100/1000 Mbps) Gigabit Ethernet (TP) switching ports are compliant with IEEE 802.3, 802.3u, 802.3z and 802.3ab. • 2 Gigabit TP/SFP fiber ports are dual media ports with an auto-detection function.
  • Page 107 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Hardware Specifications Standard Compliance: IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX IEEE 802.1p Priority (Quality of Service [QoS]) IEEE 802.1Q Tagged VLAN IEEE 802.3x Flow Control Network Interface: Configuration...
  • Page 108 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Diagnostic LEDs: System LEDs : Power, CPU Per Port LEDs: 10/100/1000 Mbps TP Ports 1 to 16: LINK/ACT, 10/100/1000 Mbps 1000 Mbps SFP Fiber Ports 15 & 16: SFP (LINK/ACT) Power Requirement: Voltage: 100∼240 Volts AC Frequency: 50∼60 Hz...
  • Page 109 Signamax 065-7931 16-Port 10/100/1000BaseT/TX WebSmart Switch Management Software Specifications Auto-negotiation support on 10/100/1000 Base- TX ports, Web browser or console interface can set transmission speed (10/100/1000 Mbps) and System Configuration operation mode (Full/Half duplex) on each port, enable/disable any port, set VLAN group, set Trunk Connection.
