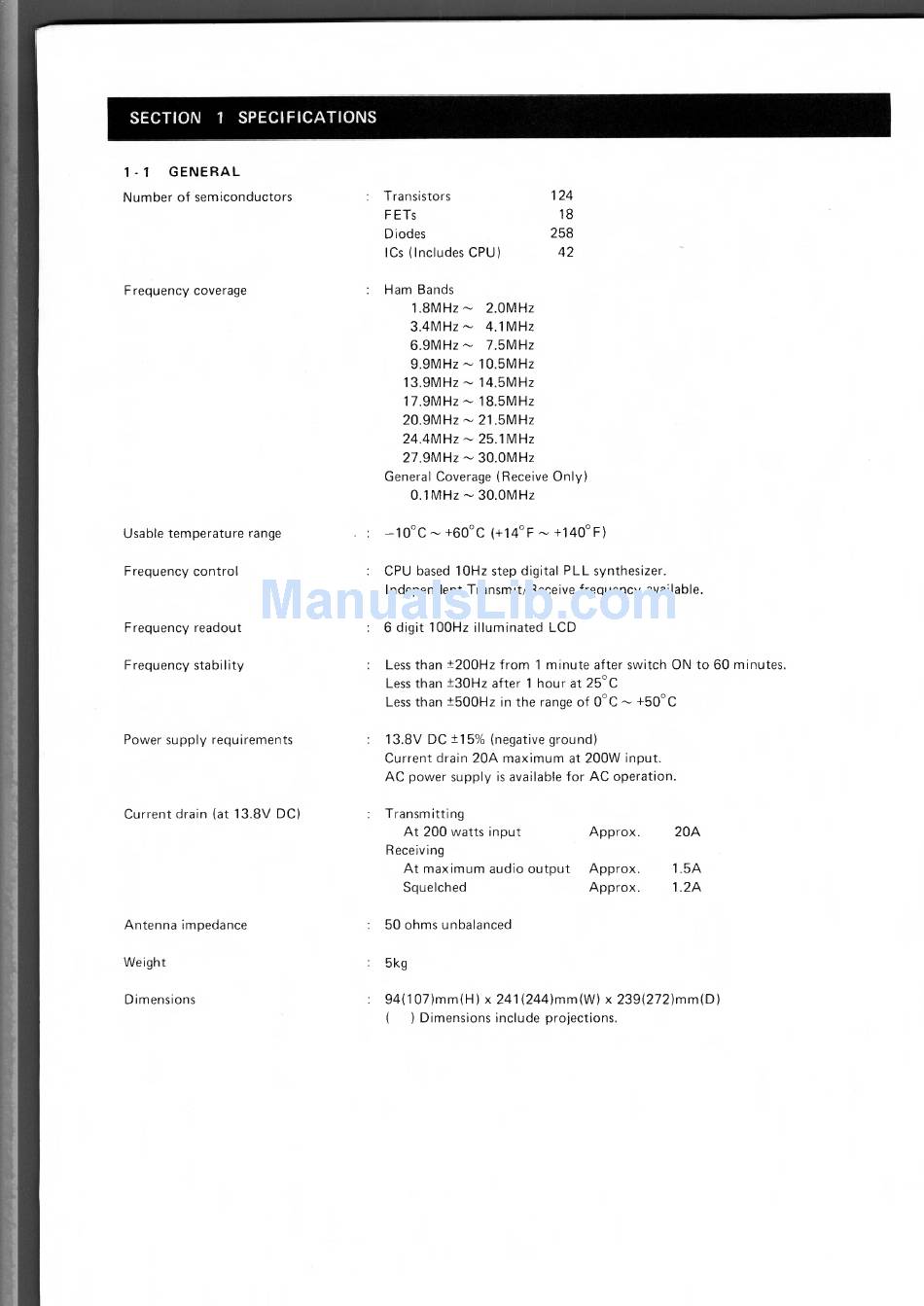

SECTION 1 SPECIFICATIONS
1 - 1 GENERAL
Number of semiconductors
Frequency coverage
: Transistors
124
F ETs
18
Diodes 258
ICs (Includes CPU) 42
Ham Bands
1.8MHz
2.0MHz
3.4MHz 4.1MHz
6.9MHz 7.5MHz
9.9MHz 10.5MHz
13.9MHz 14.5MHz
17.9MHz 18.5MHz
20.9MHz — 21.5MHz
24.4MHz 25.1MHz
27.9MHz — 30.0MHz
General Coverage (Receive Only)
0.1MHz — 30.0MHz
Usable temperature range —10° C — +60° C (+14 ° F — +140° F)
Frequency control : CPU based 10Hz step digital PLL synthesizer.
Independent Transmit/Receive frequency available.
Frequency readout : 6 digit 100Hz illuminated LCD
Frequency stability
: Less than ±200Hz from 1 minute after switch ON to 60 minutes.
Less than ±30Hz after 1 hour at 25 ° C
Less than ±500Hz in the range of 0 ° C — +50 ° C
Power supply requirements : 13.8V DC ±15% (negative ground)
Current drain 20A maximum at 200W input.
AC power supply is available for AC operation.
Current drain (at 13.8V DC)
: Transmitting
At 200 watts input Approx. 20A
Receiving
At maximum audio output Approx. 1.5A
Squelched Approx. 1.2A
Antenna impedance : 50 ohms unbalanced
Weight
: 5kg
Dimensions : 94(107)mm(H) x 241(244)mm(W) x 2391272)mm(D)
( ) Dimensions include projections.
