1
1
2. Push M-CH SWITCH.
DOWN M -CH
uSB
3 3
95
n
VFO A
1231
L
.Li
I
►
I
2. Select MEMO CH-10.
DOWN
M -CH U P
LSB
3 n28.0
VFO A
lLl
3. Transfer the data to the VFO.
Display changes to MEMO CH-10.
6 - 8 SCAN OPERATION
(1) PRELIMINARY SETTINGS
There are two methods of recalling stored information from the
MEMORY CHANNELS:

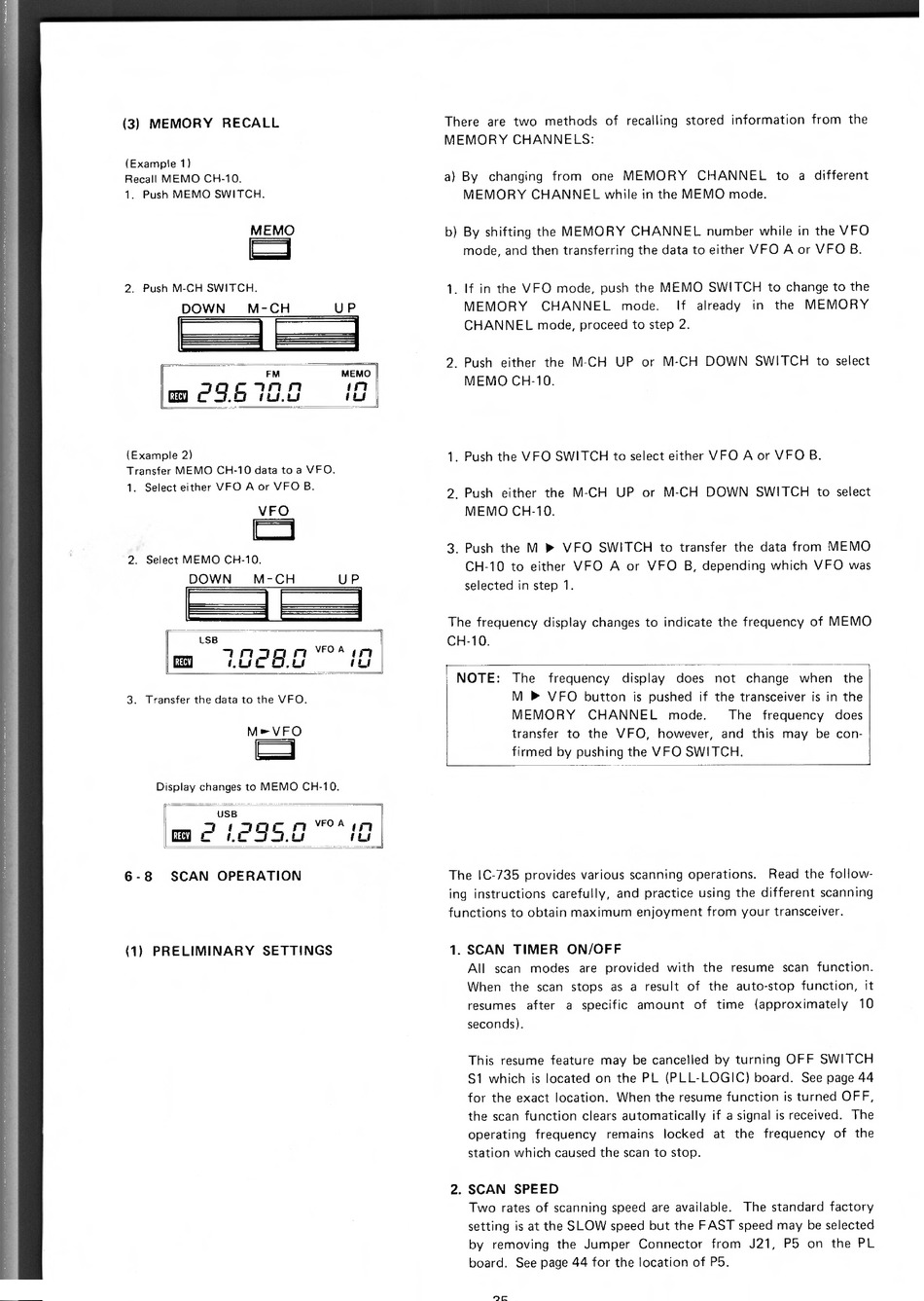

(3) MEMORY RECALL
(Example 1)
Recall MEMO CH-10.
1. Push MEMO SWITCH.
MEMO
FM
MEMO
(131
23.o
r
o su.0
an
I LI
a) By changing from one MEMORY CHANNEL to a different
MEMORY CHANNEL while in the MEMO mode.
b) By shifting the MEMORY CHANNEL number while in the VFO
mode, and then transferring the data to either VFO A or VFO B.
1. If in the VFO mode, push the MEMO SWITCH to change to the
MEMORY CHANNEL mode. If already in the MEMORY
CHANNEL mode, proceed to step 2.
2. Push either the M-CH UP or M-CH DOWN SWITCH to select
MEMO CH-10.
1. Push the VFO SWITCH to select either VFO A or VFO B.
2. Push either the M-CH UP or M-CH DOWN SWITCH to select
VFO
MEMO CH-10.
Li
(Example 2)
Transfer MEMO CH-10 data to a VFO.
1. Select either VFO A or VFO B.
3. Push the M ►
VFO SWITCH to transfer the data from MEMO
CH-10 to either VFO A or VFO B, depending which VFO was
selected in step 1.
The frequency display changes to indicate the frequency of MEMO
CH-10.
NOTE:
The frequency display does not change when the
M ► VFO button is pushed if the transceiver is in the
MEMORY CHANNEL mode. The frequency does
transfer to the VFO, however, and this may be con-
firmed by pushing the VFO SWITCH.
The IC-735 provides various scanning operations. Read the follow-
ing instructions carefully, and practice using the different scanning
functions to obtain maximum enjoyment from your transceiver.
1. SCAN TIMER ON/OFF
All scan modes are provided with the resume scan function.
When the scan stops as a result of the auto-stop function, it
resumes after a specific amount of time (approximately 10
seconds).
This resume feature may be cancelled by turning OFF SWITCH
S1 which is located on the PL (PLL-LOGIC) board. See page 44
for the exact location. When the resume function is turned OFF,
the scan function clears automatically if a signal is received. The
operating frequency remains locked at the frequency of the
station which caused the scan to stop.
2. SCAN SPEED
Two rates of scanning speed are available. The standard factory
setting is at the SLOW speed but the FAST speed may be selected
by removing the Jumper Connector from J21, P5 on the PL
board. See page 44 for the location of P5.
