TOP COVER
BOTTOM COVER

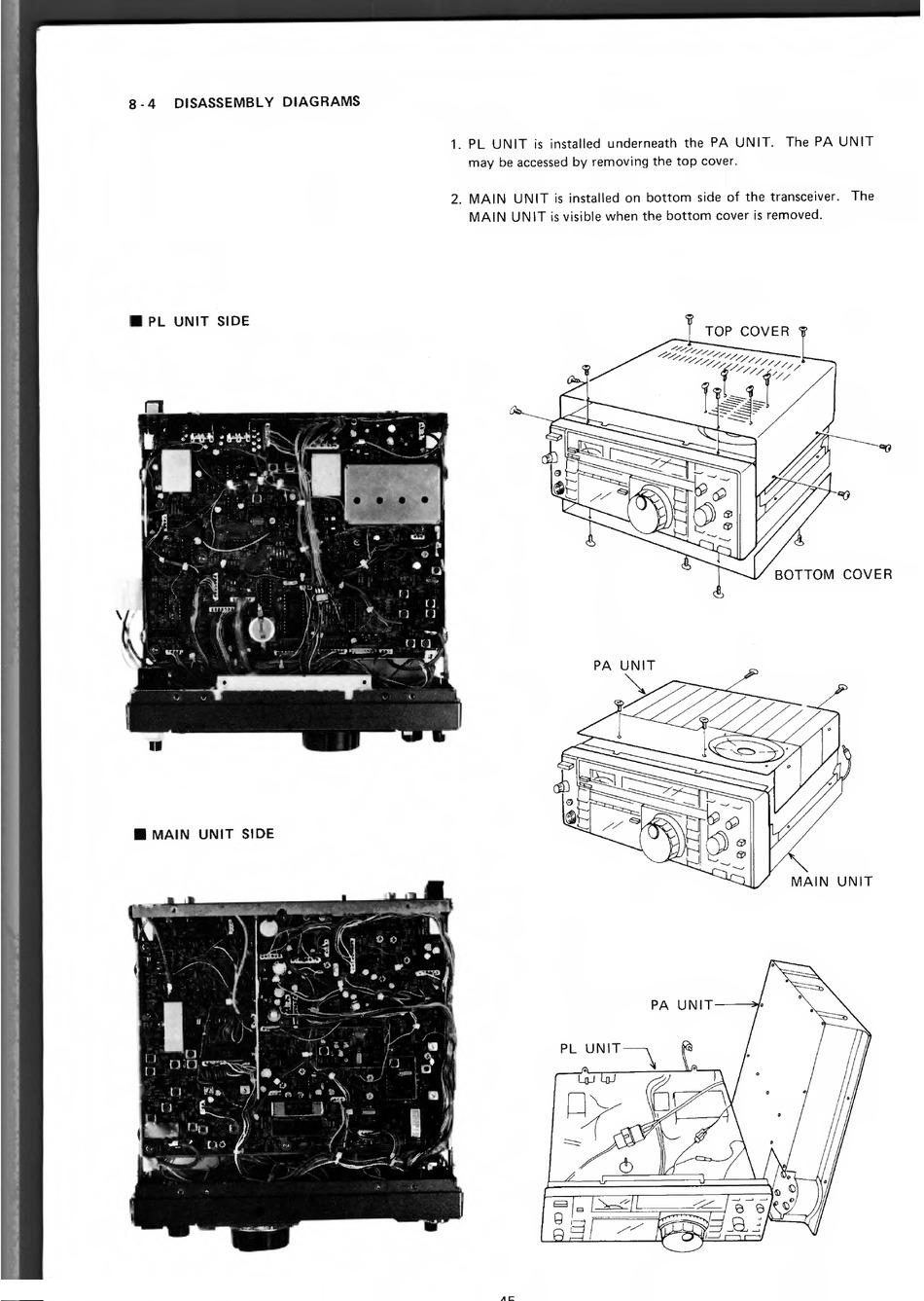

8 - 4 DISASSEMBLY DIAGRAMS
PL UNIT SIDE
'"!
1. PL UNIT is installed underneath the PA UNIT. The PA UNIT
may be accessed by removing the top cover.
2. MAIN UNIT is installed on bottom side of the transceiver. The
MAIN UNIT is visible when the bottom cover is removed.
MAIN UNIT SIDE
