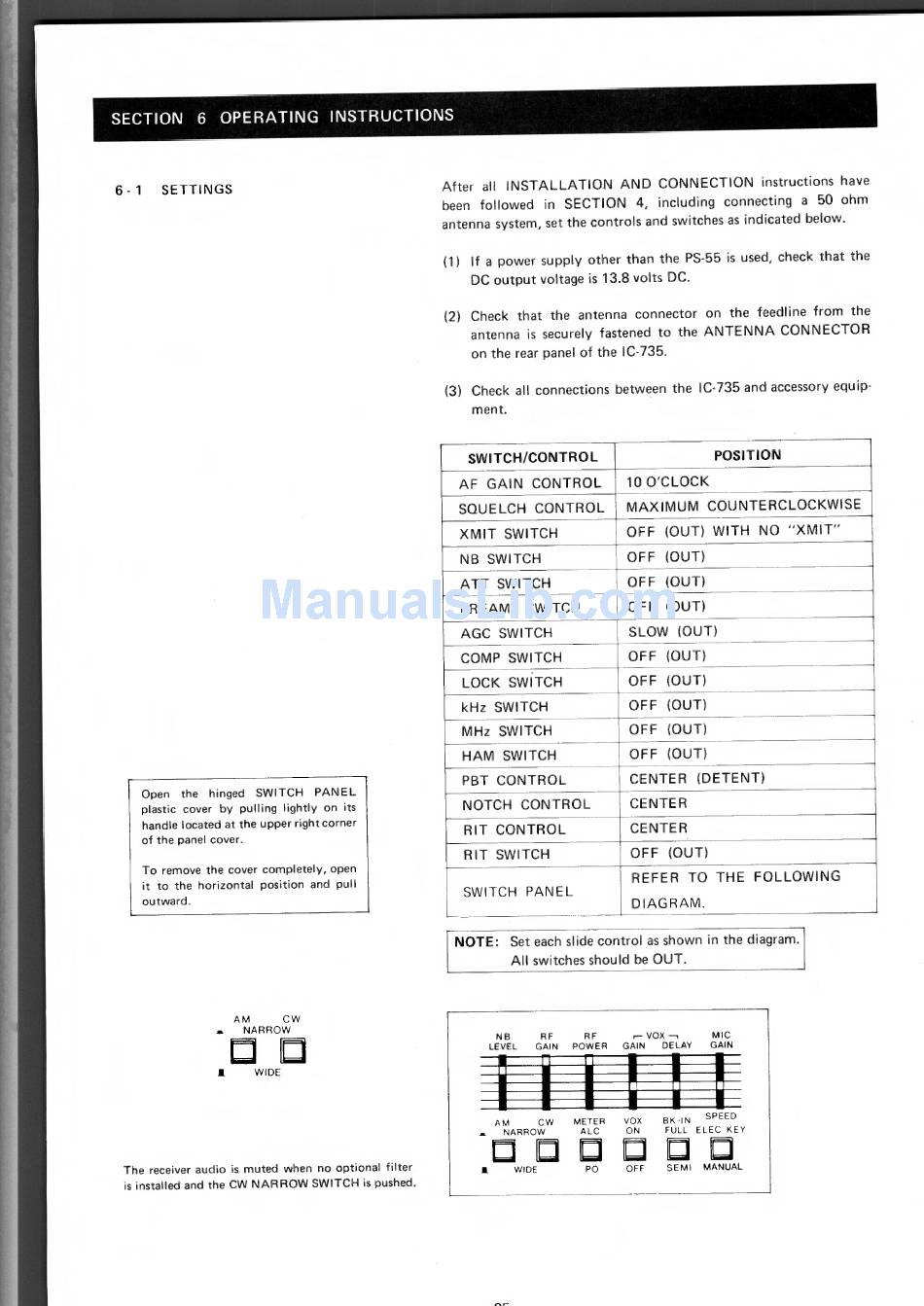

SECTION 6 OPERATING INSTRUCTIONS
6 - 1 SETTINGS
Open the hinged SWITCH PANEL
plastic cover by pulling lightly on its
handle located at the upper right corner
of the panel cover.
To remove the cover completely, open
it to the horizontal position and pull
outward.
AM CW
NARROW
1
WIDE
The receiver audio is muted when no optional filter
is installed and the CW NARROW SWITCH is pushed.
After all INSTALLATION AND CONNECTION instructions have
been followed in SECTION 4, including connecting a 50 ohm
antenna system, set the controls and switches as indicated below.
(1)
If a power supply other than the PS-55 is used, check that the
DC output voltage is 13.8 volts DC.
(2) Check that the antenna connector on the feedline from the
antenna is securely fastened to the ANTENNA CONNECTOR
on the rear panel of the IC-735.
(3) Check all connections between the IC-735 and accessory equip-
ment.
SWITCH/CONTROL
POSITION
AF GAIN CONTROL
10 O'CLOCK
SQUELCH CONTROL
MAXIMUM COUNTERCLOCKWISE
XMIT SWITCH
OFF (OUT) WITH NO "XMIT"
NB SWITCH
OFF (OUT)
ATT SWITCH
OFF (OUT)
PREAMP SWITCH
OFF (OUT)
AGC SWITCH
SLOW (OUT)
COMP SWITCH
OFF (OUT)
LOCK SWITCH
OFF (OUT)
kHz SWITCH
OFF (OUT)
MHz SWITCH
OFF (OUT)
HAM SWITCH
OFF (OUT)
PBT CONTROL
CENTER (DETENT)
NOTCH CONTROL
CENTER
RIT CONTROL
CENTER
RIT SWITCH
OFF (OUT)
SWITCH PANEL
REFER TO THE FOLLOWING
DIAGRAM.
NOTE:
Set each slide control as shown in the diagram.
All switches should be OUT.
