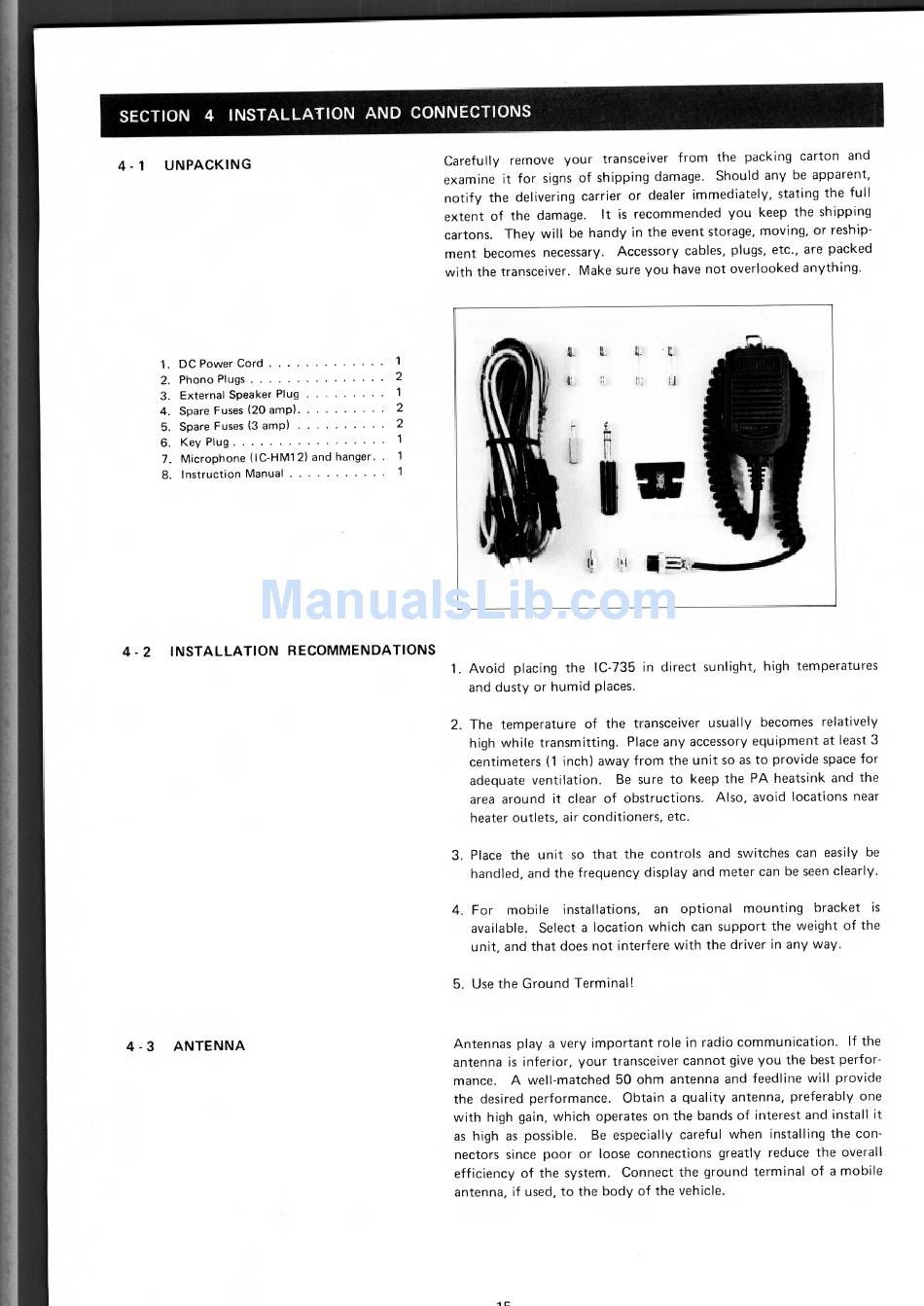

SECTION 4 INSTALLATION AND CONNECTIONS
4 - 1 UNPACKING
Carefully remove your transceiver from the packing carton and
examine it for signs of shipping damage. Should any be apparent,
notify the delivering carrier or dealer immediately, stating the full
extent of the damage. It is recommended you keep the shipping
cartons. They will be handy in the event storage, moving, or reship-
ment becomes necessary. Accessory cables, plugs, etc., are packed
with the transceiver. Make sure you have not overlooked anything.
1. DC Power Cord
1
2. Phono Plugs
2
3.
External Speaker Plug
1
4.
Spare Fuses (20 amp)
2
5. Spare Fuses (3 amp)
2
6.
Key Plug
1
7.
Microphone (IC-HM12) and hanger. . 1
8.
Instruction Manual
1
4 - 2 INSTALLATION RECOMMENDATIONS
1. Avoid placing the IC-735 in direct sunlight, high temperatures
and dusty or humid places.
2. The temperature of the transceiver usually becomes relatively
high while transmitting. Place any accessory equipment at least 3
centimeters (1 inch) away from the unit so as to provide space for
adequate ventilation. Be sure to keep the PA heatsink and the
area around it clear of obstructions. Also, avoid locations near
heater outlets, air conditioners, etc.
3. Place the unit so that the controls and switches can easily be
handled, and the frequency display and meter can be seen clearly.
4. For mobile installations, an optional mounting bracket is
available. Select a location which can support the weight of the
unit, and that does not interfere with the driver in any way.
5. Use the Ground Terminal!
4 - 3 ANTENNA
Antennas play a very important role in radio communication. If the
antenna is inferior, your transceiver cannot give you the best perfor-
mance. A well-matched 50 ohm antenna and feedline will provide
the desired performance. Obtain a quality antenna, preferably one
with high gain, which operates on the bands of interest and install it
as high as possible. Be especially careful when installing the con-
nectors since poor or loose connections greatly reduce the overall
efficiency of the system. Connect the ground terminal of a mobile
antenna, if used, to the body of the vehicle.
