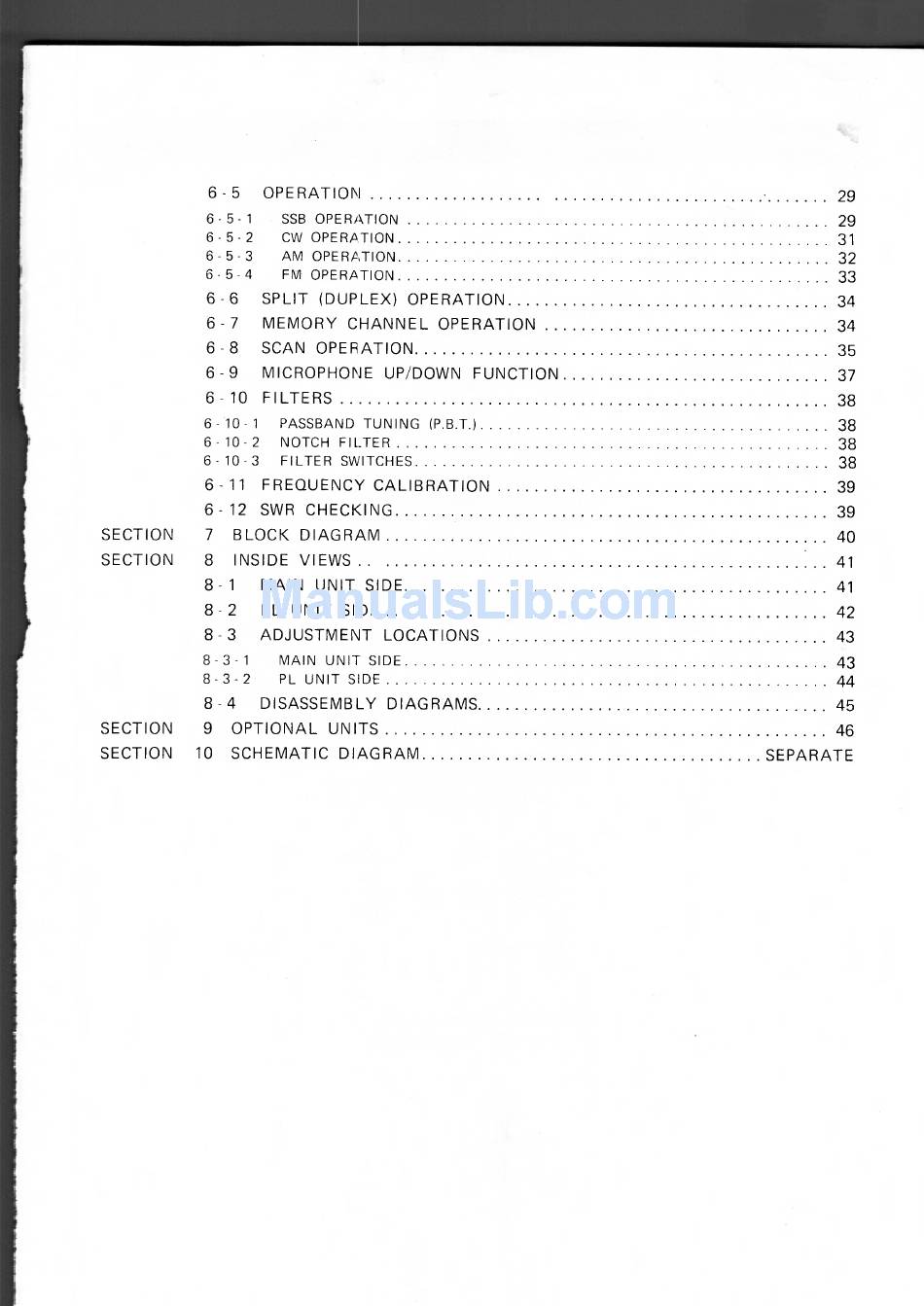

Icom IC-735 Instruction Manual page 4

6 - 5 OPERATION
29
6 - 5 - 1 SSB OPERATION
29
6 - 5 - 2
CW OPERATION
31
6 - 5 - 3
AM OPERATION
32
6 - 5 - 4 FM OPERATION
33
6 - 6 SPLIT (DUPLEX) OPERATION
34
6 - 7 MEMORY CHANNEL OPERATION
34
6 - 8 SCAN OPERATION
35
6 - 9 MICROPHONE UP/DOWN FUNCTION
37
6 - 10 FILTERS
38
6 - 10 - 1 PASSBAND TUNING (P.B.T.)
38
6 - 10 - 2 NOTCH FILTER
38
6 - 10 - 3 FILTER SWITCHES
38
6 - 11 FREQUENCY CALIBRATION
39
6 - 12 SWR CHECKING
39
SECTION
7 BLOCK DIAGRAM
40
SECTION 8 INSIDE VIEWS
41
8 - 1 MAIN UNIT SIDE
41
8 - 2 PL UNIT SIDE
42
8 - 3 ADJUSTMENT LOCATIONS
43
8 - 3 - 1 MAIN UNIT SIDE
43
8 - 3 - 2 PL UNIT SIDE
44
8 - 4 DISASSEMBLY DIAGRAMS
45
SECTION
9 OPTIONAL UNITS
46
SECTION 10 SCHEMATIC DIAGRAM
SEPARATE
