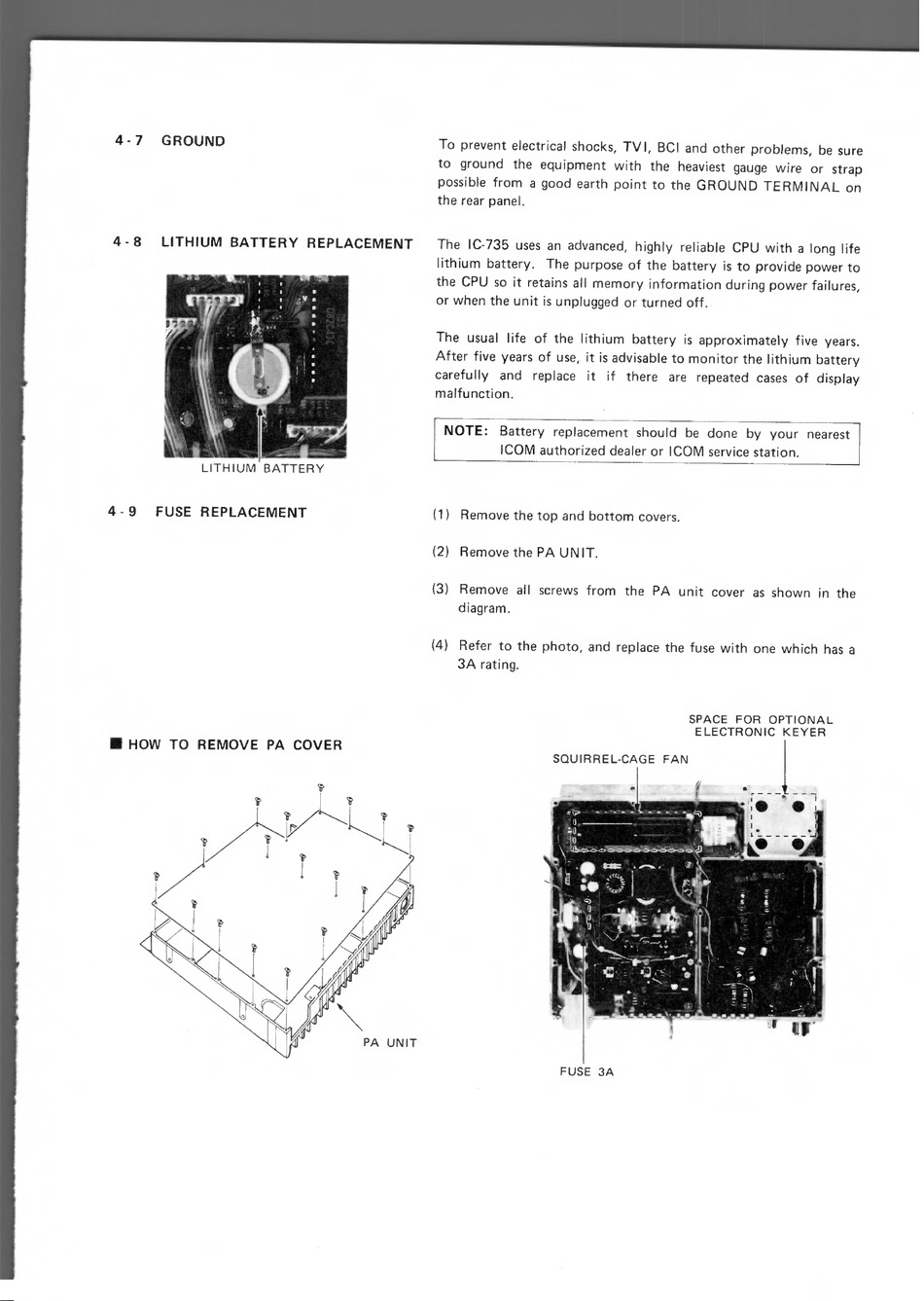

Ground; Lithium Battery Replacement; Fuse Replacement - Icom IC-735 Instruction Manual

LITHIUM BATTERY
SQUIRREL-CAGE FAN
4 - 7 GROUND
To prevent electrical shocks, TVI, BCI and other problems, be sure
to ground the equipment with the heaviest gauge wire or strap
possible from a good earth point to the GROUND TERMINAL on
the rear panel.
4
-
8 LITHIUM BATTERY REPLACEMENT
The IC-735 uses an advanced, highly reliable CPU with a long life
lithium battery. The purpose of the battery is to provide power to
the CPU so it retains all memory information during power failures,
or when the unit is unplugged or turned off.
The usual life of the lithium battery is approximately five years.
After five years of use, it is advisable to monitor the lithium battery
carefully and replace it if there are repeated cases of display
malfunction.
NOTE:
Battery replacement should be done by your nearest
ICOM authorized dealer or ICOM service station.
4 - 9 FUSE REPLACEMENT
HOW TO REMOVE PA COVER
(1)
Remove the top and bottom covers.
(2) Remove the PA UNIT.
(3) Remove all screws from the PA unit cover as shown in the
diagram.
(4) Refer to the photo, and replace the fuse with one which has a
3A rating.
SPACE FOR OPTIONAL
ELECTRONIC KEYER
FUSE 3A
