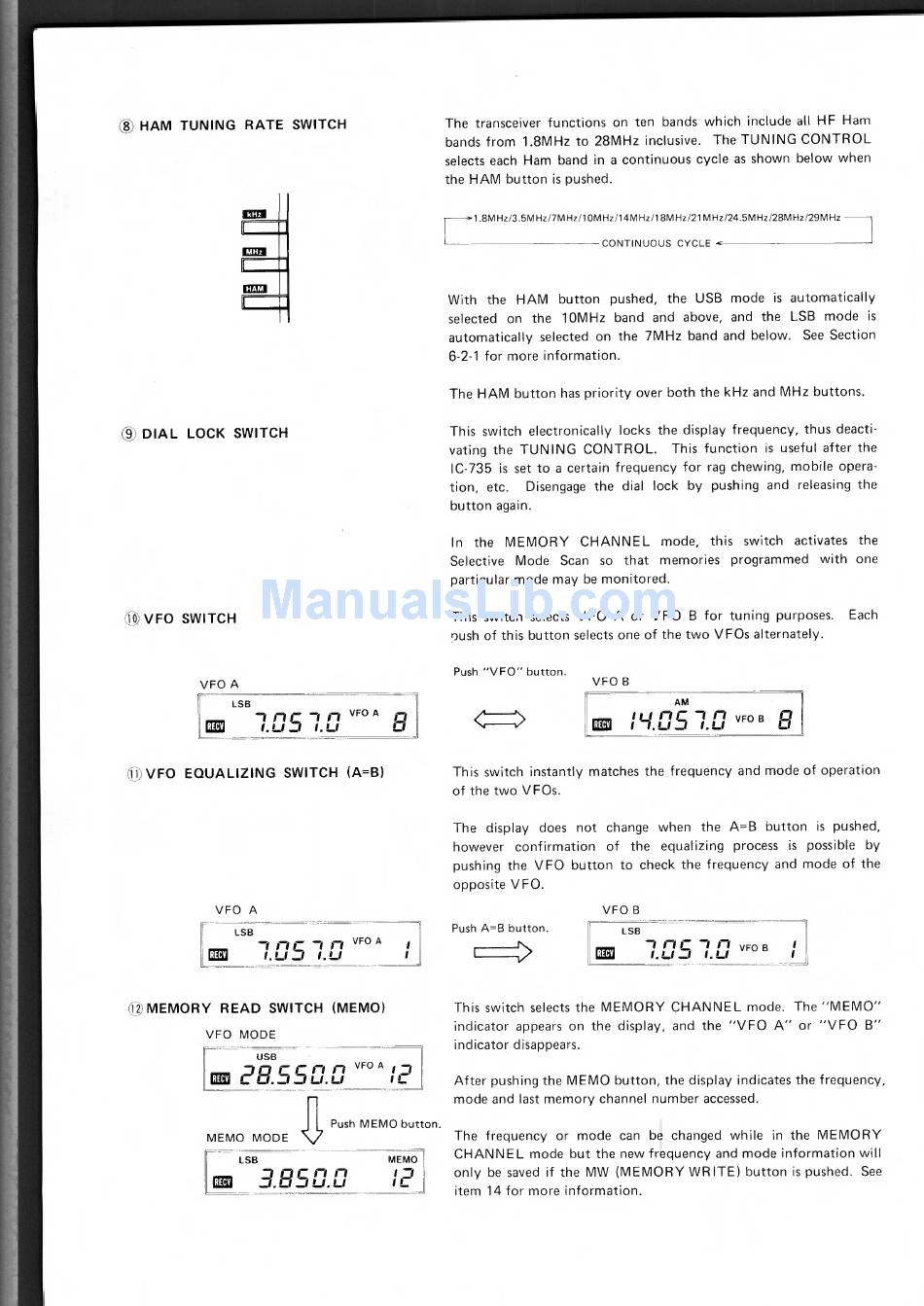

Icom IC-735 Instruction Manual page 11

AM
t,.Q i
q n
S.
'n VFO B
LSB
nnr -on
t.
I. LI
VFO A
USE
nrrnn
VFO A in
ma 2
L7.3
u. u
I
C
12 MEMORY READ SWITCH (MEMO)
VFO MODE
The transceiver functions on ten bands which include all HF Ham
bands from 1.8MHz to 28MHz inclusive. The TUNING CONTROL
selects each Ham band in a continuous cycle as shown below when
the HAM button is pushed.
C) HAM TUNING RATE SWITCH
0 DIAL LOCK SWITCH
—, 1.8MHz/3.5MHz/7MHz/10MHz/14MHz/18MHz/21MHz/24.5MHz/28MHz/29MHz
CONTINUOUS CYCLE
With the HAM button pushed, the USB mode is automatically
selected on the 10MHz band and above, and the LSB mode is
automatically selected on the 7MHz band and below. See Section
6-2-1 for more information.
The HAM button has priority over both the kHz and MHz buttons.
This switch electronically locks the display frequency, thus deacti-
vating the TUNING CONTROL. This function is useful after the
IC-735 is set to a certain frequency for rag chewing, mobile opera-
tion, etc. Disengage the dial lock by pushing and releasing the
button again.
In the MEMORY CHANNEL mode, this switch activates the
Selective Mode Scan so that memories programmed with one
particular mode may be monitored.
VFO SWITCH
This switch selects VFO A or VFO B for tuning purposes. Each
oush of this button selects one of the two VFOs alternately.
Push "VFO" button.
VFO A
VFO B
.(=>
LSB
I.
LI
Zi
1.
LI
VFO A
0
I1 VFO EQUALIZING SWITCH (A=B)
This switch instantly matches the frequency and mode of operation
of the two VFOs.
The display does not change when the A=B button is pushed,
however confirmation of the equalizing process is possible by
pushing the VFO button to check the frequency and mode of the
opposite VFO.
Push A=B button.
VFO A VFO B
LSB
nr1CInVFOB
I
I. L I _I I. L I
This switch selects the MEMORY CHANNEL mode. The "MEMO"
indicator appears on the display, and the "VFO A" or "VFO B"
indicator disappears.
After pushing the MEMO button, the display indicates the frequency,
mode and last memory channel number accessed.
Push MEMO button.
MEMO MODE
The frequency or mode can be changed while in the MEMORY
LSB MEMO
CHANNEL mode but the new frequency and mode information will
LE 3
nrnn
only be saved if the MW (MEMORY WRITE) button is pushed. See
. .
u
I L.
_J item 14 for more information.
