Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODEL: WP-110xl UXGA Data Line Transmitter P/N: 2900-300294 Rev 2... -
Page 3: Table Of Contents
Loading the Default EDID Technical Specifications Figures Figure 1: WP-110xl UXGA/Data Line Transmitter Figure 2: Connecting the WP-110xl UXGA/Data Line Transmitter Figure 3: Ground Connection Figure 4: TP PINOUT Figure 5: WP-110xl US Wall Plate Figure 6: WP-110xl EU Wall Plate... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer WP-110xl away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
STP cable. There are different levels of STP cable available, and we advise you to use the best quality STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is intended for analog signals where skewing is not an issue. -
Page 7: Overview

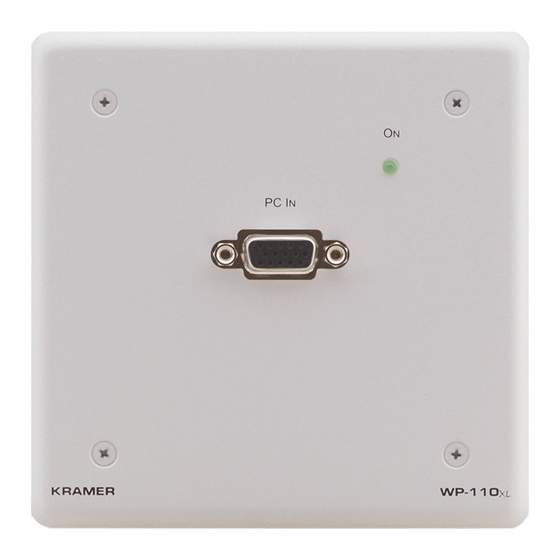

Overview The WP-110xl is a high-performance, twisted pair (TP) transmitter for computer graphics signals over extended distances using CAT 5/6 cable. The WP-110xl comes in three models: WP-110xl 69mm US version, WP-110xl 80/86mm European versions. More specifically, the WP-110xl features: ... -
Page 8: Defining The Wp-110Xl Uxga/Data Line Transmitter
Defining the WP-110xl UXGA/Data Line Transmitter This section defines the WP-110xl. Figure 1: WP-110xl UXGA/Data Line Transmitter WP-110xl - Defining the WP-110xl UXGA/Data Line Transmitter... - Page 9 Lights when powered on +12V/GND Terminal Block Connects to the 12V DC power supply, (see Section 3.1) LINE OUTPUT RJ-45 Connector Connects to the twisted pair line Ground Terminal Crimp terminal connects to earth WP-110xl - Defining the WP-110xl UXGA/Data Line Transmitter...
-
Page 10: Connecting And Installing The Wp-110Xl
(if required, see Section 3.1). 4. Install the WP-110xl into a suitable wall box or rack mount. 5. Connect a computer graphics source (for example, a PC) to the PC IN 15-pin HD connector. -
Page 11: Grounding The Wall Plate
2. Insert the M3x6 screw through the toothed lock washers and the ring-tongue terminal in the order shown above. 3. Insert the M3x6 screw (with the two toothed lock washers and ring-tongue terminal in place) into the grounding screw hole on the rear of the WP-110xl and tighten the screw. Item... -
Page 12: Wiring The Tp Line Out Rj-45 Connector
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors. Figure 4: TP PINOUT EIA /TIA 568B Wire Color Orange / White Orange Green / White Blue Blue / White Green Brown / White Brown WP-110xl - Connecting and Installing the WP-110xl... -
Page 13: Capturing The Edid
PCB assembly. 2. Using a short cable (for example, Kramer model number C-MGM/MGM-1), connect the PC IN input 15-pin HD connector on the WP-110xl to the 15-pin HD connector of the display and turn the display on. 3. Connect the 12V DC power adapter to the power terminal block (see Figure 1) on the WP-110xl and connect the adapter to the mains electricity. -
Page 14: Loading The Default Edid
2. Do not connect a display to the PC IN input 15-pin HD connector. 3. Connect the 12V DC power adapter to the power terminal block (see Figure 1) on the WP-110xl and connect the adapter to the mains electricity. 4. Press the EDID capture button (item 1 on Figure 5... -
Page 15: Figure 6: Wp-110Xl Eu Wall Plate
Figure 6: WP-110xl EU Wall Plate WP-110xl - Capturing the EDID... -
Page 16: Technical Specifications
2 gang Europe: 15.2cm x 3.5cm x 8.0/8.6cm (5.98" x 1.4" x 3.15/3.39", W, D, H) WEIGHT: 0.14kg (0.31lbs) approx. ACCESSORIES: Power supply 19” rack adapters for EU and US wall plates; Kramer OPTIONS: on-wall boxes Specifications are subject to change without notice at http://www.kramerelectronics.com WP-110xl - Technical Specifications... - Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
