TP-583T/TP-583R Quick Start Guide
This guide helps you install and use your TP-583T/TP-583R for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box
TP-583T HDMI Line Transmitter or
TP-583R HDMI Line Receiver

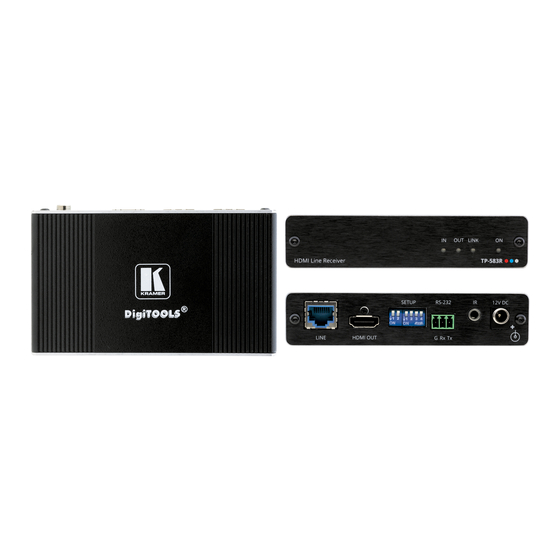

Step 2: Get to know your TP-583T and TP-583R

TP-583T
# Feature
1 IN LED
2 OUT LED
3
LINK LED
4 ON LED
5 LINE RJ-45 Connector
6 HDMI™ IN Connector
7 SETUP DIP-switches
8 RS-232 (G, Rx, Tx) 3-pin Terminal Block Connector
9 IR 3.5mm Mini Jack Connector
10 12V DC Power Connector
TP-583T/TP-583R Quick Start (P/N: 2900-300962QS REV 1)
www.kramerav.com/downloads/TP-583T, TP-583R
1 Power adapter and cord
4 Rubber feet
to download the latest user manual and check if
Function
Lights green when an active source device input signal is detected.
Lights green when an active, far-end sink (acceptor) connection is
detected via the HDBT link.
Lights green when an HDBT link is established with the HDBaseT
receiver.
Lights green when the device receives power.
Connect to the RJ-45 HDBT LINE connector on a receiver (for
example, TP-583R, TP-780R and so on).
Connect to an HDMI source.
Set the operation DIP-switches.
Connect to a laptop to control the receiver or perform firmware
upgrade.
Connect to a controller device (for example, SL-240C) to serially
control a remote device (for example, the HDMI OUT acceptor) that
is connected to TP-583R.
Connect to an external infrared emitter / sensor.
12V DC connector for powering the unit.
P/N: 2 9 0 0 - 3 0 0 9 6 2 QS
1 Quick start guide
1 Bracket set
Rev: 1
