- Page 1 K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: 650T DVI–Coax Transmitter 650R Coax–DVI Receiver P/N: 2900-000536 Rev 10...
-
Page 3: Table Of Contents
650R Coax-DVI Receiver Your 650T/650R DVI/Coax Transmitter/Receiver Your 650T DVI-Coax Transmitter Your 650R Coax-DVI Receiver Connecting the 650T/650R Technical Specifications Figures Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver Figure 2: 650R Coax-DVI Receiver Figure 3: DVI-to-Coax Transmitter and Receiver System 650T/650R – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Achieving the Best Performance To achieve the best performance: Use only good quality connection cables (we recommend Kramer high- performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables) ... -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
RS-232 control signals over coax cable to the 650R receiver. Compatible with a Kramer transmitter and via a Kramer external remote IR receiver: C-A35M/IRR or C-A35M/IRE or C-A35M/2IRE. -
Page 8: 650R Coax-Dvi Receiver
650R Coax-DVI Receiver ® The Kramer DigiTOOLS 650R is a coax-DVI receiver that receives a coded coax signal transmitted by the 650T. It decodes the R-G-B, clock and data components and converts them to an DVI output. The 650R features: ... -
Page 9: Your 650T/650R Dvi/Coax Transmitter/Receiver

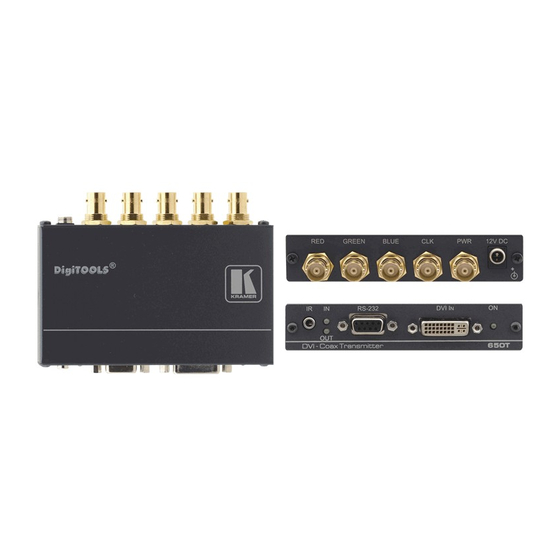

Your 650T/650R DVI/Coax Transmitter/Receiver This section defines the 650T DVI-Coax Transmitter (see Section 4.1) and the 650R Coax-DVI Receiver (see Section 4.2) Your 650T DVI-Coax Transmitter Figure 1 defines the 650T: Figure 1: 650T/650R HDMI/Coax Transmitter/Receiver Feature Function Transmits the red signal to the 650R... -
Page 10: Your 650R Coax-Dvi Receiver
Receives the blue signal from the 650T CLK Input BNC Connector Receives the clock signal from the 650T PWR Input BNC Connector Receives power and the IR signal from the 650T 12V DC +12V DC connector for powering the unit IR Connector... -
Page 11: Connecting The 650T/650R
Connect the 650T red, green, blue, clock, and power BNC connectors to the 650R red, green, blue, clock, and power BNC connectors Connect one 12V DC power supply to either the 650T or the 650R (not shown in Figure 3). -
Page 12: Figure 3: Dvi-To-Coax Transmitter And Receiver System
Figure 3: DVI-to-Coax Transmitter and Receiver System 650T/650R - Connecting the 650T/650R... -
Page 13: Technical Specifications
