Kramer WP-580TXR Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
WP-580Txr HDMI Line Transmitter
WP-580Rxr HDMI Line Receiver

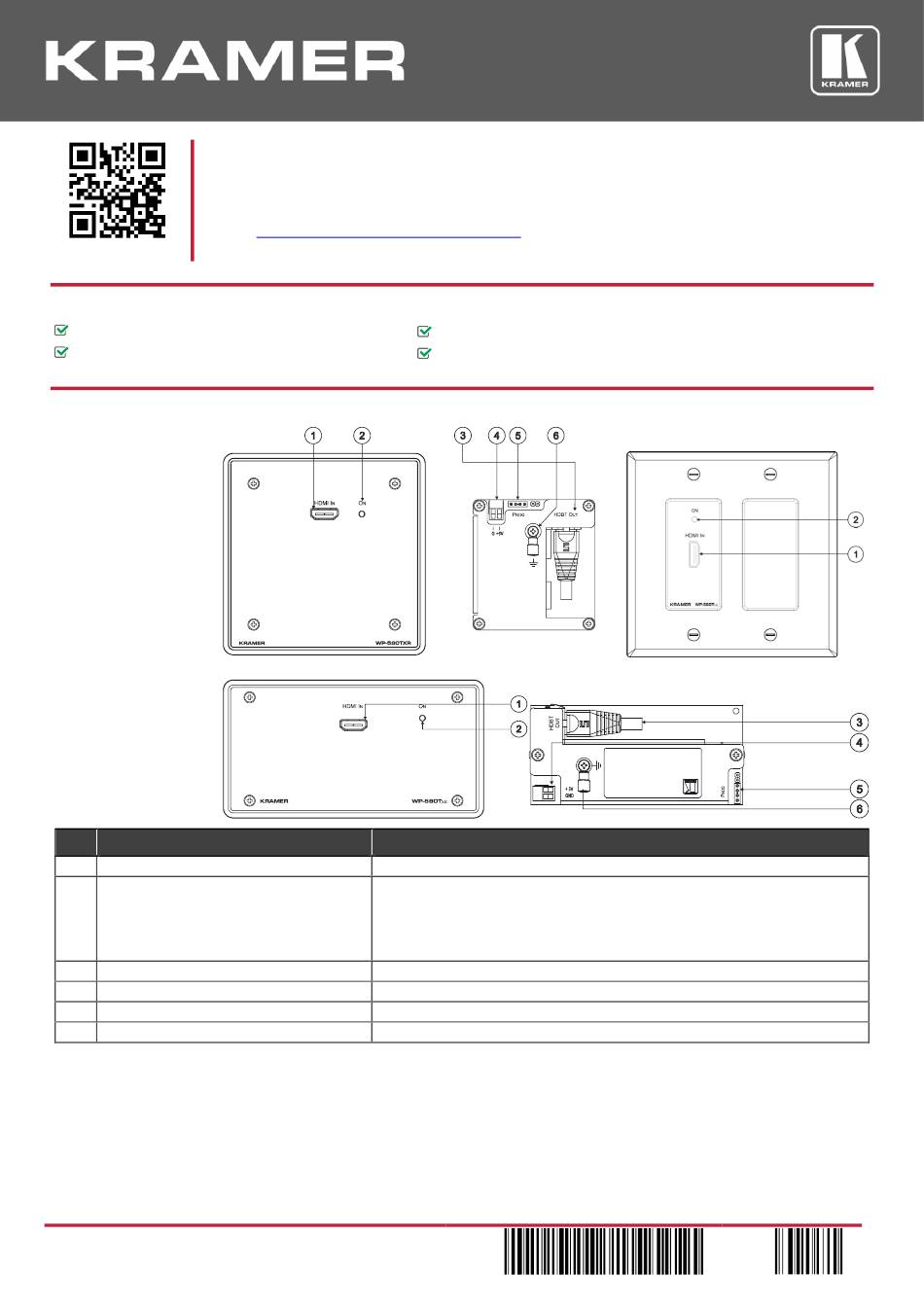

Step 2: Get to know your WP-580TXR, WP-580RXR
WP-580Txr
(US and US-D Sizes):
WP-580Txr
(European Size):
# Feature
1 HDMI™ IN Connector
2 ON LED
3 HDBT OUT/LINE OUT RJ-45 Connector
4 5V DC
5 PROG 4-pin Connector
6 Grounding Screw
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
WP-580TXR, WP-580RXR Quick Start
WP-580TXR, WP-580RXR Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/WP-580TXR
firmware upgrades are available.
Function
Connects to the HDMI source.
Lights red when receiving power only, orange when either input or output and
power are attached, and green when both an active input and output are
attached.
Note, if no input is connected, the device invokes the power save mode
automatically turning off the power.
Connects to the HDBT IN/LINE IN RJ-45 connector on the WP-580Rxr.
+5V DC connector for powering the unit.
For internal use.
Connect to grounding wire.
WP-580TXR, WP-580RXR
to download the latest user manual and check if
1 5V DC Power adapter (for each device)
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 2 5 5 QS
for the first time.
Rev: 2
