- Page 1 KR AMER ELECTRON ICS LT D. USER MANUAL MODELS: WP-110, XGA Line Transmitter PT-120, XGA Line Receiver TP-120, XGA Line Receiver P/N: 2900-300180 Rev 1...
-
Page 2: Table Of Contents
Figure 1: WP-110 XGA Line Transmitter Figure 2: PT-120 XGA Line Receiver Figure 3: TP-120 XGA Line Receiver Figure 4: Connecting the WP-110 to a TP-120 Figure 5: CAT 5 PINOUT WP-110, PT-120, TP-120 – Contents... -
Page 3: Introduction
Room Connectivity; GROUP 10: Accessories and Rack Adapters and GROUP 11: Sierra Products. Thank you for purchasing the Kramer wall plate WP-110 XGA Line Transmitter, Kramer Pico TOOLS PT-120 XGA Line Receiver, and/or Kramer TOOLS TP-120 XGA Line Receiver, which are ideal for: •... -
Page 4: Getting Started
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer WP-110, PT-120 or TP-120 away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning:... -
Page 5: Overview
Has the power connect feature and is 12V DC fed PT-120 XGA Line Receiver The Kramer Pico TOOLS PT-120 is an XGA line receiver that receives a coded CAT 5 signal transmitted by the WP-110, decodes it and converts it to an XGA output. In particular, the PT-120: •... -
Page 6: Tp-120 Xga Line Receiver
TP-120 XGA Line Receiver The Kramer TOOLS TP-120 is an XGA line receiver that receives a coded CAT 5 signal transmitted by the WP-110, decodes it and converts it to an XGA output. In particular, the TP-120: • Has an operating range of more than 300ft (more than 100m) using standard CAT 5 cable and the WP-110 •... - Page 7 In cases where there is skewing, our Unshielded Twisted Pair (UTP) skew-free cable, Kramer BC-XTP, may be advantageous, and UTP cable might also be preferable for long range applications. In any event when using UTP cable, it is advisable to ensure that the cable is installed far away from electric cables, motors and so on, which are prone to create electrical interference.
-
Page 8: Your Xga Line Transmitter(S) / Receiver

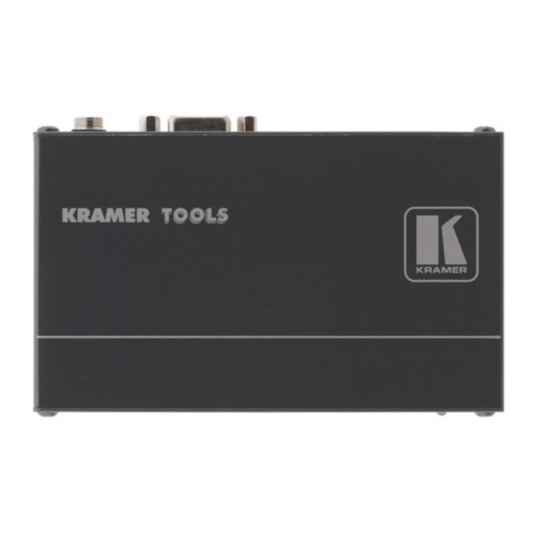

TP-120 XGA Line Receiver (see Section 4.3) Your WP-110 XGA Line Transmitter The WP-110 is available in three versions: US, Belgium and Germany, and UK and most of Europe (excluding Belgium and Germany), as defined in Figure Figure 1: WP-110 XGA Line Transmitter... -
Page 9: Your Pt-120 Xga Line Receiver
Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level ON LED Illuminates when receiving power XGA OUTPUT 15-pin HD (F) Connect to the XGA acceptor Connector 12V DC +12V DC connector for powering the unit WP-110, PT-120, TP-120 - Your XGA Line Transmitter(s) / Receiver... -
Page 10: Your Tp-120 Xga Line Receiver
Connects to the LINE OUT RJ-45 connector on the WP-110 XGA Line Receiver XGA OUT 15-pin HD (F) Connector Connect to the XGA acceptor +12V DC connector for powering the unit 12V DC WP-110, PT-120, TP-120 - Your XGA Line Transmitter(s) / Receiver... -
Page 11: Using The Xga Line Transmitter(S)/Receiver
Using the XGA Line Transmitter(s)/Receiver You can use the WP-110 XGA Line Transmitter and the TP-120 XGA Line Receiver to configure an XGA-to-twisted pair transmitter and receiver system. Installing the WP-110 XGA Line Transmitter To install your WP-110 XGA Line Transmitter: 1. -
Page 12: Figure 4: Connecting The Wp-110 To A Tp-120
6. If necessary, set the H SYNC and V SYNC switches, on the underside of the WP-110. By default, both switches are set for normal H SYNC and V SYNC polarity. Figure 4: Connecting the WP-110 to a TP-120 WP-110, PT-120, TP-120 - Using the XGA Line Transmitter(s)/Receiver... -
Page 13: Wiring The Cat 5 Line In / Line Out Rj-45 Connectors
Green / White Blue Blue / White Green Brown / White Brown Pair 1 4 and 5 Pair 2 1 and 2 Pair 3 3 and 6 Pair 4 7 and 8 WP-110, PT-120, TP-120 - Using the XGA Line Transmitter(s)/Receiver... -
Page 14: Technical Specifications
0.14kg (0.31lbs) approx. 0.3kg (0.66lbs) approx. ACCESSORIES: Power supply OPTIONS: 19-inch rack adapters The power source was measured using a pair of units (transmitter and receiver). http://www.kramerelectronics.com Specifications are subject to change without notice at WP-110, PT-120, TP-120 - Technical Specifications... - Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
