Da-Lite Curved Multi Format Imager Instruction Book page 9

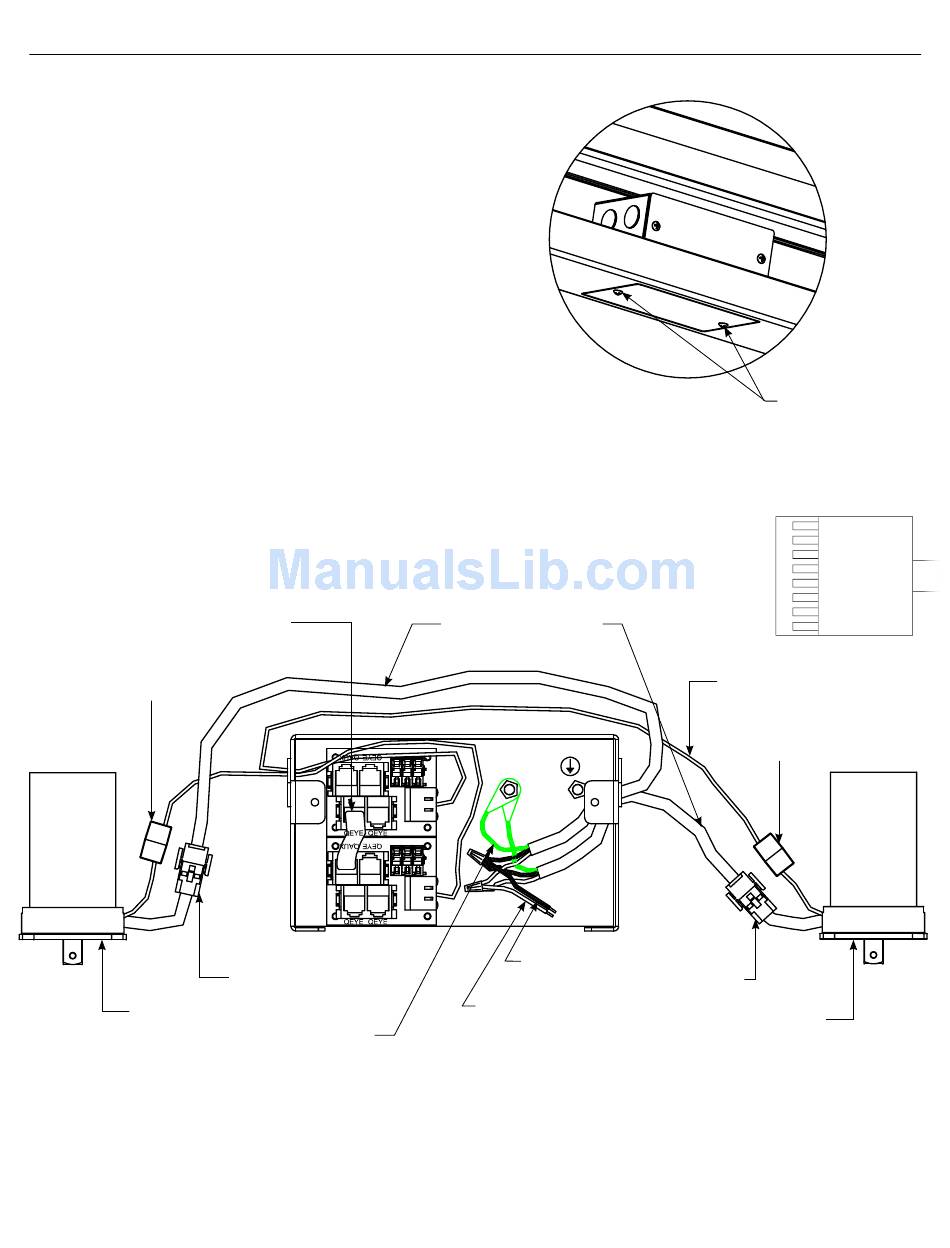

Multi Format Imager Wiring Diagram
1. To connect power to unit locate junction box cover on
bottom frame assembly. There will be two black screws
holding the wiring box cover on as shown in Figure 13.
2. Install electrical connections. Make sure to review the
wiring diagram for proper hook up as shown in Figure 14.
NOTE: Must be installed in accordance with the requirements
of the Local Building Codes, the Canadian Electrical Code
(CEC), CAN/CSA C22.1 and the National Electric Code (NEC),
NFPA 70. An appropriate disconnect device shall be provided
as part of the building installation.
NOTE: Be sure the unit is wired to a branch circuit rated no
less than 20A.
RJ-45
Coupler
Left Motor
6P6C
RJ-22 Cable
From Qaux
To Qeye
Quick Connect
Motor Plug
Green
(Ground)
Three Conductor
Power Wire
Black (Hot)
White (Common)
Input 120V / 60Hz
Figure 14
Remove Two
Screws Holding
Junction Box Cover
Figure 13
Manual 2 Brown
+12V Blue
Bus (RP Data) Yellow
RQ Data Green
+5V Red
Ground Black
RQ Clock Orange
Manual 1 Purple
8P8C
RJ-45 Cable
RJ-45
Coupler
Quick Connect
Motor Plug
Right Motor
RJ-45
