Da-Lite 79982 Specifications

S
UGGESTED SPECIFICATIONS:_______________________ fixed wall projection screen(s), _________________(H) x _________________(W).
To have flexible screen surface, fire retardant and mildew resistant. Screen surface standard with reinforced black binding on all four
sides and will attach to frame with metal snaps. Frame will conceal snaps and binding. Screen frame will be 1
powder coated aluminum. Walls will be ribbed for strength and light weight. Frame will be slip-jointed at corners and joints. Standard
wall-mounting brackets will be included.
All Da-Mat ® , High Contrast Da-Mat
seamless up to 16' high.
Audio Vision, High Contrast Audio Vision and High Contrast Cinema Perf surfaces are available in sizes up to 8' high.
High Power ® surface is available in sizes up to 6' high.
All viewing surfaces are standard with black backing except Da-Tex
Viewing
Area
H x W Cm
36" x 48" 91 x 122
43" x 57 1 / " 109 x 146
2
50 1 / " x 67" 128 x 170
2
57 1 / " x 77" 146 x 196
2
60" x 80" 152 x 203
72" x 96" 183 x 244
90" x 120" 229 x 305
108" x 144" 274 x 366
120" x 160" 305 x 406
144" x 192" 366 x 488
Viewing
Area
H x W Cm
37 1 / " x 67" 195 x 170
2
40 1 / " x 72" 103 x 183
2
45" x 80" 114 x 203
49" x 87" 124 x 221
52" x 92" 132 x 234
54" x 96" 137 x 244
58" x 104" 147 x 264
65" x 116" 165 x 295
78" x 139" 198 x 353
94 / " x 168" 240 x 427
1
2
108" x 192" 274 x 488
Viewing Area
H x W Cm
50" x 80" 127 x 203
60" x 96" 152 x 244
69" x 110" 175 x 279
87" x 139" 221 x 353
Viewing
Area
H x W Cm
37 1 / " x 88" 95 x 224
2
40 1 / " x 95" 103 x 241
2
45" x 106" 114 x 269
49" x 115" 124 x 292
52" x 122" 132 x 310
54" x 126" 137 x 320
Overall dimensions ± 1 / ".
4
Specifications subject to change without notice.
Custom formats and sizes available upon request.

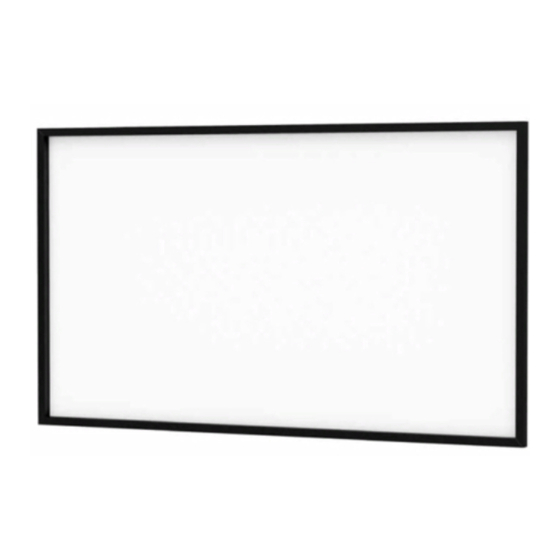

DA-SNAP
Wall-Mounted Projection Screen
SPECIFICATION DATA
® , Cinema Vision, High Contrast Cinema Vision, Pearlescent, Da-Tex
VIDEO (NTSC 4:3) FORMAT DIMENSIONS
Nominal
Diagonal
In. Cm
60" 152
72" 183
84" 213
96" 244
100" 254
120" 305
150" 381
180" 457
200" 508
240" 610
HDTV (16:9) FORMAT DIMENSIONS
Nominal
Diagonal
In. Cm
77" 196
82" 208
92" 234
100" 254
106" 269
110" 279
119" 302
133" 338
159" 404
193" 490
220" 559
16:10 WIDE FORMAT DIMENSIONS
Nominal Diagonal
In. Cm
94" 239
113" 287
130" 330
164" 417
CINEMASCOPE FORMAT DIMENSIONS
Nominal
Diagonal
In. Cm
96" 244
103" 262
115" 292
125" 318
133" 338
138" 351
® and Dual Vision.
Overall
Dimensions
In.
39" x 51" 99 x 130
46" x 60 1 / " 117 x 154
2
53 1 / " x 70" 136 x 178
2
60 1 / " x 80" 154 x 203
2
63" x 83" 160 x 211
75" x 99" 191 x 251
93" x 123" 236 x 312
111" x 147" 282 x 373
123" x 163" 312 x 414
147" x 195" 373 x 495
Overall
Dimensions
In.
40 1 / " x 70" 103 x 178
2
43 1 / " x 75" 110 x 191
2
48" x 83" 122 x 211
52" x 90" 132 x 229
55" x 95" 140 x 241
57" x 99" 145 x 251
61" x 107" 155 x 272
68" x 119" 172 x 302
81" x 142" 206 x 361
97 / " x 171" 248 x 434
1
2
111" x 195" 282 x 495
Overall Dimensions
In.
53" x 83" 135 x 211
63" x 99" 160 x 251
72" x 113" 183 x 287
90" x 142" 229 x 361
Overall
Dimensions
In.
40 1 / " x 91" 103 x 231
2
43 1 / " x 98" 110 x 249
2
48" x 109" 122 x 277
52" x 118" 132 x 300
55" x 125" 140 x 318
57" x 129" 145 x 328
DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com
1 ⁄ " square matte black
2
® and Dual Vision surfaces are
Approx. Ship.
Wt.
Cm Lbs.
20
23
26
28
31
38
48
63
75
90
Approx. Ship.
Wt.
Cm Lbs.
24
26
28
30
32
33
36
37
50
75
90
Approx. Ship. Wt.
Cm Lbs.
28
33
37
50
Approx. Ship.
Wt.
Cm Lbs.
30
33
36
37
42
47
Kg
9.1
10.4
11.8
12.7
14.1
17.2
21.8
28.6
34.0
40.8
Kg
10.9
11.8
12.7
13.6
14.5
15.0
16.3
16.8
20.9
34.0
40.8
Kg
12.7
15
16.8
22.7
Kg
13.6
15.0
16.3
16.8
19.1
21.3
