Da-Lite Curved Multi Format Imager Instruction Book page 5

Curved Multi Format Imager Assembly

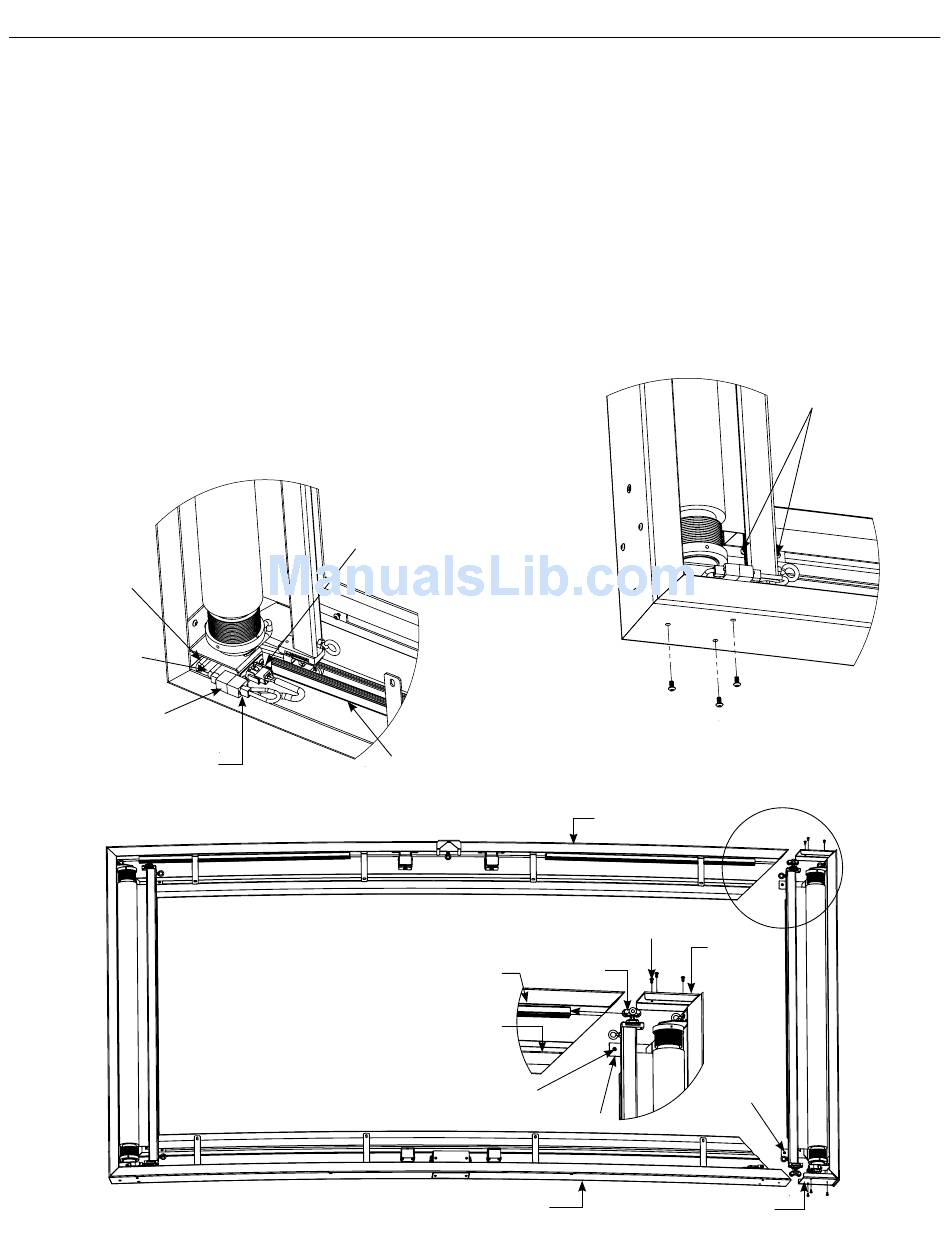

4. Assemble bottom end of left frame assembly to end of
bottom frame assembly. The large L-bracket will slide into the
aluminum extrusion while the small L-bracket will slide into
the frame channel. When sliding the bracket into the bottom
frame assembly, guide the slat roller carriage into the bottom
aluminum guide track. See Figure 5.
5. Route the two cable assemblies around motor bracket and
plug the 3 wire male connector into the 3 wire female
connector on the motor bracket. The motor will have a gray
data cable with and RJ-45 connector and RJ-45 coupler on
the end coming out of the head of the motor. Plug the
connector of the cable assembly into the RJ-coupler. Tuck the
RJ- coupler underneath motor bracket securely to prevent
entanglement as shown in Figure 5.
6. Fasten (3) #10 x 3/8" button head screws through bottom of
frame into the large L-bracket. Tighten two screws on flat
small L-bracket to line up the front surfaces. See Figure 6.
Tuck Excess Wire
Underneath
Motor Bracket
Data Cable From
Motor Head
Tuck RJ-45 Coupler
Underneath
Motor Bracket
Plug Connector
Into Coupler
Plug Motor
Power In
Aluminum
Guide Track
Figure 5
Make Sure Carriage
Rollers Are Seated
Properly in Guide Track
Guide Track
Frame Channel
Tighten Screws Until
Front Surfaces Are Flush
Bottom Frame Assembly
7. Assemble right side of frame to top and bottom frame
assemblies. The two large L-brackets will slide into top and
bottom aluminum extrusion while the two small L-brackets
will slide into the frame channel. When sliding the right side
assembly into the aluminum extrusion, guide the slat roller
carriage into the top and bottom aluminum guide tracks as
shown in Figure 7.
8. Fasten (3) #10 x 3/8" button head screws through top and
bottom of frames into the large L-brackets. Tighten two
screws on each flat small L-bracket to line up the front
surfaces.
Fasten Screws
Through Bottom
Frame Assembly
Into Large L-Bracket
Top Frame
Assembly
Fasten Screws Through Top Frame
Assembly Into Large L-Bracket
Slat Roller
Aluminum
Carriage
Small L-Bracket
Figure 7
Tighten Screws
Until Front
Surfaces Are
Flush
Figure 6
Large
L-Bracket
Small
L-Bracket
Large
L-Bracket
5
