Da-Lite Curved Multi Format Imager Instruction Book page 3

Da-Snap Frame Assembly
1. Inside each box the frame pieces will be individually paper
wrapped and taped. Remove all paper from pieces.
Do not use a utility knife to remove paper from pieces.
2. Unpack the 1.50" x 1.50" frame parts and fabric from the
cardboard boxes. DO NOT unroll the screen surface
at this time.
3. Slide the frame pieces together at corners. Secure frame
pieces with #10 black screws provided. Do not tighten screws
until all are started, and then tighten (Figure 1).
NOTE: The frame pieces are labeled "TOP" and "BOTTOM". Be
sure the frame pieces are assembled according to the labels.
This will ensure the snap pattern on the frame and screen
surface will match.
Side
Corner
#10 Black Screw

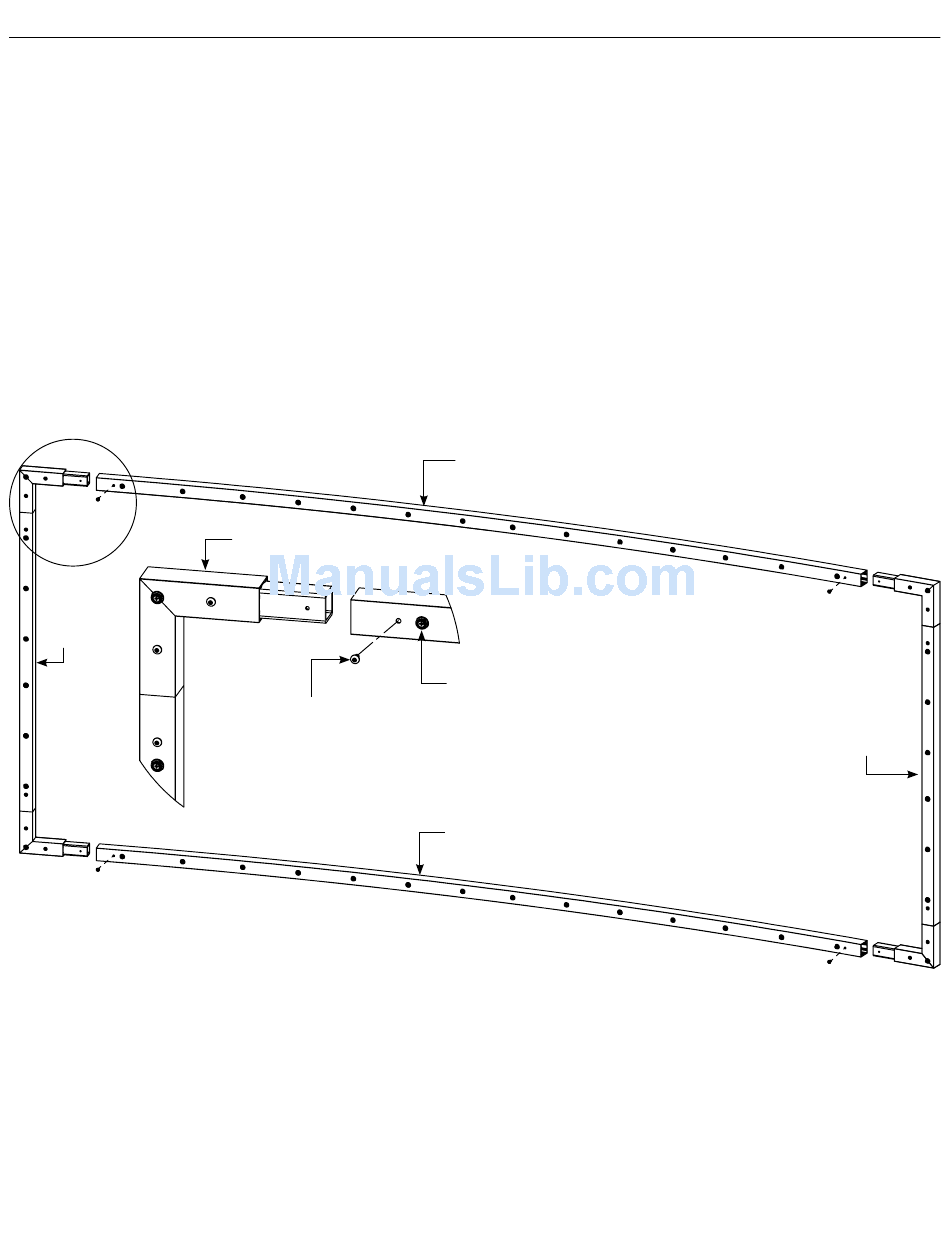

Figure 1 (Front View)
4. Unroll the screen on a clean surface. Do not use newspaper.
Place screen surface over the frame, and while holding the
frame with one hand, snap the screen surface onto the frame
with the other hand while maintaining a steady pull on
the surface. Start with the four corners.
5. Set assembly aside; it will be attached to the main frame.
Top
Snap Stud
Bottom
Side
3
