Curved Multi Format Imager Assembly

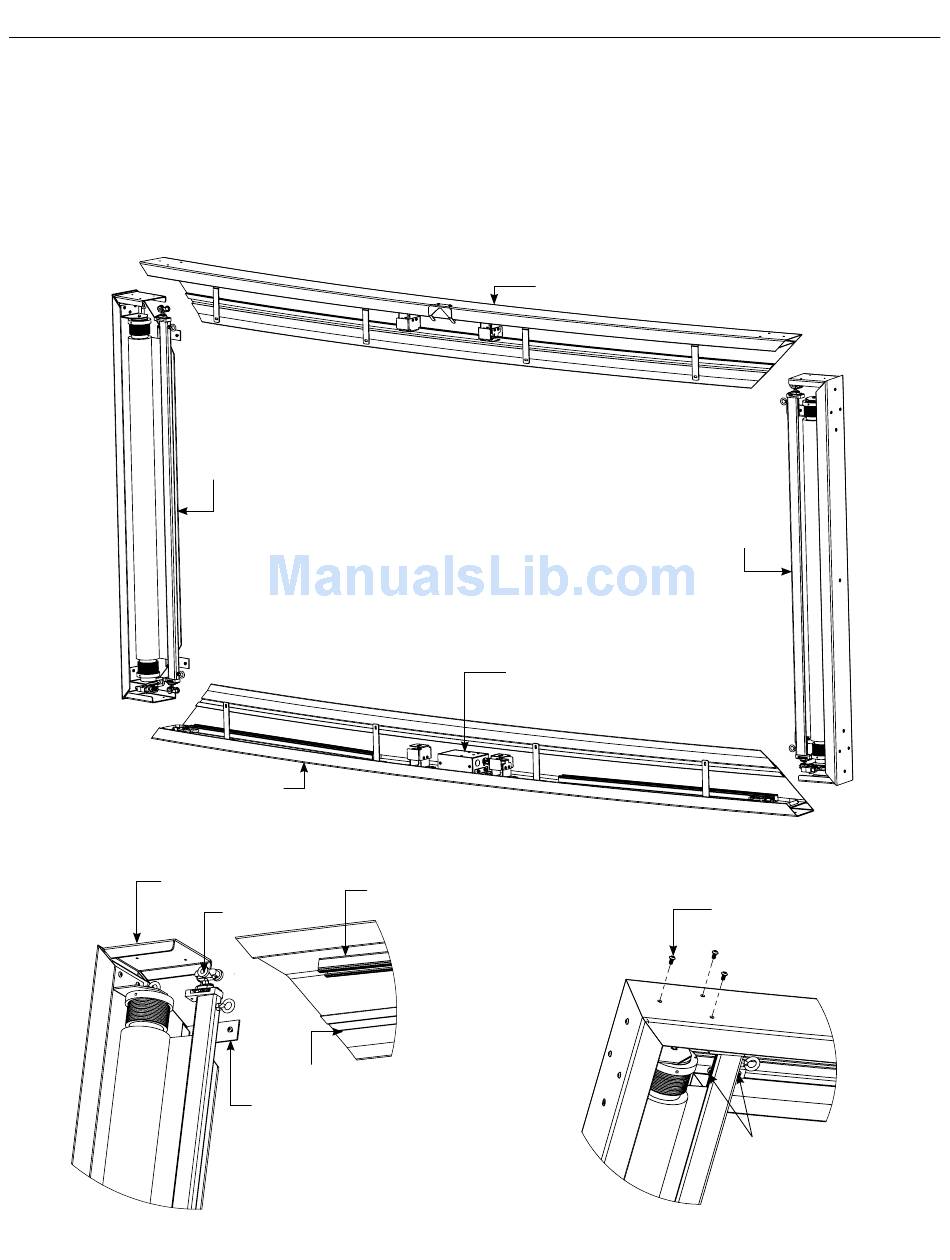

1. Lay frame pieces out on the floor or table as shown in Figure
2. The bottom frame assembly has the junction box attached
to it. The side frame assemblies have the rollers and motors
attached to them.
2. Assemble left side of frame to the top of frame (NOTE: Figure
2 is looking from the back of frame). The large L-bracket will
slide into the aluminum extrusion while the small L-bracket
Left Frame
Assembly
Bottom Frame
Large L-Bracket
4
Assembly
Aluminum
Guide Track
Slat Roller
Carriage
Frame Channel
Small L-Bracket
Make Sure Carriage
Rollers Are Seated
Properly in Guide Track
Figure 3
will slide into the frame channel. When sliding the bracket
into the top frame assembly, guide the slat roller carriage into
the top aluminum guide track as shown in Figure 3.
3. Fasten (3) #10 x 3/8" button head screws through top of frame
into the large L-bracket. Tighten two screws on flat small
L-bracket to line up the front surfaces as shown in Figure 4.
Top Frame Assembly
Junction Box
Figure 2
Right Frame
Assembly
Fasten Screws
Through Top Frame
Assembly Into
Large L-Bracket
Tighten Screws
Until Front
Surfaces Are Flush
Figure 4
