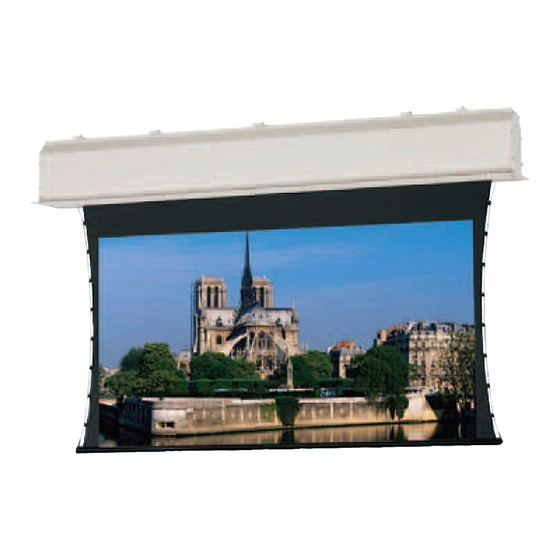

Da-Lite TENSIONED LARGE ADVANTAGE ELECTROL Instruction Book
Hide thumbs
Also See for TENSIONED LARGE ADVANTAGE ELECTROL:
- Installer's manual (2 pages) ,
- Instruction book (12 pages)
Table of Contents
Advertisement
Quick Links
The Da-Lite Difference.
Instruction Book for
DA-LITE SCREEN COMPANY, INC.
3100 North Detroit Street
TensIoned large advanTage®
Post Office Box 137
Warsaw, Indiana 46581-0137
Phone: 574-267-8101
elecTrol®
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Da-Lite TENSIONED LARGE ADVANTAGE ELECTROL
Summary of Contents for Da-Lite TENSIONED LARGE ADVANTAGE ELECTROL
- Page 1 The Da-Lite Difference. Instruction Book for DA-LITE SCREEN COMPANY, INC. 3100 North Detroit Street TensIoned large advanTage® Post Office Box 137 Warsaw, Indiana 46581-0137 Phone: 574-267-8101 elecTrol® 800-622-3737 Fax: 574-267-7804 Toll Free Fax: 877-325-4832 www.da-lite.com e-mail: info@da-lite.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using your video equipment, basic safety precautions should always be followed, including the following: 1. R ead and understand all instructions before using. 2. Close supervision is necessary when any appliance is used by or near children. Do not leave appliance unattended while in use. 3. Do not operate appliance with a damaged cord or if the appliance has been dropped or damaged – until it has been examined by a qualified serviceman. 4. P osition the cord so that it will not be tripped over, pulled, or contact hot surfaces. 5. If an extension cord is necessary, a cord with a current rating at least equal to that of the appliance should be used. Cords rated for less amperage than the appliance may overheat. 6. To reduce the risk of electric shock, do not immerse this appliance in water or other liquids. 7 . To reduce the risk of electric shock, do not disassemble this appliance. Contact an authorized service dealer when repair work is required. Incorrect reassembly can cause electric shock when the appliance is used subsequently. 8. The use of an accessory attachment not recommended by the manufacturer may cause a risk of fire, electric shock, or injury to persons. SAVE THESE INSTRUCTIONS PRE-INSTALLATION 1. Carefully unpack screen and remove outer wrapping from case. 2. Make sure to recheck measurements of screen location before installation. Please Note: Motor Operator Projection Screen Models LADT, LADDT, LAD and LADD must be installed in accordance with the requirements of the DOOR SUPPORT SCREWS... - Page 3 SCREEN AND ROLLER ASSEMBLY INSTALLATION If your screen was shipped with the motor and roller already installed proceed to step 7 . 1. R emove four bolts from ends of door assembly (2 bolts on each end) (Fig. 1). This will allow the door assembly to drop open for access to case. For larger sizes, you will also need to remove the door support screws. 2. Carefully unpack screen and roller assembly. Leave packing paper on the roller. 3. Remove the square peg bracket from the motor end of the roller assembly. 4. Remove the safety clip from the motor attachement bracket located in the motor end of the screen housing. 5. Place the roller assembly into the case with the motor on the left side. The limit switches should be facing down. Line up the head of the motor with the motor attachment bracket. 6. Loosen four bolts that secure pin end mounting bracket into housing. Lift pin end of roller into position and slide the bracket into the roller pin. Tighten all four bolts. 7 . Complete electrical hook-up by snapping motor 1/3 wire connectors into case connectors. 8. Return to motor end and insert safety clip over casting bracket to secure motor end. CAUTION! DO NOT CUT TAPE ON FABRIC WITH A KNIFE OR ANY SHARP TOOL. REMOVE BY HAND. 9. Carefully remove tape strips securing picture surface around roller. Slat should move freely (Fig. 2). (Only if the roller assembly is pre installed.) 10. Test installation by operating the screen several times. Be prepared to stop the screen. The door assembly will not...
-
Page 4: Screen Adjustment
SCREEN ADJUSTMENT Surface travel is stopped automatically in the fully opened and closed positions by limit switches that are properly adjusted at Da-Lite. Should it be necessary to adjust for more or less drop of picture, proceed in the following manner: NOTE: Use a screw driver or 5/32" Allen wrench to make adjustments. MORE SCREEN DROP 1. P lace operating switch in “down” position. 2. W hen the screen stops, turn the white “down” limit knob (Fig. 2) one-quarter turn counterclockwise. Test by raising picture surface approximately two feet, then lower again. Repeat until desired picture surface position is attained. CAUTION: Do not adjust for more drop than what was ordered. At least 1-1/2 wraps of fabric must remain on the roller. This screen comes standard with 0"... - Page 5 AC HOT 120VAC 60HZ 1 AMP BLACK/YELLOW DOWN NOTE: A SINGLE SWITCH CANNOT BE USED TO OPERATE MORE THAN ONE THIS SWITCH CANNOT SCREEN. CONTACT THE FACTORY FOR BE USED WITH LVC FURTHER INFORMATION. 240 VOLT WIRING DIAGRAM FOR STANDARD WALL SWITCH: Da-Lite offers two styles of 240 volt wall switches for standard operation.Please see wiring diagram included inwall switch box included with screen.
-
Page 6: Power Input
TENSIONED LARGE ADVANTAGE ELECTROL INSTRUCTIONS ® ® 120V WIRING DIAGRAM WITH OPTIONAL BUILT-IN LOW VOLTAGE CONTROL FRONT OF BACK OF WALL WALL SWITCH SWITCH NOTE: 20-24AWG WIRE RECOMMENDED FOR CONNECTING WALL SWITCH TO LOW VOLTAGE CONTROLLER. STOP DOWN WHITE (UP) (COMMON) “EYE”... - Page 7 TENSIONED LARGE ADVANTAGE ELECTROL INSTRUCTIONS ® ® 240V WIRING DIAGRAM WITH OPTIONAL BUILT-IN LOW VOLTAGE CONTROL FRONT OF BACK OF WALL WALL SWITCH SWITCH NOTE: 20-24AWG WIRE RECOMMENDED FOR CONNECTING WALL SWITCH TO LOW VOLTAGE CONTROLLER. BLUE STOP (COMMON) BROWN DOWN (HOT) WIRE NUT...
- Page 8 TENSIONED LARGE ADVANTAGE ELECTROL INSTALLATION ® ® (SUGGESTED) " THREADED ROD (NOT INCLUDED) ATTACHED " TO MOUNTING SCREEN ROLLER BRACKET AUDIENCE SIDE " " 11" FINISHED SELF-TRIMMING SELF-TRIMMING FLANGE CEILING FLANGE " " " ACCESS DOOR 11" CASE LENGTH VARIABLE POSITION " MOUNTING BRACKETS " ELECTRICAL JUNCTION BOX "...
-
Page 9: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 1. S creen will not operate or will not go (a) I ncorrect line voltage. (a) V erify 115-125V (or 220-240V). If “down”. insufficient voltage, rewire incoming Motor does not hum. electric line. (b) B lown facility fuse. (b) R eplace facility fuse. (c) T ripped facility circuit breaker. (c) R eset facility circuit breaker. (d) N o power to operating switch or (d) C heck above. Tighten all loose wire junction box. - Page 10 TROUBLESHOOTING SYMPTOM CAUSE SOLUTION 3. “Down” limit switch incorrect. (a) “ Down” limit switch out of (a) S ee installation instructions. adjustment. 4. Noise. (a) Buzzing noise. (a) A djust door limit switch (too far NOTE: Screen will operate with a low- down). pitched hum. (b) G ear noise. (b) R eplace motor assembly. 5. Coasting.
- Page 12 EQUIPMENT, OR FOR INCIDENTAL, DIRECT, OR CONSEQUENTIAL DAMAGES OF ANY NATURE. In the event that there is a defect in materials or workmanship of a Da-Lite product, you may contact our Sales Partners at PO Box 137 , Warsaw, IN 46581-0137 , (574) 267-8101, (800) 622-3737 . IMPORTANT: THIS WARRANTY SHALL NOT BE VALID AND DA-LITE SHALL NOT BE BOUND BY THIS WARRANTY IF THE PRODUCT IS NOT OPERATED IN ACCORDANCE WITH DA-LITE’S WRITTEN INSTRUCTIONS. Keep your sales receipt to prove the date of purchase and your original ownership.
