Da-Lite Curved Multi Format Imager Instruction Book page 10

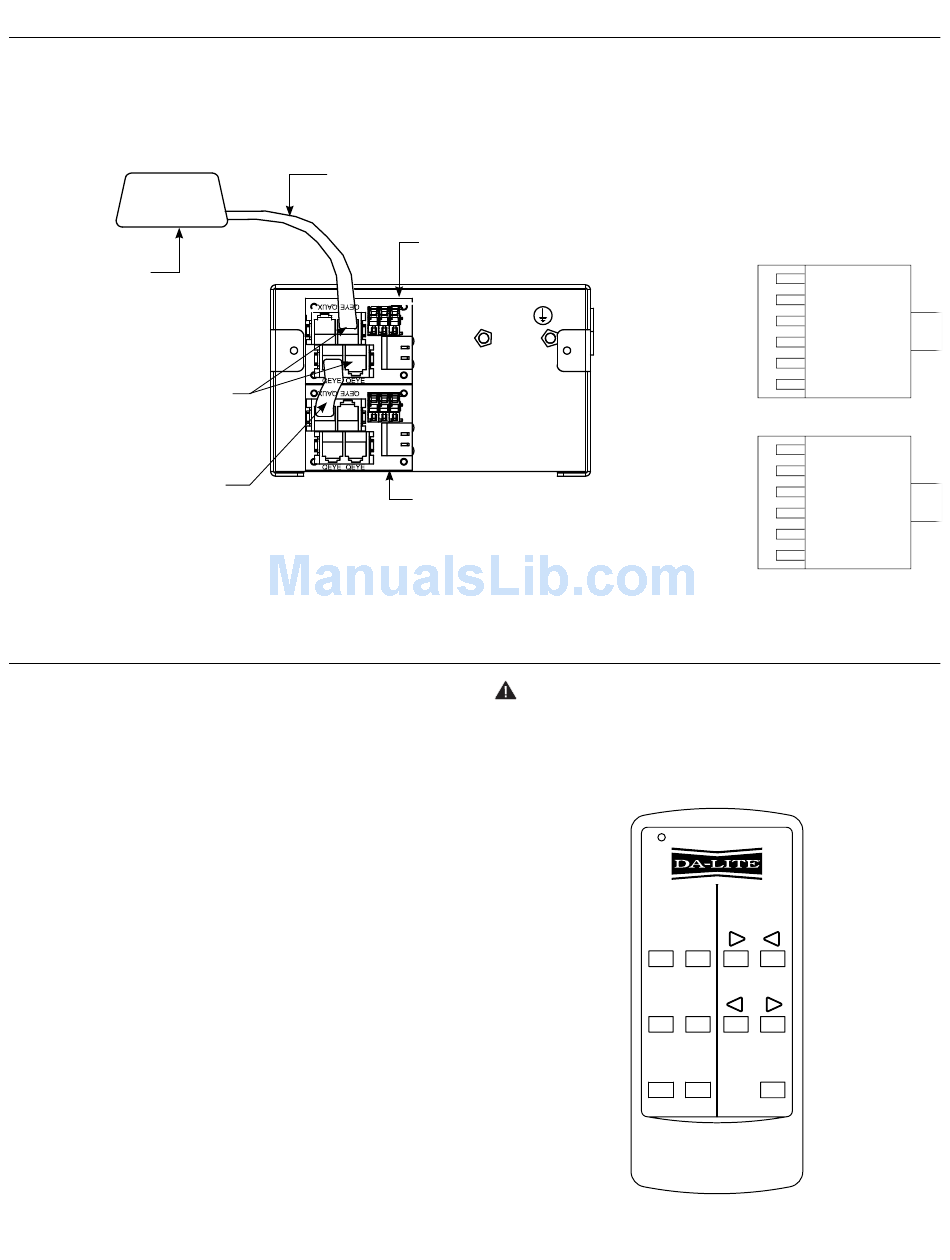

Multi Format Imager Wiring Diagram
Connect IR eye to splitter for screen operation. IR eye shall be
plugged into a QEYE port on the primary splitter as shown in
Figure 15.
IR Eye
Qeye Inputs
6P6C
RJ-22 Cable
From Qaux
To Qeye
Multi Format Imager Operation
The Multi-Format Imager has been preset to five different formats.
The screen can be set to any format by simply pressing the
corresponding button on the remote. Below is a list of each
button function.
IMPORTANT When operating the switch, press and release the
buttons. DO NOT hold the button for more than five (5) seconds
or the button will be reprogrammed to the current screen
position.
Test installation by carefully running mask surfaces in and out
2-3 times. Be prepared to stop screen. Standard Duty Cycle:
1 MIN.ON./3 MIN.OFF.
4 - Sets format to NTSC (1.33:1)
3 - Sets format to HDTV (1.78:1)
2 - Sets format to Letterbox (1.85:1) format.
1 - Sets format to Cinemascope (2.35:1) format.
OPEN - Sets format to Cinemascope (2.40:1) format.
STOP - Stops the masks at any position when pressed.
<> - Individual control of left and right mask.
10
6P4C
RJ-14 Cable
Primary Splitter
Secondary Splitter
Figure 15
NOTES:
1.) 6P6C = 6 Pins 6 Conductor Wire
2.) 6P4C = 6 Pins 4 Conductor Wire
Bus (RP Data)
Bus (RP Data)
CAUTION! Excessive continuos operation may cause
overheating. If motor overheats do not press on remote
and allow motor to cool for 30 minutes.
PRESET
FORMATS
1 2
3 4
OPEN EXT.
Figure 16
RJ-22
+12V
Blue
Yellow
Green
RQ Data
+5V Red
Ground Black
RQ Clock White
RJ-14
White
RQ Data Green
+5V Red
Ground Black
ADJUST
MASK
RIGHT
LEFT
STOP
