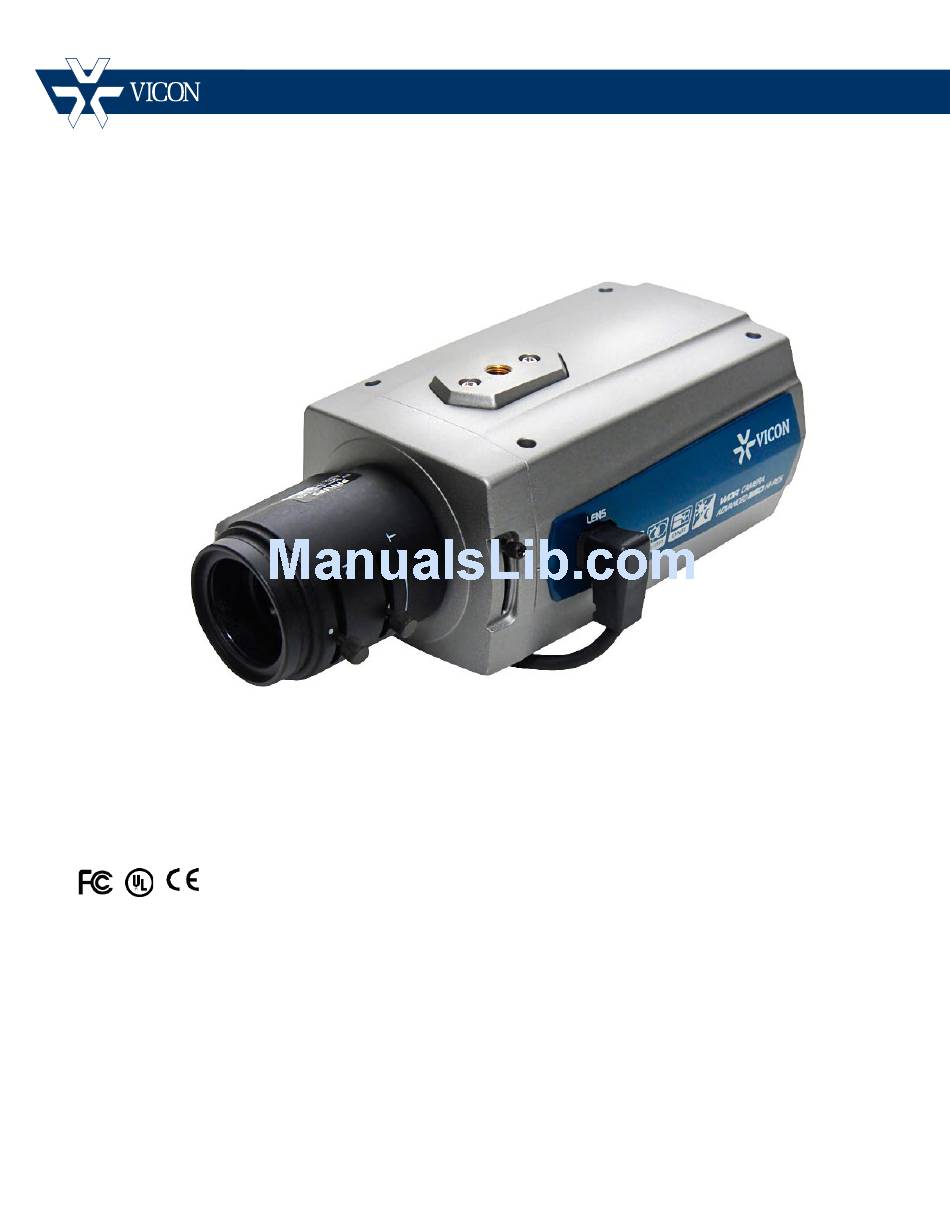

Installation and Operation Guide
XX232-00-02

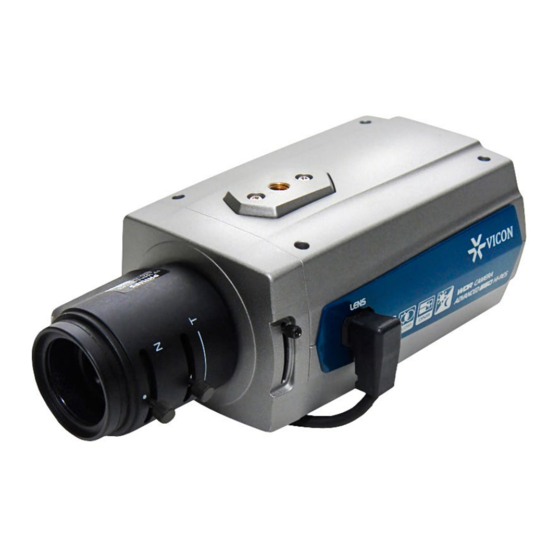

V662-D High-Resolution
Analog WDR Camera
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288
Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8232-00-02
Issued: 513
Product specifications subject to change without notice.
Copyright © 2013 Vicon Industries Inc. All rights reserved.
Advertisement
Table of Contents
Related Manuals for Vicon V662-D
Summary of Contents for Vicon V662-D
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). -
Page 3: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED PROVIDE REASONABLE PROTECTION AGAINST HARMFUL... -
Page 4: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Table Of Contents
CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The content of the package includes: Color CCD camera Mini-DIN connector (for video-or dc-type auto-iris lens) -
Page 6: Introduction
INTRODUCTION ® The camera provides high-quality image using Sony Wide Dynamic 1/3” Super-HAD™ II PS 960H CCD and DSP. Features: 1/3" Super-HAD™II PS 960H CCD Super high-resolution of 650TV lines Wide Dynamic Range (~x512) Excessive High-Light Compensation Back Light Masking (MAX. 15 area) 2D-NR, 3D-NR (DNR Demo) Day &... -
Page 7: Camera Overview
CAMERA OVERVIEW SIDE VIEW TOP VIEW FRONT VIEW Left Button Up Button Enter Button REAR VIEW Right Button Down Button Day/Night External I/O Motion ALARM OUT RS - 485 UTP(optional) Power Indicator Video Output Connector (BNC) UTP or BNC Transformation Switch (optional) AC/DC Compatible Input Terminal AC Power Cord... -
Page 8: Back Focus Adjustment
BACK FOCUS ADJUSTMENT When installing a zoom lens on a camera, sometimes the lens cannot be focused at either end of the zoom range. If this problem occurs, it may be necessary to adjust the camera back focus. By adjusting the back focus, the position of the pick-up device in relation to the rear of the lens is changing. -
Page 9: The Definition Of Terms
THE DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Auto Exposure Automatically adjusts the images to the optimum brightness. SHT(Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces, blooming overexposure, and smear when capturing moving objects. - Page 10 Resolution Controls the display fine details. The higher the resolution, the higher level of details can be seen. 2D_ / 3D_NR (Digital Noise Reduction) Adjusts the illuminance noise level in low light situations by reducing image noise in order to improve the image. - 2D-NR is space-based and 3D-NR is time-based. Frame Control Specifies how many frames are generated/transmitted in a unit of time.
-
Page 11: Camera Adjustment
CAMERA ADJUSTMENT <White Balance> 1) Auto(Auto White Balance) : AWB mode (1800ºK ~10500ºK) 2) Push/Hold : Push&Hold Mode. ¾ To find the Optimal setting for the current luminance environment in this mode, set the direction towards a sheet of white paper and select Hold and press enter button. - Page 12 ¾ Both : Privacy function and BLM function on. ¾ Off : Function off. 3) Edit : Mask area edit. ¾ Edit mode take effect during Func not Off. „ Size : adjust the size of the Privacy and BLM mask area. „...
- Page 13 Low luminance, object color and object size can affect accuracy. ¾ Cross : Cross counting mode „ Zone : Select Cross Zone using the Left and Right buttons (Zone 1, Zone „ Size : Adjust the size of the Cross zone. „...
- Page 14 <Picture/DNR> 1) Sharpness : Adjust sharpness of outlines (0~15) 2) Resolution : Select high resolution mode (Low/Mid/High) 3) 2D-NR : Select 2D noise reduction level (0~6) ¾ 2D-NR : Noise reduction on a frame 4) 3D-NR : Select 3D noise reduction level (0~31) ¾...
-
Page 15: System Setup
Low luminance will affect accuracy. In extremely low light environments or if there are moving objects, do not use this function. <System Setup> 1) Cam Info : Camera basic information display ¾ Cam ID/Baud rate/Protocol/Firmware Ver./CCD Type/Lens Type 2) General Setup ¾... - Page 16 ¾ Alarm . „ Period : Alarm out period (5sec/10sec/20sec/30sec/1min/5min/Cont.) „ Snooze : Alarm out snooze(Off/5sec/10sec/20sec/30sec/1min/5min) „ Active pol : Alarm output active state configuration. (Low, High) ¾ System Init „ Cancel : Back to General Setup Menu. „ Confirm : Initialize all data. (Factory Default) 3) Lens ¾...
- Page 17 ¾ N>D Level : Select switching level Night to Color when D&N mode is Auto (0-15). <Bottom Line Menus> When user entered in main menu and sub-menus, following menus will be appeared. Main Manu (menu in bottom lines) Exit : Save & Exit. Load : Load Default Value.
-
Page 18: Control And Connections / Day&Night I/O Terminals
CONTROL AND CONNECTIONS/DAY&NIGHT I/O / ALARM OUT TERMINALS UTP- UTP+ D&N I/O ALARM RS-485 (optional) (optional) RS-485+(RX) RS-485-(TX) UTP Connections/Video output (optional) 1 PIN: UTP- 2 PIN: UTP+ DAY&NIGHT I/O Terminals To select Day/Night mode using external equipment, by connecting control lines to the appropriate terminals. -
Page 19: Lens
LENS The lens is not supplied with this camera. Purchase a lens suitable for your requirements. These cameras accept both C-and CS-mount type lens. <Notes > For using main functions it is recommended to use Auto Iris Lens with DC type. -
Page 20: Specifications
SPECIFICATIONS MODEL V662-D V662-D-P V662-D-PM Image sensor 1/3" Super-HAD II PS 960H CCD Total pixels 1028(H)x508(V) 1028(H)x596(V) Effective pixels 976(H)x494(V) 976(H)x582(v) Scanning system 2:1 interlace Scanning frequency 15.734KHz(H)x5 15.625KHz(H)x50Hz(V) 9.94Hz(V) Sync. System Internal / Line lock Resolution 650TVL Min. illumination 0.4 Lux (COLOR), 0.04 Lux (B/W), 0.001 Lux (Slow-shutter) -
Page 21: Vicon Standard Equipment Warranty
Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase. - Page 22 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
