Vicon V662V-Series Installation And Operation Manual

Vicon V662V-Series Installation And Operation Manual

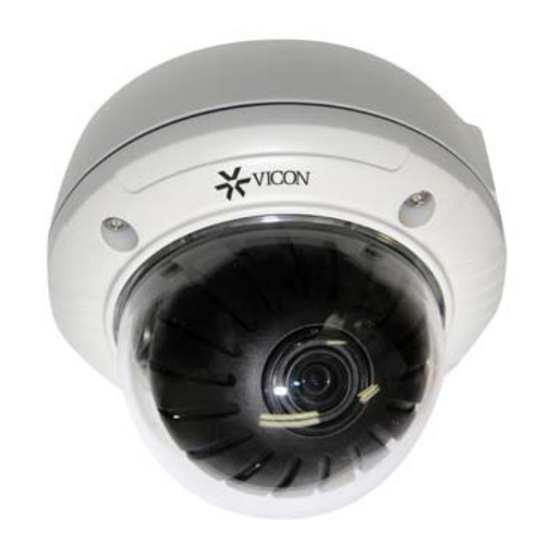

V662v-series vandal-proof wdr analog camera dome

Advertisement

Installation and Operation Guide
XX233-00-01
V662V-Series Vandal-Proof
WDR Analog Camera Dome
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288
Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8233-00-01
Issued: 0811
Product specifications subject to change without notice.
Copyright © 2011 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V662V-Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vicon V662V-Series

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2: Explanation Of Graphical Symbols

    WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
  • Page 3: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED PROVIDE REASONABLE PROTECTION AGAINST HARMFUL...
  • Page 4: Important Safeguards

    IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 5: Table Of Contents

    CONTENTS OF PACKAGE The package contains the following Camera in Housing Accessory Kit for Installing Drilling guide label TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------------------------- 6 CAMERA CONNECTIONS -------------------------------------------------------------------------- 7 INSTALLATION ----------------------------------------------------------------------------------------- 8 THE DEFINITION OF TERMS ---------------------------------------------------------------------- 9 CAMERA ADJUSTMENT ---------------------------------------------------------------------------- 11 LENS ADJUSTMENT --------------------------------------------------------------------------------- 18 DC AUTO IRIS LENS --------------------------------------------------------------------------------- 18 EXTERNAL DIMENSION ---------------------------------------------------------------------------- 19...
  • Page 6: Introduction

    INTRODUCTION ® The camera provides high-quality image using Sony Wide Dynamic 1/3” Super-HAD™ II PS 960H CCD and DSP. Features: • 1/3” Super-HAD™II PS 960H CCD • Super high-resolution of 650TV lines • 0.4 lux(Color), 0.04 lux(B/W), 0.001 lux(Low-Shutter) @ F1.4 Sensitivity •...
  • Page 7: Camera Connections

    CAMERA CONNECTIONS Connection Cable Description COLOR Description AC24V/DC12V WHITE AC24V/DC12V ORANGE BROWN BLUE RS485(-) GREEN RS485(+) YELLOW ALARM OUT GRAY DN EXT-IN BLACK&WHITE DN EXT-OUT BLACK SKY BLUE UTP+(optional) PINK UTP- (optional) 1) External Day/Night Control : To select Day/Night mode using external equipment, by connecting control lines to the appropriate terminals.
  • Page 8: Installation

    INSTALLATION 1. Loosen the four Torx screws located midway up the front of the housing. Leave the screws intact. (Fig. 1) 2. Drill the mounting location using the supplied drilling guide label. (Fig. 3) 3. Attach the housing to the ceiling using suitable fasteners, M6x35 tapping screws are supplied.
  • Page 9: The Definition Of Terms

    THE DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Auto Exposure Automatically adjusts the images to the optimum brightness. SHT(Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces, blooming overexposure, and smear when capturing moving objects.
  • Page 10 subjects are in the same scene, overexposure in the high-brightness subjects or loss of dark detail in the low-brightness subjects may occur. WDR combines the two images to eliminate over exposure and loss of detail. EHLC(Excessive High Light Compensation) Brings excessively high-brightness subjects into focus. Mask Hides one or more areas that the user does not want to be displayed on screen.
  • Page 11: Camera Adjustment

    Iris Control Automatically adjusts the level of the iris according to changing light levels without having to manually turn a ring on the lens to open or close the iris. In the line lock mode, the AC power supply and vertical sync signal of the cameras are synchronized.
  • Page 12 4) Sens-Up(Slow Shutter) : Maximum Slow-Shutter select. (x2-x32 and Off) 5) Offset Add : Force the picture to turn up at low luminance environment. <BLC/WDR> 1) Normal AE : BLC/WDR function off. 2) WDR(Wide Dynamic Range) : Wide dynamic range mode on. 3) EHLC(Excessive High Light Compensation) : EHLC mode on.
  • Page 13  Face Trace : Face Trace mode on.  Tracks face through a scene and generate an alarm.  Sens Down : lower value is more widen the scope to judge face. (0~127)  Min Size : Minimum face size configuration (0 : minimum face size is to none) Depending upon overall conditions, Face Trace may produce inaccurate results.
  • Page 14  Entrance : Entrance counting mode. The object move in through the entrance, counting number increases  Size : Press Enter button adjust the size of the Entrance zone.  Posi : Press Enter button adjust the Position of the Entrance zone. ...
  • Page 15: System Setup

     Use the Up and Down buttons adjust to digital tilt  Press the Enter button to exit.  PT Reset(Pan & Tilt Reset) : Press the Enter button to reset digital pan and tilt. 4) Freeze : Select the still mode on/off 5) Frame Control: Select term of refresh rate for output video.
  • Page 16  Title : Edit camera title. Title Site_0 ☞< > ENT:Del A. Title B. Delete character ABCDEFGHIJKLM C. Character table NOPQRSTUVWXYZ D. Command line a b c d e f g h i j k l m - Clear : Clear Title n o p q r s t u v w x y z - Cancel: Cancel editing - .
  • Page 17  ENT to Adj : Press Enter button to start White Pixel Compensation start.  Proc : Process to find white pixel.  Done : Process ended  Det Count : Result of white pixel detection.  Func : Select erasing white pixel function On/Off using the Left and Right buttons. ...
  • Page 18: Lens Adjustment

    LENS ADJUSTMENT Field of view: Adjust setting from Telephoto (T) to wide (W) field of View. Focus: Adjust lens focus from near (N) to infinity. DC AUTO IRIS LENS 2.6-6mm 4-9mm 2.8~12mm 9-22mm 1/3” CCD 1/3" CCD 1/3" CCD 1/3" CCD Image Size 2.6-6.0mm 4.0-9.0mm...
  • Page 19: External Dimension

    EXTERNAL DIMENSION Unit: mm(inches) 0.1 in. (3.0mm thick), Window Size impact-resistant P.C (LEXAN) 3.9 in. (9.9cm) diameter Cable Entry One 1" opening holes Weight – Unit: 1.54 lb. (700 g) Shipping: 2.11 lb. (960 g)
  • Page 20: Specifications

    SPECIFICATIONS (1/2) MODEL V662V-312D V662V-312D-P Image sensor 1/3" Super-HAD II PS 960H CCD Total pixels 1028(H)x508(V) 1028(H)x596(V) Effective pixels 976(H)x494(V) 976(H)x582(v) Scanning system 2:1 interlace Scanning frequency 15.734KHz(H)x59.94Hz(V) 15.625KHz(H)x50Hz(V) Sync. System Internal / Line lock Resolution 650TVL Min. illumination 0.4 Lux (COLOR), 0.04 Lux (B/W), 0.001 Lux (Slow-shutter) Video output 1.0 Vp-p (75 ohm, composite) S/N ratio...
  • Page 21 SPECIFICATIONS (2/2) MODEL V662V-922D V662V-922D-P Image sensor 1/3" Super-HAD II PS 960H CCD Total pixels 1028(H)x508(V) 1028(H)x596(V) Effective pixels 976(H)x494(V) 976(H)x582(v) Scanning system 2:1 interlace Scanning frequency 15.734KHz(H)x59.94Hz(V) 15.625KHz(H)x50Hz(V) Sync. System Internal / Line lock Resolution 650TVL Min. illumination 0.4 Lux (COLOR), 0.04 Lux (B/W), 0.001 Lux (Slow-shutter) Video output 1.0 Vp-p (75 ohm, composite) S/N ratio...
  • Page 22: Vicon Standard Equipment Warranty

    Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase.
  • Page 23 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...

This manual is also suitable for:

V662v-312dV662v-312d-pV662v-922dV662v-922d-p
