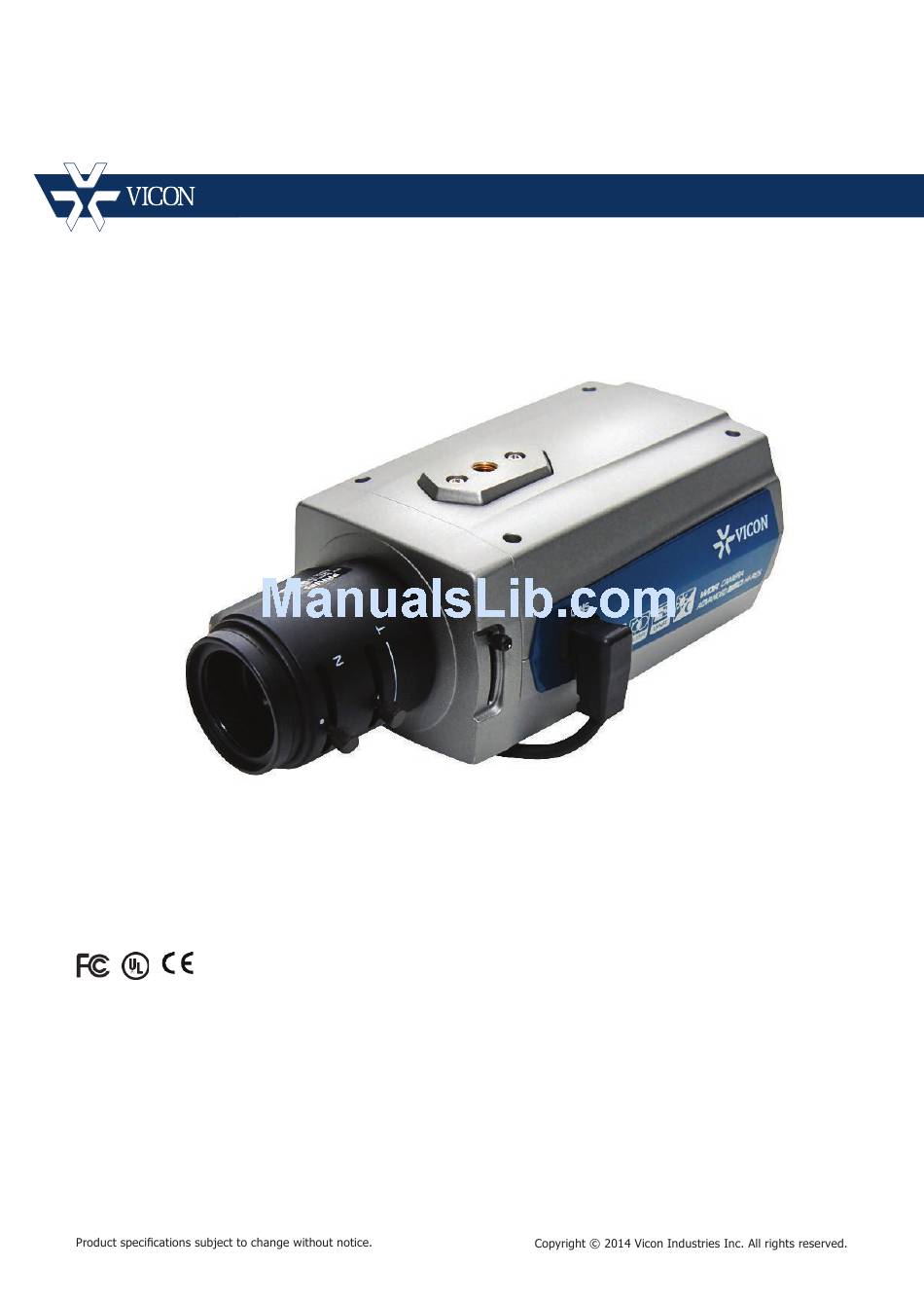

Installation and Operation Guide
XX232-01-00
V662-D-2 High-Resolution
Analog WDR Camera
Vicon Industries Inc.
Tel: 631-952-2288
Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8232-01-00
Issued: 1014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon V662-D-2
Summary of Contents for Vicon V662-D-2
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer`s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Table Of Contents
TABLE OF CONTENTS CONTENTS OF PACKAGE INTRODUCTION CAMERA OVERVIEW MENU MAP CONTROL AND CONNECTIONS DAY&NIGHT I/O TERMINALS LENS SPECIFICATIONS CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. -
Page 5: Introduction
The information in this manual covers the installation, operation and maintenance of the V662-D-2 day/night camera. These cameras should only be installed by a qualified technician using common hand tools and approved materials and wiring methods in accordance with national, state and local wiring codes. -
Page 6: Camera Overview
CAMERA OVERVIEW SIDE VIEW TOP VIEW FRONT VIEW REAR VIEW (Option) (Option) AC Power Cord AC 100-240V REAR VIEW (Free Voltage) -
Page 7: Back Focus Adjustment
BACK FOCUS ADJUSTMENT When installing a zoom lens on a camera, sometimes the lens cannot be focused at either end of the zoom range. If this problem occurs, it may be necessary to adjust the camera back focus. By adjusting the back focus, the position of the pick-up device in relation to the rear of the lens is changing. - Page 8 DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Auto Exposure Automatically adjusts the images to the optimum brightness. SHT (Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces blooming, overexposure, and smear when capturing moving objects.
- Page 9 2D/3D_NR (Digital Noise Reduction) Adjusts the illuminance noise level in low light situations by reducing image noise in order to improve the image. 2D-NR is space-based and 3D-NR is time-based. Frame Control Specifies how many frames are generated/transmitted in a unit of time. The more frames there are, the smoother the image will be.
-
Page 10: Menu Map
MENU MAP SETUP MENU 1/ 2 SCENE SELECT SCENE SELECT PICTURE ADJUST EZOOM PICT ADJUST CUSTOM BRIGHTNESS EZOOM FULL AUTO CONTRAST INDOOR SHARPNESS TILT PRIVACY MASK OUTDOOR MOTION DET BACKLIGHT COLOR GAIN SYS SETTING EXIT RETURN RETURN ADVANCED MENU 1/ 2 SHUTTER/AGC WHITE BAL HLC/BLC... - Page 11 MENU MAP ADVANCED MENU 2/ 2 LENS SHD COMP DEFOG FLK LESS ANTI CR RETURN LENS SHADE DEFOG SETUP FLK LESS ANTI CR COMP SETUP LEVEL AUTO AUTO PATTERN POSH POSV RETURN RETURN SETUP MENU 1/ 2 SCENE SELECT PICT ADJUST EZOOM PRIVACY MASK MOTION DET...
-
Page 12: Setup Menu
MENU MAP SETUP MENU 2/ 2 LANGUAGE LANGUAGE MAINTENANCE VERSION MAINTENANCE ENGLISH W.PIX MASK EXIT ESPANOL CAMERA RESET PYCCKNN PORTUGUES DEUTSCH FRANCAIS 日本語 RETURN RETURN W.PIX MASK AUTO DATA CLEAR AUTO COMP MANUAL COMP MANUAL LEVEL1 REGISTRATION LEVEL2 REG.POINT AUTO CUSOR COLOR BLINK REG.NUMBER... - Page 13 2. Picture Adjust function This menu provides functions that enable users to easily adjust the image quality to suit the image output device used. Use the sliding scales to fine tune these adjustments. Brightness - Adjusts the brightness, where a higher the number produces a brighter image. Contrast - Adjusts the image contrast (light and shade differences) by raising or lowering this number.
- Page 14 MASK AREA This is used for setting the no-detection area. The active point (MASK AREA 1~96) is displayed. Move from point to point using the joystick. Press the joystick to select edit point. (no-detection area). MONITOR AREA Set the position of the motion detection area. Select the area to be set up and turn area mode ON>...
- Page 15 7-5. COMMUNICATION (OPTION) This sets up communication using the RS-485 format. Protocol - RS-485 protocol (PELCO-D). Address - Select the camera ID (001 - 255). Baud Rate - Select serial communication speed. (2400/4800/9600/19200/38400/57600/115200). – Internally fixed. Databit – Select OFF/ODD/EVEN. This is used to find the Bit to extract an error on the Parity keyboard.
- Page 16 11. MAINTENANCE W.PIX MASK The white pixel detection and compensation function can automatically detect and compensate up to 64 white pixels (static detection). It is recommended that this be set to Auto and not modified. AUTO Auto mode performs the optimal operation for detecting white pixels and automatically detects the white pixels of CCD image sensors.
-
Page 17: Advanced Menu
<ADVANCED MENU> 12. SHUTTER / AGC AEME (Auto Exposure/Manual Exposure) selection, (shutter/AGC). This control adjusts the amount of exposure using the shutter speed. 12-1. AUTO Select Auto to have exposure control performed automatically. AE LEVEL (Auto Exposure Level) Set the AE level using the sliding scale. Set exposure control so that the output level (evaluation value) is the target brightness level (AE reference level). - Page 18 USER1 The USER1 functions set the White Balance gain in accordance with preset values (3200ºK). WB control does not track even if the subject color temperature changes. Use the sliding scale to adjust red or blue gain. R (R-GAIN): Adjust R-GAIN value (0-255) B (B-GAIN): Adjust B-GAIN value (0-255) USER2 The USER2 functions set the White Balance gain in accordance with preset...
- Page 19 16. DNR Digital Noise Reduction is used to reduce image noise, which is generated under low-light conditions and other high-gain states, in order to improve the image quality of the camera. LEVEL Adjusts the NR (3D+2D) strength (0~6) using the sliding scale. 17.
- Page 20 IR SHADE COMP (IR Model only) The IR-SHD function compensates for observable events in which the light passing through the lens is imaged non-uniformly. Select ON/OFF. PATTERN Select the shape of the ellipse (HIGH/MID/LOW). POSH/POSV Use the center coordinate settings to adjust the shading compensation to the center position of the optical axis.
-
Page 21: Control And Connections 21 Day&Night I/O Terminals
CONTROL AND CONNECTIONS/ DAY&NIGHT IN/ALARM OUT TERMINALS 1. Terminal Block (Option) 1-1. DAY&NIGHT EXTERNAL INPUT (1pin) Switch the camera’s D/N mode to either Day or Night based on the input status. Refer to the diagram below. The cameras D/N mode must be set to EXT for this to function. Open contact: DAY (GND) Close contact: NIGHT... -
Page 22: Lens
LENS INSTALLING AUTO IRIS LENS... -
Page 23: Specifications
SPECIFICATIONS AC Power Cord MODEL NTSC / PAL ( Free Voltage) AC100-240V Power source DC12/AC24V±10%(Option) ~50(60)Hz±1Hz Power DC12V/AC24V-210mA(2.5Watts) Power consumption 45mA(3.0Watts) DC12V-200mA(2.3Watts) Image sensor 1/3” Super-HAD ll PS 960H CCD NTSC-1028(H)x508(V) / PAL-1028(H)x596(V) Total pixel NTSC-976(H)x494(V) / PAL-976(H)x582(V) Effective pixels Scanning system 2:1 Interlace Scanning frequency... -
Page 24: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 25: Vicon Standard Equipment Warranty
“autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. - Page 28 Vicon Industries Inc. Internet Address: www.vicon-security.com 50303798A Rev.A...
