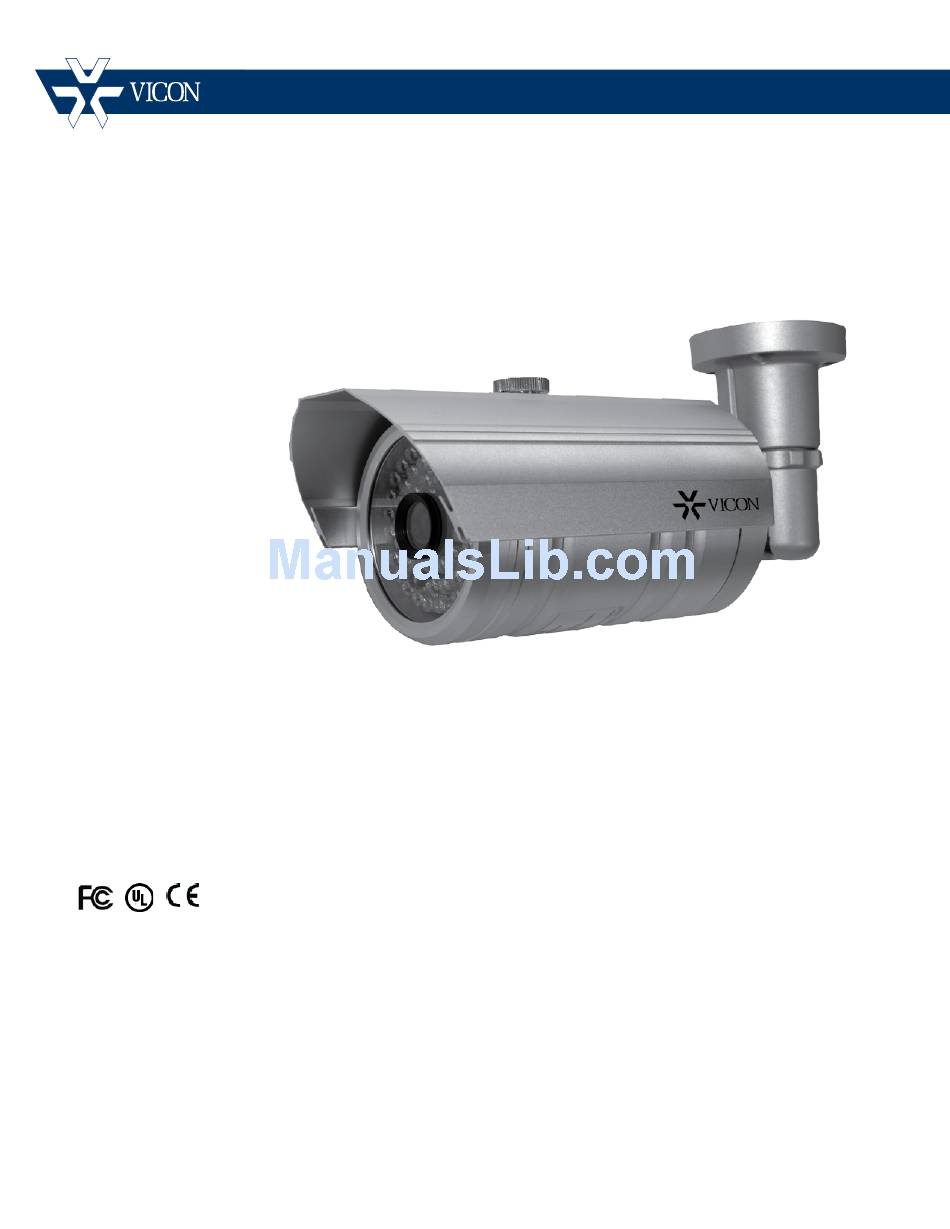

Page 1
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK).
FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL...
IMPORTANT SAFEGUARDS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
TABLE OF CONTENTS INTRODUCTION --------------------------------------------------------------------------------------- 6 PACKAGE CONTENTS ------------------------------------------------------------------------------ 7 DIMENSIONS ------------------------------------------------------------------------------------------- 7 WATER INGRESS PREVENTION----------------------------------------------------------------- 7 BASE INSTALLATION -------------------------------------------------------------------------------- 8 CAMERA CONNECTIONS -------------------------------------------------------------------------- 8 STRUCTURE OF THE SETUP MENU ----------------------------------------------------------- 10 THE DEFINITION OF TERMS ---------------------------------------------------------------------- 11 SPECIFICATIONS ------------------------------------------------------------------------------------- 18...
INTRODUCTION The camera provides high-quality images using Sony 1/3” CCD and digital Signal process LSI. Features: Sony® Super HAD™ II CCD ● High resolution and high performance Technology. ● Excellent picture quality. ● 560 TV lines (Color) of resolution. ● Motorized f=2.8-12mm Varifocal F 1.4 ●...
PACKAGE CONTENTS CAMERA SUNSHIELD L-WRENCH DRIVER SUNSHIELD-BOLT SCREWS REMOTE CONTROLLER L-Wrench Unscrew and tighten bracket screws Driver Control Zoom & Focus ring and unscrew remote control port Screw Firmly attach the bracket to the wall or ceiling DIMENSIONS WATER INGRESS PREVENTION After using the REMOTE CONTROL and lock completely the REMOTE CONTROL PORT CAP.
BASE INSTALLATION M5 X 25mm Tapping Screw (3EA) Camera Fix screws(3X) and align the bullet camera with it like Above picture. CAMERA CONNECTION ♦How to Adjust ZOOM/FOCUS Remote Controller Insert the din jack of remote controller to the hall of housing Adjust the zoom using up/down key Adjust the focus using left/right key Keyboard Controller...
Page 9
V660B-312IR CAMERA CONNECTION Number Name Description BNC connector for connection to monitor, DVR, Video switcher, etc. 2-pin terminal block used to connect to keypads, RS-485 controllers, etc. Green wire is RS-485 (+). Blue wire is RS-485 (-). 3-pin terminal block used for 24 VAC/12 VDC Power power connection.
STRUCTURE OF THE SETUP MENU <SETUP> 1. LENS 2. EXPOSURE 3. WHITE BAL <LENS> <EXPOSURE> 4. DAY NIGHT 5. 3DNR SHUTTER 6. SPECIAL BRIGHTNESS 7. ADJUST 8. RESET SENSE-UP 9. EXIT D-WDR RETURN <WHITE BAL> <DAY NIGHT> <3DNR> AUTO LEVEL AWC ->...
THE DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Exposure Adjusts the images to the optimum brightness. Flicker (FLC) Avoids image flicker when there is a discrepancy between current and frequency AGC (Automatic Gain Control)
Page 12
Resolution Controls the display of fine details. The higher the resolution, the higher level of details can be seen. 3D -NR (Digital Noise Reduction) Adjusts the illuminance noise level in low light situations by reducing image noise in order to improve the image.- 3D-NR is time-based.
Page 13
♦LENS (Selection) This function is used to adjust the brightness of the screen. 1. When the SETUP menu is displayed on the screen, please position the arrow to point to 'LENS' by using the UP and DOWN buttons. 2. Please select the type of the lens you wish to use by pressing the LEFT or RIGHT button.
♦WHITE BAL The screen color can be adjusted by using the WHITE BALANCE function. Wide range auto white balance mode. 1) AWB Please press the ENTER button while the camera is 2) AWC -> SET directed at a piece of while paper to obtain the optimum state under current illumination.
Page 15
<DAY/NIGHT AUTO MODE> <DAY/NIGHT B/W MODE> ♦3DNR (Digital Noise Reduction) You can configure the DNR(Digital Noise Reduction) related settings. If you press the Setup switch when ON is selected in 3DNR, the corresponding screen appears. ♦SPECIAL 1) CAM TITLE A. CAM TITLE B.
Page 16
2) D-EFFECT Select the real or still mode. FREEZE Reverse the screen in 3 modes selection. MIRROR (OFF / MIRROR / V FLIP / ROTATION) D-Zoom (x2~x32) / Adjust PAN / TITL D-ZOOM Adjust the luminance (0.05~1.00) GAMMA Select the negative or positive mode. NEGA / POSI 3)RS485 Select the camera ID.(001~255)
Page 17
5) PRIVACY Select MASK area number. AREA SELECT Select MASK ON/OFF AREA DISPLAY Adjust the location of the MASK area with boundary LEFT/RIGHT LEFT and RIGHT. Adjust width of MASK area WIDTH Adjust the location of the MASK area with boundary TOP/BOTTOM TOP and BOTTOM Adjust height of MASK area...
SPECIFICATIONS MODEL NTSC Power Power source DC 12V/AC 24V Power consumption 5.5W Image sensor 1/3″ SONY Super HAD CCD Total pixels 811(H) x 508(V) 795(H) x 596(V) Scanning system 2:1 Interlace Scanning frequency 15.734KHz(H) x 59.94Hz(V) 15.625KHz(H) x 50Hz(V) Sync. system Internal / Line Lock Electronic shutter 1/60~1/100,000 sec.
Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase.
Page 20
Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
