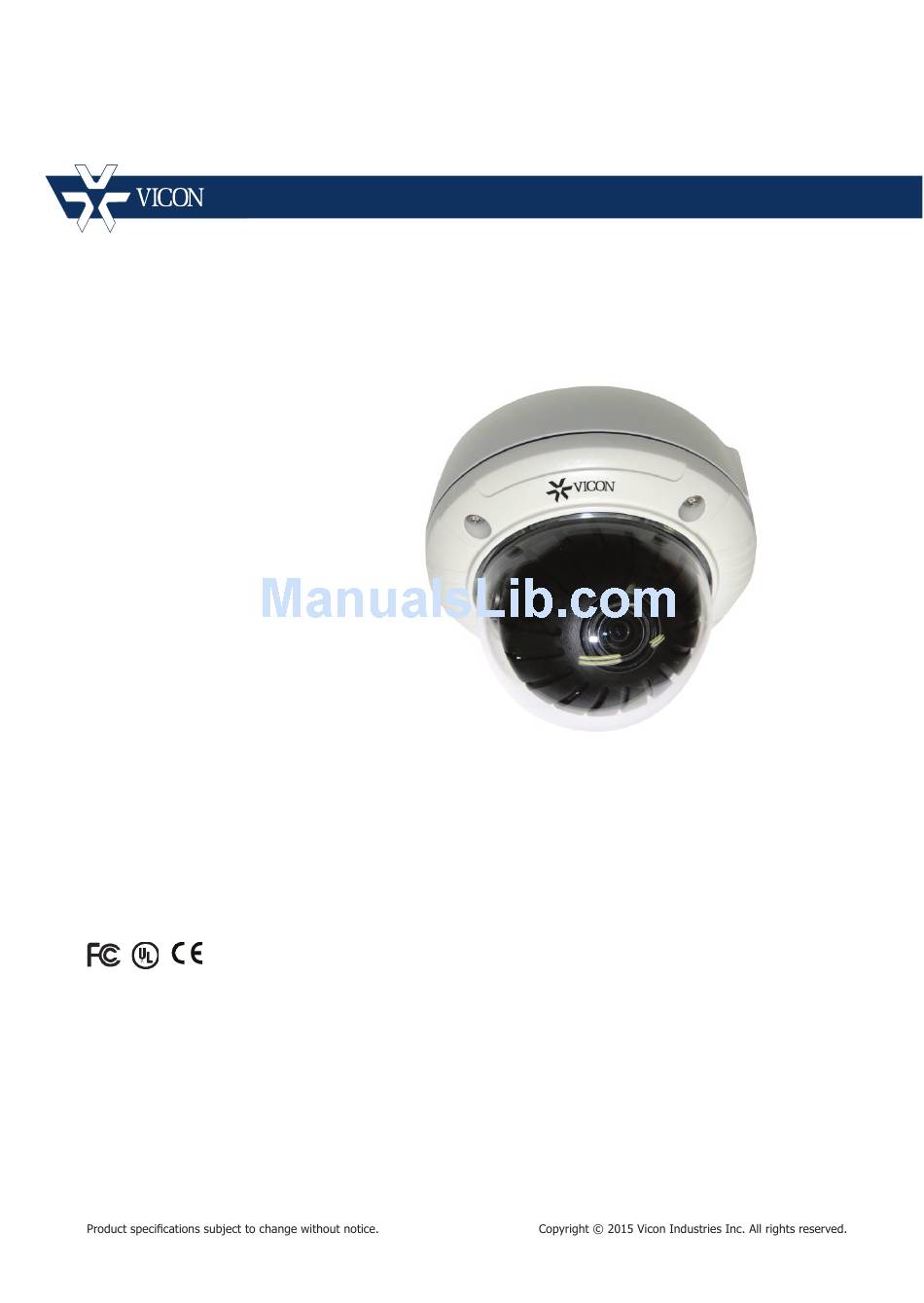

Installation and Operation Guide
XX233-01-00
V662V-2 Series Vandal-Proof
WDR Analog Camera Dome
Vicon Industries Inc.
Tel: 631-952-2288
Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8233-01-00
Issued: 0515
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vicon V662V-2 Series
Summary of Contents for Vicon V662V-2 Series
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
- Page 2 FCC COMPLIANCE STATEMENT CE COMPLIANCE STATEMENT...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS EXPLANATION OF GRAPHICAL SYMBOLS...
- Page 4 PRECAUTIONS Before installation, carefully read the manual to ensure correct operation and setup, heeding all warnings and instructions. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Ensure manual is kept in good condition for future use. Do not install the device near any heat sources such as radiators, heat registers, stoves, or other equipment (including amplifiers) that produce heat.
-
Page 5: Table Of Contents
TABLE OF CONTENTS CONTENTS OF PACKAGE ------------------------------------------------------------------------- 5 INTRODUCTION --------------------------------------------------------------------------------------- 6 CAMERA CONNECTIONS -------------------------------------------------------------------------- 7 INSTALLATION ----------------------------------------------------------------------------------------- 8 THE DEFINITION OF TERMS---------------------------------------------------------------------- 9 LENS ADJU STMENT/CAMERA OPERATION-------------------------------------------------- 11 MENU MAP ----------------------------------------------------------------------------------------------12 EXTERNAL DIMENSION ---------------------------------------------------------------------------- 23 SPECIFICATIONS ------------------------------------------------------------------------------------- 24 CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. -
Page 6: Introduction
INTRODUCTION The V662V-312D-2(-P) camera provides high-quality images using Sony 1/3” CCD and digital signal processing LSI chips. 1/3" Super-HADII PS 960H CCD Super high-resolution of 750TV lines Wide Dynamic Range (~x512) -Double shutter+ATR-EX2 Auto Electronic Shutter [1/50(60) ~ 1/100,000] and manual electronic shutter modes [1/50(60) ~ 1/10,000] 0.1 lux(Colour), 0.01 lux(B/W), 0.001 lux(Slow-Shutter) @ F1.2 50 IRE Digital Noise Reduction- 2D,3D... -
Page 7: Camera Connections 7
AC24V/DC12V AC24V/DC12V RS 485(+) RS 485 (-) BLACK GRAY DN EXT-IN <Connector Option> 1. Lens : Allows a wide area to be monitored. 2. Color Lead Wire & Color Display Label 2-1. External Day/Night Control(Option) Select Day/Night mode using external equipment, by connecting control lines to the appropriate terminals. -
Page 8: Installation
1. Loosen the four Torx screws located midway up the front of the housing leave the screws. (A) 2. Drill the mounting location using the supplied drilling guide label. (C) 3. Closing the housing using the loosen Torx screws. (B) MOUNTING HOUSING TO AN ELECTRICAL BACK BOX The housing can also be... -
Page 9: The Definition Of Terms
THE DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Auto Exposure Automatically adjusts the images to the optimum brightness. SHT(Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces, blooming overexposure, and smear when capturing moving objects. - Page 10 Frame Control Specifies how many frames are generated/transmitted in a unit of time. The more frames there are, the smoother the image will be, The television system(NTSC/PAL) has adopted 30/25 frames per second(fps) to be regarded as completely smooth image. However, when recording video data, video surveillance systems often use lower fram rates to reduce the size of the recording data.
-
Page 11: Lens Adju Stment/Camera Operation
Lens Adjustment Field of View: Adjust setting from Telephoto (T) to wide (W) for Field of View. Focus: Adjust lens focus from ∞ near (N) to infinity ( DC Autoiris Lens 2.8~12 mm Image Size 1/3" CCD Focal Length 2.8-12 mm Ape. -
Page 12: Menu Map
MENU MAP SETUP MENU 1/ 2 SCENE SELECT SCENE SELECT PICTURE ADJUST EZOOM PICT ADJUST CUSTOM BRIGHTNESS EZOOM FULL AUTO CONTRAST INDOOR SHARPNESS TILT PRIVACY MASK OUTDOOR MOTION DET COLOR GAIN BACKLIGHT SYS SETTING EXIT RETURN RETURN ADVANCED MENU SHUTTER/AGC WHITE BAL HLC/BLC WDR/ATR- EX... - Page 13 MENU MAP ADVANCED MENU LENS SHD COMP DEFOG FLK LESS ANTI CR RETURN LENS SHADE DEFOG SETUP FLK LESS ANTI CR COMP SETUP LEVEL AUTO AUTO PATTERN POSH POSV RETURN RETURN SETUP MENU SCENE SELECT PICT ADJUST EZOOM PRIVACY MASK MOTION DET SYS SETTING EXIT...
-
Page 14: Setup Menu
MENU MAP SETUP MENU 2/ 2 LANGUAGE LANGUAGE MAINTENANCE VERSION MAINTENANCE ENGLISH W.PIX MASK EXIT ESPANOL CAMERA RESET PYCCKNN PORTUGUES DEUTSCH FRANCAIS 日本語 RETURN RETURN W.PIX MASK AUTO DATA CLEAR AUTO COMP MANUAL COMP MANUAL LEVEL1 REGISTRATION LEVEL2 REG.POINT AUTO CUSOR COLOR BLINK REG.NUMBER... - Page 15 2. Picture Adjust function This menu provides functions that enable users to easily adjust the image quality to suit the image output device used. Use the sliding scales to fine tune these adjustments. Brightness - Adjusts the brightness, where a higher the number produces a brighter image. Contrast - Adjusts the image contrast (light and shade differences) by raisin g or lowering this number.
- Page 16 MASK AREA This is used for setting the no-detection area. The active point (MASK AREA 1~96) is displayed. Move from point to point using the joystick. Press the joystick to select edit point. (no-detection area). MONITOR AREA Set the position of the motion detection area. Select the area to be set up and turn area mode ON>...
- Page 17 7-5. COMMUNICATION (OPTION) This sets up communication using the RS-485 format. Protocol - RS-485 protocol (PELCO-D). Address - Select the camera ID (001 - 255). Baud Rate - Select serial communication speed. (2400/4800/9600/19200/38400/57600/115200). Databit – Internally fixed. Parity – Select OFF/ODD/EVEN. This is used to find the Bit to extract an error on the keyboard.
- Page 18 11. MAINTENANCE W.PIX MASK The white pixel detection and compensation function can automatically detect and compensate up to 64 white pixels (static detection). It is recommended that this be set to Auto and not modified. AUTO Auto mode performs the optimal operation for detecting white pixels and automatically detects the white pixels of CCD image sensors.
-
Page 19: Advanced Menu
<ADVANCED MENU> 12. SHUTTER / AGC AEME (Auto Exposure/Manual Exposure) selection, (shutter/AGC). This control adjusts the amount of exposure using the shutter speed. 12-1. AUTO Select Auto to have exposure control performed automatically. AE LEVEL (Auto Exposure Level) Set the AE level using the sliding scale. Set exposure control so that the output level (evaluation value) is the target brightness level (AE reference level). - Page 20 USER1 The USER1 functions set the White Balance gain in accordance with preset values (3200ºK). WB control does not track even if the subject color temperature changes. Use the sliding scale to adjust red or blue gain. R (R-GAIN): Adjust R-GAIN value (0-255) B (B-GAIN): Adjust B-GAIN value (0-255) USER2 The USER2 functions set the White Balance gain in accordance with preset...
- Page 21 16. DNR Digital Noise Reduction is used to reduce image noise, which is generated under low-light conditions and other high-gain states, in order to improve the image quality of the camera. LEVEL Adjusts the NR (3D+2D) strength (0~6) using the sliding scale. 17.
- Page 22 19. LENS SHD COMP The Lens Shade function compensates when the lens produces an image with uneven brightness, with the corners being less bright. Select ON or OFF. If ON is selected, more options are provided.. PATTERN When the camera views a white image, the brightness is marked as a shape (i.e., ellipse or rectangle).
-
Page 23: External Dimension
EXTERNAL DIMENSION Unit: mm (inches) 0.1 in. (3.0 mm thick), Window Size impact-resistant polycarbonate 3.9 in. (99 mm) diameter Cable Entry One 1" opening holes Weight – Unit: 1.54 lb (700 g) Shipping: 2.11 lb (960 g) External Dimensions 23... -
Page 24: Specifications
SPECIFICATIONS (Option) AC24V / DC12V - 180mA(2.2W) DC12V - 170mA(2.1W) 1/3" Super-HADII PS 960H CCD 1028(H)x508(V) 1028(H)x596(V) Effective pixels 976(H)x494(V) 976(H)x582(V) / Line Lock(Option) 750TVL 0.01 , 0.001Lux(Slow-shutter) / UTP(Option) Tact Switch, Coaxial COMM(32BIT),RS485(Pelco D) Lens DC / MANUAL Scene Select CUSTOM / FULL AUTO / INDOOR / OUTDOOR / BACKLIGHT / ITS White Balance ATW/ PUSH/ USER1/ USER2/ MANUAL/ PUSH LOCK... -
Page 25: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 26: Vicon Standard Equipment Warranty
“autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 10. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. - Page 27 Except as provided in this written warranty and to the extent permitted by law, neither VIcon nor any affiliated shall be liable for any loss, (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory.
- Page 28 Vicon Industries Inc. Internet Address: www.vicon-security.com Rev.A/50303799A...
