Installation and Operation Guide

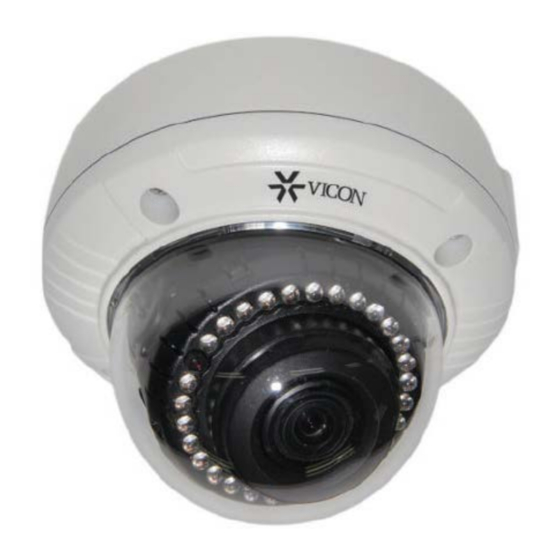

V672D HD Analog Dome Cameras

Vicon Industries Inc. does not warrant that the functions contained in this equipment will

meet your requirements or that the operation will be entirely error free or perform

precisely as described in the documentation. This system has not been designed to be

used in life-critical situations and must not be used for this purpose.

Document Number: 8009-8299-10-00 Product specifications subject to change without

XX299-10

Vicon Industries Inc.

Tel: 631-952-2288) Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON

(800-348-4266) UK: 44/(0) 1489-566300

www.vicon-security.com

Table of Contents

Need help?

Do you have a question about the V672D and is the answer not in the manual?

Questions and answers

Summary of Contents for Vicon V672D

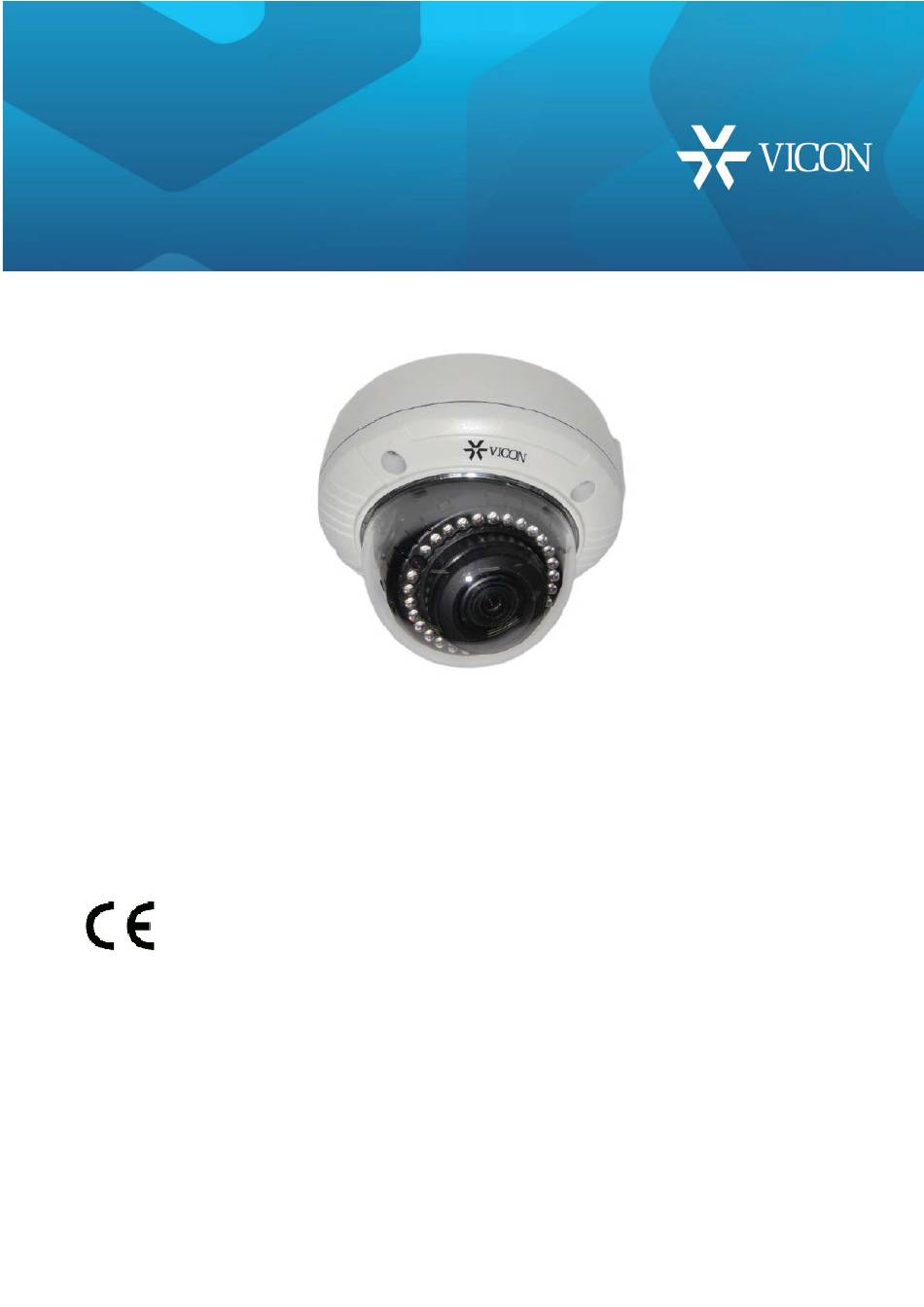

Page 1 Installation and Operation Guide V672D HD Analog Dome Cameras XX299-10 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform Vicon Industries Inc.
Page 2 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 3 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions.\ 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Page 4 PRECAUTIONS Before installation, carefully read the manual to ensure correct operation and setup, heeding all warnings and instructions. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Ensure manual is kept in good condition for future use. Do not install the device near any heat sources such as radiators, heat registers, stoves, or other equipment(including amplifiers) that produce heat.
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ------------------------------------------------------------------------- 6 CAMERA CONNECTION -------------------------------------------------------------- 7 LENS ADJUSTMENT ------------------------------------------------------------------- 7 CONTENTS OF PACKAGE ----------------------------------------------------------- 8 INSTALLATION --------------------------------------------------------------------------- 9 STRUCTURE OF THE SETUP MENU --------------------------------------------- 13 DC AUTO IRIS LENS ------------------------------------------------------------------- 19 SPECIFICATIONS ----------------------------------------------------------------------- 20 EXTERNAL DIMENSION ------------------------------------------------------------ 21...
Page 6 INSTRUCTION The 1/2.8” 2.1M Full HD CMOS camera, especially for closed circuit television CCTV and security surveillance application. Features: • High performance SONY 1/2.8” 2.1M STARVIS CMOS • Min. illumination 0.03 lux(Color), 0 lux(BW, IR LED ON) • Auto electronic shutter [1/30 (1/25) ~ 1/30,000] and manual electronic shutter modes •...
Page 7: Camera Connection
CAMERA CONNECTION ① Lens: Allows a wide area to be monitored. ② Power: 24 VAC/12 VDC power source from a 12 VDC or 24 VAC ±10%, 60/50Hz±1Hz; use Certified/Listed Class 2 power source only. 12 VDC Type => 12 VDC ±10% (12 VDC is polarity dependent) If using 12 VDC power adaptor, use power supply capable of supplying 8 Watts.
Page 8: Lens Adjustment
LENS ADJUSTMENT Tact Switch for motorized lens control without being in the OSD: Up – Zoom in Down – Zoom out The lens will then autofocus the lens based on the overall scene being viewed. CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes.
Page 9: Installation
INSTALLATION - Surface Mount 1. Loosen the three Torx screws as shown in Figure 1. Do not remove the screws. Lift the trim ring off the mount and set aside. 2. Drill the mounting location using the supplied drilling guide. 3.
Page 10 INSTALLATION - Surface Mount １０...
Page 11 INSTALLATION - In Ceiling Note: The ceiling tile cannot be thinner than 0.15 in. (3.7 mm) 1. Loosen the three Torx screws as shown in Figure 1. Do not remove the screws. Lift the trim ring off the mount and set aside. Note: Set the surface mount aside.
Page 12 INSTALLATION - In Ceiling CAUTION: Adjusting the position of the camera after installation could potentially damage the cable.  Adjusting the 3-Axis Gimbal Rotation 360° Tilting 60° Panning 360° １２...
Page 13: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <MENU> FOCUS SETUP EXPOSURE <FOCUS SETUP> <EXPOSURE> BACKLIGHT DAY&NIGHT AF MODE IRIS SCANNING BRIGHTNESS ONPUSHAF SHUTTER IMAGE SYNC TDN SENS-UP SYSTEM INITIAL EXIT RETURN RETURN <BACKLIGHT> <DAY&NIGHT> <AWB> EXTERN AUTO AUTO AUTOext COLOR PRESET B&W MANUAL <IMAGE>...
Page 14 FOCUS SETUP The FOCUS SETUP menu provides the ability to adjust the AF MODE, SCANNING, ONEPUSHAF, SYNC TDN and INIT functions of the camera. 1) AF MODE: Auto, Manual Select the range of focusing during Auto mode: ▶HALF, FULL 2) SCANNING: 3) ONEPUSHAF: Will focus the camera 4) SYNC TDN:...
Page 15 <EXPOSURE> Mode MAIN MENU SHUTTER EXPOSURE  FOCUS SETUP MODE INDOOR   ▶ EXPOSURE IRIS RETURN BACKLIGHT BRIGHTNESS ┃-----┃ DAY&NIGHT SHUTTER EXTERN AUTO AUTO SENS-UP ┃-----┃   IMAGE RETURN  SYSTEM EXIT BACKLIGHT The BACKLIGHT menu is used to the ability to prevent back lighting from the image. 1) HLC: Improves the ability to identify subjects in brightly lit situations by filtering out (masking) the strength of the light.
Page 16 <BACK LIGHT> Mode MAIN MENU  FOCUS SETUP  ┃-----┃ EXPOSURE LEVEL H-POS ▶ BACKLIGHT COLOR V-POS  DAY&NIGHT RETURN H-SIZE EXTERN AUTO V-SIZE  RETURN  IMAGE  SYSTEM EXIT MODE NORMAL WEIGHT MIDDLE  RETURN DAY&NIGHT The DAY&NIGHT menu is used to configure how the camera handles color and changes between the day and night modes.
Page 17 <DAY & NIGHT> Mode MAIN MENU EXTERN AUTO  FOCUS SETUP  ┃-----┃ ┃-----┃ EXPOSURE ANTI-SAT. ANTI-SAT. ┃-----┃ BACKLIGHT EXTERN SW AGC THRES ▶ ┃-----┃ ┃-----┃ DAY&NIGHT D>N THRES AGC MARGIN EXTERN ┃-----┃ AUTO N>D THRES DELAY  DELAY RETURN ...
Page 18 The DNR menu provides the ability to adjust the DNR (Digital Noise Reduction) functions of the camera. Select DNR: ▶LOW, MIDDLE, HIGH 1) DNR: When CVBS video is connected, the DNR function cannot be turned on. Note: IMAGE The IMAGE menu provides the ability to adjust the COLOR GAIN, SHARPNESS, GAMMA, MIRROR, FLIP, D-WDR, DEFOG, PRIVACY and MOTION functions of the camera.
Page 19 Select the motion area transparency: ▶0 - 3 DET TONE Select how the motion area is displayed: ▶ ON, OFF MDRECT FILL When On, the motion area box fills with transparent red when motion is detected; when Off, the box will just have a border.
Page 20: Dc Auto Iris Lens
Y GAIN Adjust the Y gain: 0 ~ 255 CB GAIN Adjust the CB gain: 0 ~ 255 CR GAIN Adjust the CR gain: 0 ~ 255 POSITION Adjust the position: 0 ~ 255 BURST FREQ Adjust the burst frequency: 0 ~ 255 BURST GAIN Adjust the burst gain:...
Page 21: Specifications
SPECIFICATION V672D-W312MIR MODEL Power Source 24 VAC ± 10%/12 VDC ± 10% Power Power Consumption Max 7.2 Watts (600mA) Image Sensor 1/2.8" 2.1M Sony CMOS Total Pixels 1945 H) x 1109 (V) Active Pixels 1937 (H) x 1097 (V) Scanning System 16:9 Progressive Sync.
Page 22: External Dimension
One Shot AF Enter SYNC TDN OFF/ON Lens Initialize Enter EXIT EXIT (Auto Save) Power input Terminal Block Video output BNC 1 Connector (TVI/AHD)/BNC 2 Connector (CVBS) Transmission Distance Over 500m via 5C-2V coaxial cable Lens mount Fixed mount Connector Lens 2 Motor, f=2.8~12mm F1.4~360 Varifocal, ICR (D&N) &...
Page 23 Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
Page 24 “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
Page 25 (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory. Notwithstanding the foregoing, Vicon total liability for all claims under this warranty shall not exceed the price paid for the product.
Page 26 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
