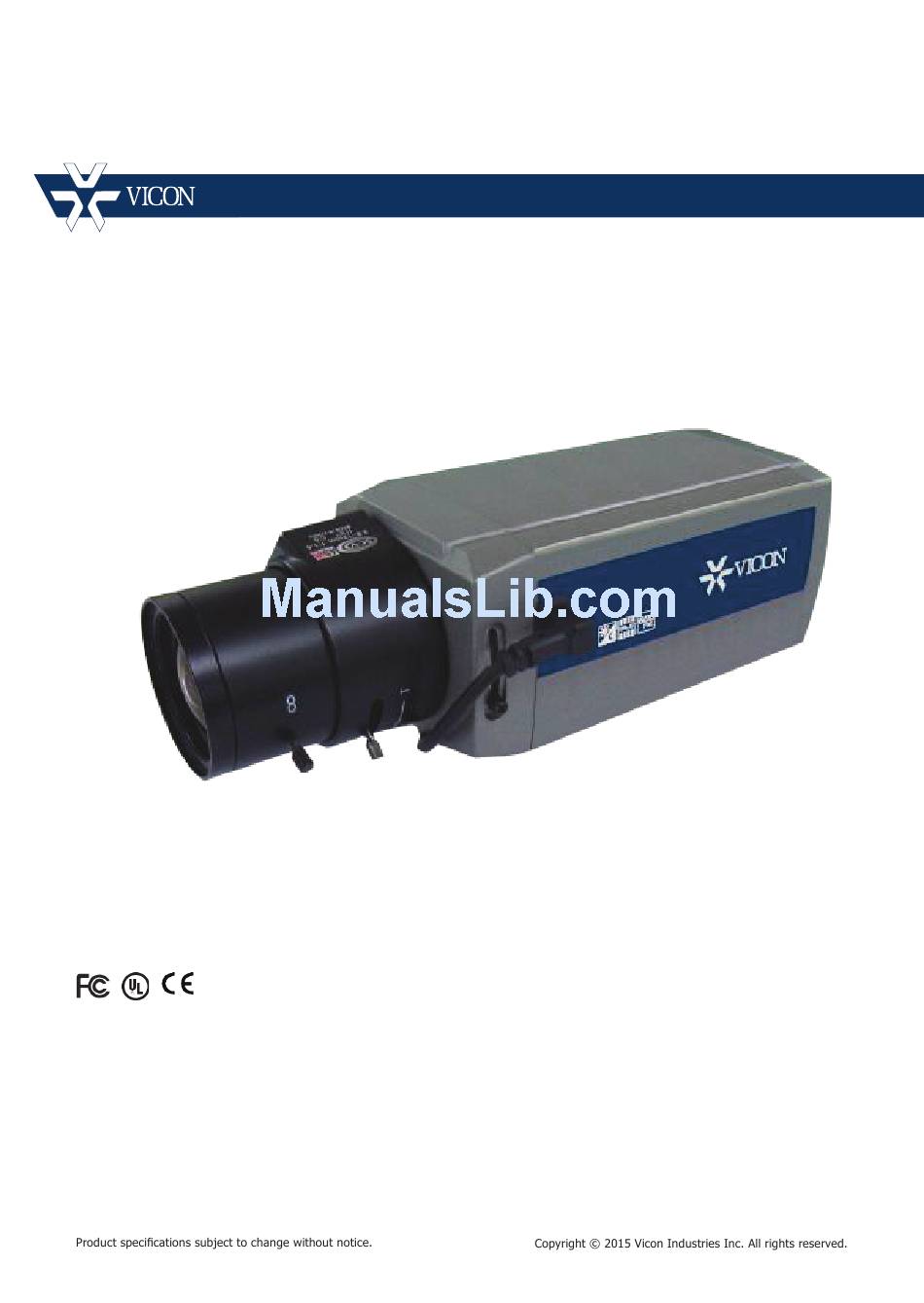

V661-N-1 Series High-Resolution
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8235-02-00
Installation and Operation Guide

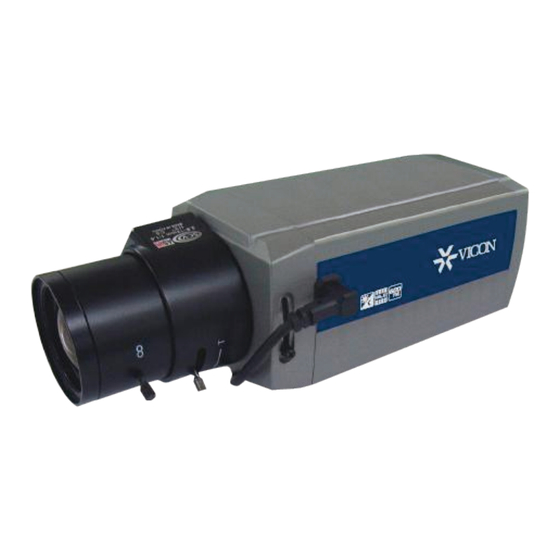

Analog Day/Night Camera
Vicon Industries Inc.
www.vicon-security.com
XX235-02-00
Issued: 513

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V661-N-1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vicon V661-N-1 Series

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2: Fcc Compliance Statement

    FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC IMFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. . Do not block any ventilat ion openings. Install in accord ance with the manufacturer`s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 4 (Auto / Color / BW)
  • Page 5: Contents Of Package

    CONTENTS OF PACKAGE BOTTOM VIEW 66 (2.6) Unit: mm (inches) Left Button Up Button Enter Button Right Button Down Button Power Indicator Video Out Connector (BNC) AC / DC Compatible Input Terminal REAR VIEW...
  • Page 6: The Definition Of Terms

    THE DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Auto Exposure Automatically adjusts the images to the optimum brightness. SHT(Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces, blooming overexposure, and smear when capturing moving objects.
  • Page 7: Iris Control

    Frame Control Specifies how many frames are generated/transmitted in a unit of time. The more frames there are, the smoother the image will be, The television system(NTSC/PAL) has adopted 30/25 frames per second(fps) to be regarded as completely smooth image. However, when recording video data, video surveillance systems often use lower fram rates to reduce the size of the recording data.
  • Page 9 Use the joystick to navigate the setup menus. Move it up or down to move the cursor to select the menu option, left or right to view setting options and press to select. 1. On the SETUP menu, position the arrow to point to LENS by moving the joystick UP and DOWN.
  • Page 10 Use the WHITE BALANCE function to adjust the color according to the lighting conditions of the scene. 1) ATW1 Set the color temperature 2500˚K - 10000˚K 2) ATW2 Set the color temperature 2000˚K -13000˚K 3) AUTO -> SET Press the joystick button while the camera is directed at a piece of white paper to obtain the optimum state under current illumination.
  • Page 11 The DAY / NIGHT menu is used to configure how the camera handles color and changes between day and night mode. This camera can turn the IR (infrared) filter on or off by selecting B/W mode. Modes: AUTO / COLOR / B/W. From AUTO, adjust the day and night transition settings. Dead Pixel Compensation (DPC) finds dead pixels in the image, marks them digitally and compensates for them to get a complete image.
  • Page 12 The motion menu allows the camera to be configured for detecting motion (MD) in the scene. Up to 4 detection areas can be configured. This can be turned ON or OFF. When motion is detected in the selected area, the detection areas are displayed on the screen when turned ON.
  • Page 13 3) PRIVACY The privacy mask function hides areas of a scene that the user does not want to display. Up to 8 masks can be configured. AREA SELECT Select MASK area number (AREA1 ~ AREA8) Select MASK ON / OFF AREA STATE Adjust height of MASK area HEIGHT...
  • Page 14: Image Adjust

    IMAGE ADJUST provides image adjustment features for the camera. Adjust lens shading level (0~255) to adjust image brightness in the corners 1) LENS SHAD Select 2DNR ON / OFF to adjust the luminance noise level in low light situations 2) 2DNR Select MIRROR ON / OFF to reverse the image on the horizontal frame (left-right) as seen in a mirror 3) MIRROR...
  • Page 15 This terminal accepts 24 VAC input / 12 VDC input power source from a 12 VDC or 24 VAC ±10% 60/50Hz ± 1Hz * If using 12 VDC power adaptor, use a power supply capable of supplying 500 mA. The lens is not supplied with the camera. Be sure to use a lens suitable for the camera environment.
  • Page 16 AC 24V / DC 12V - 200mA (2.5 Watts) DC 12V - 130mA (1.6 Watts) 1020(H) x 508(V) 1020(H) x 596(V) 976(H) x 494(V) 976(H) x 582(V) 245g Packing 350g...
  • Page 17: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
  • Page 18: Vicon Standard Equipment Warranty

    “autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 10. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 19 Except as provided in this written warranty and to the extent permitted by law, neither VIcon nor any affiliated shall be liable for any loss, (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory.
  • Page 20 Vicon Industries Inc. Internet Address: www.vicon-security.com Rev.A / 50303777A...
