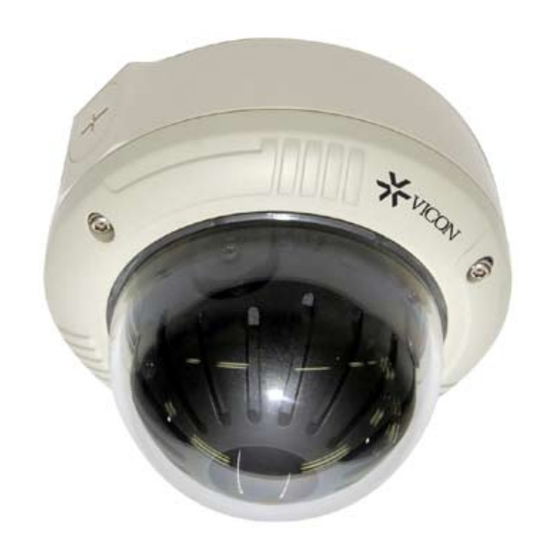

Indoor/outdoor analog camera dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

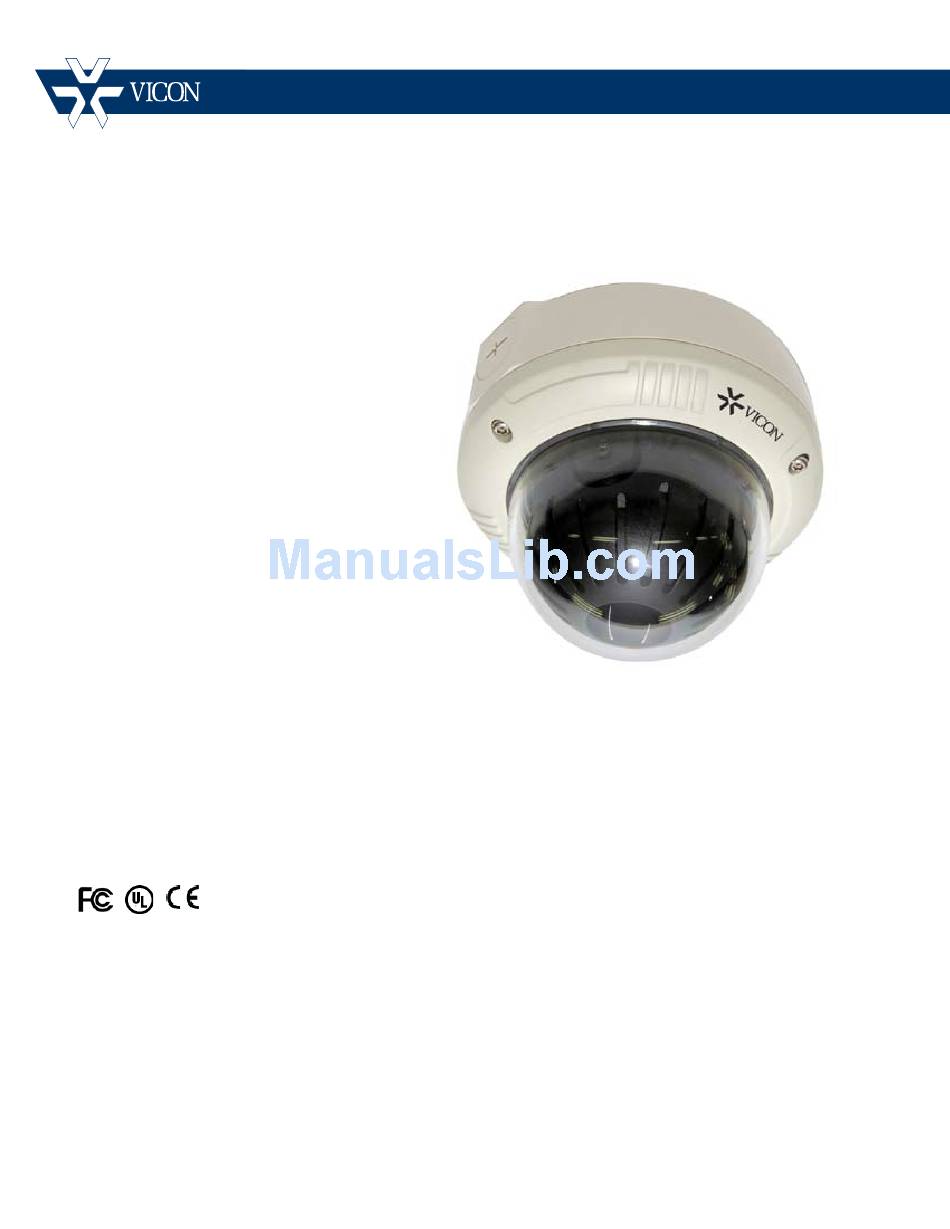

Installation and Operation Guide
XX229-20-01
V661D-312IR Indoor/Outdoor
Analog Camera Dome
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288
Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8229-20-01
Issued: 1011
Product specifications subject to change without notice.
Copyright © 2011 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V661D-312IR and is the answer not in the manual?

Questions and answers

Related Manuals for Vicon V661D-312IR

Summary of Contents for Vicon V661D-312IR

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOL The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 5 INTRODUCTION The camera provides high-quality images using Sony CCD technology especially designed for closed-circuit television (CCTV) and security surveillance applications. Features: High resolution and high performance 1/3" Sony® Super HAD™ II Technology Excellent picture quality 600 lines(Color) of resolution 30EA, 850nm IR LED 0.14 Lux(Color), 0.03 Lux(B/W) @ F1.2, 30IRE Sensitivity Auto electronic shutter [1/60(1/50) ~ 1/100,000] and manual electronic shutter modes OSD (On Screen Display)
  • Page 6 GREEN : RS 485+ BLUE : RS485 -...
  • Page 12 THE DEFINITION TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Exposure Adjusts the images to the optimum brightness. SHT (Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces blooming, overexposure, and smear when capturing moving objects.
  • Page 13 Resolution Controls the display of fine details. The higher the resolution, the higher level of details can be seen. 3D -DNR (Digital Noise Reduction) Adjusts the illuminance noise level in low light situations by reducing image noise in order to improve the image.- 3D-NR is time-based.
  • Page 14 CAMERA OPERATION WITH O.S.D <MAIN MENU> EXPOSURE SET COLOR SET <EXPOSURE> < COLOR > DAY & NIGHT SET LENS WB MODE SPECIAL SET E. SHUTTER MOTION DET. R-Y GAIN PRIVACY SET B-Y GAIN SETUP RETURN EXIT SENSE UP RETURN <SPECIAL> <...

  • Page 15: Osd Main Screen

    OSD MAIN SCREEN ALL operation is via the tact switch [CENTER] Turn OSD menu ON or to go into Sub Menu [UP] / [DOWN] UP or DOWN of Cursor [LEFT] / [RIGHT] Change setting <EXPOSURE SET> Press the [ENTER] button to access the “EXPOSURE SET” mode. Select the type of lens.
  • Page 16 <COLOR SET> Press the [ENTER] button to access the “COLOR SET” mode 1) WB MODE : WB Setting (White Balance) Select AWC/ATW/MANUAL/PUSH LOCK (adjust white balance) Select MANUAL WB (Manual white balance mode) Sub Menu -Select M.WB R (Adjust Red level when using manual WH) Sub Menu -Select M.WB B (Adjust Blue level when using manual WH) Adjust RED gain 2) R-Y GAIN :...

  • Page 17: Special Set

    <SPECIAL SET> Press the [ENTER] button to access the “SPECIAL SET” mode OFF/MIRROR/V_FLIP/ROTATE Selectable 1) MIRROR : (left&right / up&down / rotate) Adjust Sharpness (Image sharpness can be adjusted) 2) SHARPNESS : GAMMA Setting 3) GAMMA : Select 0.45/0.6/1.0(Adjust gamma level) Image freeze function 4) FREEZE : 5) NEGA.
  • Page 18 <PRIVACY SET> Press the [ENTER] button to access the “PRIVACY SET” Mode MASK1 Screen setting 1) MASK1 : MASK2 Screen setting 2) MASK2 : MASK3 Screen setting 3) MASK3 : MASK4 Screen setting 4) MASK4 : MASK5 Screen setting 5) MASK5 : MASK6 Screen setting 6) MASK6 : Return to Main menu.

  • Page 20: Specifications

    SPECIFICATIONS Power source AC24V ± 10% / DC12V ± 10% Power Power consumption 0.42A (5.0 Watts) max 1/3" Sony Super HAD II Image sensor Total number of pixels NTSC : 811(H) x 508(V), PAL : 795(H) x 596(V) Scanning system 2:1 interlace NTSC : 15.734KHz(H) x 59.94Hz(V) Scanning frequency...
  • Page 21 Video Picture POSI / NEGA Sharpness 0~49 Mirror OFF / MIRROR / V-FLIP / ROTATE Sync INTER / AUTO Zoom & Pan/Tilt ZOOM (X1~X3), PAN(-128~+127), TILT(-82~+81) V - Phase (LineLock) 0 ~ 199 Camera ID 0 ~ 254 EXIT EXIT / SAVE & EXIT / FACTORY SET Power input 2-Pin Wire Video output...

  • Page 22: Vicon Standard Equipment Warranty

    Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: VCRs, all models: Labor and video heads warranted for 120 days from date of original retail purchase.
  • Page 23 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
