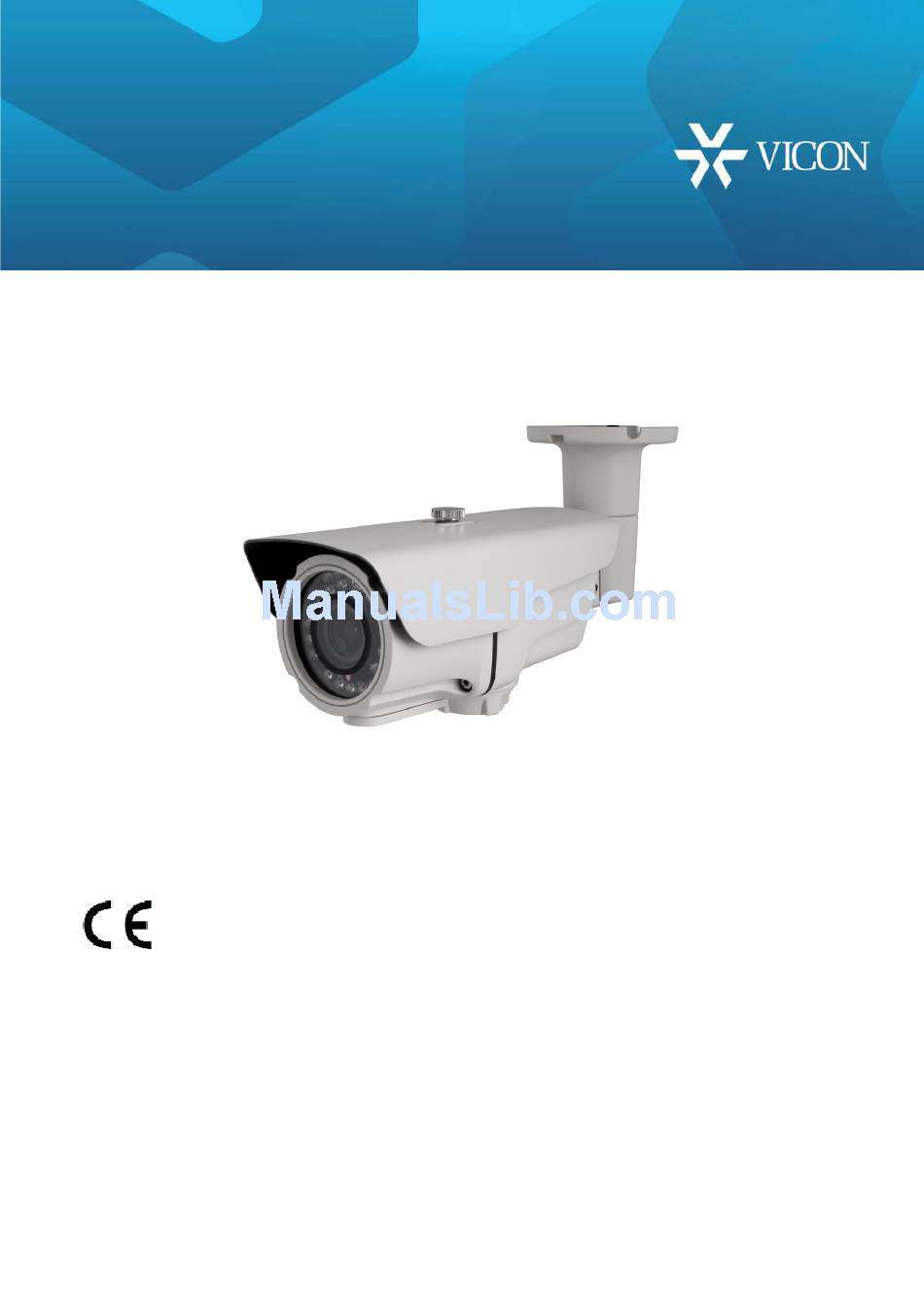

Installation and Operation Guide
V672B HD Analog Bullet Cameras
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform
precisely as described in the documentation. This system has not been designed to be
used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8299-30-00 Product specifications subject to change without
notice. Issued: 2/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
XX299-30
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com
Advertisement
Table of Contents
Related Manuals for Vicon V672B
Summary of Contents for Vicon V672B
- Page 1 Installation and Operation Guide V672B HD Analog Bullet Cameras XX299-30 Vicon Industries Inc. does not warrant that the functions contained in this equipment will Vicon Industries Inc. meet your requirements or that the operation will be entirely error free or perform Tel: 631-952-2288) Fax: 631-951-2288 precisely as described in the documentation.
-
Page 2: Fcc Compliance Statement
FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions.\ 3. Heed all warnings. 4. Follow all instructions. 5. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 6. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 PRECAUTIONS Before installation, carefully read the manual to ensure correct operation and setup, heeding all warnings and instructions. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. Ensure manual is kept in good condition for future use. Do not install the device near any heat sources such as radiators, heat registers, stoves, or other equipment(including amplifiers) that produce heat.
-
Page 5: Table Of Contents
TABLE OF CONTENTS INTRODUCTION -------------------------------------------------------------------------- 6 CAMERA CONNECTION --------------------------------------------------------------- 7 LENS ADJUSTMENT -------------------------------------------------------------------- 7 CONTENTS OF PACKAGE ------------------------------------------------------------ 8 INSTALLATION ---------------------------------------------------------------------------- 8 STRUCTURE OF THE SETUP MENU ----------------------------------------------- 9 DC AUTO IRIS LENS ------------------------------------------------------------------- 15 SPECIFICATIONS ----------------------------------------------------------------------- 16 EXTERNAL DIMENSION ------------------------------------------------------------ 18... - Page 6 INSTRUCTION The 1/2.8” 2.1M Full HD CMOS camera, especially for closed circuit television CCTV and security surveillance application. Features: • High performance SONY 1/2.8” 2.1M STARVIS CMOS • Min. illumination 0.03 lux (Color), 0 lux(BW, IR LED ON) • Auto electronic shutter [1/30 (1/25) ~ 1/30,000] and manual electronic shutter modes •...
-
Page 7: Camera Connection
CAMERA CONNECTION ① Power: 24 VAC/12 VDC power source from a 12 VDC or 24 VAC ±10%, 60/50Hz±1Hz; use Certified/Listed Class 2 power source only. 12 VDC Type => 12 VDC ±10% (12 VDC is polarity dependent) If using 12 VDC power adaptor, use power supply capable of supplying 8 Watts. ②... -
Page 8: Lens Adjustment
LENS ADJUSTMENT Tact Switch for motorized lens control without being in the OSD: Up – Zoom in Down – Zoom out The lens will then autofocus the lens based on the overall scene being viewed. CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. -
Page 9: Installation
INSTALLATION CAUTION Adjusting the position of the camera after installation could potentially damage the cable. ９... -
Page 10: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <MENU> FOCUS SETUP EXPOSURE <FOCUS SETUP> <EXPOSURE> BACKLIGHT DAY&NIGHT AF MODE IRIS SCANNING BRIGHTNESS ONPUSHAF SHUTTER IMAGE SYNC TDN SENS-UP SYSTEM INITIAL EXIT RETURN RETURN <BACKLIGHT> <DAY&NIGHT> <AWB> EXTERN AUTO AUTO AUTOext COLOR PRESET B&W MANUAL <IMAGE>... - Page 11 FOCUS SETUP The FOCUS SETUP menu provides the ability to adjust the AF MODE, SCANNING, ONEPUSHAF, SYCN TDN and INIT functions of the camera. 1) AF MODE: Auto, Manual Select the range of focusing during Auto mode: ▶HALF, FULL 2) SCANNING: 3) ONEPUSHAF: Will focus the camera 4) SYNC TDN:...
- Page 12 <EXPOSURE> Mode MAIN MENU SHUTTER EXPOSURE FOCUS SETUP MODE INDOOR ▶ EXPOSURE IRIS RETURN ┃-----┃ BACKLIGHT BRIGHTNESS DAY&NIGHT SHUTTER EXTERN AUTO AUTO SENS-UP ┃-----┃ IMAGE RETURN SYSTEM EXIT BACKLIGHT The BACKLIGHT menu is used to the ability to prevent back lighting from the image. 1) HLC: Improves the ability to identify subjects in brightly lit situations by filtering out (masking) the strength of the light.
- Page 13 <BACK LIGHT> Mode MAIN MENU FOCUS SETUP ┃-----┃ EXPOSURE LEVEL H-POS ▶ BACKLIGHT COLOR V-POS DAY&NIGHT RETURN H-SIZE EXTERN AUTO V-SIZE RETURN IMAGE SYSTEM EXIT MODE NORMAL WEIGHT MIDDLE RETURN DAY&NIGHT The DAY&NIGHT menu is used to configure how the camera handles color and changes between the day and night modes.
- Page 14 <DAY & NIGHT> Mode MAIN MENU EXTERN AUTO FOCUS SETUP ┃-----┃ ┃-----┃ EXPOSURE ANTI-SAT. ANTI-SAT. BACKLIGHT EXTERN SW AGC THRES ┃-----┃ ▶ ┃-----┃ ┃-----┃ DAY&NIGHT D>N THRES AGC MARGIN EXTERN AUTO N>D THRES ┃-----┃ DELAY DELAY RETURN ...
- Page 15 The DNR menu provides the ability to adjust the DNR (Digital Noise Reduction) functions of the camera. Select DNR: ▶LOW, MIDDLE, HIGH 1) DNR: Note: When CVBS video is connected, the DNR function cannot be turned on. IMAGE The IMAGE menu provides the ability to adjust the COLOR GAIN, SHARPNESS, GAMMA, MIRROR, FLIP, D-WDR, DEFOG, PRIVACY and MOTION functions of the camera.
- Page 16 Select the motion area transparency: ▶0 - 3 DET TONE Select how the motion area is displayed: ▶ON, OFF MDRECT FILL When On, the motion area box fills with transparent red when motion is detected; when Off, the box will just have a border.
- Page 17 Adjust the CB gain: ▶0 ~ 255 CB GAIN Adjust the CR gain: ▶0 ~ 255 CR GAIN Adjust the position: ▶0 ~ 255 POSITION Adjust the burst frequency: ▶0 ~ 255 BURST FREQ Adjust the burst gain: ▶0 ~ 255 BURST GAIN Select the B&W mode burst on/off: ▶BURST ON, BURST OFF B&W...
-
Page 18: Dc Auto Iris Lens
2.8-12mm Aperture Ratio 1:1.2 Angular DIAGONAL Field of View 2.8mm : 103º 12mm : 30º SPECIFICATION V672B-W312MIR MODEL Power Source 24 VAC ± 10%/12 VDC ± 10% Power Power Consumption Max 7.5 Watts (630mA) Image Sensor 1/2.8" 2.1M Sony CMOS... - Page 19 Flip OFF/ON Shading OFF/ON Motion Detection OFF/ON (4 zones) Privacy Masking OFF/ON (16 zones) Language ENG/CHN/CHN(S)/JPN/KOR Video mode 60Hz (NTSC)/50Hz (PAL) AF Mode AUTO/MANUAL Scanning HALF/FULL One Shot AF Enter SYNC TDN OFF/ON Lens Initialize Enter EXIT EXIT (Auto Save) Power input Terminal Block Video output...
-
Page 20: External Dimension
EXTERNAL DIMENSION ２０... -
Page 21: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 22: Vicon Standard Equipment Warranty
“autopan” or “tour” modes of operation. Such continuous operation is outside the scope of this warranty. 11. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. - Page 23 (including loss of data and information), inconvenience, or damage, including, but not limited to, direct, special, incidental or consequential damages, resulting from the use or inability to use the Vicon product, whether resulting from breach of warranty or any other legal theory. Notwithstanding the foregoing, Vicon total liability for all claims under this warranty shall not exceed the price paid for the product.
- Page 24 VICON INDUSTRIES INC. For office locations, visit the website: www.vicon-security.com...
