Vicon V682-PTZ User Manual

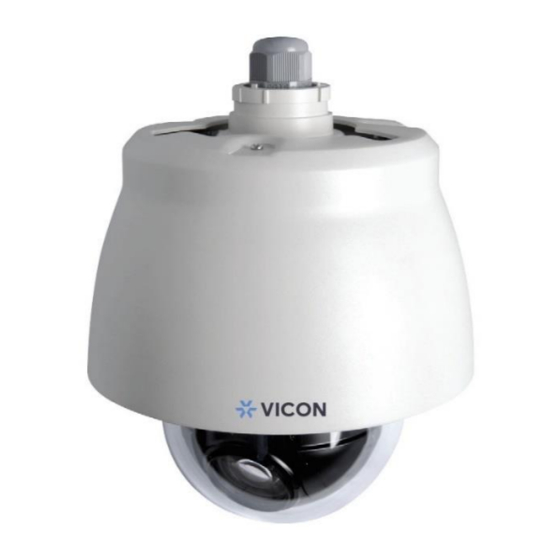

Outdoor analog ptz dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
V682-PTZ
Outdoor Analog PTZ Dome Camera
XX307-20-00
Vicon Industries Inc. does not warrant that the functions contained in this equipment will
meet your requirements or that the operation will be entirely error free or perform precisely as
described in the documentation. This system has not been designed to be used in
life-critical situations and must not be used for this purpose.
Document Number: 8009-8307-20-00 Product specifications subject to change without notice.
Issued: 6/2021 Copyright © 2021 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: 631-952-2288) Fax: 631-951-2288
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
UK: 44/(0) 1489-566300
www.vicon-security.com
(800-348-4266)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V682-PTZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon V682-PTZ

Summary of Contents for Vicon V682-PTZ

  • Page 1 Outdoor Analog PTZ Dome Camera XX307-20-00 Vicon Industries Inc. Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as Tel: 631-952-2288) Fax: 631-951-2288 described in the documentation.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OTHER OPENINGS EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE.
  • Page 3 FCC COMPLIANCE STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

  • Page 5: Table Of Contents

    Contents Chapter 1 — Introduction ....................6 1.1 Features ..........................6 Chapter 2 — Installation and Configuration ..............7 2.1 Package Contents ......................7 2.2 Mounting the Camera ......................8 2.2.1 Wall Mounting ......................9 2.2.2 Ceiling Mounting ..................... 10 2.3 Basic Configuration of Dome Camera System ..............

  • Page 6: Chapter 1 - Introduction

    Chapter 1 — Introduction 1.1 Features • Built-in optical power zoom camera with True Night Shot function. • 240 preset positions with the individual camera AE setup. • 8 tours, consisting of presets, patterns, auto scans and other tours, can be programmed with over 300 functions and preset locations.

  • Page 7: Chapter 2 - Installation And Configuration

    Chapter 2 — Installation and Configuration 2.1 Package Contents This system comes with the following components; * Dome Camera * Instruction Manual (this document) * Accessory Kit & Connectors 1) Torx wrench 2) 2-Pin Terminal Block 3) 3-Pin Terminal Block 4) 4-Pin Terminal Block 5) 5-Pin Terminal Block * Install Adaptor...

  • Page 8: Mounting The Camera

    2.2 Mounting the Camera An optional mount kit, either a wall mount or a ceiling mount, is required for installation. The wall or ceiling mount must be attached to a structural object such as hard wood or concrete that will support the weight of the mount and dome camera. The use of a solid backboard is recommended when attaching to gypsum walls.

  • Page 9: Wall Mounting

    2.2.1 Wall Mounting The wall mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to reach the middle of the wall mount.

  • Page 10: Ceiling Mounting

    2.2.2 Ceiling Mounting The ceiling mounting plate must be attached to a structural object such as concrete that will support the weight of the mount and dome camera. 1. Select a suitable mounting location and verify there is sufficient cable to connect with cables from the housing.

  • Page 11: Basic Configuration Of Dome Camera System

    2.3 Basic Configuration of Dome Camera System Type Description 3-PIN CAMERA POWER TERMINAL BLOCK 3-PIN HEATER & FAN TERMINAL BLOCK (24 VAC) TX+: RS485+ (A) 2-PIN TERMINAL BLOCK TX-: RS485- (B) A1: ALARM INPUT 1 A2: ALARM INPUT 2 5-PIN A3: ALARM INPUT 3 TERMINAL BLOCK A4: ALARM INPUT 4...

  • Page 12: Setting Dome Camera (Dip Switch)

    HD-TVI Output NTSC AHD Output You can set the PTZ coaxial protocol with D3 and D4 in S1. By default, the unit will auto-detect the system controlling the unit; the unit is set to Vicon protocol. S1-D3 S1-D4 HD-TVI Output...

  • Page 13: Setting Dome Camera Address (Id)

    2.5 Setting Dome Camera Address (ID) To prevent damage, each dome camera must have a unique address (ID). The factory default setting is 1. When using ViconNet, the dome ID is set in the VMS. Refer to 3.10 Dome Communication section for detailed information. 2.6 Connections •...

  • Page 14: Getting Started

    2.7 Getting Started Note: This manual pertains to working with Vicon protocol on a ViconNet/Valerus VMS or Vicon keypad. After dome camera is installed, installed apply power to the dome camera. The dome camera will start a configuration sequence. ViconNet screen...

  • Page 15: Programming

    The programming instructions below are based on Vicon protocol. The dome can be controlled by a Vicon keypad or by a Vicon VMS system, ViconNet or Valerus. When using the camera with ViconNet, the camera ID is assigned within the ViconNet programming system. Only a user with administrator privileges can perform these functions.

  • Page 16: Auto Scan

    3.4 Auto Scan The Auto Scan supports up to 17 programmed sector angles at user-programmable speeds. Only 8 of these can be called up; the remaining can be set and used as steps in a tour if needed. Use UP/DOWN to navigate through the menu selections; use either the UP/DOWN or +/- to change the value of the selection.
  • Page 17 TITLE EDIT MENU (CTRL KEY) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ( ) ALL DELETE EXIT(ESC TO EXIT) 5.

  • Page 18: Preset

    3.5 Preset If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. In addition, Presets may be assigned the “Home” position for the dome camera. Up to 59 presets (1-59), whose positions are saved in the dome camera’s firmware, may be programmed and called up.
  • Page 19 Select “MOTION SETUP” and use RIGHT/LEFT to display the MOTION Setup menu. MOTION SETUP SENSITIVITY : 10 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY 00 ~ 20. Set POSITION ALL, CENTER.

  • Page 20: Tour

    3.6 Tour There are 8 programmable Tours. Each Tour consists of up to 40 preset positions, patterns, scans or other tours (second-level). Using second-level tours, it can be expanded to over 300 functions in a single tour. TOUR SETUP NUMBER : 01 TITLE : T01...

  • Page 21: Pattern

    9. Repeat step 2 through 8 for each desired tour. 10. Select “SAVE AND EXIT” and use RIGHT/LEFT to save these settings and exit. Use the ESC, preset 96, to exit without saving. You can expand the Tour sequence by calling other programmed Tours. NOTE: The speed applies in the Vector mode only.

  • Page 22: Privacy Zone

    3.8 Privacy Zone Use Privacy masks to hide up to 16 unwanted scenes in a camera scene. There are four pages of Privacy Zone menu. Each page has 4 Privacy Zones. PRIVACY ZONE SETUP (CTRL KEY) METHOD COLOR BLOCK BLACK BLOCK BLACK -----...

  • Page 23: Camera Menu

    3.9 Camera Menu Use UP/DOWN to navigate the menu and RIGHT/LEFT or +/- to change the settings in the Camera Setup menu. CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL CAMERA CONTROL SHARPNESS : 02 DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF...
  • Page 24 • WB (White Balance) CONTROL WB SETUP MODE : AUTO R GAIN : --- B GAIN : --- SAVE AND EXIT(ESC TO CANCEL) MODE AUTO, MANUAL, INCANDESCENT, FLUORESCENT, OUTDOOR. AUTO Computes the white balance value output using color information from the entire screen automatically. INCANDESCENT Auto white balance mode that is compatible with incandescent lighting.
  • Page 25 The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near infrared. AUTO Camera goes in to B&W mode at low light. B/W mode. Color mode. NOTE: AUTO in NIGHT SHOT function is not available in “MANUAL” mode of AE Control. ADDITIONAL AE ADDITIONAL AE SETUP : OFF...

  • Page 26: Dome Communication

    TERMINATION : OFF SAVE AND EXIT(ESC TO CANCEL) DOME ID 1 ~ 3999; Vicon’s limit is up to 255. PROTOCOL AUTO*, F2/F2E, PELCO-PD are not Vicon protocol, VICON. BAUDRATE 2400, 4800, 9600, 19200, 38400 bps; all units in the system must be set to the same baud rate.

  • Page 27: Dome Setup

    LATCH ON – Alarm message will remain on the screen even though alarm input is deactivated. OFF – Alarm message will disappear from the screen after programmed hold time when alarm input is deactivated. DWELL Time during multiple alarms, 03 to 99 seconds. ALARM OUT SETUP OUT1 : ALARM...
  • Page 28 HOME FUNCTION SETUP HOME FUNCTION SETUP FUNCTION : NONE NUMBER : --- WAITING TIME : 120 SEC ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) FUNCTION NONE, TOUR, PATTERN, AUTO SCAN, PRESET. NUMBER ---. WAITING TIME 10 ~ 240 seconds. ENABLE ON, OFF.
  • Page 29 PANNING RANGE When the dome camera is installed in certain locations, for example, near a wall, panning range can be limited by user. This menu requires using the CTRL key, preset 95. PANNING RANGE SETUP (CTRL KEY) RIGHT LIMIT : 000.0 LEFT LIMIT : 000.0 ENABLE...
  • Page 30 FACTORY DEFAULT Select “FACTORY DEFAULT” to initialize the data. FACTORY DEFAULT ARE YOU SURE ? CANCEL • DOME RESET DOME RESET ARE YOU SURE ? CANCEL This feature is used to re-calibrate the orientation of a selected dome camera. Origin offset value is not affected by this function.
  • Page 31 NORMAL PAN maximum speed 40 ~ 280/second NORMAL TILT maximum speed 40 ~ 200/second TURBO PAN maximum speed 200 ~ 300/second TURBO TILT maximum speed 90 ~ 300/second Note: The SLOW and TURBO setting do not work with Vicon protocol.
  • Page 32 HOME position after the origin check operation. ORIGIN CHECK ARE YOU SURE ? CANCEL • FUNCTION RUN The Function Run menu is not applicable in a Vicon system. • SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxx-Vx.xx H/W VERSION : Vx.xx-xxxx...

  • Page 33: Operation

    Operation The V682-PTZ can be operated from the ViconNet or Valerus VMS as well as from a keypad. Using a ViconNet VMS PTZ dome cameras can be easily operated and controlled from the ViconNet Main window. Note that an appropriate encoder must be used to with the camera and VMS.

  • Page 34: Using A Valerus Vms

    Using a Valerus VMS PTZ dome cameras can be easily operated and controlled from the Valerus Monitoring screen. Note that an appropriate encoder must be used to with the camera and VMS. 1. Select the required PTZ camera from the Resources List and drag to a tile to display. 2.

  • Page 35: Appendix A - Specifications

    Appendix A — Specifications IMAGE Optical Zoom 20X Lens 4.7 ~ 94mm Angle of View 55.5 ~ 3° (H) Image Sensor 1/2.8" SONY STARVIS CMOS sensor Color : 0.35 Lux @ 50IRE Min. Illumination BW : 0.013 Lux @ 50IRE Scanning Mode Progressive Scan Wide Dynamic Range...
  • Page 36 Operating Humidity 0 ~ 90%RH (Non-condensing) Operating Temperature -58 -~ 131° F (50 ~ 55 C) Camera 12 VDC, 24 VAC Power Supply Heater & Fan 24 VAC Camera 1 A (12 W) @ 12 VDC, 24 VAC Power Consumption Heater &...

  • Page 37: Appendix B - Programmed Presets

    Preset 83 Run Pattern 3 Preset 84 Run Pattern 4 Preset 92 Autopan Preset 93 Program Presets Store Preset 94 Camera Menu Preset 95 Camera Menu (Pelco Way) These presets work in both Vicon and Pelco C up the coax protocol.

  • Page 38: Appendix C - Troubleshooting

    Appendix C — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of equipment...
  • Page 39 50304636A...
