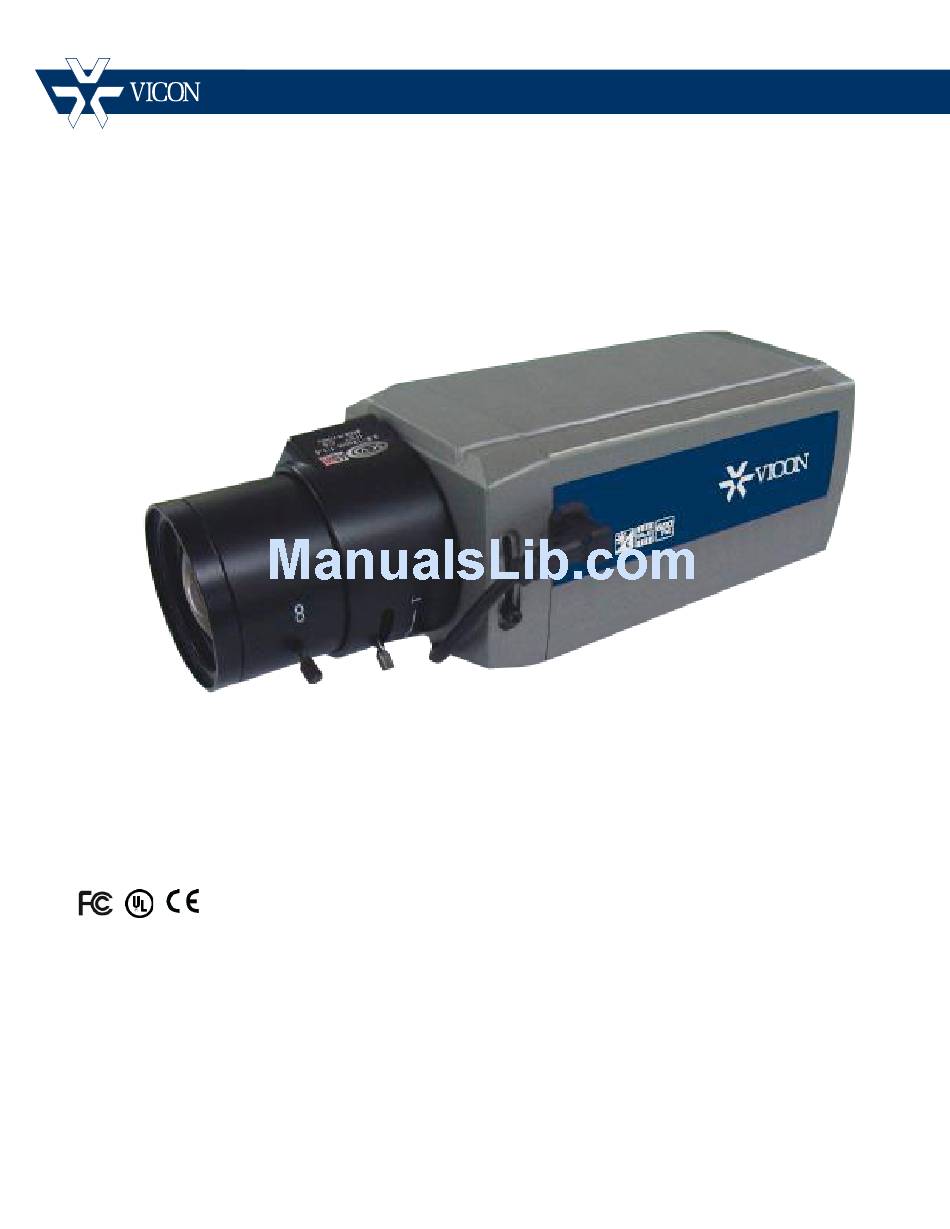

V661-N Series High-Resolution
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
Document Number: 8009-8235-01-01
Product specifications subject to change without notice.
Installation and Operation Guide
Analog Day/Night Camera
www.vicon-security.com
XX235-01-01
Copyright © 2013 Vicon Industries Inc. All rights reserved.
Issued: 513
Advertisement
Table of Contents
Related Manuals for Vicon XX235-01-01
Summary of Contents for Vicon XX235-01-01
- Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
-
Page 2: Explanation Of Graphical Symbols
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). -
Page 3: Ce Compliance Statement
FCC COMPLIANCE STATEMENT FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4 . Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. - Page 5 INTRODUCTION The camera provides high-quality images using Sony CCD technology especially designed for closed-circuit television (CCTV) and security surveillance applications. Features: High resolution and high performance 1/3" Sony Super HAD Technology Excellent picture quality 600 lines(Color) of resolution 0.1 lux(Color), 0.04lux(B/W) @ F1.2 50IRE Sensitivity Auto electronic shutter [1/60(1/50) ~ 1/100,000] and manual electronic shutter modes OSD (On Screen Display)
-
Page 6: Contents Of Package
CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The contents of the package include: Color CCD camera Mini-DIN connector (for video-or dc-type auto-iris lens) -
Page 7: Camera Overview
CAMERA OVERVIEW 1/4-20UNC 120 (4.7) SIDE VIEW FRONT VIEW BOTTOM VIEW 66 (2.6) Unit: mm (inches) REAR VIEW Left Button Up Button Enter Button Right Button Down Button Power Indicator Video Out Connector (BNC) AC/DC Compatible Input Terminal Model : V661-N / V661-N-P Left Button Up Button Enter Button... -
Page 8: Back Focus Adjustment
BACK FOCUS ADJUSTMENT When installing a zoom lens on a camera, sometimes the lens cannot be focused at either end of the zoom range. If this problem occurs, it may be necessary to adjust the camera back focus. By adjusting the back focus, the position of the pick-up device in relation to the rear of the lens is changing. -
Page 9: The Definition Of Terms
THE DEFINITION OF TERMS White Balance Compensates for deviations in the white color caused by changes in the color temperature of the light source so that the colors are reproduced correctly. Exposure Adjusts the images to the optimum brightness. SHUTTER (Electronic Shutter) Controls the integration time (exposure) of the photodiode array and reduces blooming, overexposure, and smear when capturing moving objects. - Page 10 Resolution Controls the display of fine details. The higher the resolution, the higher level of details can be seen. 2D-NR (Digital Noise Reduction) Adjusts the illuminance noise level in low light situations by reducing image noise in order to improve the image. Nega Reverses the color signals for the Chroma signal so the image looks like a “negative.”...
-
Page 11: Structure Of The Setup Menu
STRUCTURE OF THE SETUP MENU <SETUP> LENS EXPOSURE WHITE BAL <LENS> <EXPOSURE> BACKLIGHT DAY NIGHT SHUTTER MANUAL BRIGHTNESS SPECIAL IMAGE ADJ DWDR RESET RETURN EXIT < WHITE BAL > < BACKLIGHT > <DAY NIGHT> ATW1 AUTO ATW2 COLOR AWC -> SET MANUAL <IMAGE ADJUST>... -
Page 12: Lens Selection
LENS (Selection) This function is used to adjust the brightness of the screen. 1. When the SETUP menu is displayed on the screen, please position the arrow to point to 'LENS' by using the UP and DOWN buttons. 2. Please select the type of the lens you wish to use by pressing the LEFT or RIGHT button. ►... -
Page 13: White Bal
WHITE BAL The screen color can be adjusted by using the WHITE BALANCE function. 1) ATW1 Set the color temperature 2500 K 10000 K 2) ATW2 Set the color temperature 2000 K 13000 K 3) AWC -> SET Please press the ENTER button while the camera is directed at a piece of white paper to obtain the optimum state under current illumination. -
Page 14: Day Night
DAY NIGHT The DAY/NIGHT menu is used to configure the day and night related setting for this camera. This camera can turn the IR(infrared)filter on or off. Mode : AUTO / COLOR / B/W / EXT (The EXT is not operating in this mode) <DAY NIGHT AUTO MODE>... - Page 15 SPECIAL 1) CAM TITLE CAM TITLE CAM TITLE Character Table Command Line ← : Move to left → : Move to right CLR : Erase all characters ←→ CLR POS END POS : Move the position of title END : Save and End 2) MOTION AREA SELECT Select MD area number.
- Page 16 3) PRIVACY AREA SELECT Select MASK area number.(Area 1 ~ Area 8) AREA STATE Select MASK ON/OFF Adjust height of MASK area HEIGHT Adjust width of MASK area WIDTH LEFT/RIGHT Adjust the location of the MASK area with boundary LEFT and RIGHT TOP/BOTTOM Adjust the location of the MASK area with boundary TOP and BOTTOM.
-
Page 17: Image Adjust
IMAGE ADJUST 1) LENS SHAD Adjust Lens shading level (0~255) 2) 2DNR Select 2DNR ON/OFF 3) MIRROR Select MIRROR ON/OFF 4) FONT COLOR Select FONT COLOR level (0~15) Select IDR TITLE level (0~15) 5) CONTRAST Adjust CONTRAST level (0~255) 6) SHARPNESS Adjust SHARPNESS level (0~31) 7) DISPLAY Select DISPLAY mode (CRT /LCD/USER) - Page 18 IMAGE ADJUST CRT ADJUST LENS SHAD ► PED LEVEL IIIIIIIIIIIIIIIIII 2DNR COLOR GAIN IIIIIIIIIIIIIIIIII MIRROR RETURN FONT COLOR CONTRAST IIIIIIIIIIIIIIIIII SHARPNESS IIIIIIIIIIIIIIIIII ► DISPLAY NEG.IMAGE RETURN LCD AJUST ► GAMMA 0.50 PED LEVEL IIIIIIIIIIIIIIIIII COLOR GAIN IIIIIIIIIIIIIIIIII RETURN USER AJUST ►...
-
Page 19: Power Input Terminal
POWER INPUT TERMINAL AND VIDEO OUT CONNECTOR 1) POWER INPUT TERMINAL Model : V661-N / V661-N-P This terminal accepts a DC12V or AC24V power source from a DC12V or AC24V ac +/-10% 60/50Hz +/- 1Hz. Use Certified/Listed Class 2 power supply only. CLASS 2 In DC power, use the Adapter mode than DC 12V + DC 12V -... - Page 20 LENS The lens is not supplied with this camera. Purchase a lens suitable for your environment. This camera accepts the auto iris lens and both C-and CS-mount lens. * Notes * For using main functions it is recommended to use Auto Iris Lens with DC type. If the lens is marked with fingerprints other marks, the image quality might be poor.
-
Page 21: Specifications
SPECIFICATIONS MODEL V661-N V661-N P V661-N PM AC24V ± 10% / DC12V ± 10% 100 -240V ~50/60Hz +/- 10% Power source Power 200mA (2.5 Watts) 30mA (2.5 Watts) Power consumption 1/ " 3 SONY Super HAD Image sensor 795(H) x 595(V) 811(H) x 507(V) Total pixels Scanning system... - Page 24 50303036A...
