Vicon XX229-00-00 V661D-312D Installation And Operation Manual

Indoor/outdoor analog camera dome
Hide thumbs Also See for XX229-00-00 V661D-312D:
Table of Contents

Advertisement

Quick Links

Download this manual

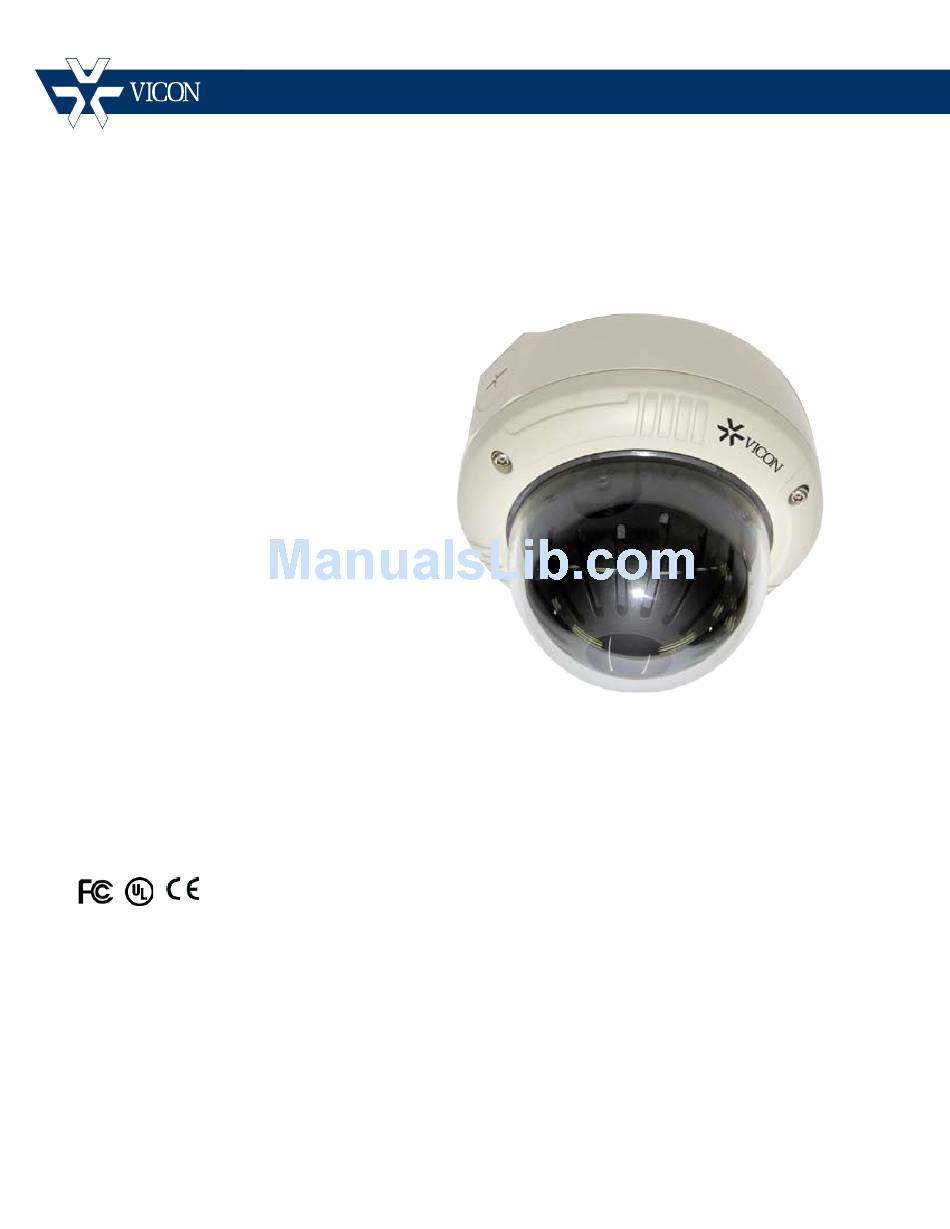

Installation and Operation Guide
XX229-00-00
V661D-312D Indoor/Outdoor
Analog Camera Dome
Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788
Tel: 631-952-2288
Fax: 631-951-2288 Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the
operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed
to be used in life-critical situations and must not be used for this purpose.
www.vicon-security.com
Document Number: 8009-8229-00-00
Issued: 0411
Product specifications subject to change without notice.
Copyright © 2011 Vicon Industries Inc. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XX229-00-00 V661D-312D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vicon XX229-00-00 V661D-312D

Summary of Contents for Vicon XX229-00-00 V661D-312D

  • Page 1 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300 Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOL The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"...

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 5 INTRODUCTION The camera provides high-quality images using Sony CCD technology especially designed for closed-circuit television (CCTV) and security surveillance applications. Features: High resolution and high performance 1/3" Sony® Super HAD™ II Technology Excellent picture quality 600 lines(Color) of resolution 0.14 Lux(Color), 0.03 Lux(B/W) @ F1.2, 30IRE Sensitivity Auto electronic shutter [1/60(1/50) ~ 1/100,000] and manual electronic shutter modes OSD (On Screen Display) Auto and manual white balance modes...
  • Page 12 CAMERA OPERATION WITH O.S.D <MAIN MENU> EXPOSURE SET COLOR SET <EXPOSURE> < COLOR > DAY & NIGHT SET LENS WB MODE SPECIAL SET E. SHUTTER MOTION DET. R-Y GAIN PRIVACY SET B-Y GAIN SETUP RETURN EXIT SENSE UP RETURN <SPECIAL> <...

  • Page 13: Osd Main Screen

    OSD MAIN SCREEN ALL operation is via the tact switch [CENTER] Turn OSD menu ON or to go into Sub Menu [UP] / [DOWN] UP or DOWN of Cursor [LEFT] / [RIGHT] Change setting <EXPOSURE SET> Press the [ENTER] button to access the “EXPOSURE SET” mode. 1) LENS : Select the type of lens.
  • Page 14 <COLOR SET> Press the [ENTER] button to access the “COLOR SET” mode WB Setting (White Balance) 1) WB MODE : Select AWC/ATW/MANUAL/PUSH LOCK (adjust white balance) Select MANUAL WB (Manual white balance mode) Sub Menu -Select M.WB R (Adjust Red level when using manual WH) Sub Menu -Select M.WB B (Adjust Blue level when using manual WH) Adjust RED gain 2) R-Y GAIN :...

  • Page 15: Set Window

    <SPECIAL SET> Press the [ENTER] button to access the “SPECIAL SET” mode 1) MIRROR : OFF/MIRROR/V_FLIP/ROTATE Selectable (left&right / up&down / rotate) Adjust Sharpness (Image sharpness can be adjusted) 2) SHARPNESS : GAMMA Setting 3) GAMMA : Select 0.45/0.6/1.0(Adjust gamma level) Image freeze function 4) FREEZE : Y Signal,Color Reverse function...
  • Page 16 <PRIVACY SET> Press the [ENTER] button to access the “PRIVACY SET” Mode MASK1 Screen setting 1) MASK1 : MASK2 Screen setting 2) MASK2 : MASK3 Screen setting 3) MASK3 : MASK4 Screen setting 4) MASK4 : MASK5 Screen setting 5) MASK5 : MASK6 Screen setting 6) MASK6 : Return to Main menu.

  • Page 18: Specifications

    SPECIFICATIONS Power source AC24V ± 10% / DC12V ± 10% Power Power consumption 160mA (4.0 Watts) 1/3" Sony Super HAD II Image sensor Total number of pixels NTSC : 811(H) x 508(V), PAL : 795(H) x 596(V) Scanning system 2:1 interlace NTSC : 15.734KHz(H) x 59.94Hz(V) Scanning frequency PAL : 15.625KHz(H) x 50Hz(V)
  • Page 19 Mirror OFF / MIRROR / V-FLIP / ROTATE Sync INTER / AUTO Zoom & Pan/Tilt ZOOM (X1~X3), PAN(-128~+127), TILT(-82~+81) V - Phase (LineLock) 0 ~ 199 Camera ID 0 ~ 254 EXIT EXIT / SAVE & EXIT / FACTORY SET Power input 2-Pin Wire Video output...

  • Page 20: Vicon Standard Equipment Warranty

    Vicon Security Management Systems (SMS) All Models: All hardware is warranted for two years from date of original retail purchase. 10. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase.
  • Page 21 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3...
