E. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metric spanner set
This barbecue requires two people for assembly. Please remove all packaging materials from all individual parts
before assembling. Please lay out all nuts and bolts and check lengths before assembling. Whilst every care is
taken during the manufacture of this product, care must be taken during the assembly in case sharp edges are
present.
1
Excel 100
C6
2
Excel 100
C3
C7
C2
C1
Excel 200

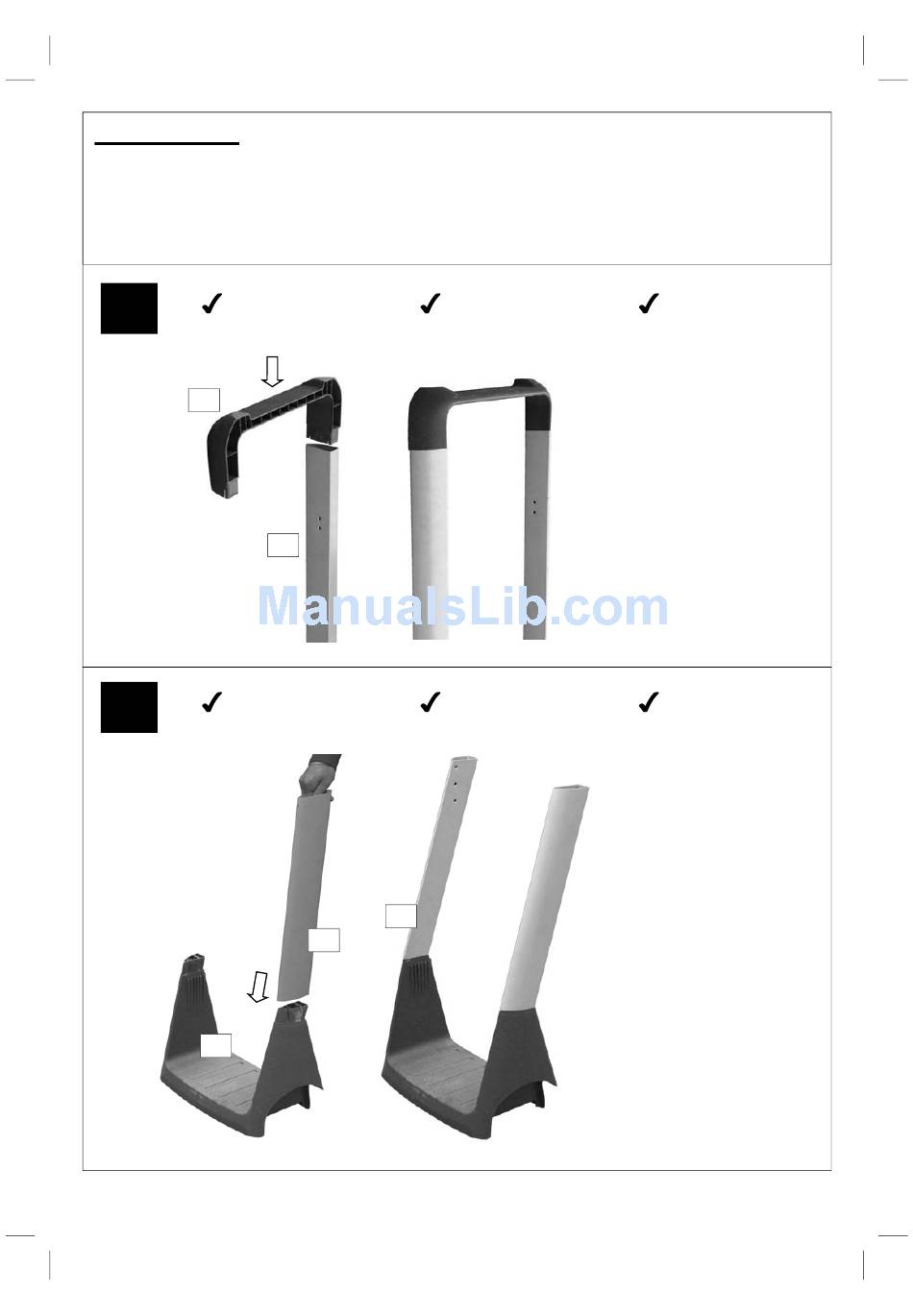

Attach the Long Leg
Front (C7) and Long
Leg Rear (C8) to the
Leg End Loop (C6).
The legs are a push fit
onto the Leg End Loop.
In case of difficulty, they
may need tapping with
a soft faced mallet.
Take care not to dam-
age the parts.
Excel 200
Attach the Short Leg
Front (C1) and Short
Leg Rear (C2) to the
Gas
(C3). The legs are a
push fit onto the Gas
Cylinder Holder. In case
of difficulty; they may
need tapping with a soft
faced mallet. Take care
not
parts.
9
Excel 300
Excel 300
Cylinder Holder
to damage the
