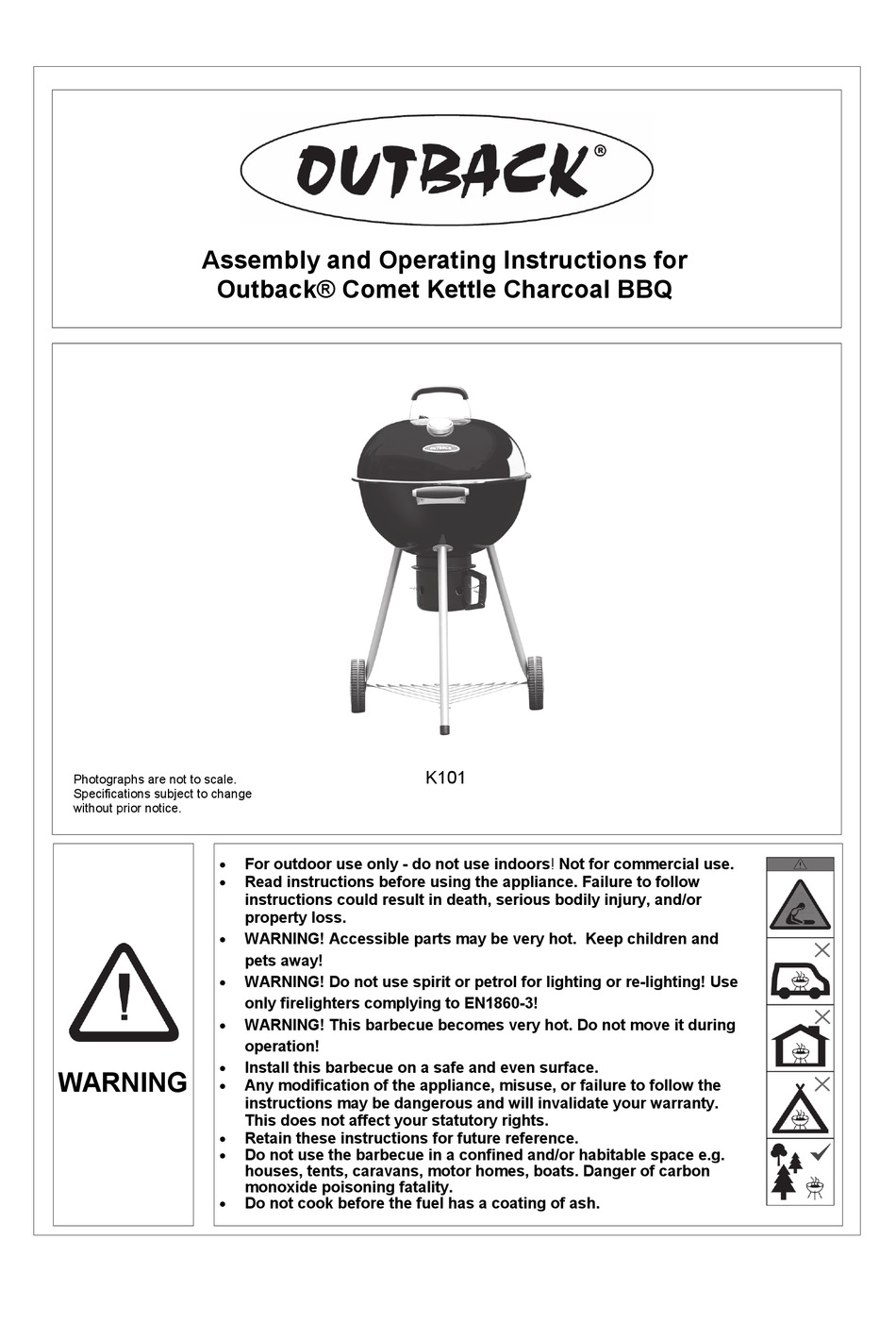

Assembly and Operating Instructions for

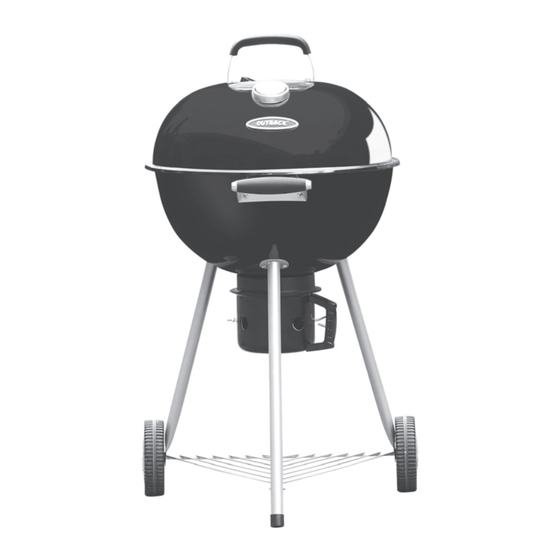

Outback® Comet Kettle Charcoal BBQ
Photographs are not to scale.
Specifications subject to change
without prior notice.






WARNING




For outdoor use only - do not use indoors! Not for commercial use.
Read instructions before using the appliance. Failure to follow
instructions could result in death, serious bodily injury, and/or
property loss.
WARNING! Accessible parts may be very hot. Keep children and
pets away!
WARNING! Do not use spirit or petrol for lighting or re-lighting! Use
only firelighters complying to EN1860-3!
WARNING! This barbecue becomes very hot. Do not move it during
operation!
Install this barbecue on a safe and even surface.
Any modification of the appliance, misuse, or failure to follow the
instructions may be dangerous and will invalidate your warranty.
This does not affect your statutory rights.
Retain these instructions for future reference.
Do not use the barbecue in a confined and/or habitable space e.g.
houses, tents, caravans, motor homes, boats. Danger of carbon
monoxide poisoning fatality.
Do not cook before the fuel has a coating of ash.
K101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Comet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Outback Comet

Summary of Contents for Outback Comet

  • Page 1 Assembly and Operating Instructions for Outback® Comet Kettle Charcoal BBQ K101 Photographs are not to scale. Specifications subject to change without prior notice.  For outdoor use only - do not use indoors! Not for commercial use.  Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Comet CODE PART Kettle Charcoal BBQ Hood  Outback® Logo Badge ...

  • Page 3: Parts Diagram

    Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
  • Page 4 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,  adjustable spanner or metric spanner set. Remove any internal components or packaging from the barbecue body.  Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
  • Page 5 Attach the Left Rear Leg (C2) and the Grill Bracket (B6) onto the Barbecue Body(B1) using the M6x12 bolts (D1x2pcs), M6 washers (D4X2pcs) and M6 Nuts(D2x2pcs) as shown. Repeat the above process for the Right Rear Leg(C3). Attach the Leg Support Rack (C4) onto the legs as shown.
  • Page 6 Slide the Wheels (C5) onto each straight bar of the leg support rack. Secure the wheels into place with the Axle Nut (D7x2pcs) . Place the Wheel Hubcaps (C6) onto the outside of the wheels. Attach the Ash Tray Bracket (B8) onto the Barbecue Body (B1) using the M5x12 bolts (D5x3pcs) and M5 Nuts (D6x3pcs) as shown.
  • Page 7 Place the Ash Tray (B9) into position underneath the Ash Tray Bracket (B8). Place the Charcoal Grill (B2) onto the lower brackets in the barbecue body. Ensure the charcoal grill lies level within the body. Place the Cooking Grill (B3) onto the upper brackets in the barbecue body. Ensure the cooking grill lies level within the body.
  • Page 8 Attach the Hood Handle (A4) and Hood Hook (A3) onto the Hood (A1) using the Hood Handle Half-moon Bolt, M6x12 (D8x2pcs), M6 washers (D4X2pcs) and M6 Nuts (D2x2pcs) as shown. Attach the Air Vent (A5) onto the Hood (A1) using the M5x12 bolt (D5x1pc) and M5 Nut (D6x1pc) as shown.
  • Page 9 Attach the Heat Indicator (A6) and Heat Indicator Bezel (A7) onto the Hood (A1) using the M8 Nut (D3x1pc) as shown. ASSEMBLY IS NOW COMPLETE. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE.
  • Page 10 Grill Lifting Handle usage reference To remove the cooking grill for adding charcoal.

  • Page 11: Installation

    not the ash tray. Important Information  Ensure the ash tray is in place before use. Please read these instructions carefully  Do not move the cooking grill and charcoal before assembly and use of your barbecue. grill until after the appliance has completely cooled down.
  • Page 12 used at any one time is 2.0kg. Heat Control  When placing charcoal, never allow charcoal The adjustable vents in the hood and ash tray can be used to control the burning of the to be closer than 5cm to the surrounding charcoal.

  • Page 13: Care And Maintenance

    directly onto the charcoal. Always protect your storage. Ensure barbecue hands when handling anything near the cooking components sufficiently cool before surface of the barbecue and take care to protect cleaning. Do not leave the barbecue exposed yourself from the flames. to outside weather conditions or stored in damp, moist areas.
  • Page 14 can result in a fat fire. This can be hazardous Notes: and severely damage the barbecue. This is not a fault in the barbecue and is therefore not covered by the terms of the warranty. If required, the tray can be washed in hot soapy water.
  • Page 15 OUTBACK® WARRANTY OUTBACK® barbecues are warranted to the original purchaser against defects in materials and workmanship. OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
