Sukhoi SU-29MM (Gen 2)
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sukhoi SU-29MM and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby Sukhoi SU-29MM

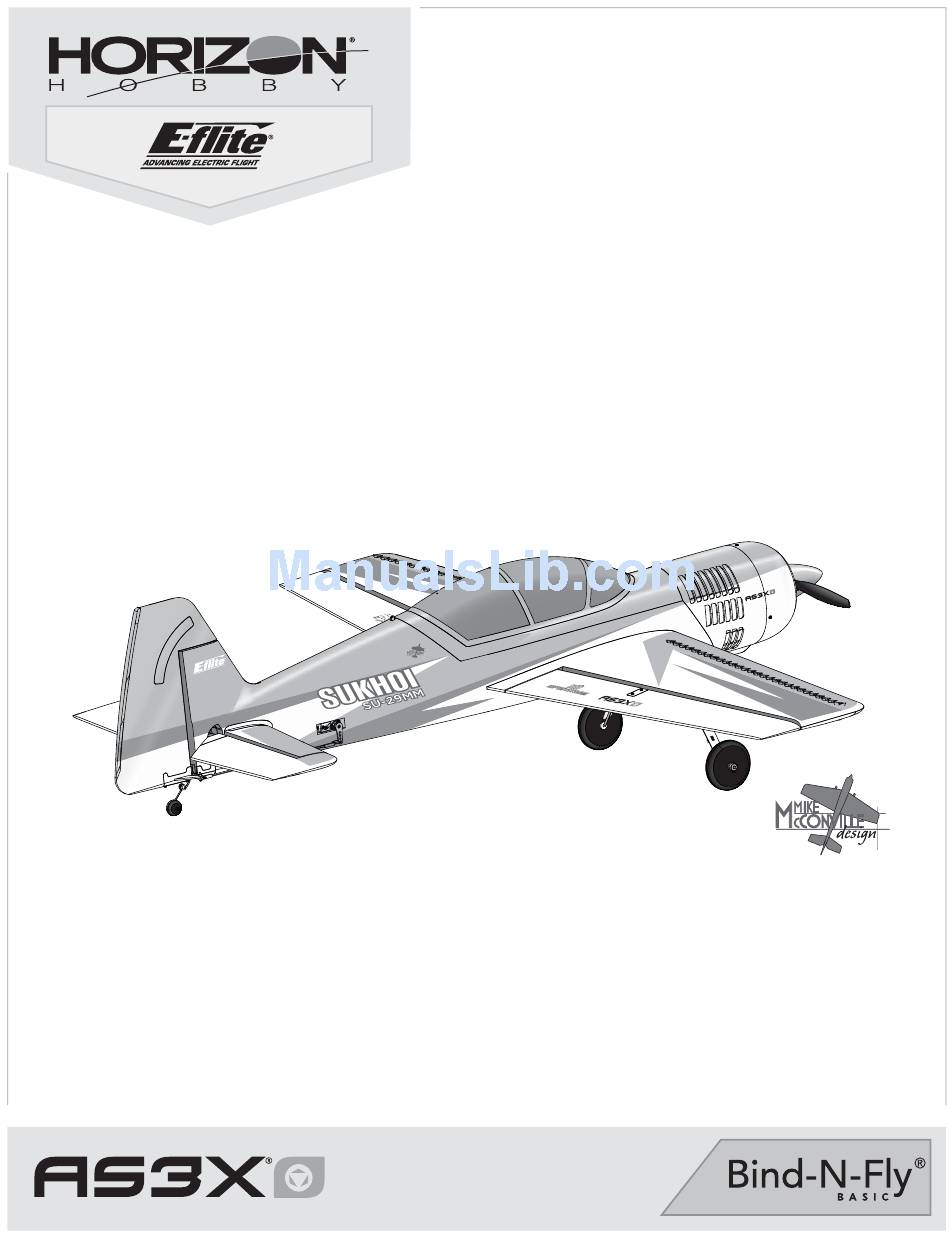

  • Page 1 Sukhoi SU-29MM (Gen 2) Instruction Manual Bedienungsanleitung Manuel d’utilisation Manuale di Istruzioni...
  • Page 2: Safety Precautions And Warnings

    Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warn- ings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    Box Contents Quick Start Information Panic Choose to fl y your aircraft with the Panic Feature feature ON or OFF and bind accordingly. Using the If you choose to fl y with the Panic Panic feature ON, you will need to follow the transmitter setup section of this manual.
  • Page 4: Transmitter And Receiver Binding / Switching On And Off Panic Recovery Feature

    If the receiver loses transmitter communication, the failsafe will activate. When activated, failsafe moves the throttle channel to its preset failsafe position (low throttle) that was set during binding. All other channels move to actively level the aircraft in fl ight. Sukhoi SU-29MM...
  • Page 5: Transmitter Setup

    (SPMA3065) (sold separately) must be used for AirWare™ software updates. Model Setup We recommend downloading the Sukhoi SU-29MM DXe model setup available at www.spektrumrc.com. Use your PC and USB programming cable SPMA3065 (sold separately). Scan the QR code for model setup page for the DXe Transmitter. Then locate the sukhoi SU-29MM in the list of aircaft.
  • Page 6: Model Assembly

    Y-harness. 6. Replace the canopy. Disassemble in reverse order. IMPORTANT: Correct operation of the AS3X system requires connection of both ailerons to the included Y-harness and the AILE channel of the receiver. 3 X 22mm (2) Sukhoi SU-29MM...
  • Page 7: Model Assembly Continued

    Model Assembly Continued Horizontal Tail Installation 1. Slide the horizontal tail tube (A) into the hole in the rear of the fuselage. 2. Install the left and right horizontal tails (B) onto the fuselage as shown. Ensure the control horn faces down. 3.
  • Page 8: Control Horn And Servo Arm Settings

    7. Reinstall the battery hatch. Push the rear of the battery hatch securely to ensure the latch is fully engaged. CAUTION: Always keep hands away from the propeller. When armed, the motor will turn the propeller in response to any throttle movement. Sukhoi SU-29MM S kh i SU 29MM...
  • Page 9: Center Of Gravity (Cg)

    Center of Gravity (CG) The CG location is 82mm back from the leading edge of the wing at the root. For fi rst fl ights, install the recommended fl ight battery all the way forward. Secure the battery with the strap as shown. Aircraft CG and weight is based on an E-fl...
  • Page 10: As3X Control Direction Test

    If more than 4 clicks of trim are required for straight and level fl ight, land the aircraft and cycle the power OFF/ON. This will allow the receiver to learn the correct trim settings to optimize AS3X performance. Sukhoi SU-29MM...
  • Page 11: Flying Tips And Repairs

    Flying Tips and Repairs Consult local laws and ordinances before choosing a fl ying location. at the same time. When the aircraft touches down, reduce back pressure on the elevator stick to prevent the plane from becoming airborne again. Range Check your Radio System Keep the throttle on until the aircraft is ready to fl...
  • Page 12: Motor Service

    5 seconds battery connection Incorrect response Incorrect direction settings to the AS3X Control in the receiver, which can DO NOT fl y. Correct the direction settings (refer to the receiver manual), then fl y Direction Test cause a crash Sukhoi SU-29MM...
  • Page 13: Troubleshooting Guide

    Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not re- Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater spond to throttle but responds to other Throttle channel is reversed...
  • Page 14: Ama National Model Aircraft Safety Code

    (b) An inexperienced pilot is assisted by an experienced pilot. 4. When and where required by rule, helmets must be properly worn and fastened. They must be OSHA, DOT, ANSI, SNELL or NOCSAE approved or comply with comparable standards. Sukhoi SU-29MM...
  • Page 15: Limited Warranty

    Product, (iv) attempted service by copy of your original sales receipt must be included for warranty consideration. anyone other than a Horizon Hobby authorized service center, (v) Product not Be sure your name, address, and RMA number are clearly written on the purchased from an authorized Horizon dealer, or (vi) Product not compliant outside of the shipping carton.
  • Page 16: Contact Information

    Compliance Information for the European Union EFL Sukhoi SU-29MM BNF Basic (EFL8850) EU Compliance Statement: Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provi- sions of the R&TTE and EMC Directive.
  • Page 17: Replacement Parts

    Spektrum DX18 DSMX 18 Kanal Emetteur DX18 DSMX 18 voies DX18 DSMX Trasmettitore 18 canali Transmitter Sender DX20 DSMX 20-Channel Spektrum DX 20 DSMX 20 Kanal Emetteur DX 20 DSMX 20 voies DX 20 DSMX Trasmettitore 20 canali Transmitter Sender Sukhoi SU-29MM...
  • Page 18 E-fl ite, AS3X, DSM, DSM2, DSMX, the DSMX logo, Bind-N-Fly, SAFE, Z-Foam, ModelMatch, Dynamite, EC3, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
